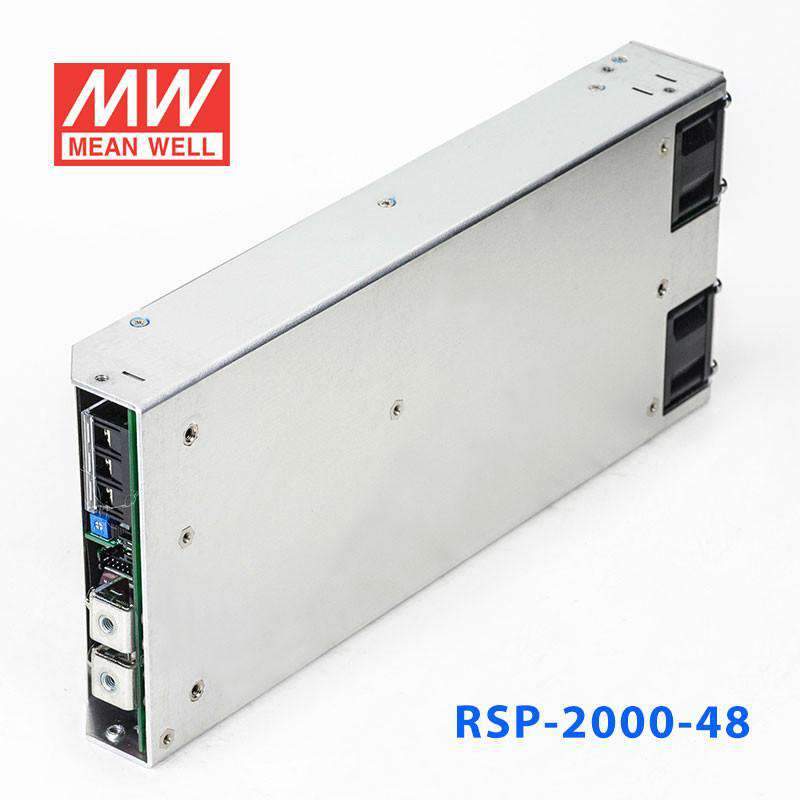

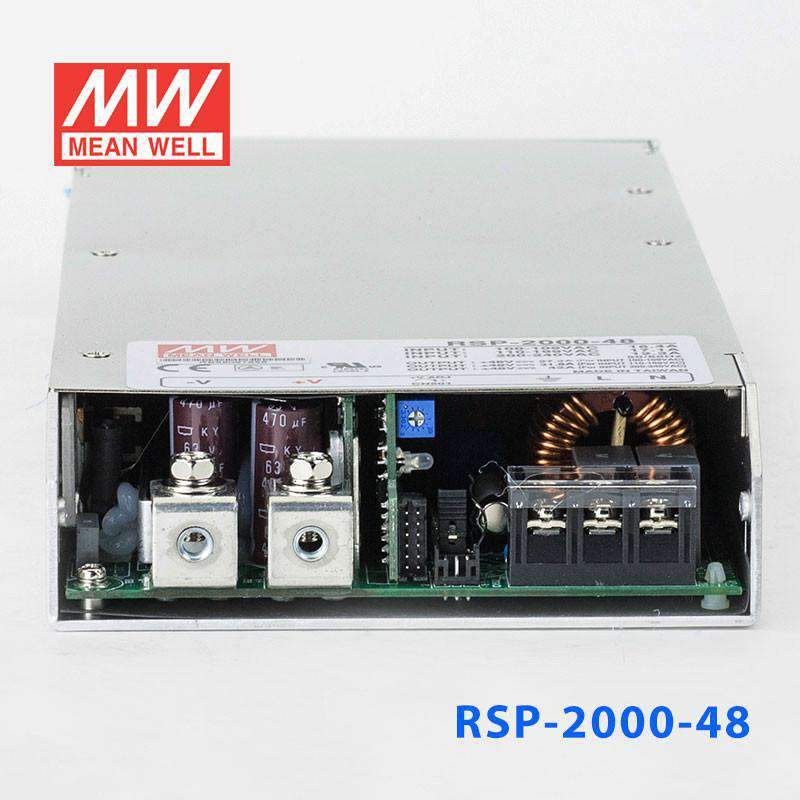

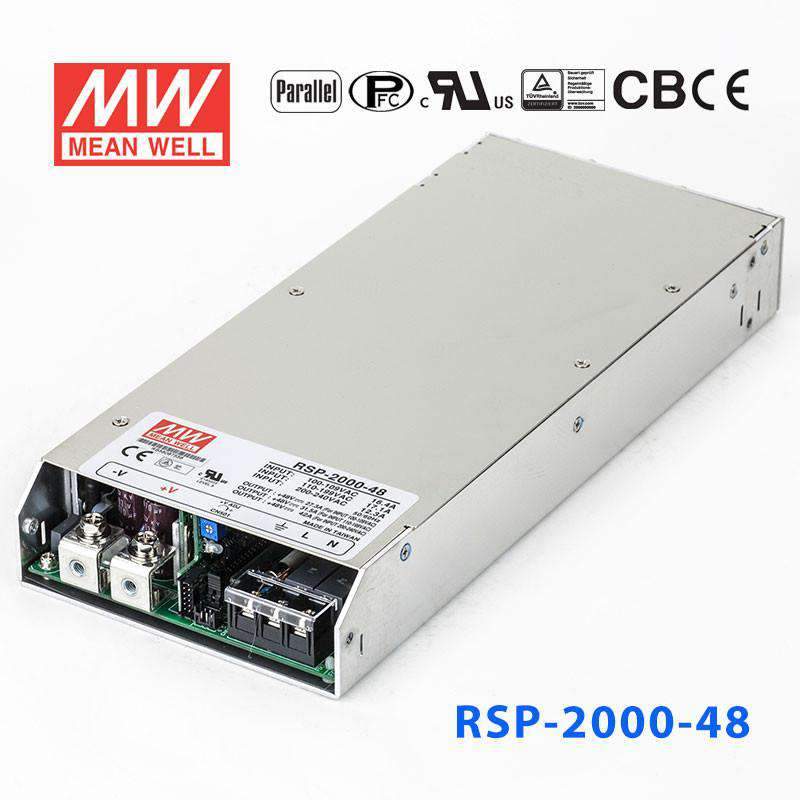

Name: Mean Well RSP-2000-48 Power Supply 2016W 48V 42A
Brand: Mean Well
SKU: RSP-2000-48
Price: 491.06 USD
Availability: InStock

Overview

RSP-2000-48 is the 48V output model of this series: rated current 42A, rated power 2016W, typical efficiency 92%.

RSP-2000 is a 2KW single output enclosed type AC/DC power supply with 1U low profile. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-2000 provides vast design flexiblity by eqiupping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 92%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 8000W (3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RSP-2000-48Specifications from the official datasheet (2026-04-24 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 42A
CURRENT RANGE: 0 ~ 42A
RATED POWER: 2016W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 42 ~ 56V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.4,5: 90 ~ 264VAC 250 ~ 320VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.)^Note.4: 16A/115VAC 10A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
OVER VOLTAGE: 57.6 ~ 67.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 40 ~ 115% of nominal output voltage. Please refer to the Function Manual.
CURRENT SHARING: Up to 8000W or (3+1) units. Please refer to the Function Manual.
AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:open Power OFF:short. Please refer to the Function Manual.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual.
DC OK SIGNAL: The isolated TTL signal out. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -35 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, BIS IS13252(Part1): 2010/IEC 60950-1:2005 (except 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), CNS15936 Class B
Radiated BS EN/ EN55032 (CISPR32), CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY^{Note 6}: BS EN/ EN55035, BS EN/ EN61000-6-2, BSMI CNS13438

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), CNS15936	Class B
Radiated	BS EN/ EN55032 (CISPR32), CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 487.7K hrs min. Telcordia SR-332 (Bellcore) ; 42.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 295*127*41mm (L*W*H)
PACKING: 1.95Kg; 6pcs/12.7Kg/1.15CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Please contact MEANWELL for 320~370VDC application.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

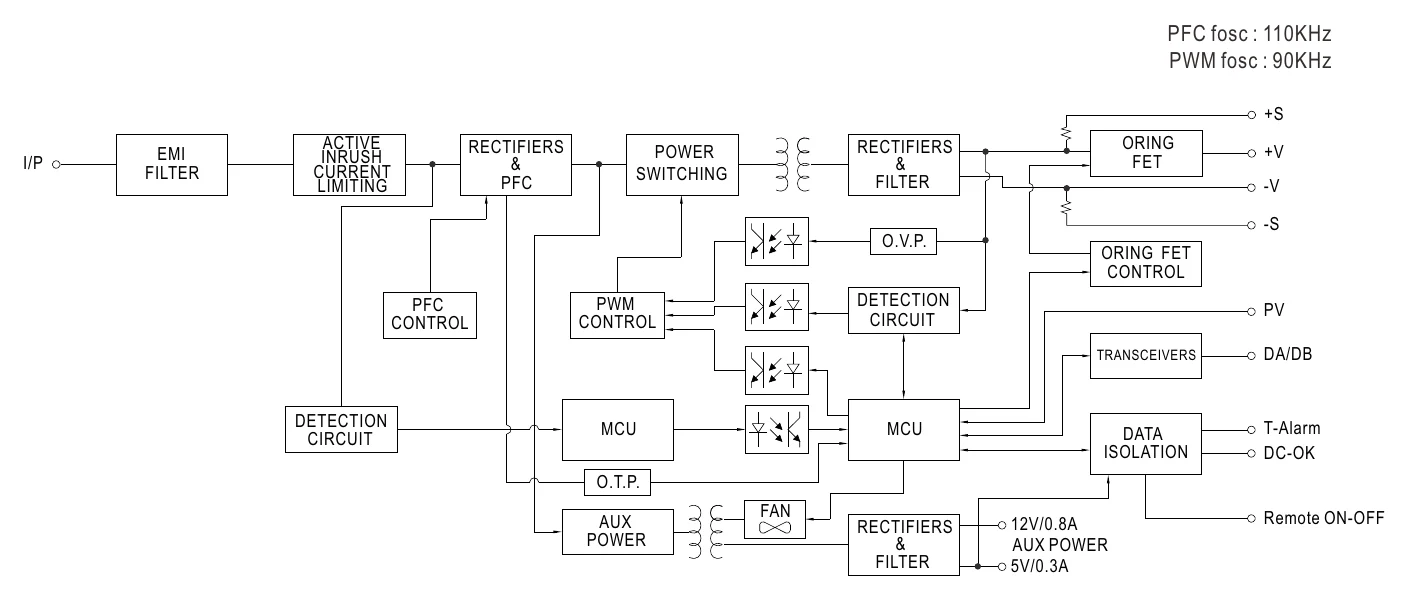

RSP-2000-48 Block Diagram — Block Diagram

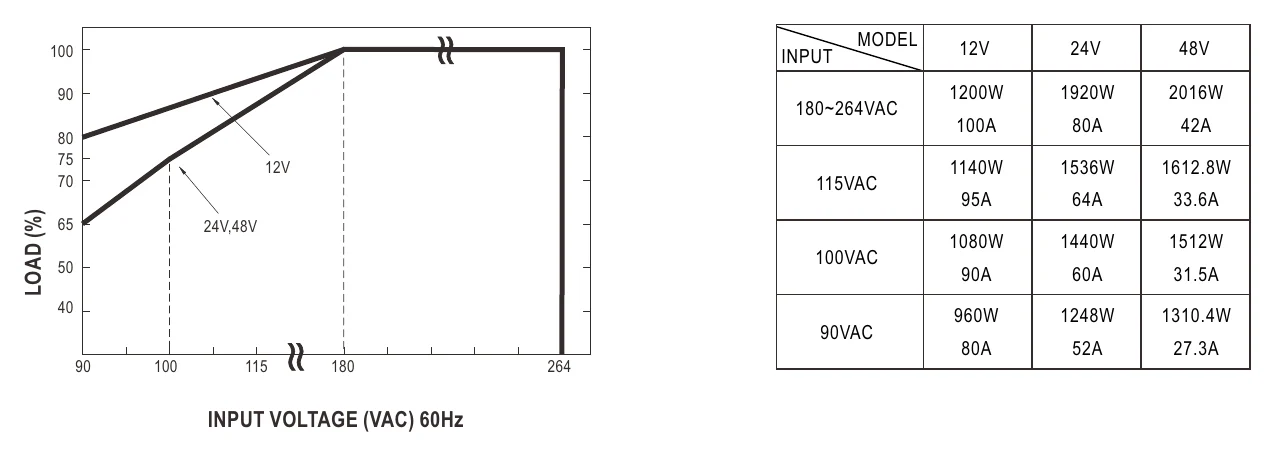

RSP-2000-48 Static Characteristics — Static Characteristics

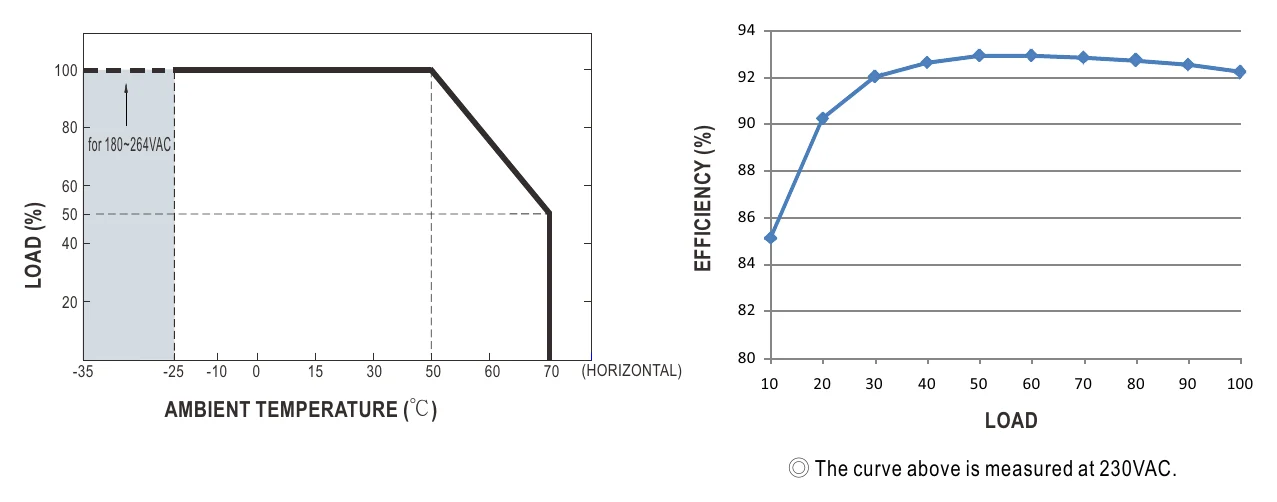

RSP-2000-48 Derating Curve — Derating Curve

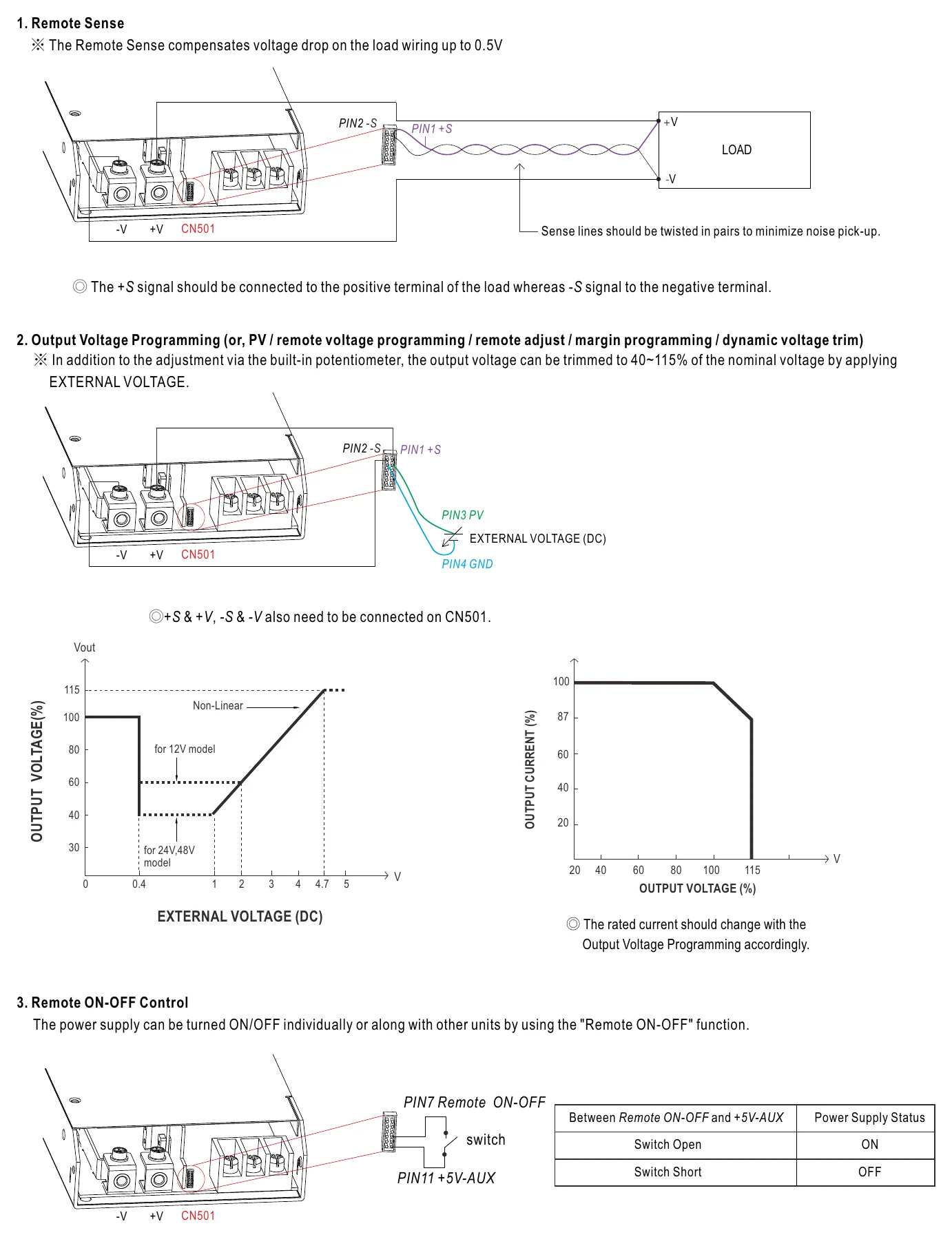

RSP-2000-48 Function Manual — Function Manual

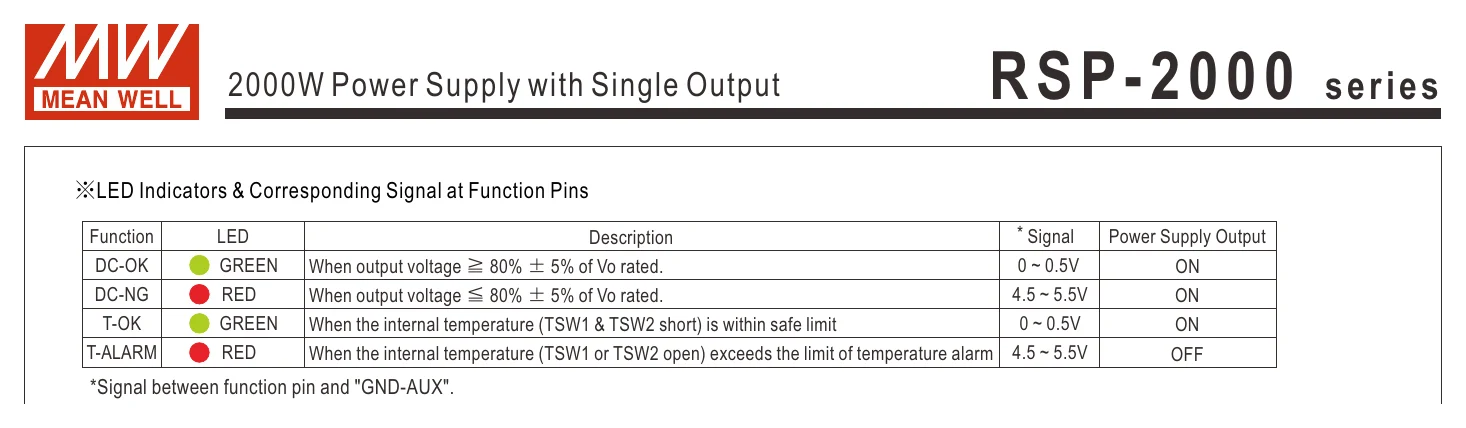

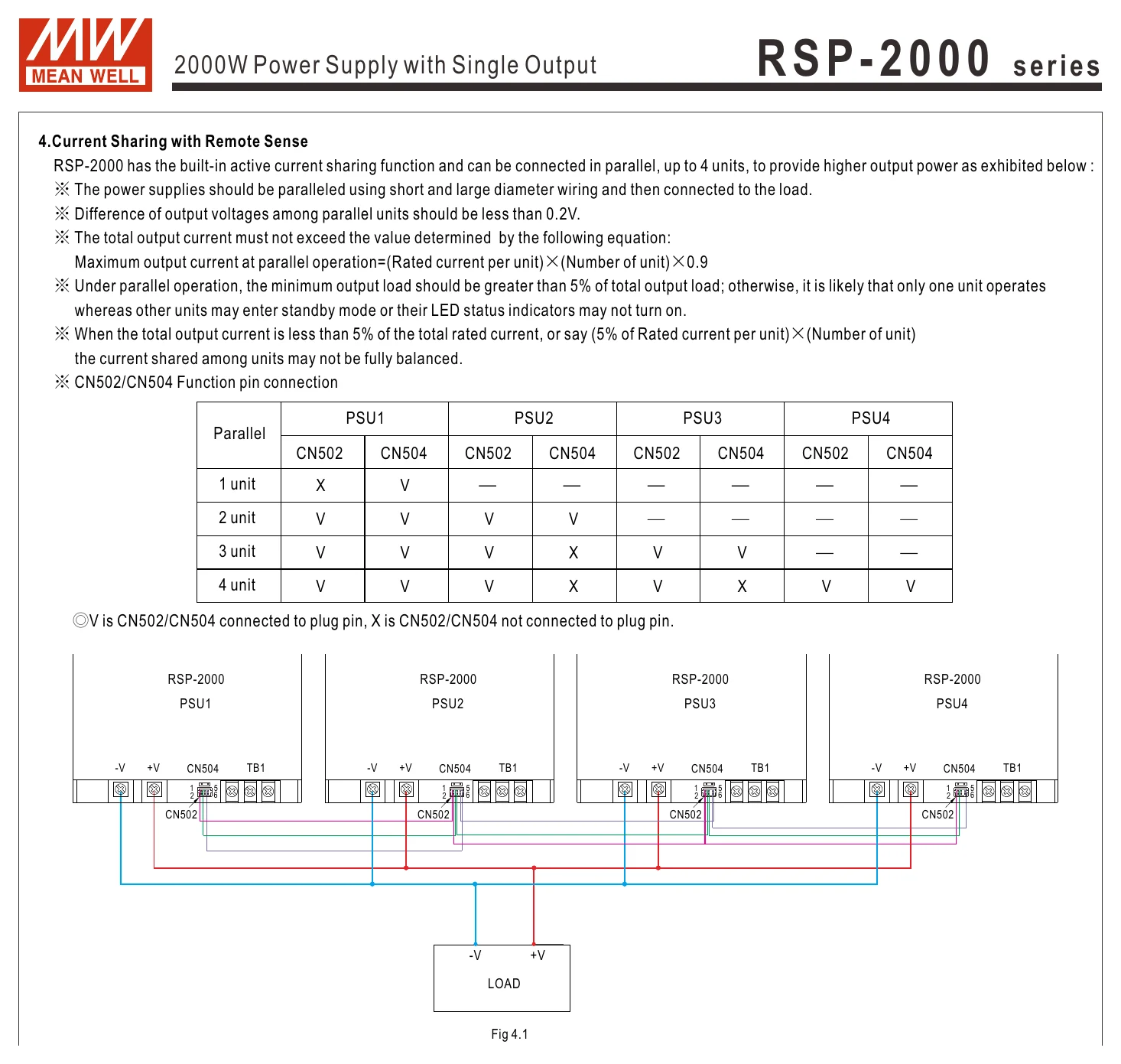

RSP-2000-48 R S P - 2 0 0 0 series — R S P - 2 0 0 0 series

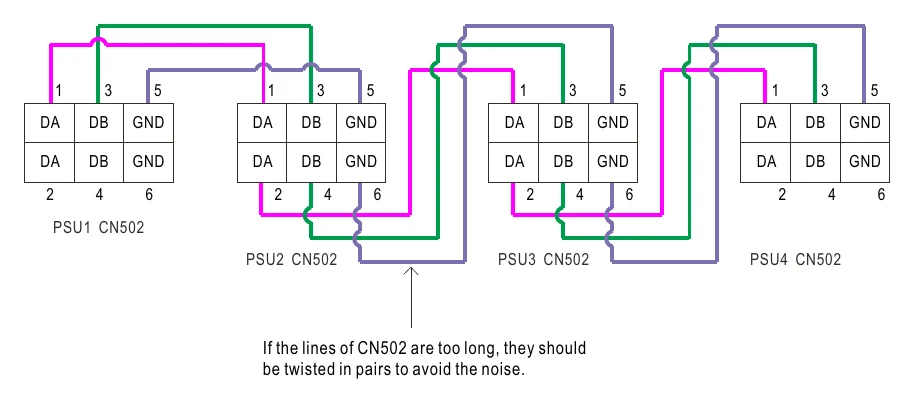

RSP-2000-48 R S P - 2 0 0 0 series (2) — R S P - 2 0 0 0 series (2)

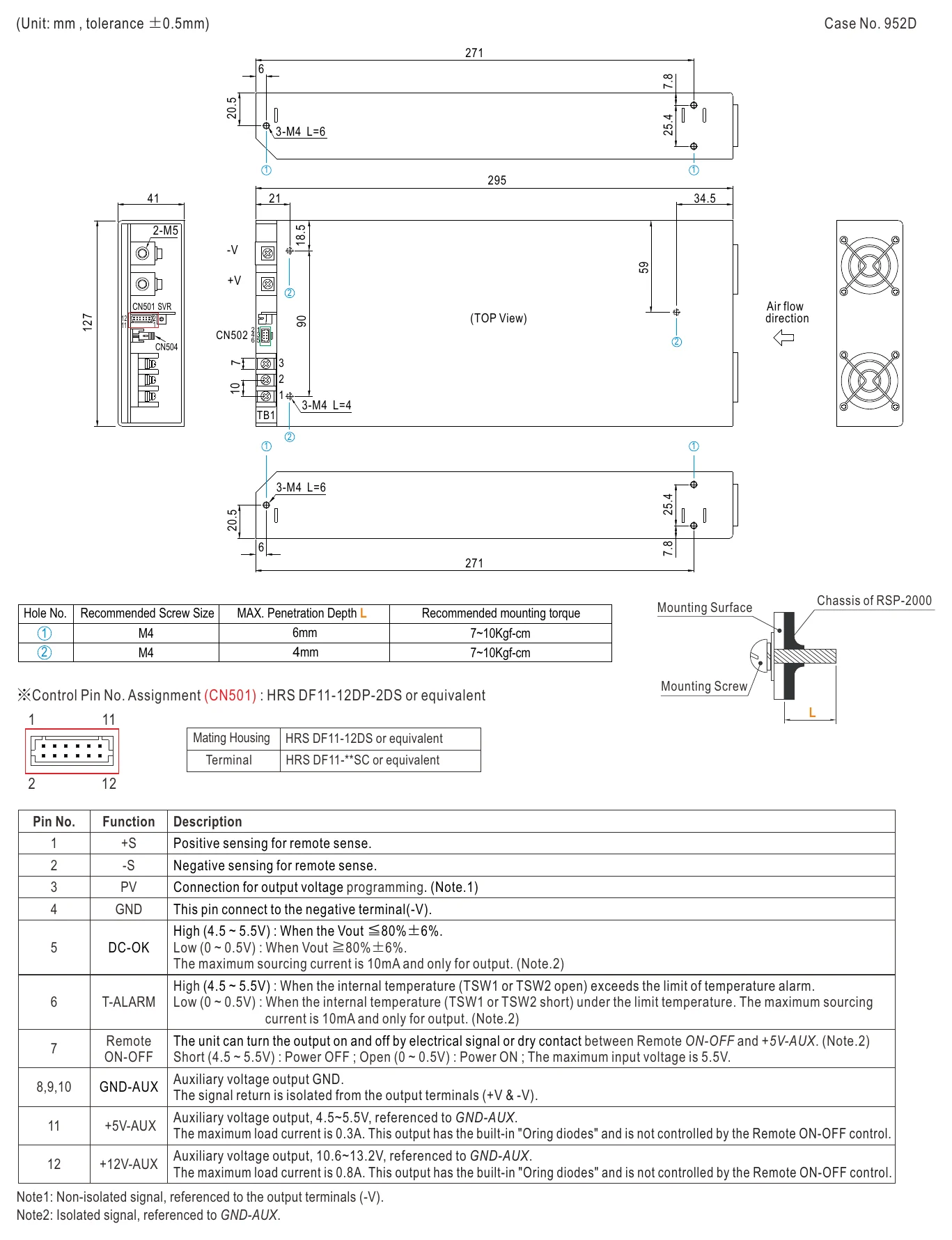

RSP-2000-48 Mechanical Specification — Mechanical Specification

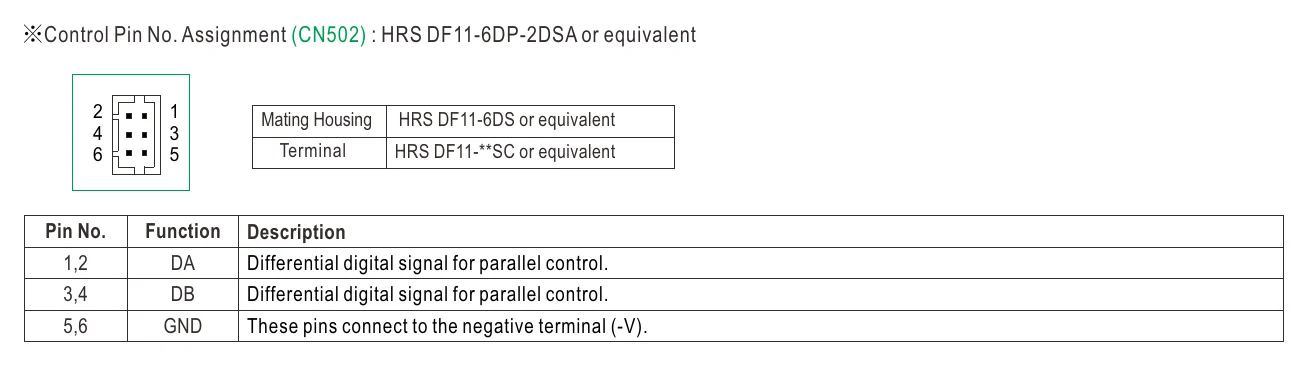

RSP-2000-48 ※Control Pin No. Assignment (CN502) : HRS DF11-6DP-2DSA… — ※Control Pin No. Assignment (CN502) : HRS DF11-6DP-2DSA…

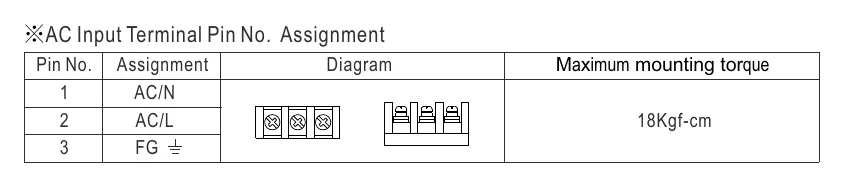

RSP-2000-48 ※AC Input Terminal Pin No. Assignment — ※AC Input Terminal Pin No. Assignment

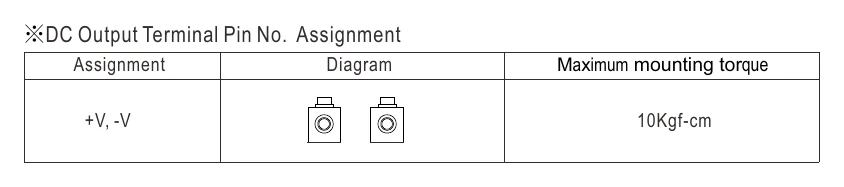

RSP-2000-48 ※DC Output Terminal Pin No. Assignment — ※DC Output Terminal Pin No. Assignment

Typical applications

Downloads

Certificates4

UL Certificate (RSP-2000)(EN) PDF Download

CB Certificate (RSP-2000)(EN) PDF Download

TUV Certificate (RSP-2000)(EN) PDF Download

EMC Certificate (RSP-2000)(EN) PDF Download

Test reports1

Test Report (RSP-2000-48)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What industrial applications is the RSP-2000-48 suited for?

The RSP-2000-48 delivers 2016W at 48V with a 42A output, making it well-suited for powering DC motor drives, industrial automation controllers, and high-density server rack infrastructure. Its -35°C to +70°C operating range supports demanding factory and data center environments.

Is the RSP-2000-48 rated for operation in cold environments?

Yes. The RSP-2000-48 operates from -35°C to +70°C. It is intended for indoor enclosed installations and carries certifications including UL, CSA, TÜV, BSMI, AS/NZS, BIS, and EAC.

How does the RSP-2000-48 compare to the RSP-2400-48 and RSP-3000-48?

Within the 48V RSP line, the RSP-2000-48 provides 2016W and 42A from a 90-264VAC input. The RSP-2400-48 and RSP-3000-48 are higher wattage models in the series. The RSP-2000-48 accepts the full 90-264VAC range, making it a flexible choice where wide-range AC input is needed.

Does the RSP-2000-48 support paralleling for higher current output?

Yes. The RSP-2000-48 features active current sharing, rated for up to 3+1 units in parallel. This allows system designers to scale output current beyond the single-unit 42A rating while using a built-in N+1 redundancy configuration.

What is the efficiency of the RSP-2000-48?

The RSP-2000-48 achieves efficiency up to 92% and includes built-in active PFC. The unit weighs 1.95 kg and measures 295.0 × 127.0 × 41.0 mm, making it a compact choice for high-wattage 48V applications.
