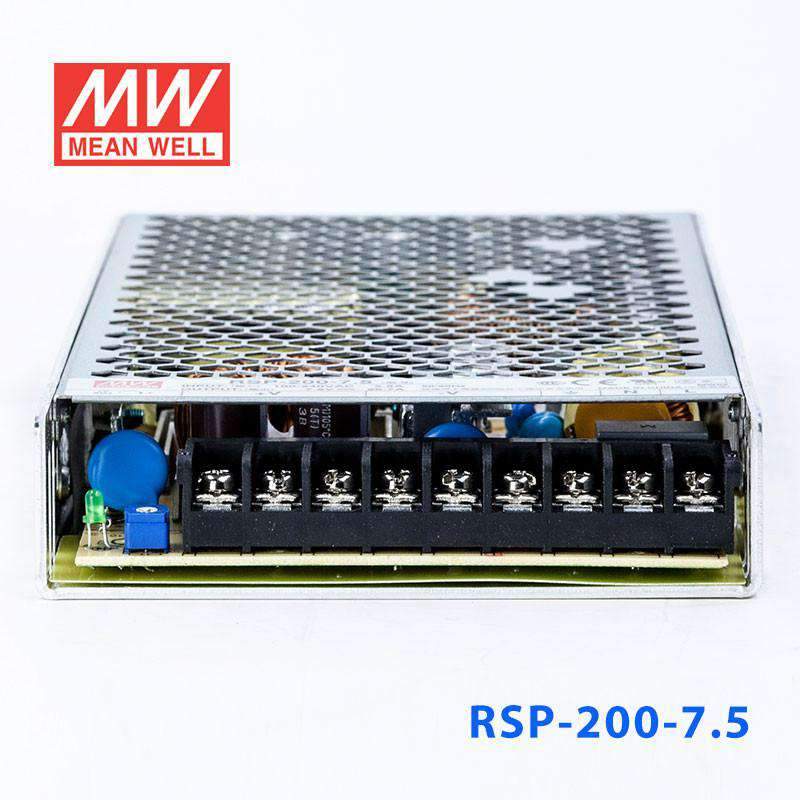

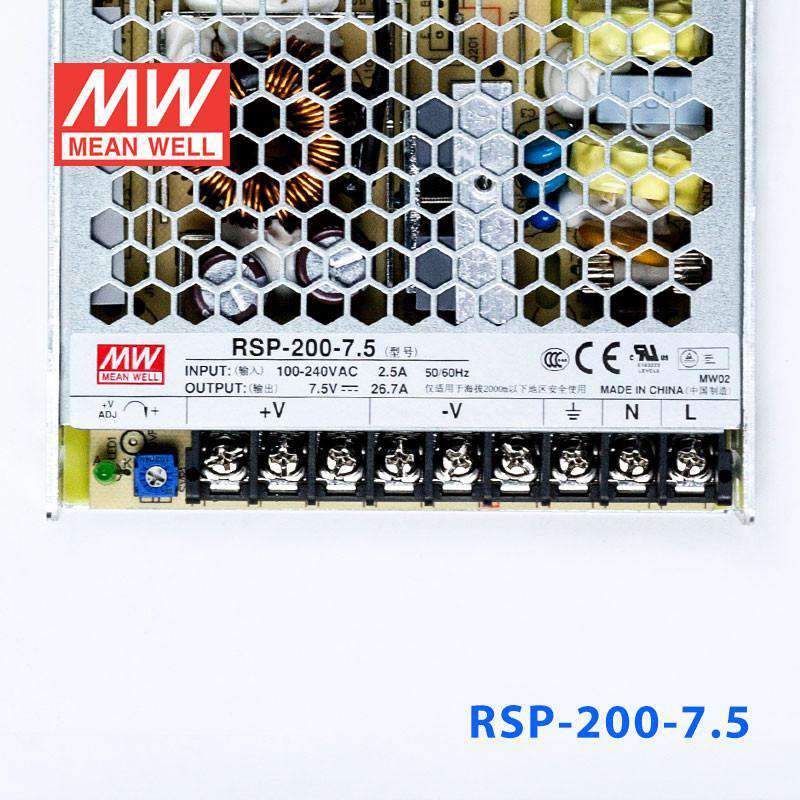

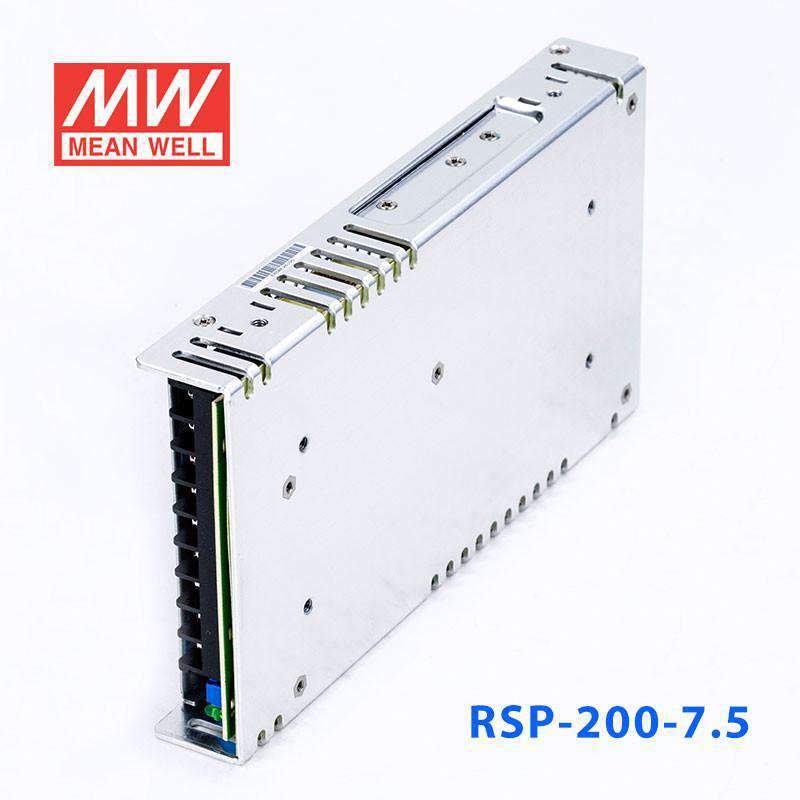

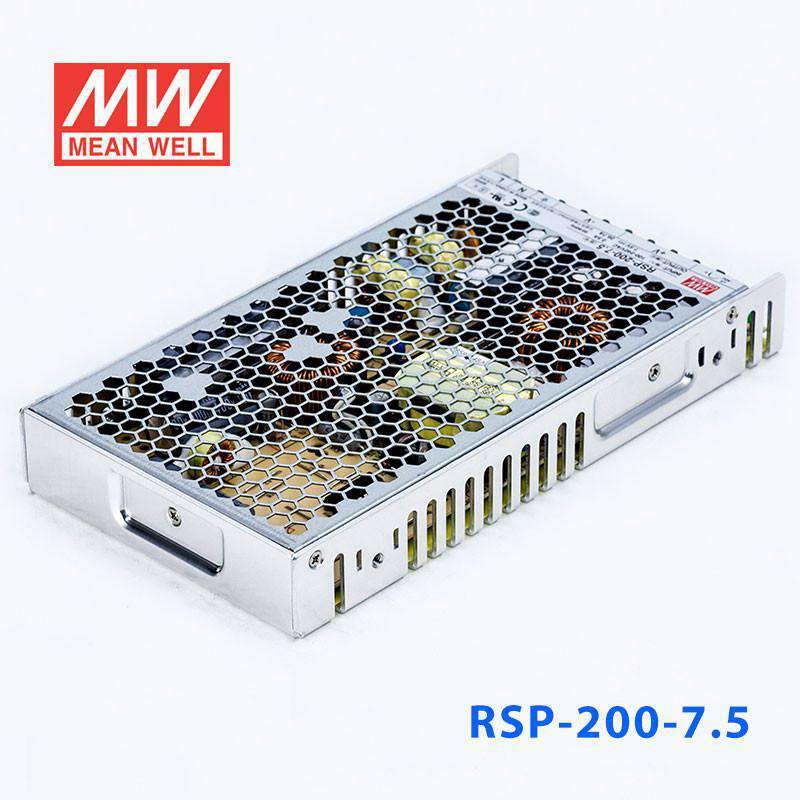

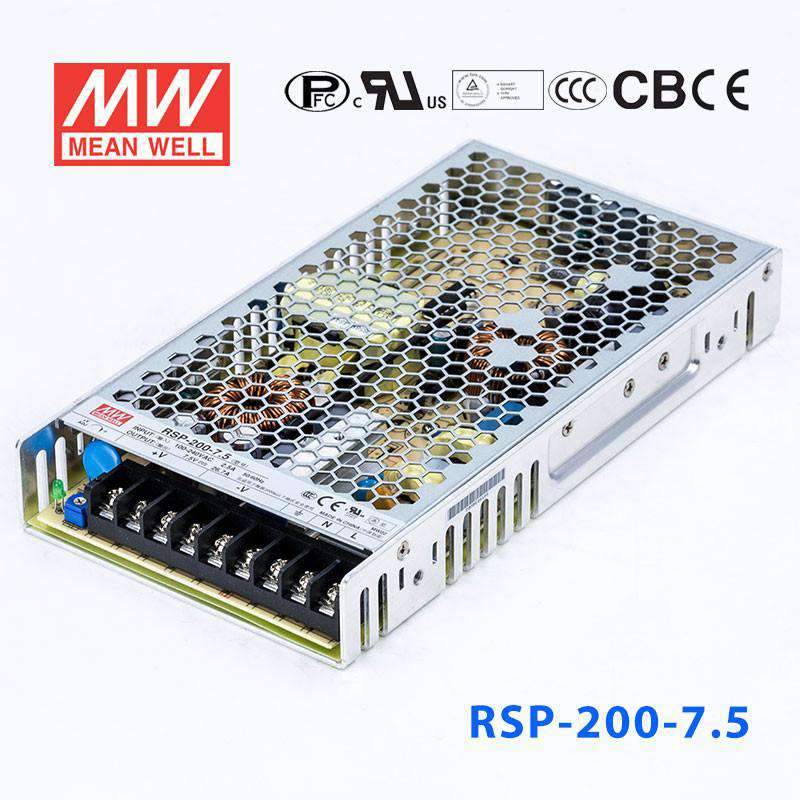

Mean Well RSP-200-7.5 Power Supply 200W 7.5V 26.7A

Name: Mean Well RSP-200-7.5 Power Supply 200W 7.5V 26.7A
Brand: Mean Well
SKU: RSP-200-7.5
Price: 54.28 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-200-7.5

$54.28 USD

Shipping calculated at checkout.

Select model — 5 in this family

RSP-200-7.5

RSP-75-7.5 75W 7.5V Low stock$40.88 USD

RSP-100-7.5 100W 7.5V Low stock$44.64 USD

RSP-150-7.5 150W 7.5V In stock$47.55 USD

RSP-200-7.5 200W 7.5V In stock$54.28 USD

RSP-320-7.5 300W 7.5V Low stock$65.60 USD

Product variants

In stock

Overview

RSP-200-7.5 is the 7.5V output model of this series: rated current 26.7A, rated power 200.25W, typical efficiency 89%.

RSP-200 is a 200W single output enclosed type AC/DC power supply. This series operates for 88~264VAC input voltage and offers the models with the DC output mostely demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
LED indicator for power on
3 years warranty

Specifications

RSP-200-7.5Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE: 7.5V
RATED CURRENT: 26.7A
CURRENT RANGE: 0 ~ 26.7A
RATED POWER: 200.25W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 6 ~ 9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 8ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 2.5A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <1mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 9.4 ~ 10.9V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL62368-1,TUV BS EN/ EN62368-1, EAC TP TC 004, CCC GB4943.1,BSMI CNS15598-1 , AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 2.5V,4V,48V) approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020, CNS15936 , GB9254 Class B , GB17625.1,KN 32( only for 5V )
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2078.1K hrs min. Telcordia SR-332 (Bellcore) ; 224.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 215*115*30mm (L*W*H)
PACKING: 0.72Kg; 15pcs/11.8Kg/0.67CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. For charging related applications, please consult Mean Well for details.
7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-200-2.5/-3.3/-4/-5/-7.5/-12/-13.5/-15)
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

RSP-200-7.5 Mechanical Specification — Mechanical Specification

RSP-200-7.5 Block Diagram — Block Diagram

RSP-200-7.5 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

UL Certificate (RSP-200)(EN) PDF Download

CB Certificate (RSP-200)(EN) PDF Download

TUV Certificate (RSP-200)(EN) PDF Download

EMC Certificate (RSP-200)(EN) PDF Download

Test reports1

Test Report (RSP-200-7.5)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What 7.5V applications can the RSP-200-7.5 support at 26.7A?

The RSP-200-7.5 delivers 7.5V at 26.7A (200.25W) and is suited for 7.5V rail industrial control boards, specialty embedded systems, CNC machine logic supplies, and multi-board 7.5V distribution panels. The output is adjustable from 6 to 9V. The 88–264VAC input accommodates worldwide mains.

Is the RSP-200-7.5 compatible with Australian and New Zealand market requirements?

The RSP-200-7.5 is approved to AS/NZS 60950.1, alongside UL62368-1, TÜV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1 and BIS IS13252, so it carries the Australian/New Zealand safety standard approval.

What is the operating temperature range of the RSP-200-7.5?

The RSP-200-7.5 is rated from -30°C to +70°C ambient, identical to all other RSP-200 models. No IP ingress rating is provided; the unit must be enclosed for protection in dusty or wet environments.

What are all the RSP-200 series voltage options?

The RSP-200 series voltage options are: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (201.6W/24V/8.4A), RSP-200-27 (202.5W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (201.6W/48V/4.2A).
