Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

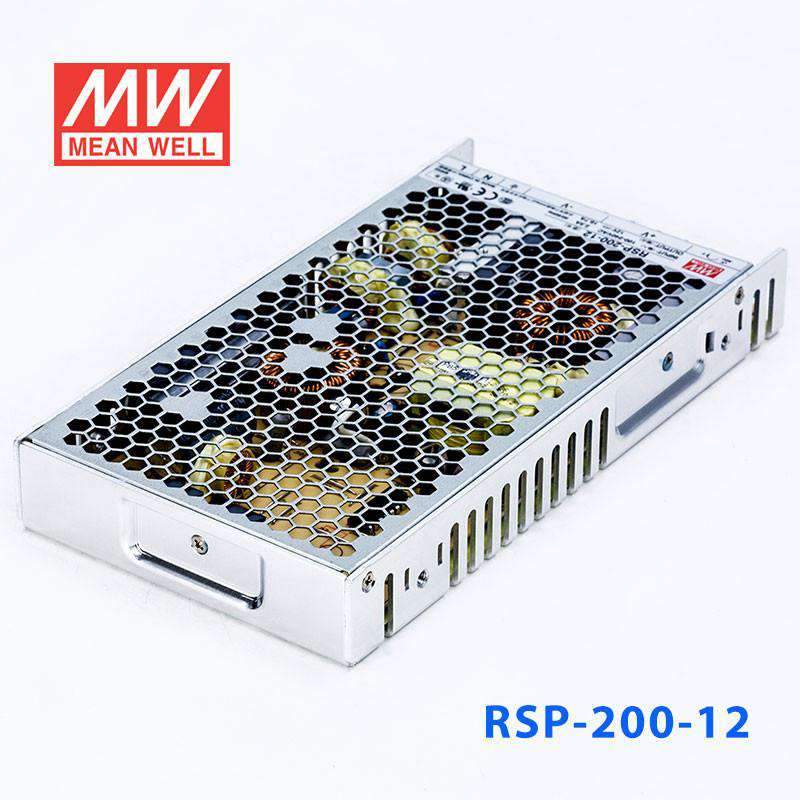

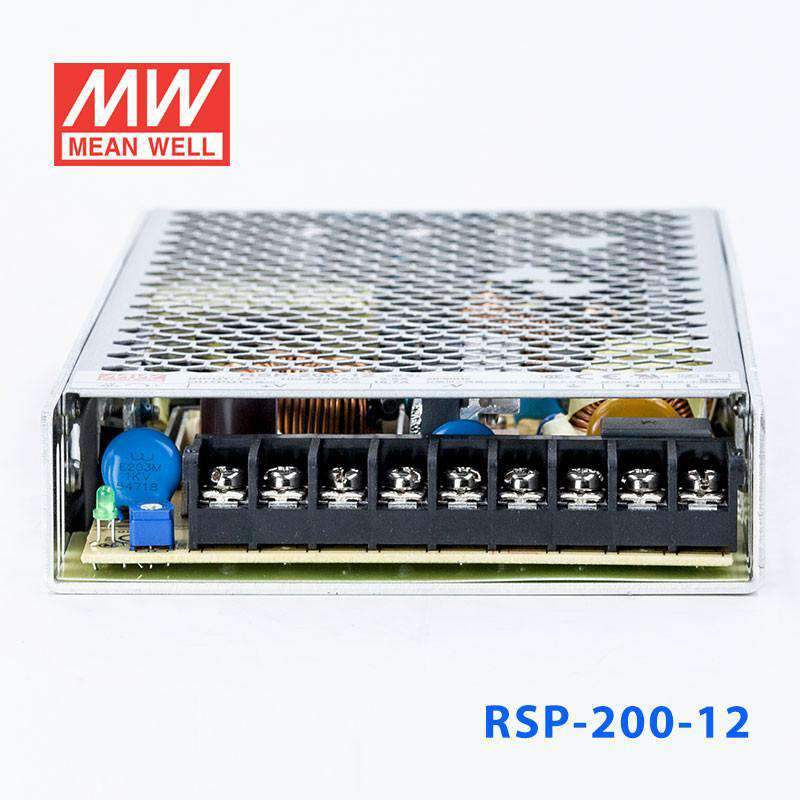

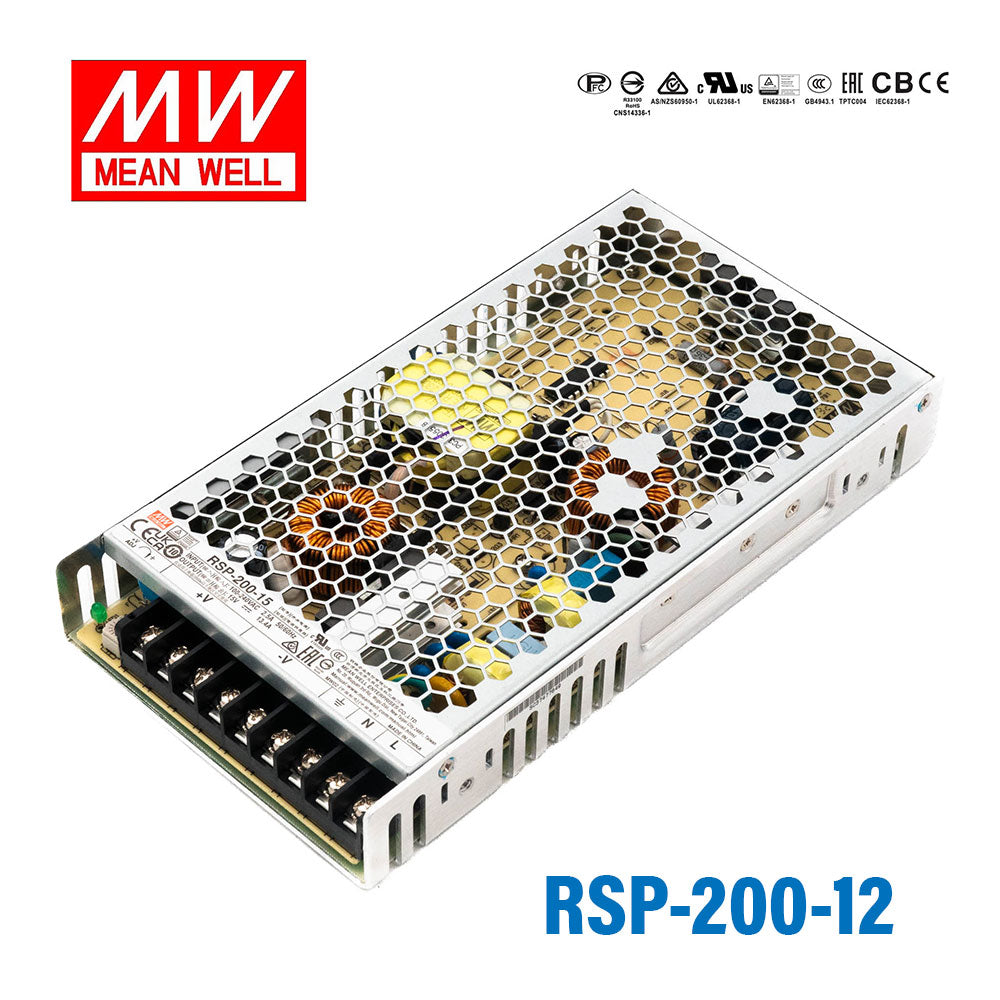

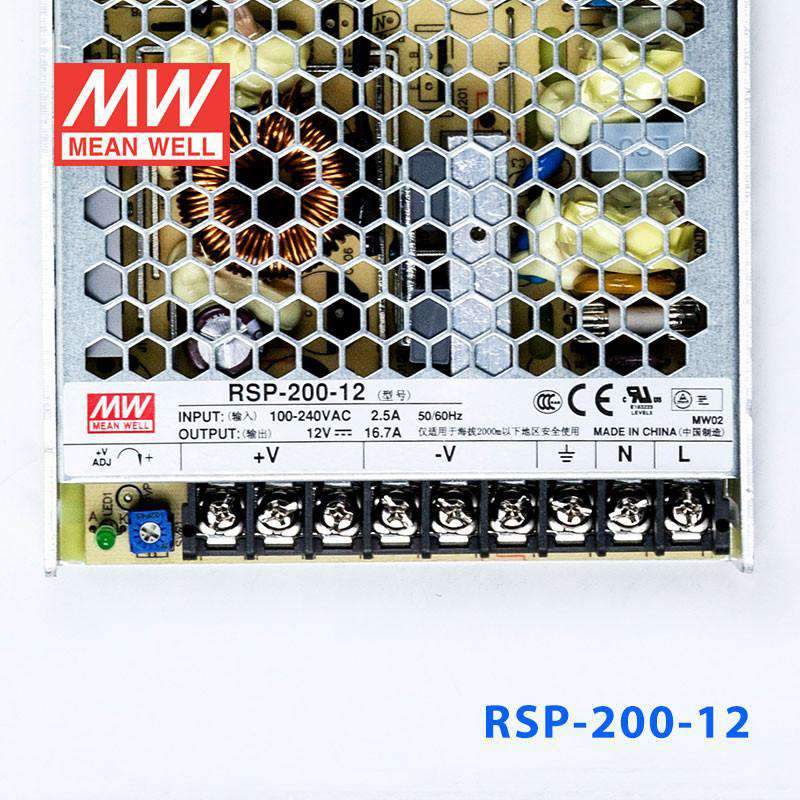

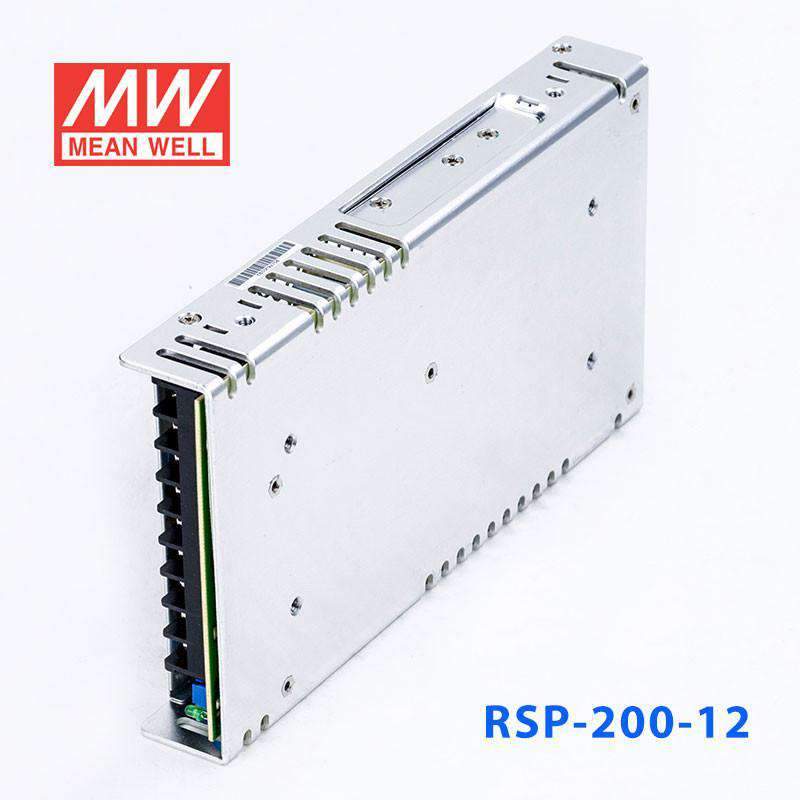

Mean Well RSP-200-12 Power Supply 200W 12V 16.7A

1U low profile with active PFChigh efficiency
SKU RSP-200-12
$45.28 USD
Shipping calculated at checkout.

Select model — 13 in this family

RSP-200-12
In stock
|

Overview

RSP-200-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 89%.

RSP-200 is a 200W single output enclosed type AC/DC power supply. This series operates for 88~264VAC input voltage and offers the models with the DC output mostely demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70℃.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Cooling by free air convection
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Optional conformal coating
  • LED indicator for power on
  • 3 years warranty

Specifications

RSP-200-12Specifications from the official datasheet (2026-09-04 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
16.7A
CURRENT RANGE
0 ~ 16.7A
RATED POWER
200.4W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
10 ~ 13.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
8ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
2.5A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ.)
20A/115VAC 40A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 45℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS
UL62368-1,TUV BS EN/ EN62368-1, EAC TP TC 004, CCC GB4943.1,BSMI CNS15598-1 , AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 2.5V,4V,48V) approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/ EN55032 (CISPR32) Class B, BS EN/ EN61000-3-2,-3, EAC TP TC 020, CNS15936 , GB9254 Class B , GB17625.1,KN 32( only for 5V )
EMC IMMUNITY
Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2078.1K hrs min. Telcordia SR-332 (Bellcore) ; 224.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*30mm (L*W*H)
PACKING
0.72Kg; 15pcs/11.8Kg/0.67CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
  5. 5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  6. 6. For charging related applications, please consult Mean Well for details.
  7. 7. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-200-2.5/-3.3/-4/-5/-7.5/-12/-13.5/-15)
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

RSP-200-12 Mechanical Specification
Mechanical Specification
RSP-200-12 Block Diagram
Block Diagram
RSP-200-12 Derating Curve
Derating Curve

Typical applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application

Downloads

FAQ

What 12V industrial applications can the RSP-200-12 power?

The RSP-200-12 delivers 12V at 16.7A (200.4W) and is suited for 12V DC bus applications such as multi-actuator control panels, 12V industrial communication hubs, distributed 12V sensor networks, and embedded computing racks. The 88–264VAC (124–370VDC) input accommodates all standard mains voltages.

What are all the voltage variants in the RSP-200 series?

The RSP-200 series voltage options are: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (201.6W/24V/8.4A), RSP-200-27 (202.5W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (201.6W/48V/4.2A). All share the 215 × 115 × 30 mm chassis and 88–264VAC input.

Is the RSP-200-12 appropriate for cold-start industrial environments?

Yes. The RSP-200-12 is rated to operate from -30°C to +70°C ambient, covering sub-zero environments; at higher ambient temperatures the output must be derated according to the derating curve. No IP rating is specified; an appropriate sealed enclosure is needed for outdoor or wet/dusty locations.

What certifications does the RSP-200-12 carry?

The RSP-200-12 is approved to UL62368-1, TÜV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16 and IEC 61558-1/2-16 (12V and higher models) and BIS IS13252, and complies with EN55032 Class B emission and EN55035 immunity.
