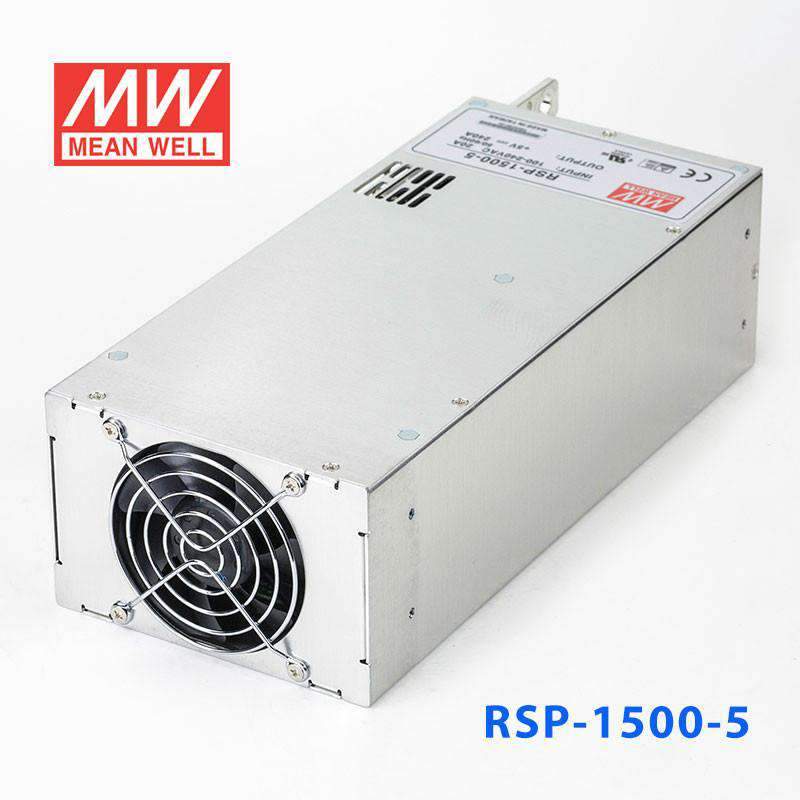

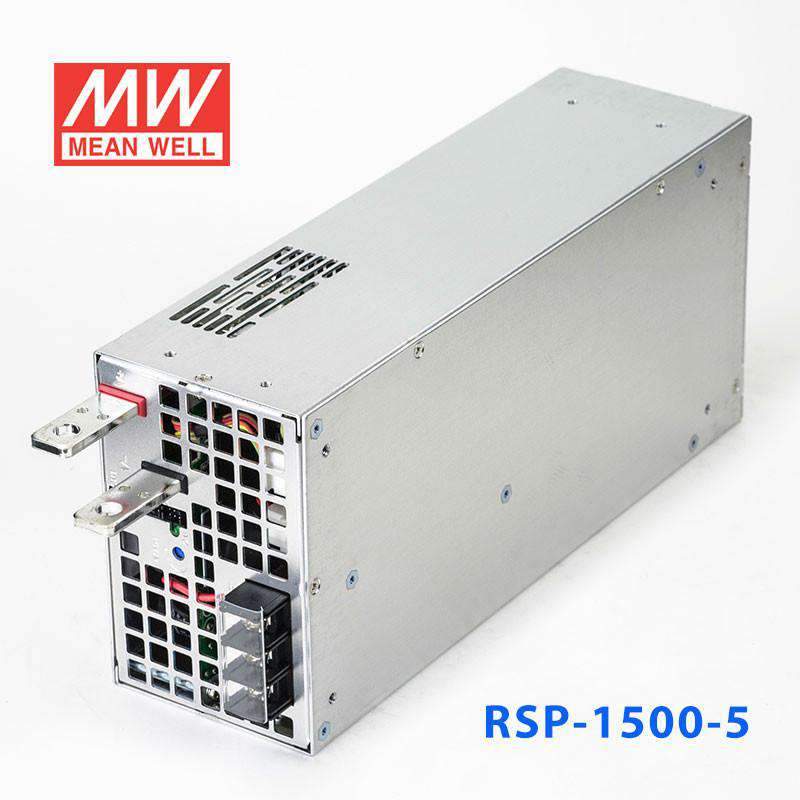

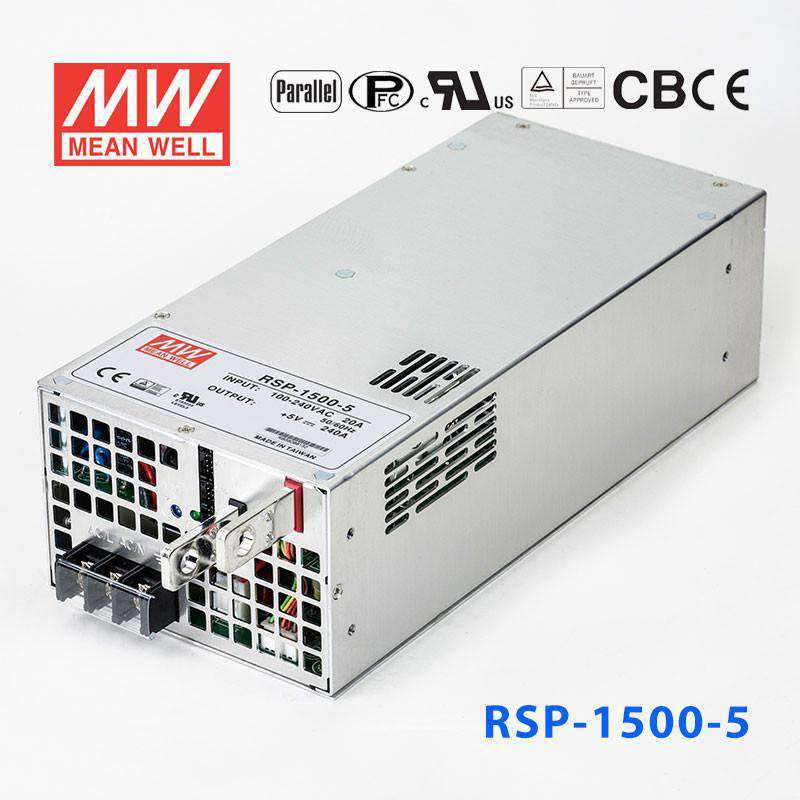

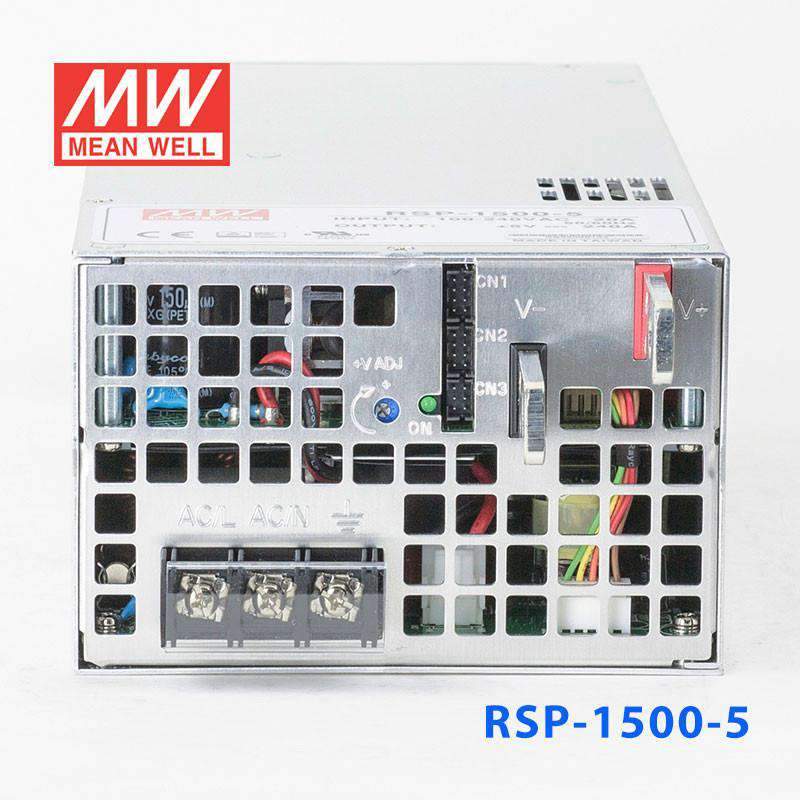

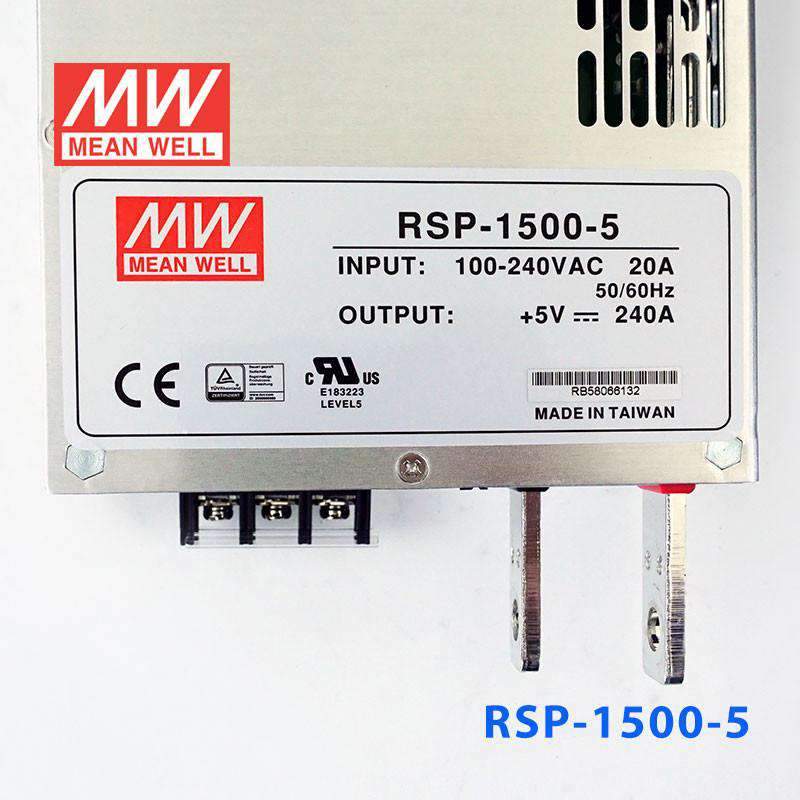

Mean Well RSP-1500-5 Power Supply 1200W 5V 240A

Name: Mean Well RSP-1500-5 Power Supply 1200W 5V 240A
Brand: Mean Well
SKU: RSP-1500-5
Price: 433.58 USD
Availability: InStock

built-in active PFChigh efficiency up to 91%active current sharing(3+1)

SKU RSP-1500-5

$433.58 USD

Shipping calculated at checkout.

Select model — 8 in this family

RSP-1500-5

RSP-75-5 75W 5V Low stock$40.88 USD

RSP-100-5 100W 5V Low stock$44.64 USD

RSP-150-5 150W 5V In stock$42.87 USD

RSP-200-5 200W 5V In stock$54.28 USD

RSP-320-5 300W 5V In stock$59.53 USD

RSP-500-5 450W 5V Low stock$114.85 USD

RSP-750-5 500W 5V Low stock$206.92 USD

RSP-1500-5 1200W 5V In stock$433.58 USD

Product variants

In stock

Overview

RSP-1500-5 is the 5V output model of this series: rated current 240A, rated power 1200W, typical efficiency 80%.

RSP-1500 is a 1.5KW single output enclosed type AC/DC power supply. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan working for the temperature up to 70℃. Moreover, RSP-1500 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 91%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 6000W (3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RSP-1500-5Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 240A
CURRENT RANGE: 0 ~ 240A
RATED POWER: 1200W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 4.5 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 1500ms, 100ms at full load
HOLD UP TIME (Typ.): 10ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC 0.98/115VAC at full load
EFFICIENCY (Typ.): 80%
AC CURRENT (Typ.): 17A/115VAC 8A/230VAC
INRUSH CURRENT (Typ.): 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <2.0mA / 240VAC

PROTECTION

OVERLOAD^Note.4: 105 ~135% rated output power Protection type : Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 70 ~ 100% of nominal output voltage. Please refer to the Function Manual.
CURRENT SHARING: Up to 6000W or (3+1) units. Please refer to the Function Manual.
AUXILIARY POWER: 12V@0.1A(Only for Remote ON-OFF control)
REMOTE ON-OFF CONTROL: Please see the Function Manual.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual.
ALARM SIGNAL OUTPUT: Power OK signal. Please see the Function Manual.

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1 , TUV BS EN/ EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), BSMI CNS15936 Class B/Class A (only for BSMI)
Radiated BS EN/ EN55032 (CISPR32), BSMI CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 2
Surge BS EN/ EN61000-4-5 Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), BSMI CNS15936	Class B/Class A (only for BSMI)
Radiated	BS EN/ EN55032 (CISPR32), BSMI CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 2
Surge	BS EN/ EN61000-4-5	Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 814.4K hrs min. Telcordia SR-332 (Bellcore) ; 90.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*127*83.5mm (L*W*H)
PACKING: 3.0Kg; 4pcs/13Kg/1.19CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-1500-5 Block Diagram — Block Diagram

RSP-1500-5 Static Characteristics — Static Characteristics

RSP-1500-5 Derating Curve — Derating Curve

RSP-1500-5 Function Manual — Function Manual

RSP-1500-5 R S P - 1 5 0 0 series — R S P - 1 5 0 0 series

RSP-1500-5 R S P - 1 5 0 0 series (2) — R S P - 1 5 0 0 series (2)

RSP-1500-5 Mechanical Specification — Mechanical Specification

RSP-1500-5 ※Control Pin No. Assignment (CN3) : HRS DF11-6DP-2DS or… — ※Control Pin No. Assignment (CN3) : HRS DF11-6DP-2DS or…

RSP-1500-5 ※AC Input Terminal Pin No. Assignment — ※AC Input Terminal Pin No. Assignment

Typical applications

Downloads

Certificates4

UL Certificate (RSP-1500)(EN) PDF Download

CB Certificate (RSP-1500)(EN) PDF Download

TUV Certificate (RSP-1500)(EN) PDF Download

EMC Certificate (RSP-1500)(EN) PDF Download

Test reports1

Test Report (RSP-1500-5)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What makes the RSP-1500-5 unusual compared to other RSP-1500 variants?

The RSP-1500-5 is rated at 1200W rather than 1500W, delivering 5V at 240A (1200W). The 5V output voltage results in very high current — 240A — while the total wattage is capped at 1200W by the current design. This makes it appropriate for high-current 5V bus systems such as large embedded computing farms, industrial LED display power rails, and distributed 5V logic systems requiring exceptional current capacity.

Can the RSP-1500-5 support parallel operation for N+1 redundancy?

Yes. The RSP-1500-5 has built-in active current sharing for up to 6000W or (3+1) units. With total current limited to rated current × number of units × 0.9, three units deliver up to 648A at 5V, with a fourth unit providing the +1 redundancy. Load balancing is automatic across the paralleled units.

How does the RSP-1500-5 compare to the RSP-1500-12 and RSP-1500-24?

RSP-1500 series: RSP-1500-5 (1200W/5V/240A), RSP-1500-12 (1500W/12V/125A), RSP-1500-15 (1500W/15V/100A), RSP-1500-24 (1512W/24V/63A), RSP-1500-27 (1512W/27V/56A), RSP-1500-48 (1536W/48V/32A). The RSP-1500-5 is the only variant under 1500W due to the 5V current ceiling. All variants share the 278.0 × 127.0 × 83.5 mm chassis and 90–264VAC input.

What is the operating temperature range of the RSP-1500-5?

The RSP-1500-5 operates from -20°C to +70°C ambient, with load derating at higher temperatures (the 5V model has its own, steeper curve in the derating chart). It has no IP rating and requires an enclosure for harsh environments.

What certifications does the RSP-1500-5 carry?

The RSP-1500-5 is approved to UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1 and EAC TP TC 004. CCC (China) is not listed on the RSP-1500 datasheet.
