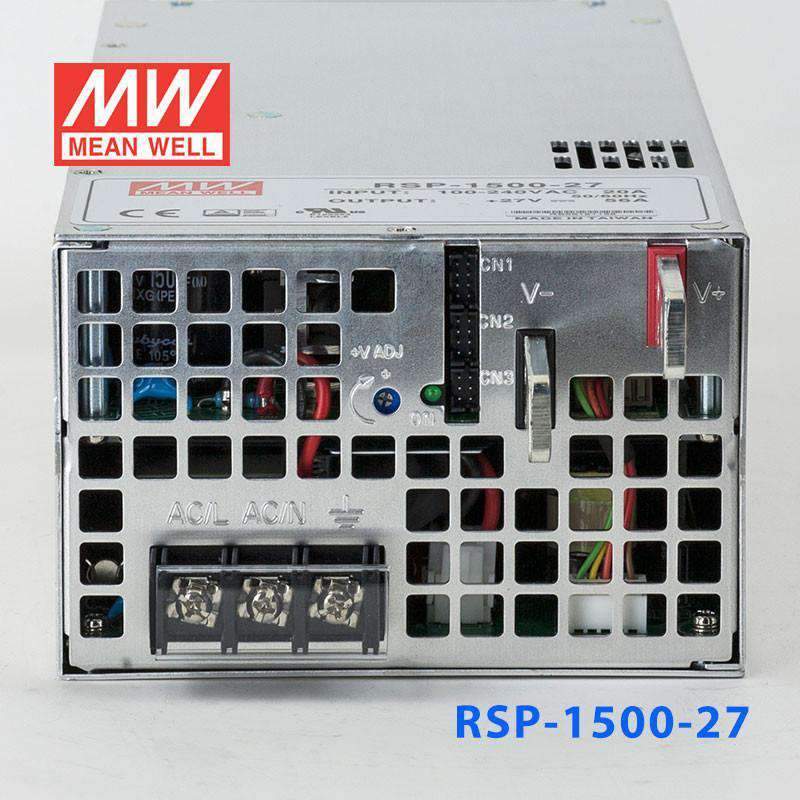

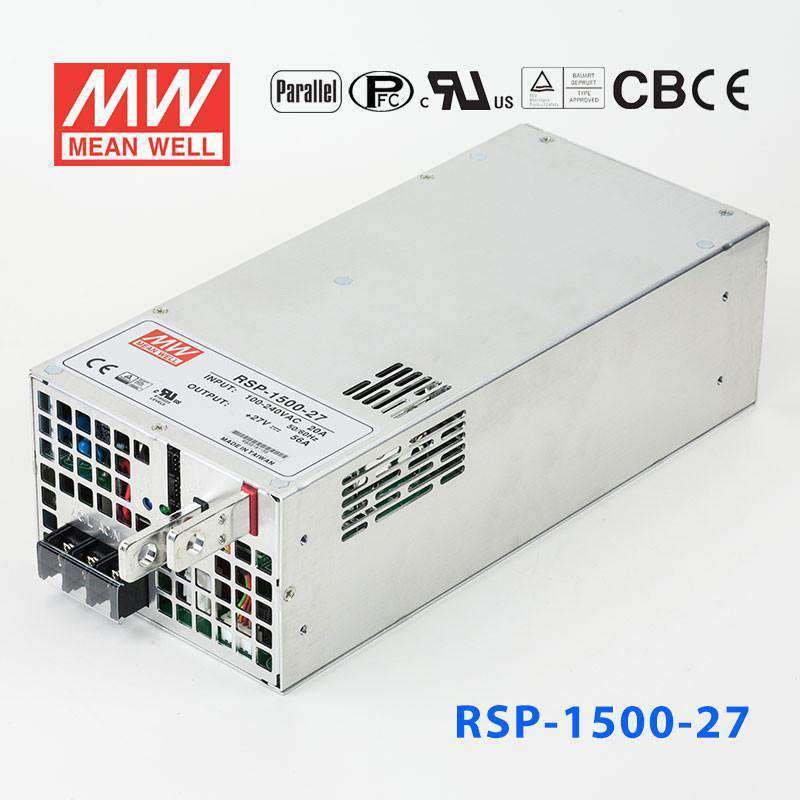

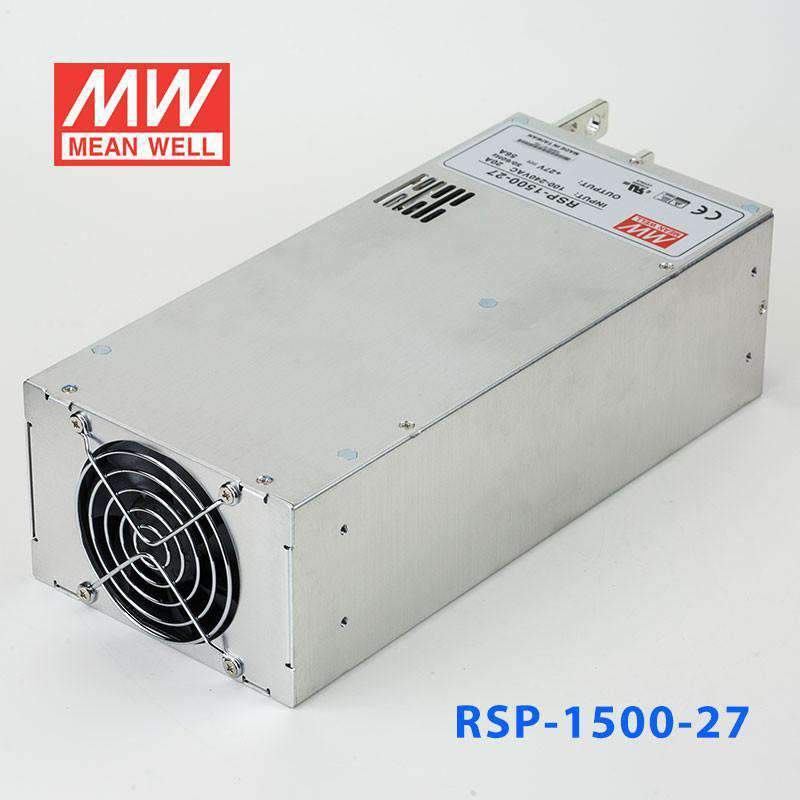

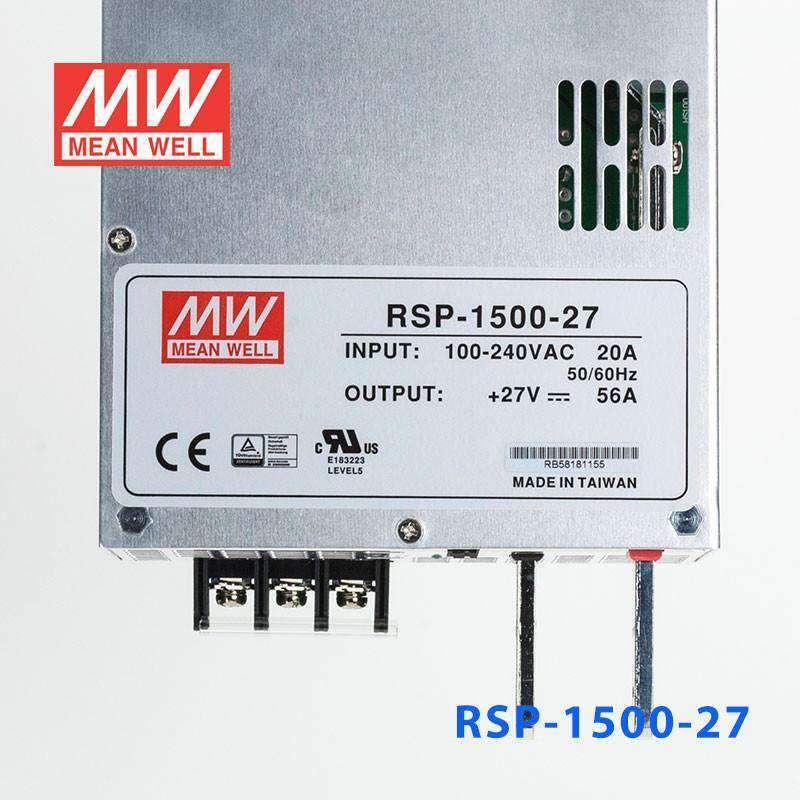

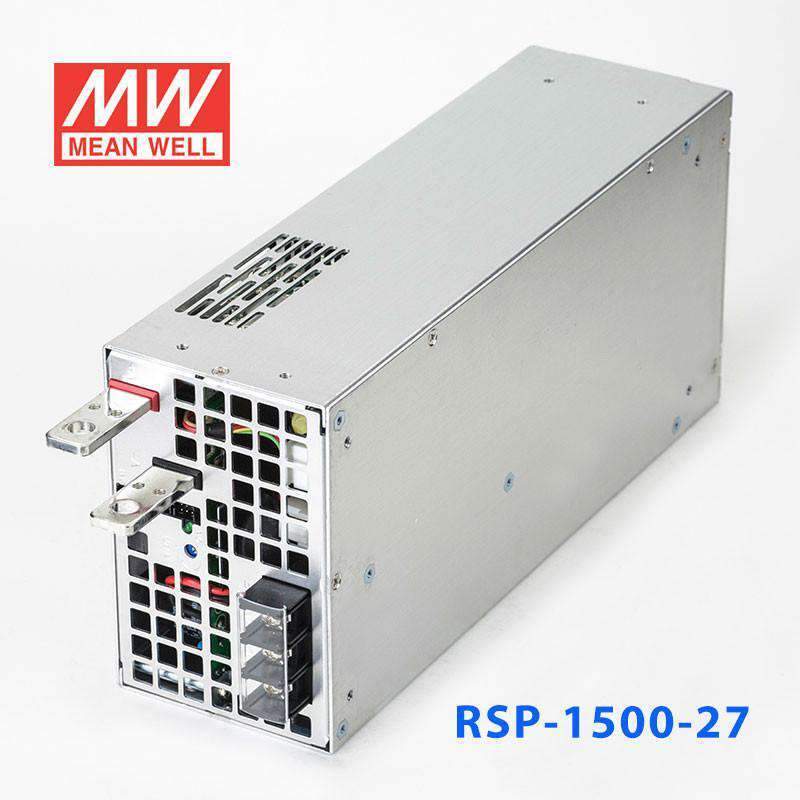

Mean Well RSP-1500-27 Power Supply 1512W 27V 56A

Name: Mean Well RSP-1500-27 Power Supply 1512W 27V 56A
Brand: Mean Well
SKU: RSP-1500-27
Price: 433.58 USD
Availability: InStock

built-in active PFChigh efficiency up to 91%active current sharing(3+1)

SKU RSP-1500-27

$433.58 USD

Shipping calculated at checkout.

Select model — 9 in this family

RSP-1500-27

RSP-75-27 75W 27V In stock$40.88 USD

RSP-100-27 100W 27V Low stock$44.76 USD

RSP-150-27 150W 27V Low stock$47.55 USD

RSP-320-27 320W 27V Low stock$65.60 USD

RSP-500-27 500W 27V Backorder$114.85 USD

RSP-750-27 750W 27V In stock$220.88 USD

RSP-1000-27 1000W 27V In stock$285.73 USD

RSP-1500-27 1500W 27V Backorder$433.58 USD

RSP-1600-27 1600W 27V Low stock$459.86 USD

Product variants

Available to order

Overview

RSP-1500-27 is the 27V output model of this series: rated current 56A, rated power 1512W, typical efficiency 90%.

RSP-1500 is a 1.5KW single output enclosed type AC/DC power supply. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan working for the temperature up to 70℃. Moreover, RSP-1500 provides vast design flexibility by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 91%
Forced air cooling by built-in DC fan
Output voltage programmable
Active current sharing up to 6000W (3+1)
Built-in remote ON-OFF control / remote sense / auxiliary power / power OK signal
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RSP-1500-27Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 56A
CURRENT RANGE: 0 ~ 56A
RATED POWER: 1512W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 30V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 100ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC 0.98/115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 17A/115VAC 8A/230VAC
INRUSH CURRENT (Typ.): 30A/115VAC 60A/230VAC
LEAKAGE CURRENT: <2.0mA / 240VAC

PROTECTION

OVERLOAD^Note.4: 105 ~135% rated output power Protection type : Constant current limiting unit will shut down o/p voltage after 5sec. Re-power on to recover
OVER VOLTAGE: 31 ~ 36.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 70 ~ 100% of nominal output voltage. Please refer to the Function Manual.
CURRENT SHARING: Up to 6000W or (3+1) units. Please refer to the Function Manual.
AUXILIARY POWER: 12V@0.1A(Only for Remote ON-OFF control)
REMOTE ON-OFF CONTROL: Please see the Function Manual.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual.
ALARM SIGNAL OUTPUT: Power OK signal. Please see the Function Manual.

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1 , TUV BS EN/ EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32), BSMI CNS15936 Class B/Class A (only for BSMI)
Radiated BS EN/ EN55032 (CISPR32), BSMI CNS15936 Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 2
Surge BS EN/ EN61000-4-5 Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32), BSMI CNS15936	Class B/Class A (only for BSMI)
Radiated	BS EN/ EN55032 (CISPR32), BSMI CNS15936	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 2
Surge	BS EN/ EN61000-4-5	Level 3, 2KV/Line-Earth; Level 2, 1KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 814.4K hrs min. Telcordia SR-332 (Bellcore) ; 90.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 278*127*83.5mm (L*W*H)
PACKING: 3.0Kg; 4pcs/13Kg/1.19CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-1500-27 Block Diagram — Block Diagram

RSP-1500-27 Static Characteristics — Static Characteristics

RSP-1500-27 Derating Curve — Derating Curve

RSP-1500-27 Function Manual — Function Manual

RSP-1500-27 R S P - 1 5 0 0 series — R S P - 1 5 0 0 series

RSP-1500-27 R S P - 1 5 0 0 series (2) — R S P - 1 5 0 0 series (2)

RSP-1500-27 Mechanical Specification — Mechanical Specification

RSP-1500-27 ※Control Pin No. Assignment (CN3) : HRS DF11-6DP-2DS or… — ※Control Pin No. Assignment (CN3) : HRS DF11-6DP-2DS or…

RSP-1500-27 ※AC Input Terminal Pin No. Assignment — ※AC Input Terminal Pin No. Assignment

Typical applications

Downloads

Certificates4

UL Certificate (RSP-1500)(EN) PDF Download

CB Certificate (RSP-1500)(EN) PDF Download

TUV Certificate (RSP-1500)(EN) PDF Download

EMC Certificate (RSP-1500)(EN) PDF Download

Test reports1

Test Report (RSP-1500-27)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What 27V DC systems justify using the RSP-1500-27?

The RSP-1500-27 delivers 27V at 56A (1512W) and is suited for high-current 27V bus applications such as high-power telecommunications infrastructure and industrial machinery with 27V specification rails. The 90–264VAC input covers all standard single-phase supply voltages.

Can the RSP-1500-27 be used in parallel for N+1 redundancy?

Yes. The RSP-1500-27 has built-in active current sharing for up to 6000W or (3+1) units. Per the datasheet, total output current must not exceed rated current × number of units × 0.9, so three units deliver up to 151.2A at 27V, with a fourth unit providing the +1 redundancy.

How does the RSP-1500-27 compare to the RSP-1500-24 and RSP-1500-48?

RSP-1500 voltage variants: RSP-1500-5 (1200W/5V/240A), RSP-1500-12 (1500W/12V/125A), RSP-1500-15 (1500W/15V/100A), RSP-1500-24 (1512W/24V/63A), RSP-1500-27 (1512W/27V/56A), RSP-1500-48 (1536W/48V/32A). The RSP-1500-27 delivers 27V/56A/1512W in the same 278 × 127 × 83.5 mm chassis and 90–264VAC input as the RSP-1500-24, with the same 90% typical efficiency and a 16ms hold-up time (14ms on the 24V model). The RSP-1500-48 at 1536W is slightly higher wattage at a lower current.

What is the temperature range and IP status of the RSP-1500-27?

The RSP-1500-27 operates from -20°C to +70°C ambient, with load derating at higher temperatures per the derating curve. No IP ingress rating is provided, so the unit should be installed inside a suitable enclosure for dusty or wet environments.

What certifications does the RSP-1500-27 hold?

The RSP-1500-27 is approved to UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1 and EAC TP TC 004. CCC (China) is not listed on the RSP-1500 datasheet.
