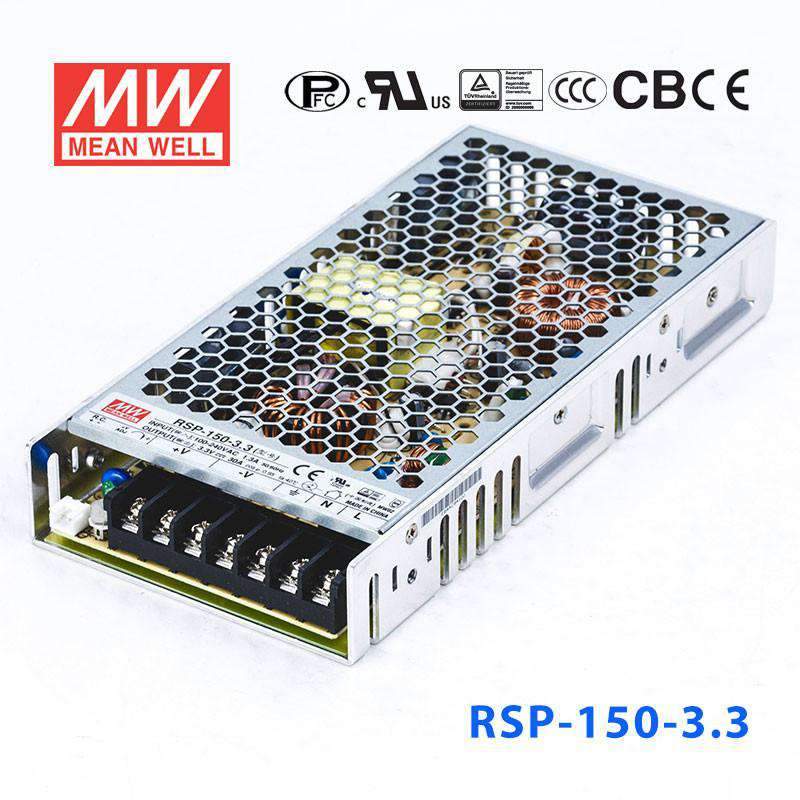

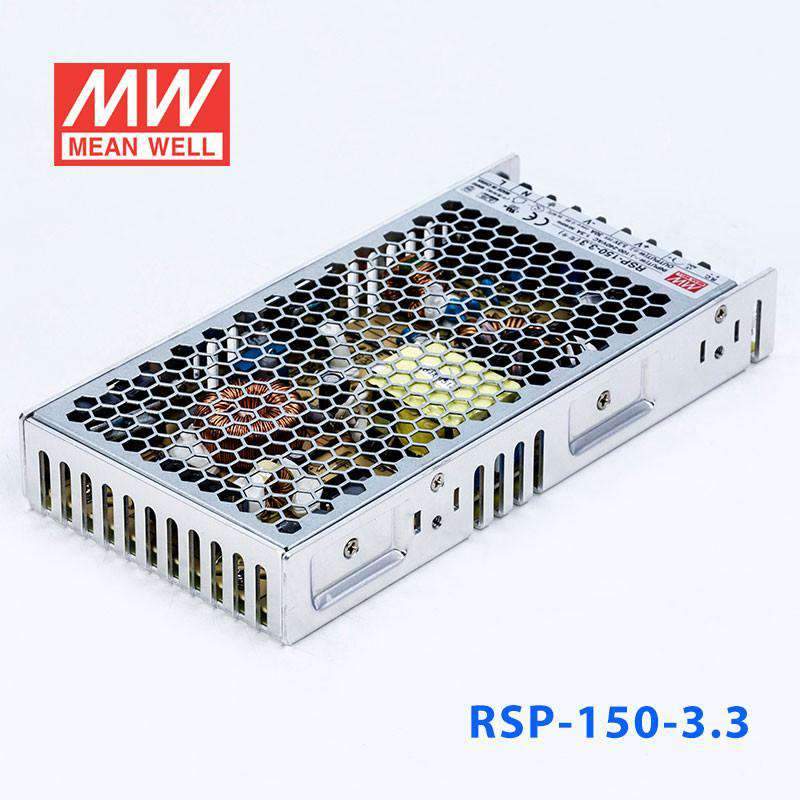

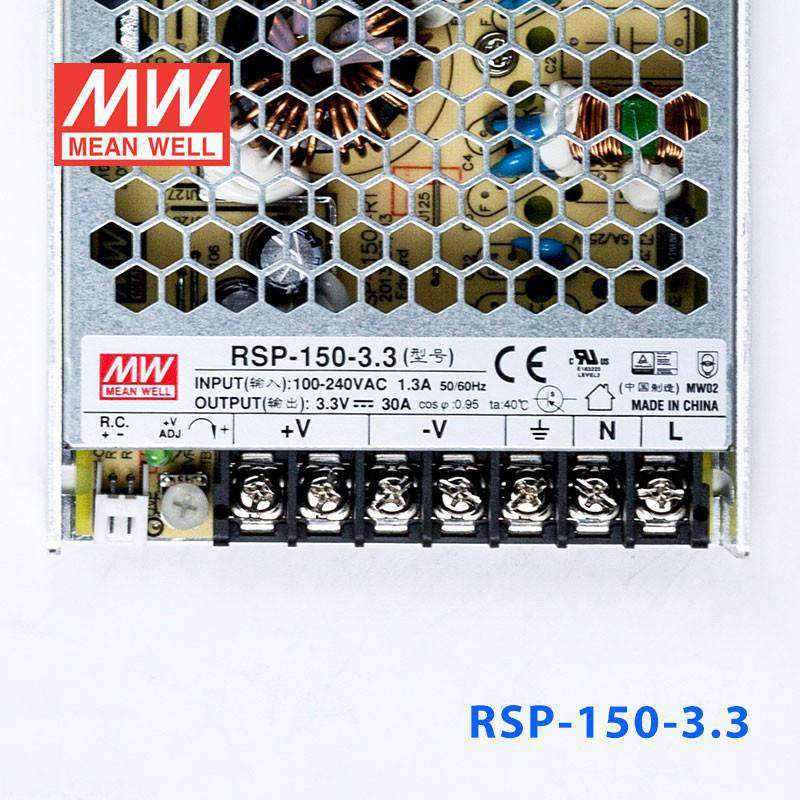

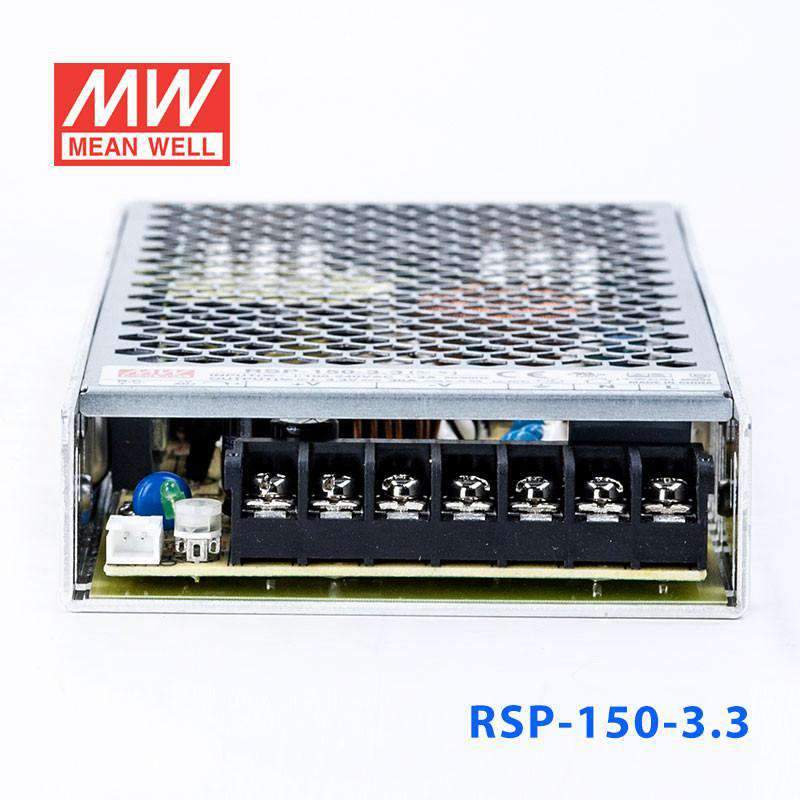

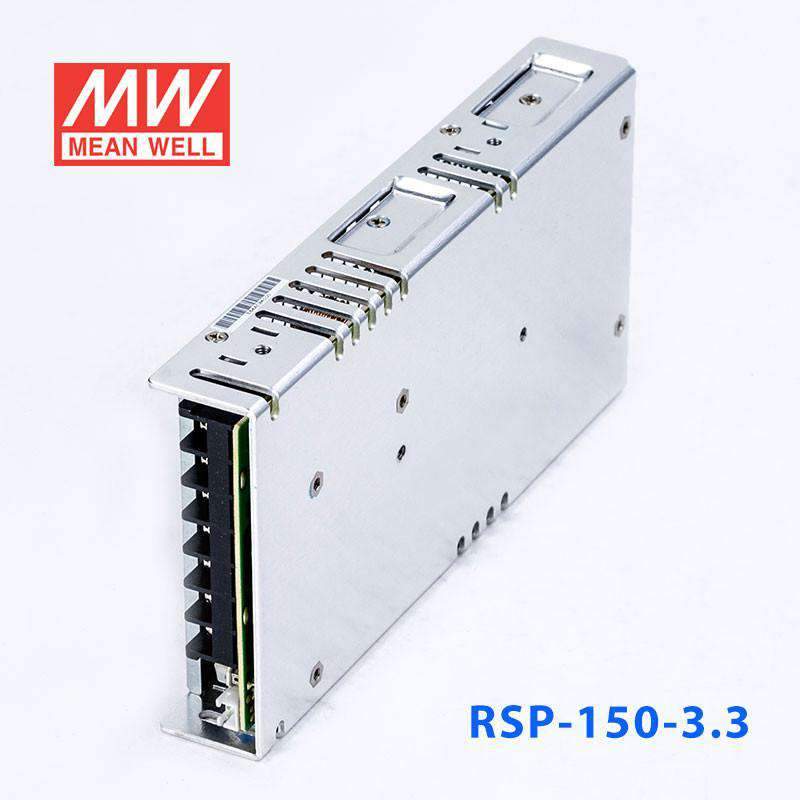

Mean Well RSP-150-3.3 Power Supply 150W 3.3V 30A

Name: Mean Well RSP-150-3.3 Power Supply 150W 3.3V 30A
Brand: Mean Well
SKU: RSP-150-3.3
Price: 43.03 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-150-3.3

$43.03 USD

Shipping calculated at checkout.

Select model — 6 in this family

RSP-150-3.3

RSP-75-3.3 75W 3.3V Low stock$40.88 USD

RSP-100-3.3 100W 3.3V Low stock$44.76 USD

RSP-150-3.3 150W 3.3V In stock$43.03 USD

RSP-200-3.3 200W 3.3V Low stock$54.37 USD

RSP-320-3.3 320W 3.3V Low stock$58.02 USD

RSP-500-3.3 500W 3.3V Low stock$114.84 USD

Product variants

In stock

Overview

RSP-150-3.3 is the 3.3V output model of this series: rated current 30A, rated power 99W, typical efficiency 81.5%.

RSP-150 is a 150W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
Operating altitude up to 5000 meters (see OVER VOLTAGE CATEGORY)
3 years warranty

Specifications

RSP-150-3.3Specifications from the official datasheet (2025-09-22 edition)

OUTPUT

DC VOLTAGE: 3.3V
RATED CURRENT: 30A
CURRENT RANGE: 0 ~ 30A
RATED POWER: 99W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 3.14 ~ 3.63V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE^Note.5: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 81.5%
AC CURRENT (Typ.): 1.6A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 45A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 3.63 ~ 4.46V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters Ⅱ; According to UL/IEC/EN 62368; altitude up to 5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 62368.1, IS13252(Part1)/IEC60950-1(except for 7.5V,13.5V,48V)approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1,CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2253.9K hrs min. Telcordia SR-332 (Bellcore) ; 290.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*99*30mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.89CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSP-150-3.3/-5/-7.5/-12)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-150-3.3 Mechanical Specification — Mechanical Specification

RSP-150-3.3 Block Diagram — Block Diagram

RSP-150-3.3 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

CB Certificate (RSP-150)(EN) PDF Download

TUV Certificate (RSP-150)(EN)) PDF Download

EMC Certificate (RSP-150)(EN) PDF Download

CCC Certificate (RSP-150)(CN) PDF Download

Test reports1

Test Report (RSP-150-3.3)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What embedded systems or logic circuits can the RSP-150-3.3 power?

The RSP-150-3.3 provides 3.3V at 30A (99W) and is suited for 3.3V logic buses in FPGA systems, microprocessor boards, embedded controller racks, and digital signal processing platforms. At 30A output current it can serve larger multi-board configurations. The 85–264VAC universal input is compatible with standard AC mains worldwide.

Why does the RSP-150-3.3 deliver 99W rather than 150W?

The 3.3V model is rated for a maximum output current of 30A (current range 0–30A), so its rated power is 3.3V × 30A = 99W. The 150W series rating applies to the 5V, 7.5V, 12V and 15V models; the 13.5V, 24V and 27V models are rated 151.2W and the 48V model 153.6W.

What is the operating temperature range of the RSP-150-3.3?

The RSP-150-3.3 operates from -30°C to +70°C ambient, with output derating at higher temperatures per the datasheet derating curve, and 20–90% RH non-condensing humidity. The datasheet specifies no IP ingress rating, so for harsh environments the unit should be installed inside a protective enclosure. The low-temperature capability down to -30°C supports cold-start in industrial cold-storage applications.

What certifications does the RSP-150-3.3 carry?

The RSP-150-3.3 is approved to UL62368-1, TÜV BS EN/EN62368-1, BS EN/EN61558-1 and BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, AS/NZS 62368.1 (Australia and New Zealand) and IS13252(Part1)/IEC60950-1.
