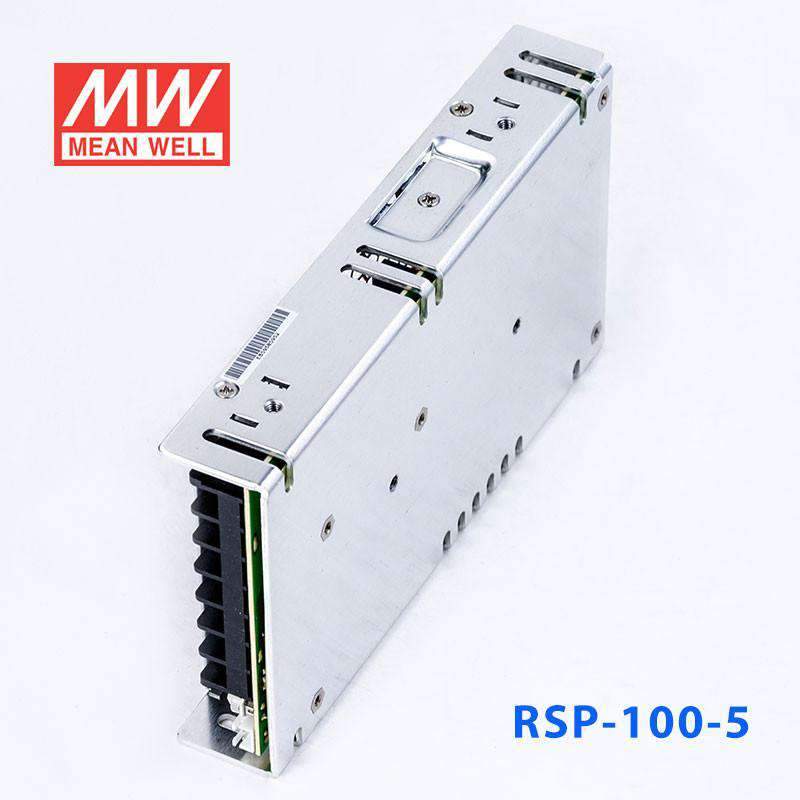

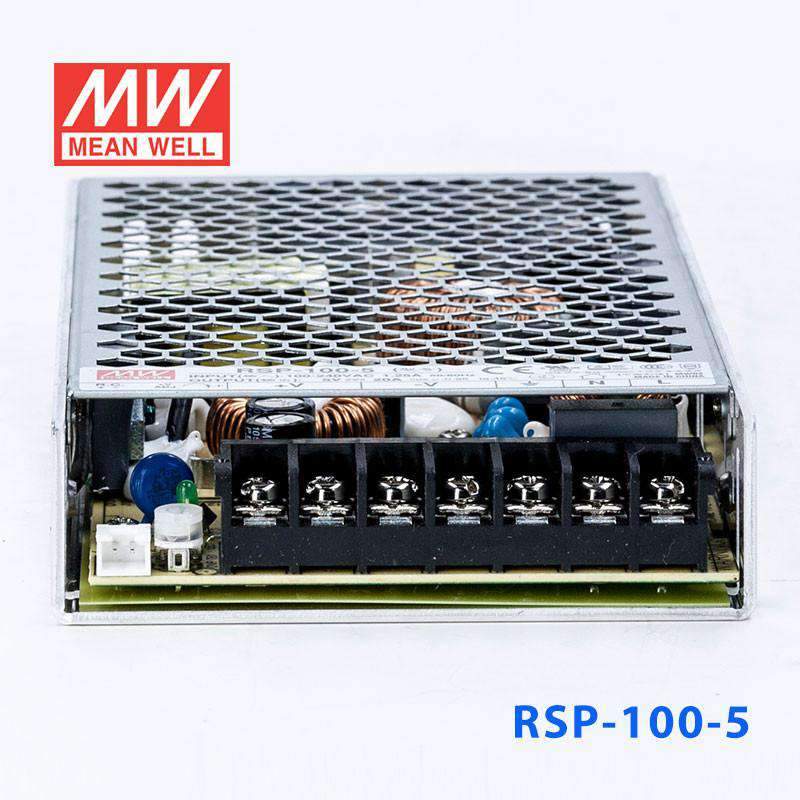

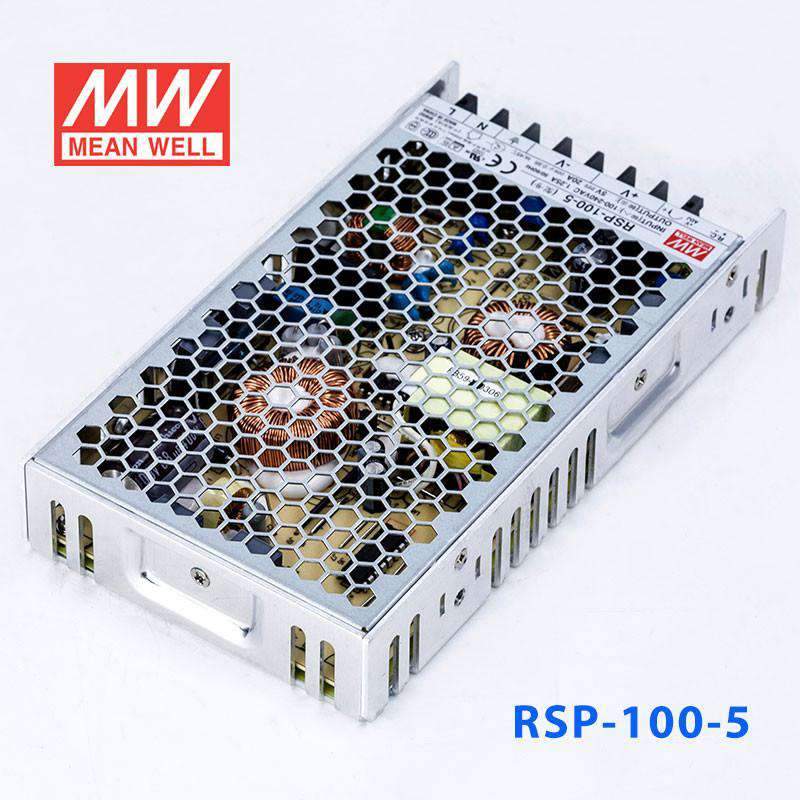

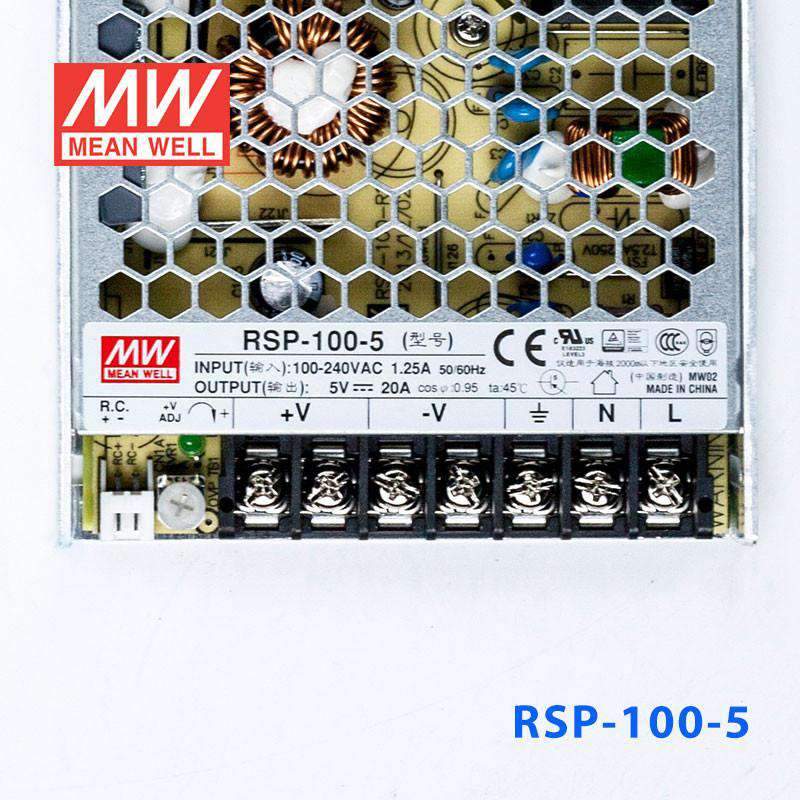

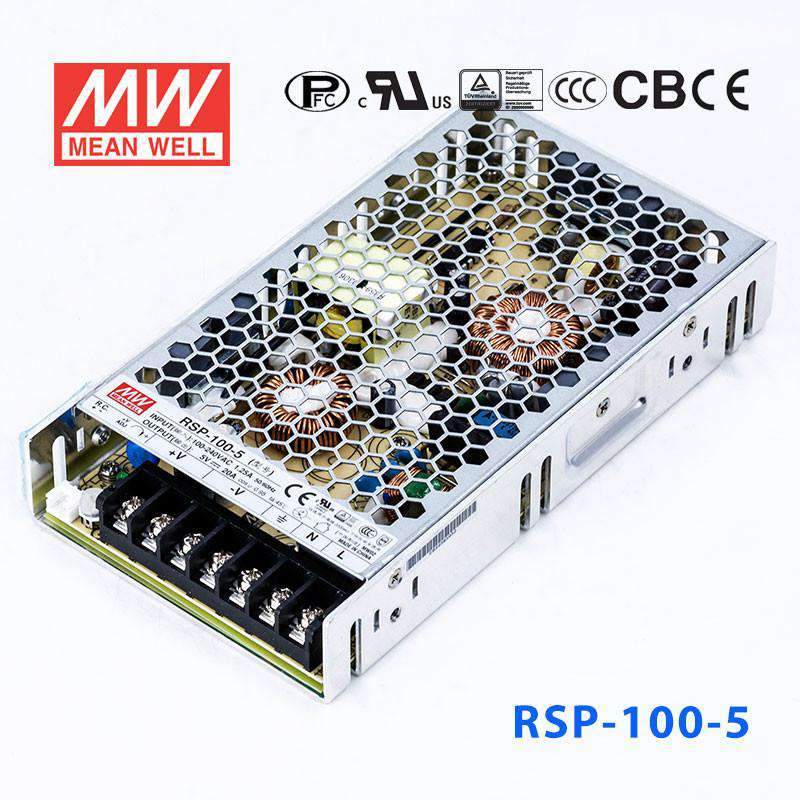

Mean Well RSP-100-5 Power Supply 100W 5V 20A

Name: Mean Well RSP-100-5 Power Supply 100W 5V 20A
Brand: Mean Well
SKU: RSP-100-5
Price: 44.64 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-100-5

$44.64 USD

Shipping calculated at checkout.

Select model — 8 in this family

RSP-100-5

RSP-75-5 75W 5V Low stock$40.88 USD

RSP-100-5 100W 5V Low stock$44.64 USD

RSP-150-5 150W 5V In stock$42.87 USD

RSP-200-5 200W 5V In stock$54.28 USD

RSP-320-5 300W 5V In stock$59.53 USD

RSP-500-5 450W 5V Low stock$114.85 USD

RSP-750-5 500W 5V Low stock$206.92 USD

RSP-1500-5 1200W 5V In stock$433.58 USD

Product variants

In stock

Overview

RSP-100-5 is the 5V output model of this series: rated current 20A, rated power 100W, typical efficiency 86%.

RSP-100 is a 100W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 88%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
3 years warranty

Specifications

RSP-100-5Specifications from the official datasheet (2025-01-10 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 20A
CURRENT RANGE: 0 ~ 20A
RATED POWER: 100W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 4.75 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.5 ~ 6.75V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to E N 61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48V) approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2325.2K hrs min. Telcordia SR-332 (Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 179*99*30mm (L*W*H)
PACKING: 0.52Kg; 24pcs/14.5Kg/0.81CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Strongly recommended that external output capacitance should not exceed 5000uF.(Only for: RSP-100-3.3/-5/-7.5)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

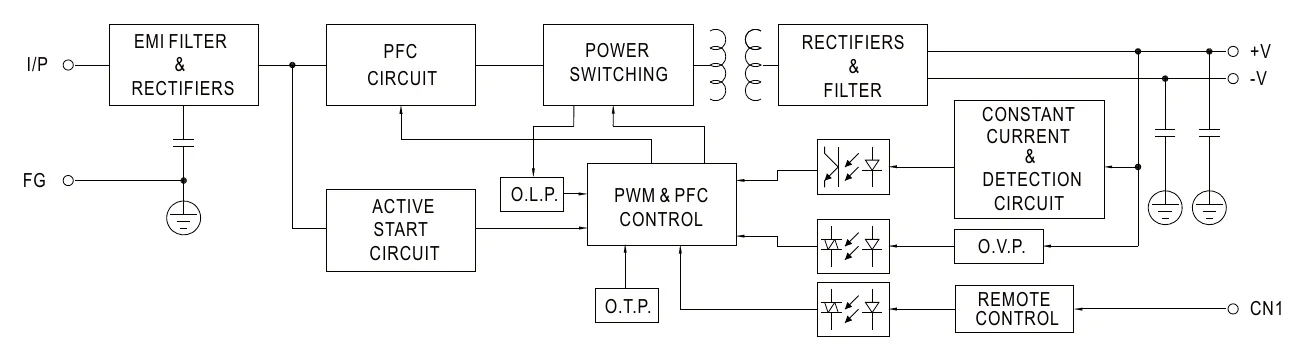

Technical drawings

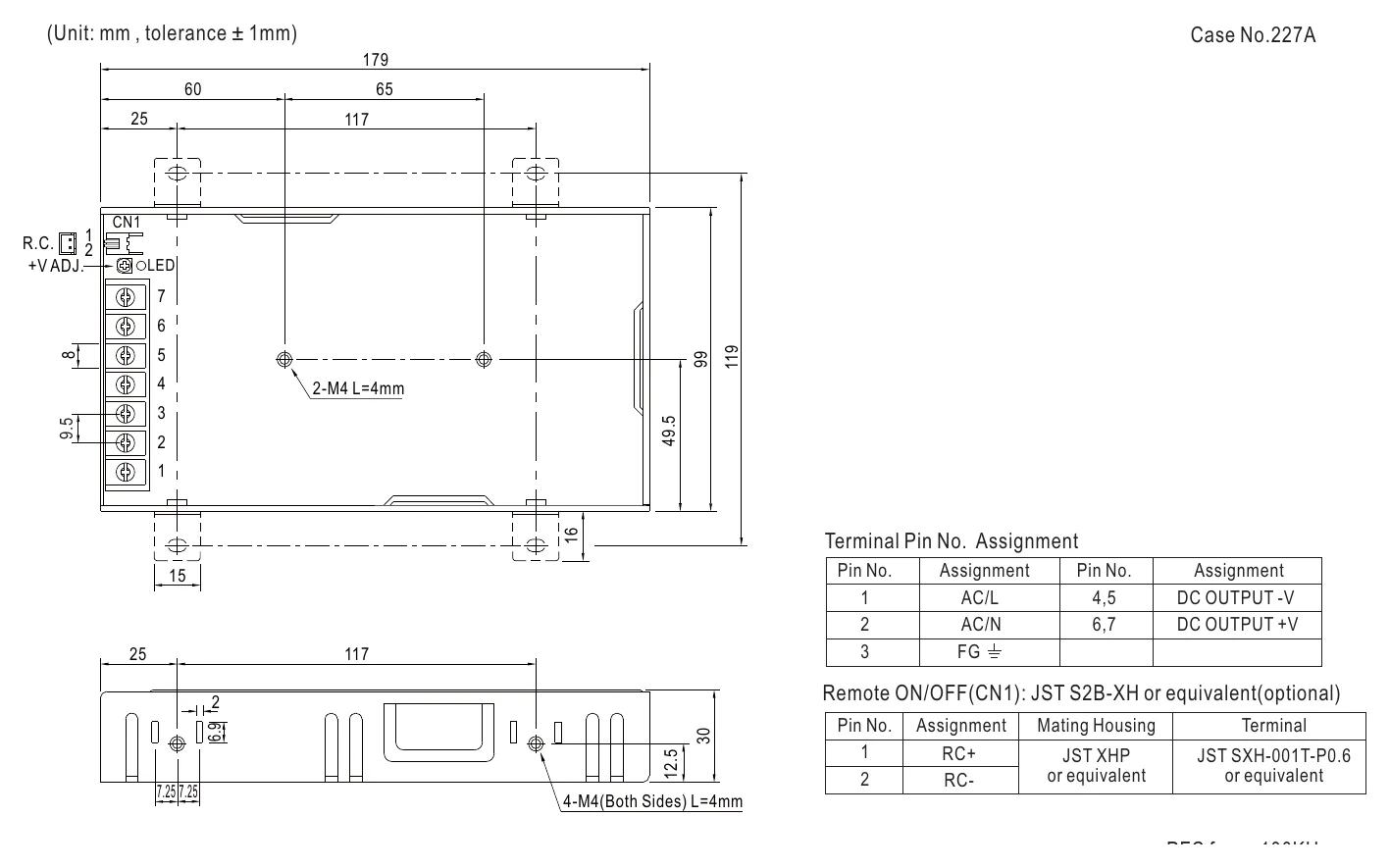

RSP-100-5 Mechanical Specification — Mechanical Specification

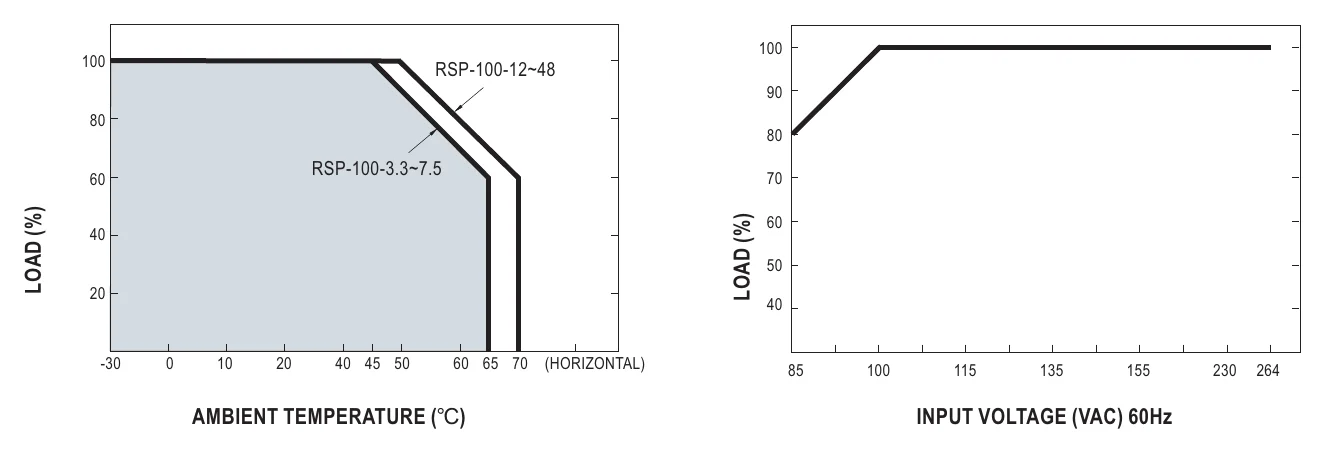

RSP-100-5 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

CB Certificate (RSP-100)(EN) PDF Download

TUV Certificate (RSP-100)(EN)) PDF Download

EMC Certificate (RSP-100)(EN) PDF Download

CCC Certificate (RSP-100)(CN) PDF Download

Test reports1

Test Report (RSP-100-5)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What embedded or industrial loads can the RSP-100-5 power?

The RSP-100-5 delivers 5V at 20A (100W) and is suited for 5V DC logic buses, Raspberry Pi clusters, industrial microcontroller panels, USB charging banks, and relay control boards. The 85–264VAC universal input means no external transformer is required on either 110V or 230V mains.

How does the RSP-100-5 compare to the RSP-100-3.3 and RSP-100-12 at the lowest voltages?

The RSP-100-3.3 delivers 3.3V at 20A (66W), the RSP-100-5 delivers 5V at 20A (100W), and the RSP-100-12 delivers 12V at 8.5A (102W). The 3.3V variant is limited to 66W by its 20A rating; the 5V and higher-voltage variants achieve approximately 100W. All use the same 179.0 × 99.0 × 30.0 mm chassis.

Is the RSP-100-5 suitable for use in rack-mounted test and measurement equipment?

Yes. Test and measurement instruments are among the applications listed on the datasheet, and its 179.0 × 99.0 × 30.0 mm size (30 mm height) suits compact equipment. It delivers 100W at 5V with active PFC, suitable for 5V instrumentation front-ends, data acquisition modules, and other test equipment drawing up to 20A at 5V.

What temperature range does the RSP-100-5 support?

The RSP-100-5 operates from -30°C to +70°C ambient, with output derating at higher temperatures according to the derating curve. This covers most indoor industrial environments including cold rooms. No IP rating is stated, so it must be installed in an enclosure that keeps it dry (20–90% RH non-condensing).

What certifications cover the RSP-100-5?

The RSP-100-5 is approved to UL62368-1, TÜV BS EN/EN62368-1, BS EN/EN61558-1 and -2-16, CCC GB4943.1, BSMI CNS15598-1, EAC TP TC 004 and BIS IS13252. This spans the US, Europe, China, Taiwan, India and the Eurasian Economic Union, supporting multi-region product qualification.
