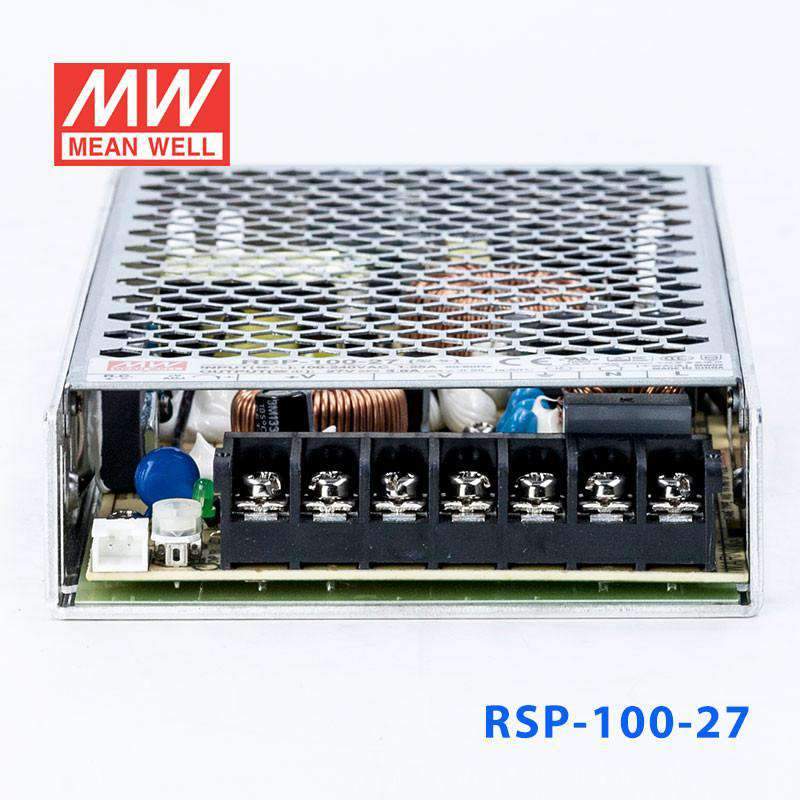

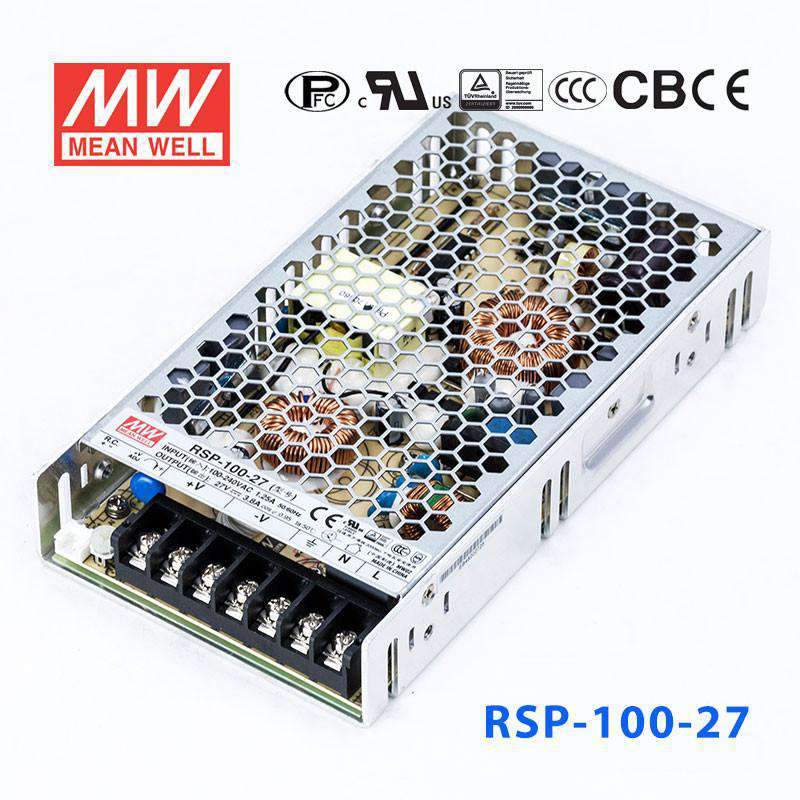

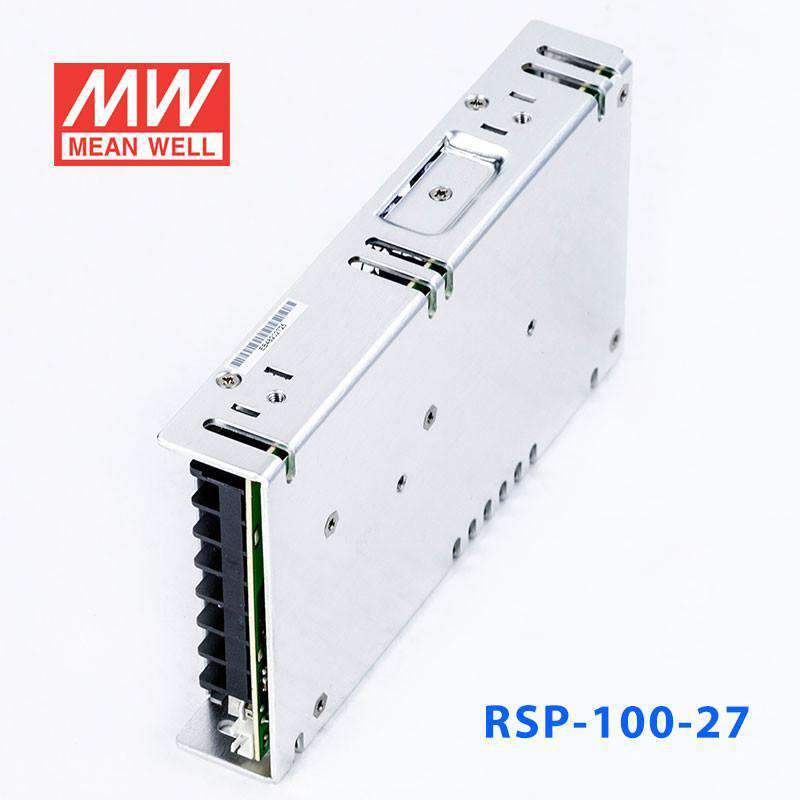

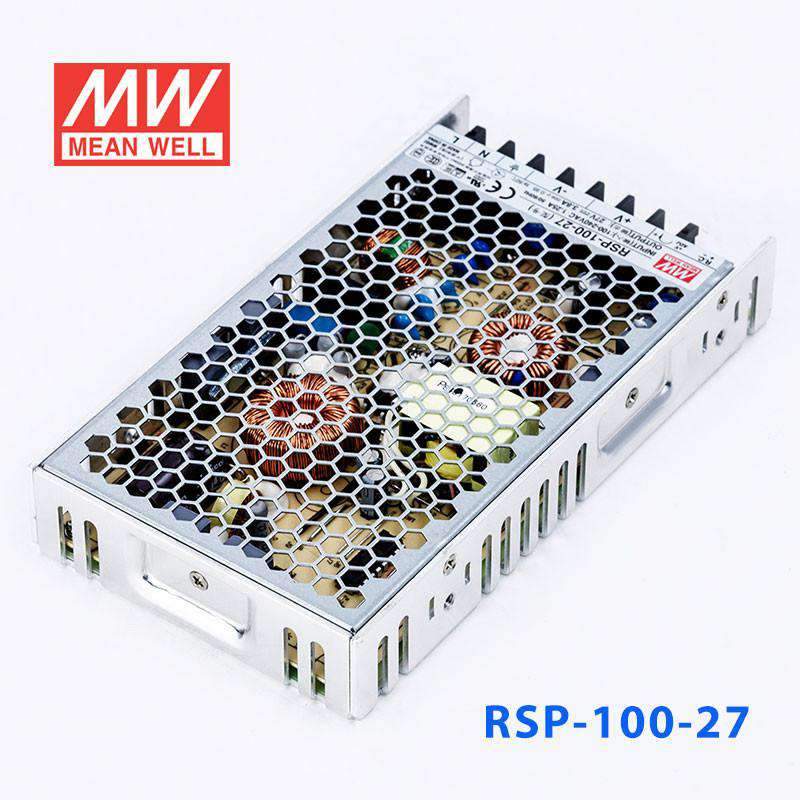

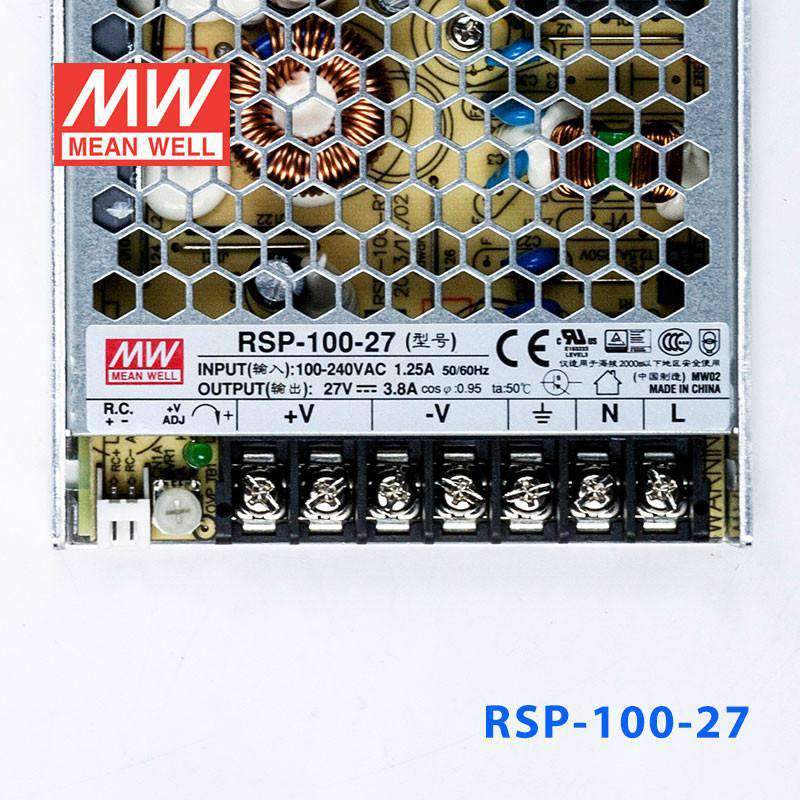

Mean Well RSP-100-27 Power Supply 100W 27V 3.8A

Name: Mean Well RSP-100-27 Power Supply 100W 27V 3.8A
Brand: Mean Well
SKU: RSP-100-27
Price: 44.76 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-100-27

$44.76 USD

Shipping calculated at checkout.

Select model — 9 in this family

RSP-100-27

RSP-75-27 75W 27V In stock$40.88 USD

RSP-100-27 100W 27V Low stock$44.76 USD

RSP-150-27 150W 27V Low stock$47.55 USD

RSP-320-27 320W 27V Low stock$65.60 USD

RSP-500-27 500W 27V Backorder$114.85 USD

RSP-750-27 750W 27V In stock$220.88 USD

RSP-1000-27 1000W 27V In stock$285.73 USD

RSP-1500-27 1500W 27V Backorder$433.58 USD

RSP-1600-27 1600W 27V Low stock$459.86 USD

Product variants

In stock

Overview

RSP-100-27 is the 27V output model of this series: rated current 3.8A, rated power 102.6W, typical efficiency 87%.

RSP-100 is a 100W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 88%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
3 years warranty

Specifications

RSP-100-27Specifications from the official datasheet (2025-01-10 edition)

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 3.8A
CURRENT RANGE: 0 ~ 3.8A
RATED POWER: 102.6W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 25.7 ~ 29.7V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 29.7 ~ 36.45V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to E N 61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48V) approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2325.2K hrs min. Telcordia SR-332 (Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 179*99*30mm (L*W*H)
PACKING: 0.52Kg; 24pcs/14.5Kg/0.81CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Strongly recommended that external output capacitance should not exceed 5000uF.(Only for: RSP-100-3.3/-5/-7.5)
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-100-27 Mechanical Specification — Mechanical Specification

RSP-100-27 Block Diagram — Block Diagram

RSP-100-27 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates4

CB Certificate (RSP-100)(EN) PDF Download

TUV Certificate (RSP-100)(EN)) PDF Download

EMC Certificate (RSP-100)(EN) PDF Download

CCC Certificate (RSP-100)(CN) PDF Download

Test reports1

Test Report (RSP-100-27)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What loads is the RSP-100-27 intended for at 27V?

The RSP-100-27 delivers 27V at 3.8A (102.6W) and is suited for loads requiring a 27V DC bus, such as industrial pneumatic valve drivers, 24V lead-acid battery float chargers that need a slightly elevated supply, and certain specialty telecommunications equipment. The 85–264VAC input provides broad AC compatibility.

How does the RSP-100-27 compare to the RSP-100-24 and RSP-100-48?

The RSP-100-24 outputs 24V at 4.2A (100.8W), the RSP-100-27 outputs 27V at 3.8A (102.6W), and the RSP-100-48 outputs 48V at 2.1A (100.8W). All three use the same chassis (179.0 × 99.0 × 30.0 mm) and 85–264VAC input. The RSP-100-27 is the midpoint between 24V and 48V in this series.

Can the RSP-100-27 be used in telecom or datacom cabinets?

The RSP-100-27 is rated for -30°C to +70°C operation (with derating at higher temperatures) and is approved to UL62368-1, TÜV BS EN/EN62368-1, CCC, BSMI, EAC and BIS. Its 27V output and compact 179 × 99 × 30 mm size make it compatible with telecom auxiliary circuits and datacom control boards that require a regulated 27V rail. The 3.8A output limits total load to 102.6W.

Is the RSP-100-27 rated for cold-climate operation?

Yes. The operating temperature floor of -30°C allows the RSP-100-27 to run in sub-zero ambient conditions, such as unheated indoor plant rooms and cold-storage facilities. No IP ingress rating is specified, so it must be installed in an enclosure that keeps it dry (20–90% RH non-condensing).

What are all voltage options available in the RSP-100 family?

The RSP-100 series offers output voltages from 3.3V to 48V across a single platform: RSP-100-3.3 (66W/3.3V/20A), RSP-100-5 (100W/5V/20A), RSP-100-7.5 (101.25W/7.5V/13.5A), RSP-100-12 (102W/12V/8.5A), RSP-100-13.5 (101.25W/13.5V/7.5A), RSP-100-15 (100.5W/15V/6.7A), RSP-100-24 (100.8W/24V/4.2A), RSP-100-27 (102.6W/27V/3.8A), RSP-100-48 (100.8W/48V/2.1A). All models accept 85–264VAC input and share the 179.0 × 99.0 × 30.0 mm chassis.
