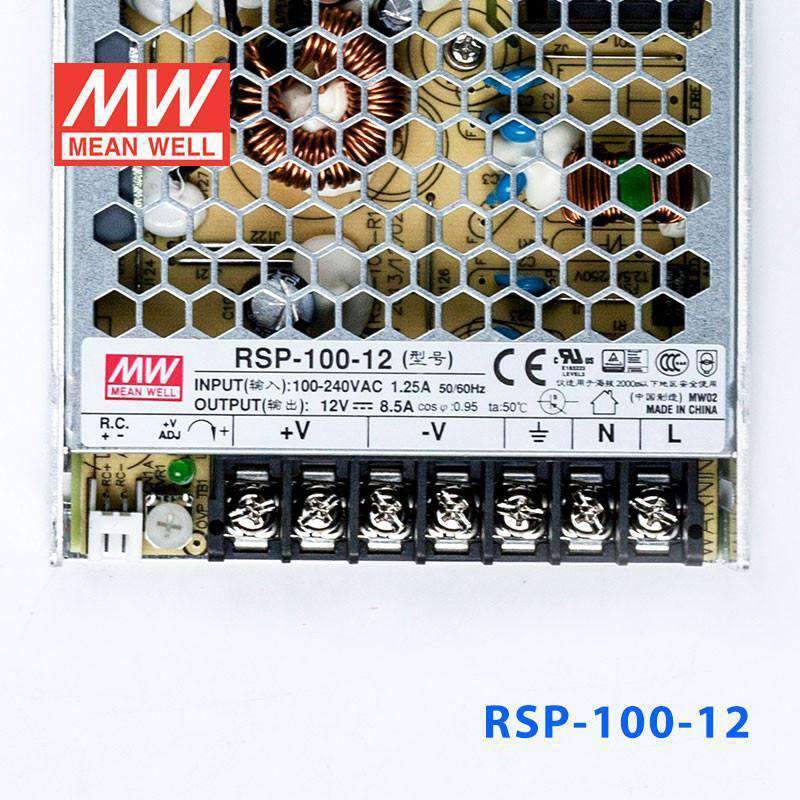

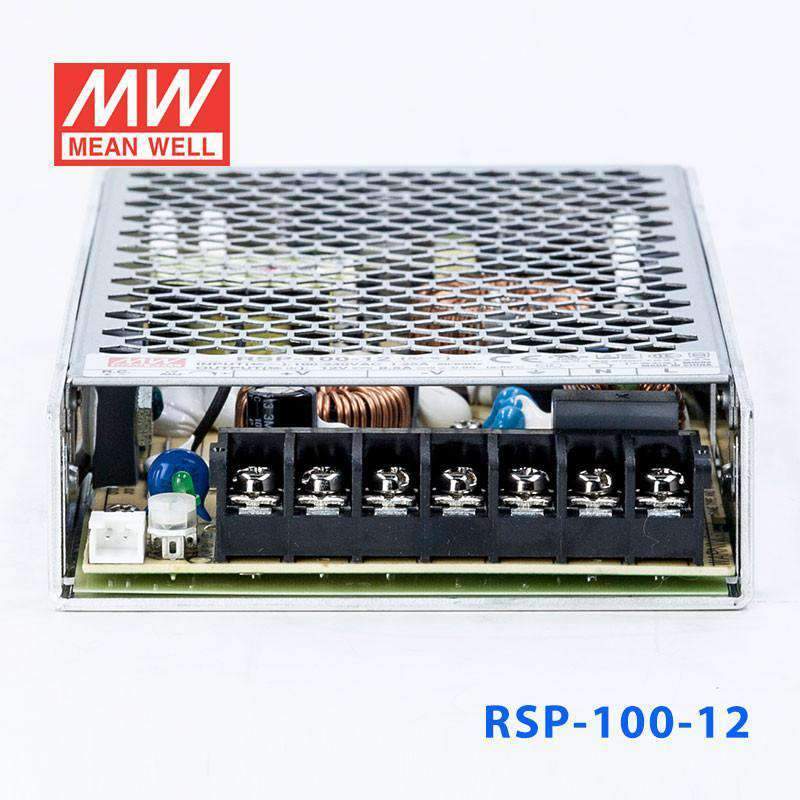

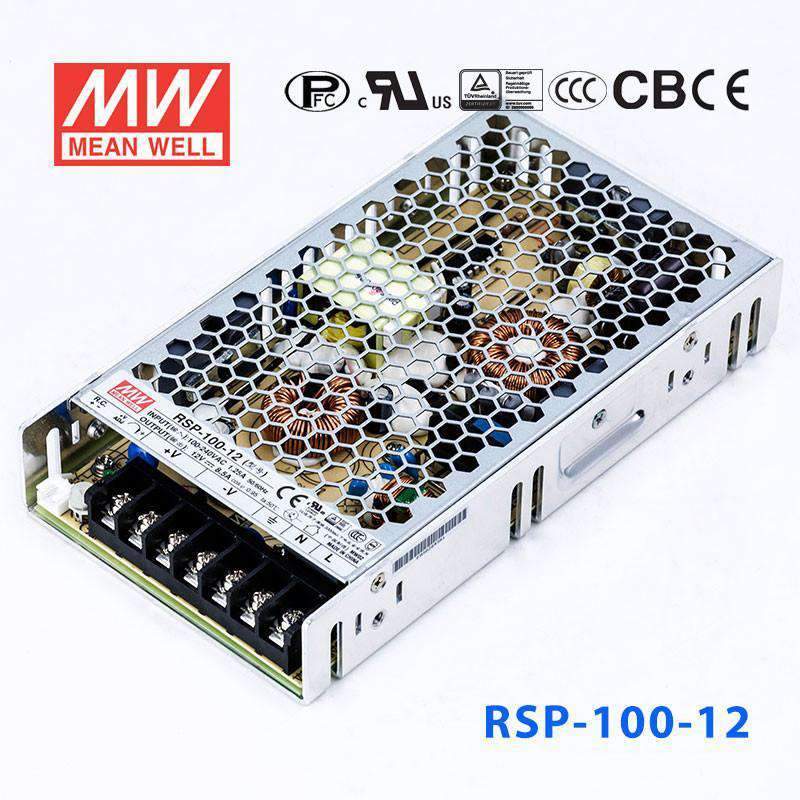

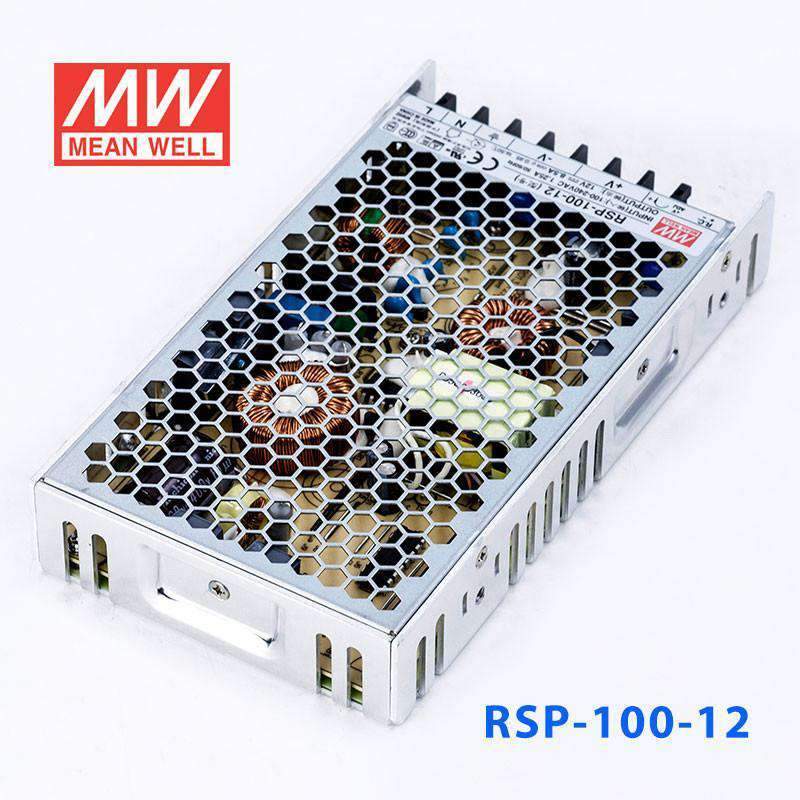

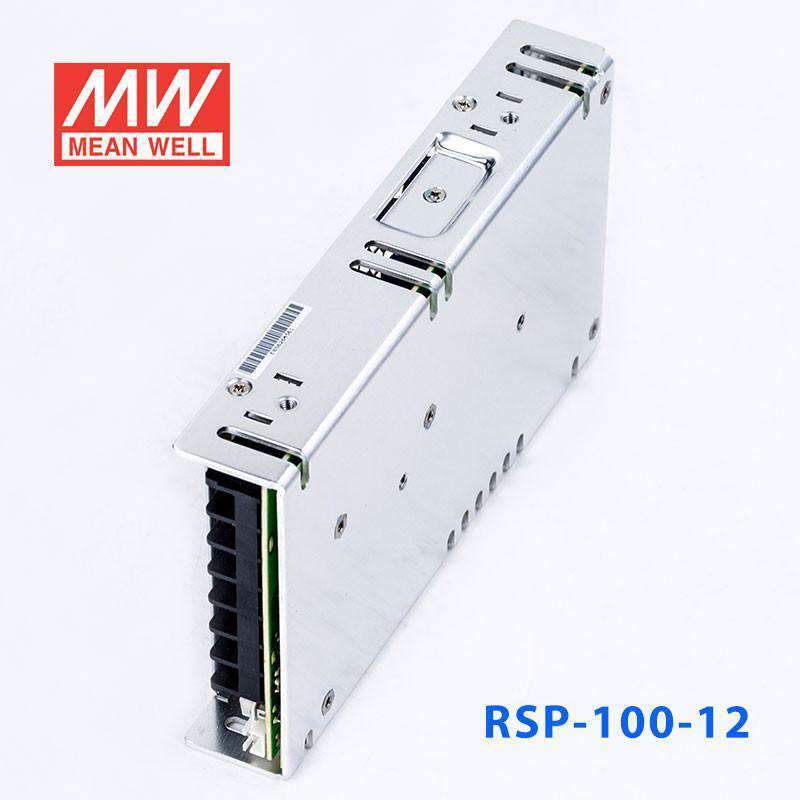

Mean Well RSP-100-12 Power Supply 100W 12V 8.5A

1U low profile with active PFChigh efficiency
SKU RSP-100-12
$44.64 USD
Shipping calculated at checkout.

Select model — 13 in this family

RSP-100-12
In stock
|

Overview

RSP-100-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 86%.

RSP-100 is a 100W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 88%
  • Cooling by free air convection
  • Built-in remote ON-OFF control
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • LED indicator for power on
  • 3 years warranty

Specifications

RSP-100-12Specifications from the official datasheet (2025-01-10 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
8.5A
CURRENT RANGE
0 ~ 8.5A
RATED POWER
102W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
11.4 ~ 13.2V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
600ms, 30ms at full load
HOLD UP TIME (Typ.)
16ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
1.1A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 30A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
13.2 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL
CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY
Ⅲ; According to E N 61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48V) approved, Design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2325.2K hrs min. Telcordia SR-332 (Bellcore) ; 288.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
179*99*30mm (L*W*H)
PACKING
0.52Kg; 24pcs/14.5Kg/0.81CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Strongly recommended that external output capacitance should not exceed 5000uF.(Only for: RSP-100-3.3/-5/-7.5)
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-100-12 Mechanical Specification
Mechanical Specification
RSP-100-12 Block Diagram
Block Diagram
RSP-100-12 Derating Curve
Derating Curve

Typical applications

  • Factory control or automation apparatus
  • Test and measurement instrument
  • Laser related machine
  • Burn-in facility
  • RF application

Downloads

FAQ

Is the RSP-100-12 suitable for powering 12V industrial control panels or PLC systems?

Yes. The RSP-100-12 delivers 12V at up to 8.5A (102W total), which is well suited for 12V DC control panels, PLC rack power, and embedded automation systems. Its universal input range of 85–264VAC means it operates on both 110V and 230V mains without reconfiguration. The operating temperature range of -30°C to +70°C also suits factory floor environments.

Can the RSP-100-12 be used in IT rack enclosures?

The datasheet does not specify rack mounting; the RSP-100-12 measures 179.0 × 99.0 × 30.0 mm and is installed inside the equipment or enclosure using its M4 mounting holes. At 102W output and 0.52 kg, it is suitable for powering 12V rack accessories, network switches, or embedded equipment where 12V power is required.

What are the differences between RSP-100 voltage variants?

All RSP-100 variants share the same 179.0 × 99.0 × 30.0 mm chassis and 85–264VAC input. The voltage options and their output current ratings are: RSP-100-3.3 (66W/3.3V/20A), RSP-100-5 (100W/5V/20A), RSP-100-7.5 (101.25W/7.5V/13.5A), RSP-100-12 (102W/12V/8.5A), RSP-100-13.5 (101.25W/13.5V/7.5A), RSP-100-15 (100.5W/15V/6.7A), RSP-100-24 (100.8W/24V/4.2A), RSP-100-27 (102.6W/27V/3.8A), RSP-100-48 (100.8W/48V/2.1A). Higher voltage variants deliver lower current at similar wattage. Select the variant matching your load's nominal voltage.

What is the operating temperature range of the RSP-100-12, and does it suit outdoor enclosures?

The RSP-100-12 is rated for -30°C to +70°C operation, with output derating at higher ambient temperatures according to the derating curve. It does not carry an IP rating and humidity must stay within 20–90% RH non-condensing, so it is not suited to outdoor or wet locations. Install it inside dry indoor industrial or commercial equipment.

What certifications does the RSP-100-12 hold?

The RSP-100-12 is approved to UL62368-1, TÜV BS EN/EN62368-1, BS EN/EN61558-1 and -2-16, CCC GB4943.1, BSMI CNS15598-1, EAC TP TC 004 and BIS IS13252. These cover the US, Europe, China, Taiwan, India and Russia/CIS markets, simplifying compliance for multi-region product deployments.
