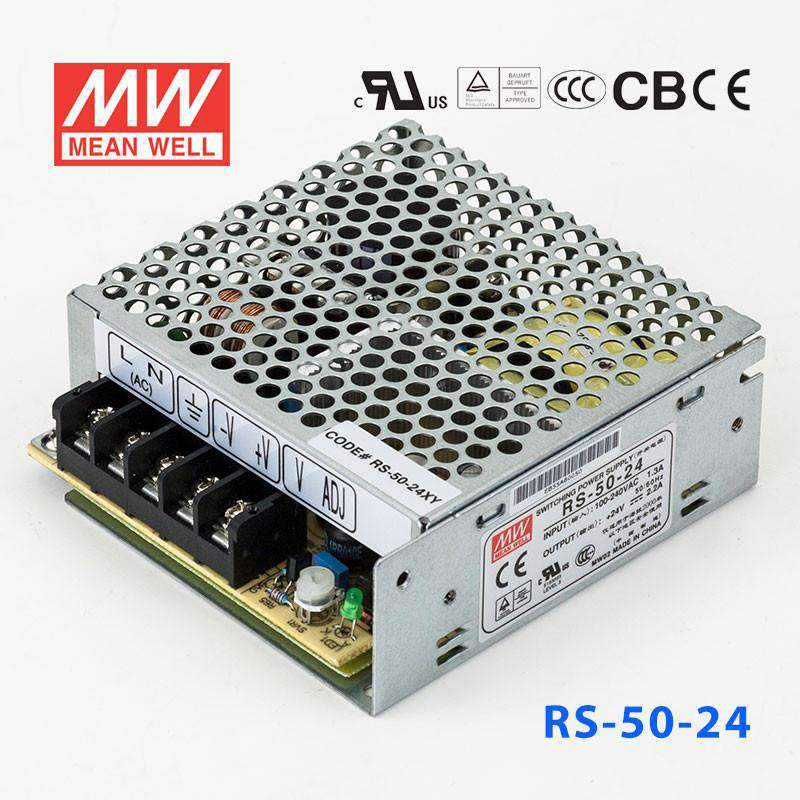

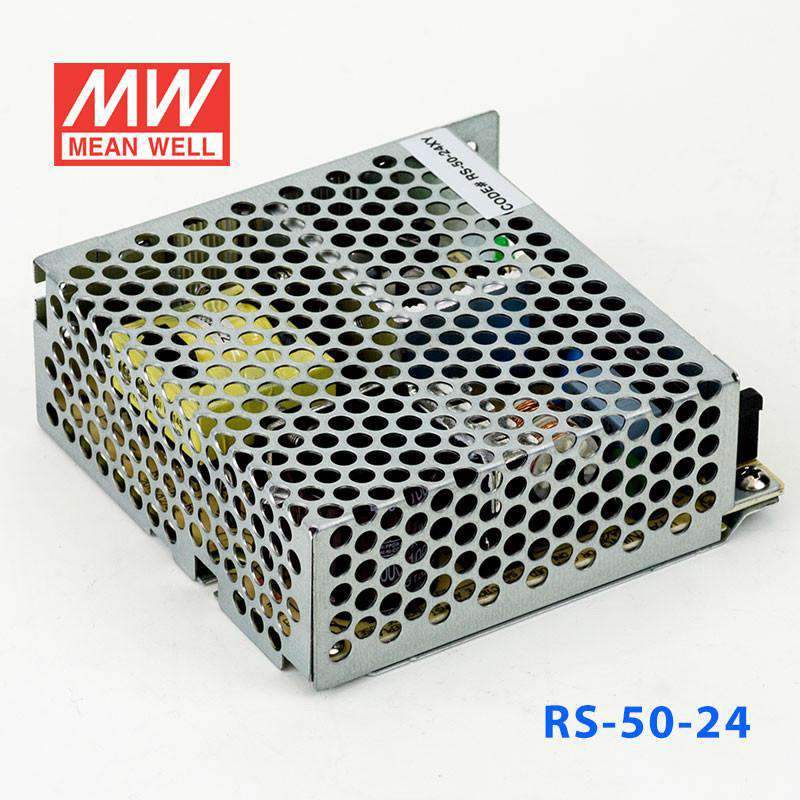

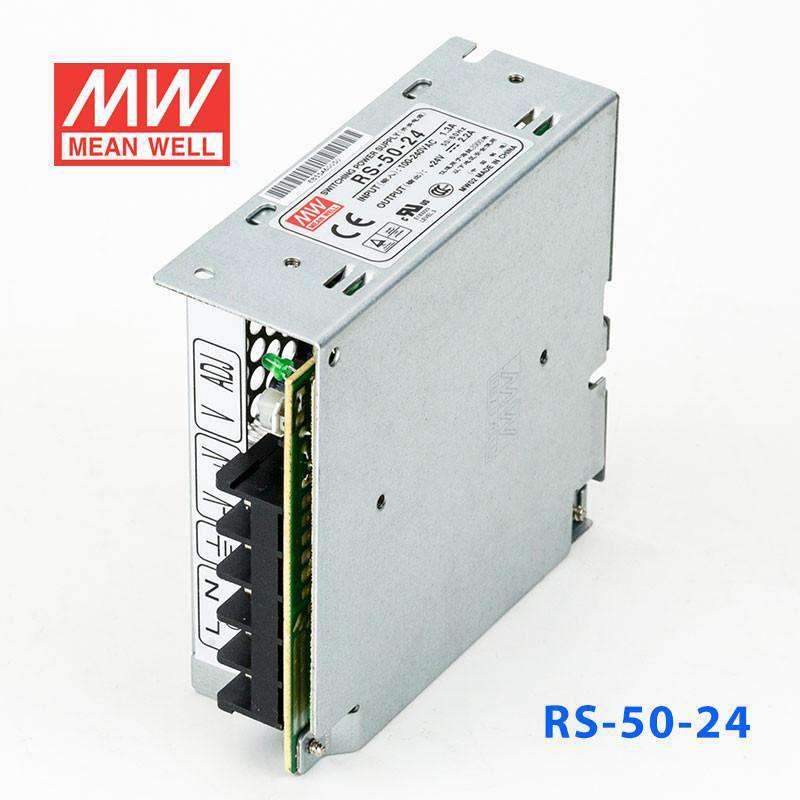

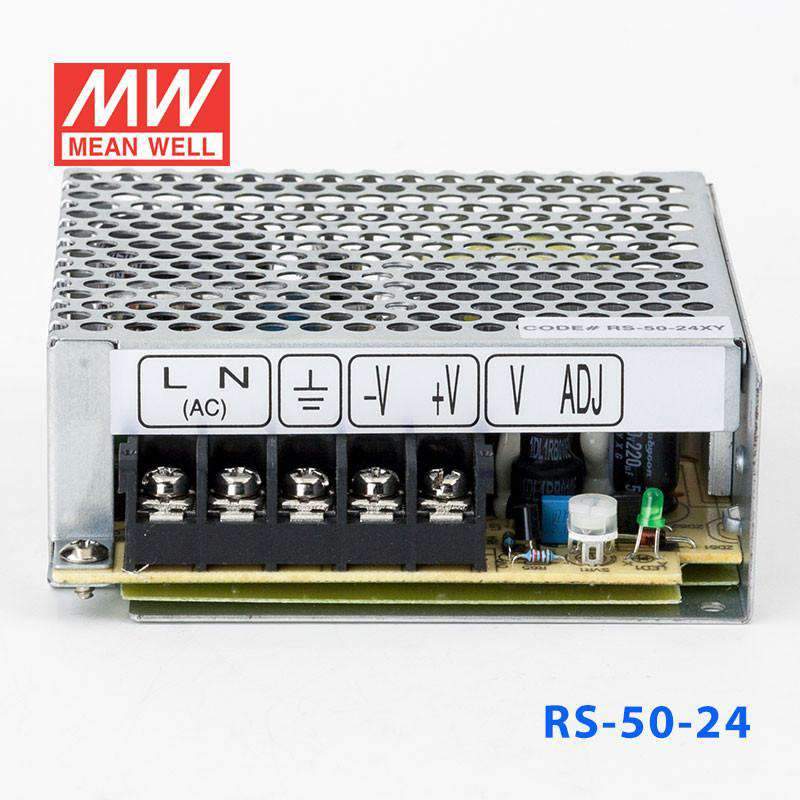

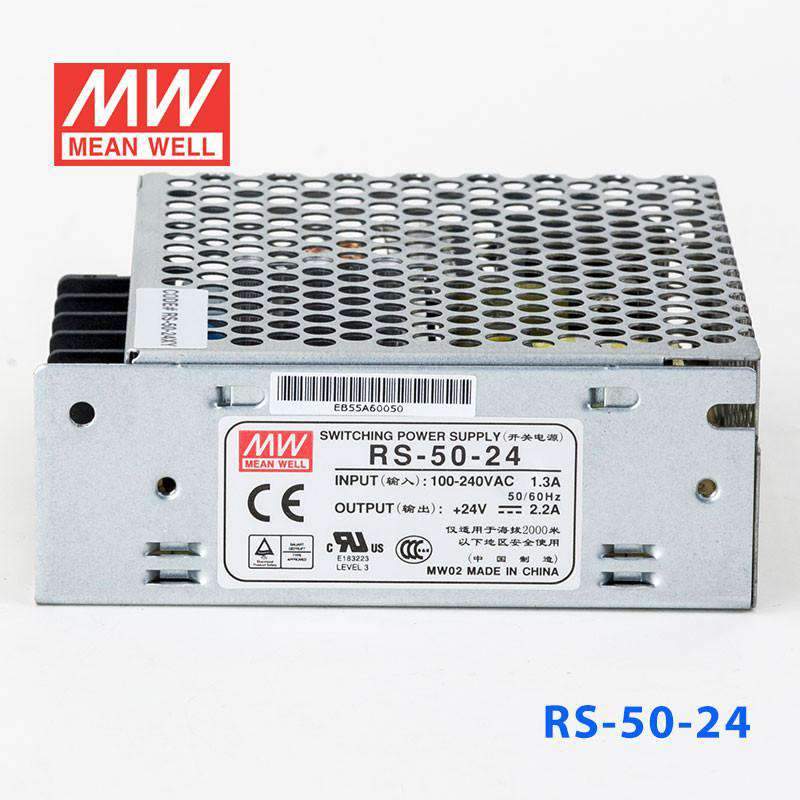

Mean Well RS-50-24 Power Supply 50W 24V 2.2A

Name: Mean Well RS-50-24 Power Supply 50W 24V 2.2A
Brand: Mean Well
SKU: RS-50-24
Price: 18.74 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-50-24

$18.74 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-50-24

RS-15-24 15W 24V In stock$10.75 USD

RS-25-24 25W 24V In stock$12.61 USD

RS-35-24 35W 24V In stock$17.32 USD

RS-50-24 50W 24V In stock$18.74 USD

RS-75-24 75W 24V In stock$22.70 USD

RS-100-24 100W 24V In stock$30.44 USD

RS-150-24 150W 24V In stock$29.65 USD

Product variants

In stock

Overview

RS-50-24 is the 24V output model of this series: rated current 2.2A, rated power 52.8W, typical efficiency 88%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
No load power consumption<0.5W
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-50-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 2.2A
CURRENT RANGE: 0 ~ 2.2A
RATED POWER: 52.8W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 22 ~ 27.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 88%
AC CURRENT (Typ.): 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 33A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2956.7K hrs min. Telcordia SR-332 (Bellcore) ; 575.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*97*36mm (L*W*H)
PACKING: 0.41Kg; 45pcs/19.5Kg/0.94CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-50-24 Mechanical Specification — Mechanical Specification

RS-50-24 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-50)(EN) PDF Download

CB Certificate (RS-50)(EN) PDF Download

TUV Certificate (RS-50)(EN) PDF Download

EMC Certificate (RS-50)(EN) PDF Download

Test reports1

Test Report (RS-50-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-50-24 for 24V PLC I/O, sensors, or compact automation loads?

Yes, if the connected 24V DC load does not exceed 2.2A and the total power stays within 52.8W. That makes it suitable for many low-power industrial control devices that are designed for a constant 24V input.

Is the RS-50-24 a good fit for 24V industrial communication or control electronics?

It can be used where the equipment requires constant 24V output and stays within the supply's 2.2A and 52.8W ratings. This is typically the right class of supply for compact 24V control electronics rather than higher-draw 24V loads.

Can this 24V power supply support small machine or panel-mounted accessories?

It can support 24V accessories that are specified for constant-voltage operation and remain at or below 2.2A. The 52.8W output makes it better suited to modest 24V panel devices than to larger 24V equipment with heavier current demand.

How does the RS-50-24 compare with other 24V models in the RS series?

The RS-50 series includes models like RS-50-24 (24V, 2.2A, 52.8W). Other 24V models in the RS series have different power ratings and currents, such as the RS-15-24, RS-25-24, RS-35-24, RS-75-24, RS-100-24, and RS-150-24, which are not part of this specific 50W datasheet.

Can the RS-50-24 handle industrial temperature swings, and is it outdoor-rated?

The operating temperature range is -25°C to +70°C, and the product is specified to withstand 5G vibration. Because no IP rating is provided, the published specifications do not establish outdoor exposure resistance, so it is better treated as a protected-environment power supply.
