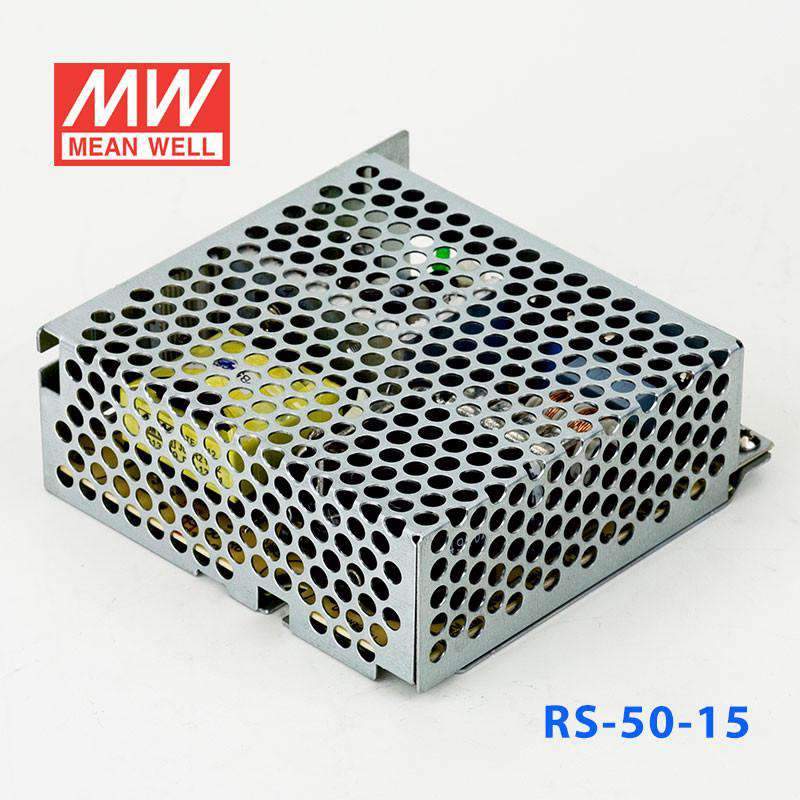

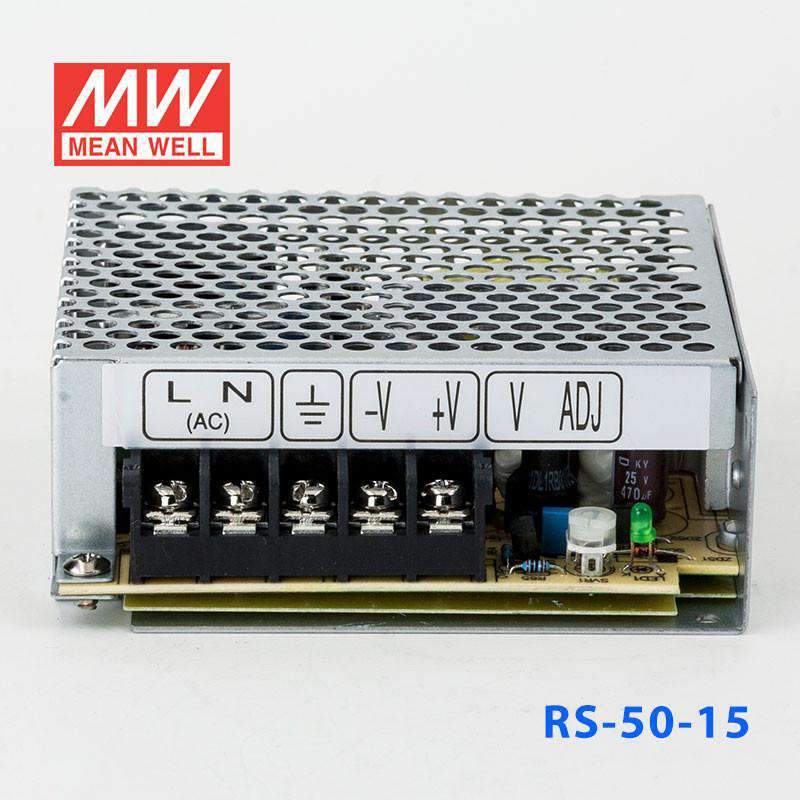

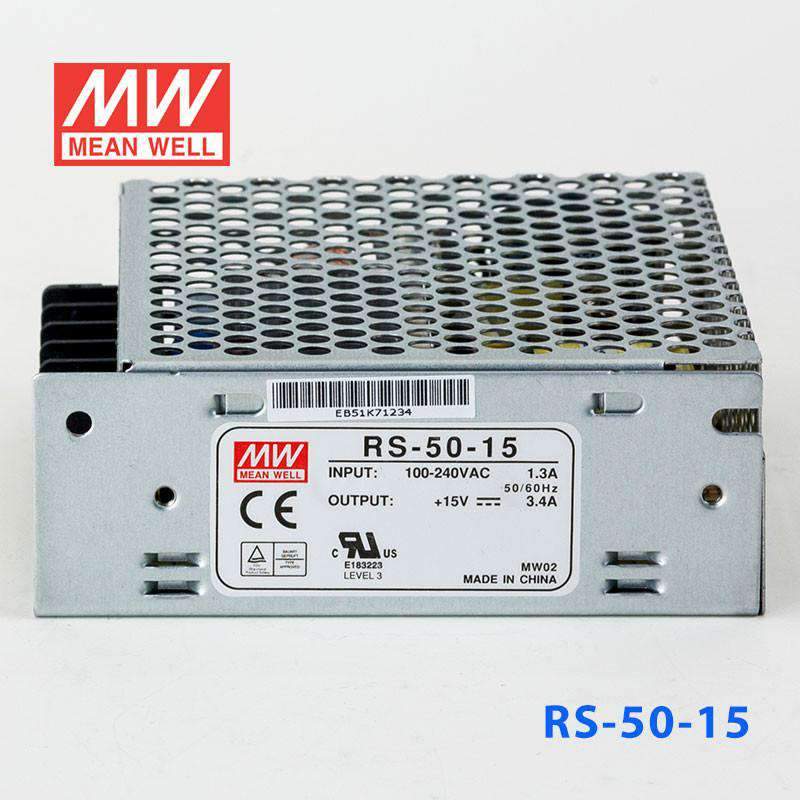

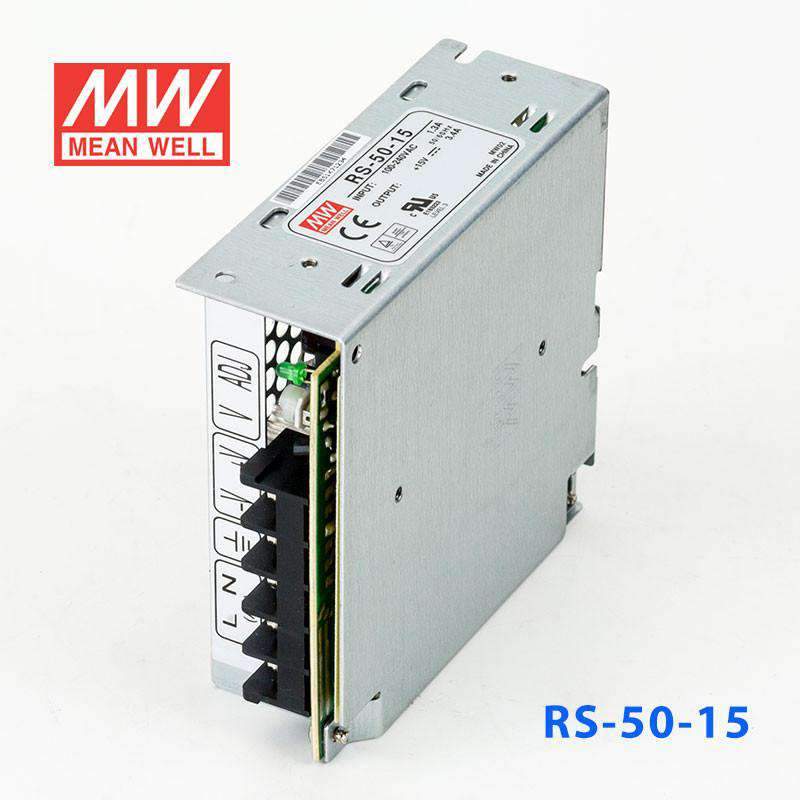

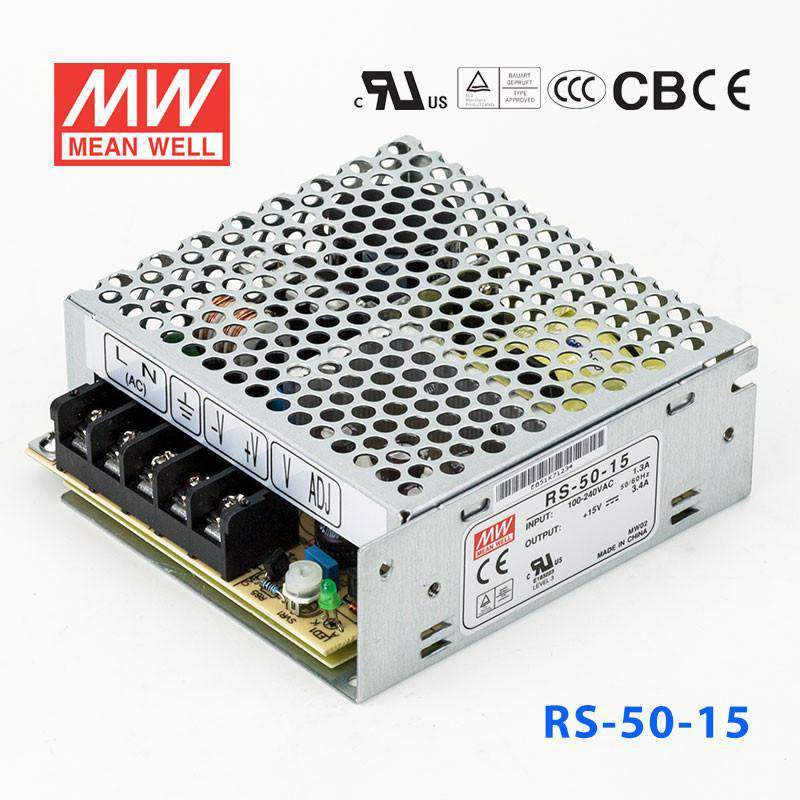

Mean Well RS-50-15 Power Supply 50W 15V 3.4A

Name: Mean Well RS-50-15 Power Supply 50W 15V 3.4A
Brand: Mean Well
SKU: RS-50-15
Price: 18.74 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-50-15

$18.74 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-50-15

RS-15-15 15W 15V In stock$10.75 USD

RS-25-15 25W 15V In stock$12.61 USD

RS-35-15 35W 15V Low stock$17.32 USD

RS-50-15 50W 15V Low stock$18.74 USD

RS-75-15 75W 15V In stock$20.57 USD

RS-100-15 100W 15V Low stock$26.79 USD

RS-150-15 150W 15V In stock$32.60 USD

Product variants

In stock

Overview

RS-50-15 is the 15V output model of this series: rated current 3.4A, rated power 51W, typical efficiency 86%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
No load power consumption<0.5W
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-50-15Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 3.4A
CURRENT RANGE: 0 ~ 3.4A
RATED POWER: 51W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 86%
AC CURRENT (Typ.): 1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.): COLD START 33A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 2956.7K hrs min. Telcordia SR-332 (Bellcore) ; 575.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*97*36mm (L*W*H)
PACKING: 0.41Kg; 45pcs/19.5Kg/0.94CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-50-15 Mechanical Specification — Mechanical Specification

RS-50-15 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-50)(EN) PDF Download

CB Certificate (RS-50)(EN) PDF Download

TUV Certificate (RS-50)(EN) PDF Download

EMC Certificate (RS-50)(EN) PDF Download

Test reports1

Test Report (RS-50-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-50-15 for 15V instrumentation or analog control equipment?

Yes, if the equipment requires constant 15V DC and the load stays within 3.4A and 51W. It is a practical match for industrial electronics and bench or embedded systems built around a 15V rail.

Is the RS-50-15 suitable for a 15V embedded controller or test fixture?

It can be, because it delivers constant 15V output up to 3.4A with 51W total available power. That fits 15V embedded assemblies and fixture electronics that are rated within those limits.

Can this model power 15V automation modules inside a control enclosure?

It is intended for constant-voltage 15V loads and can support them up to 3.4A and 51W. For automation hardware that specifies 15V DC input, the key check is keeping the total draw inside the unit's rated output.

How does the RS-50-15 compare with the other 15V RS series supplies?

The RS-50-15 is rated for 51W at 15V and 3.4A. Other 15V models in the RS series include the RS-15-15 (15W, 1A), RS-25-15 (25.5W, 1.7A), RS-35-15 (35W, 2.4A), RS-75-15 (75W, 5A), RS-100-15 (105W, 7A), and RS-150-15 (150W, 10A). The RS-50-15 sits in the middle of that 15V range for output capacity.

Is the RS-50-15 rated for outdoor use or only protected environments?

The specs list an operating temperature range of -25°C to +70°C and 5G vibration resistance. No IP rating is listed, so the published data supports protected indoor use but does not confirm outdoor or washdown suitability.
