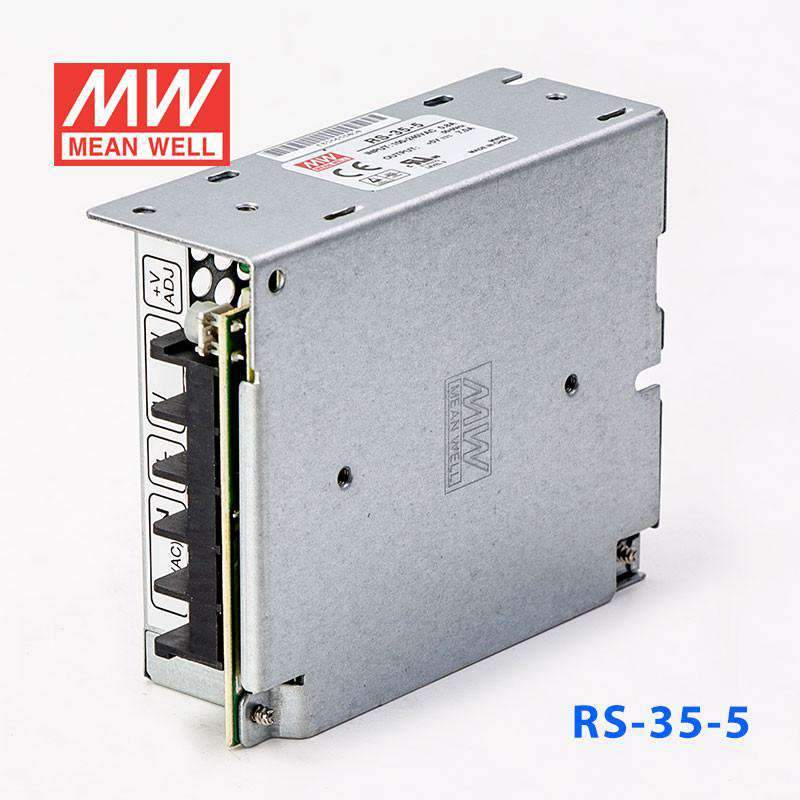

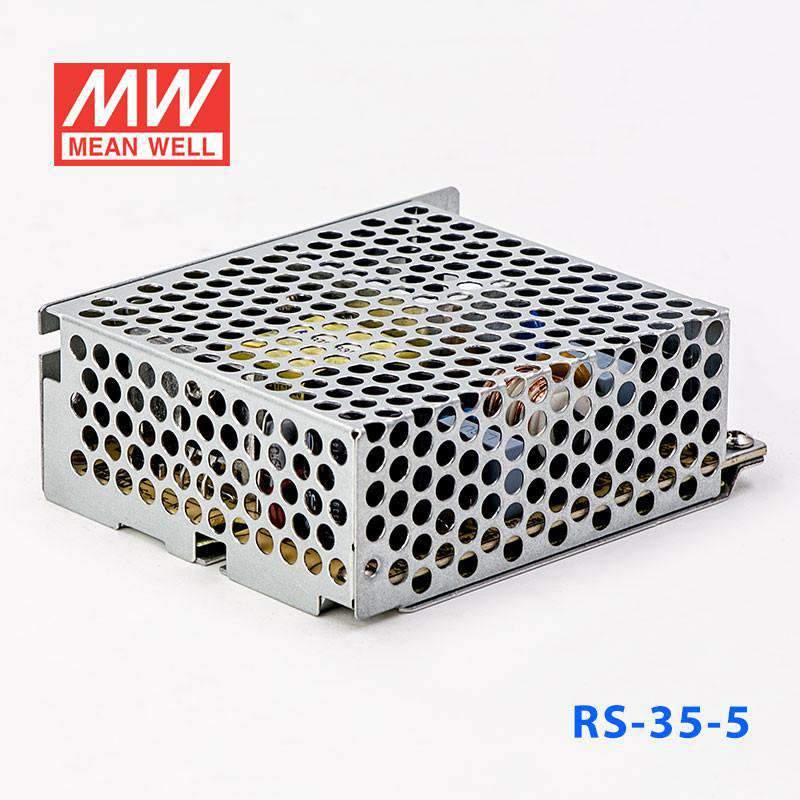

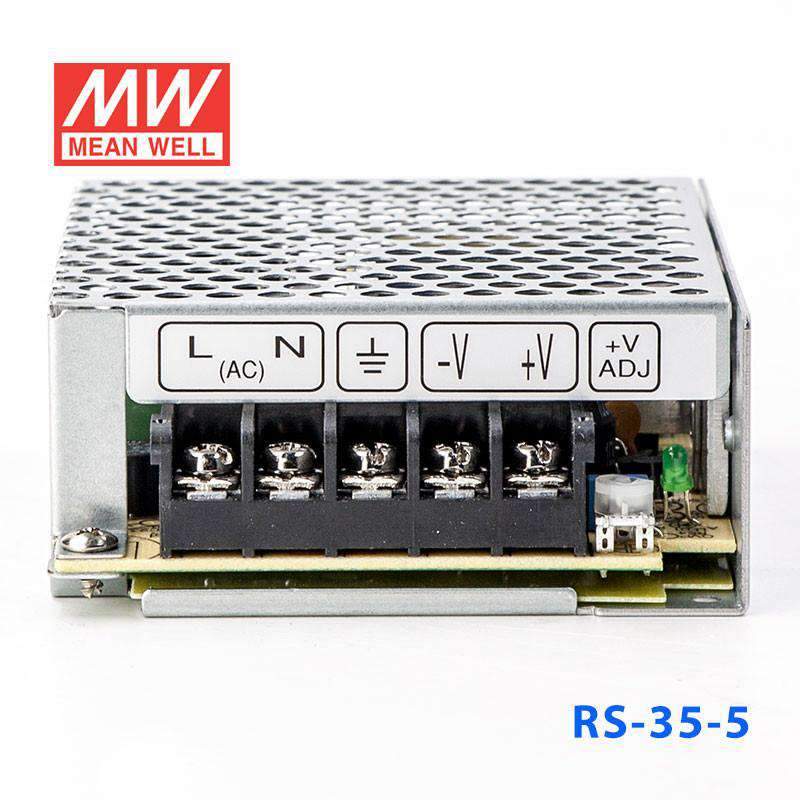

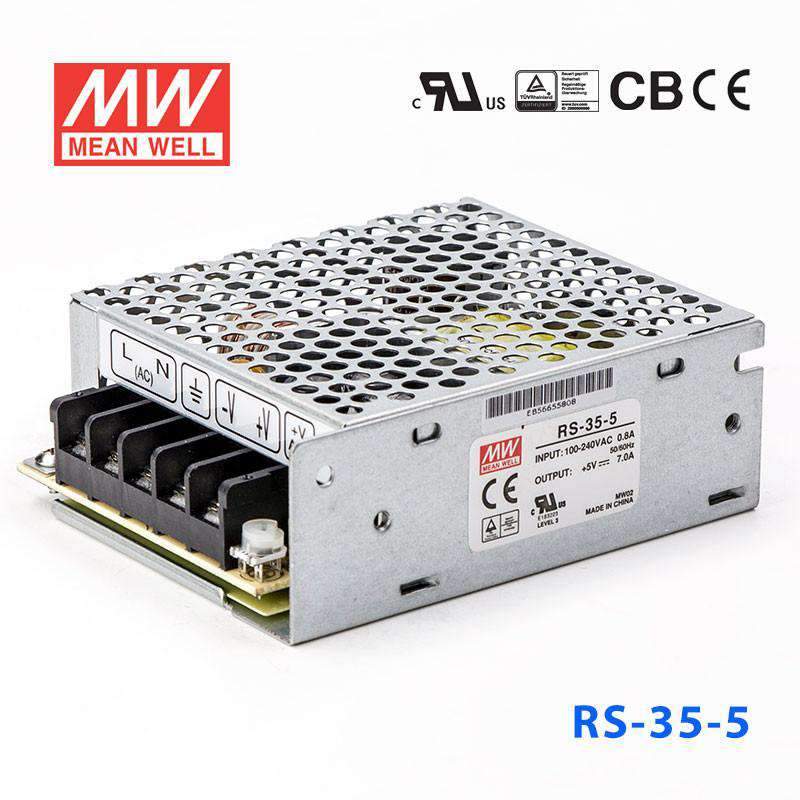

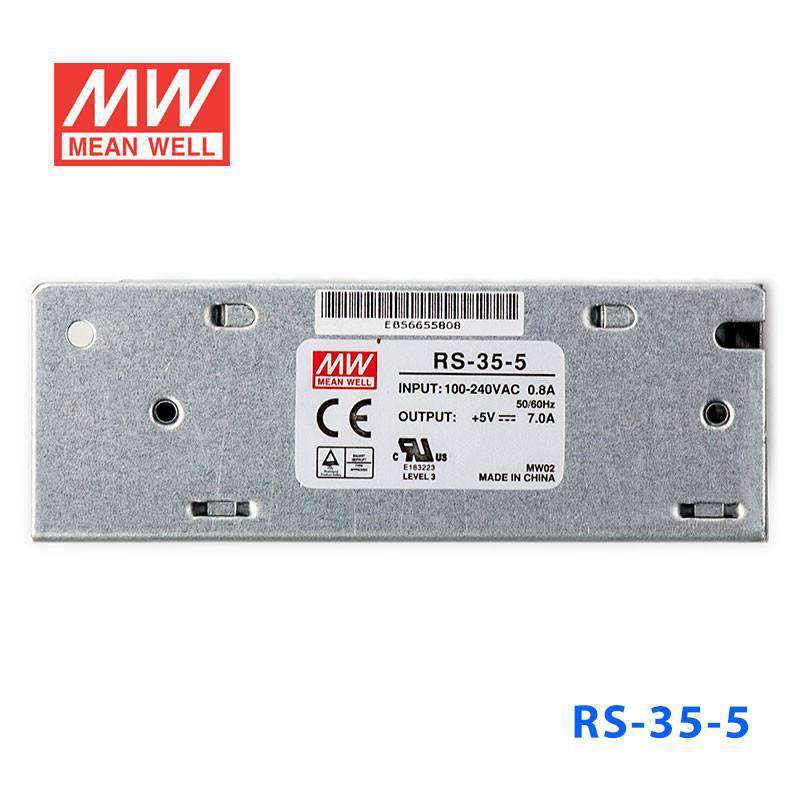

Mean Well RS-35-5 Power Supply 35W 5V 7A

Name: Mean Well RS-35-5 Power Supply 35W 5V 7A
Brand: Mean Well
SKU: RS-35-5
Price: 17.32 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-35-5

$17.32 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-35-5

RS-15-5 15W 5V In stock$10.75 USD

RS-25-5 25W 5V In stock$12.61 USD

RS-35-5 35W 5V In stock$17.32 USD

RS-50-5 50W 5V In stock$18.74 USD

RS-75-5 75W 5V In stock$22.70 USD

RS-100-5 100W 5V In stock$30.44 USD

RS-150-5 150W 5V In stock$32.60 USD

Product variants

In stock

Overview

RS-35-5 is the 5V output model of this series: rated current 7A, rated power 35W, typical efficiency 80.5%.

Features

Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-35-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 7A
CURRENT RANGE: 0 ~ 7A
RATED POWER: 35W
RIPPLE & NOISE (max.)^Note.2: 80mVp-p
VOLTAGE ADJ. RANGE: 4.5 ~ 5.5V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±1.0%
SETUP, RISE TIME: 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 80.5%
AC CURRENT (Typ.): 0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.): COLD START 36A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*82*36mm (L*W*H)
PACKING: 0.3Kg; 45pcs/14Kg/0.76CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-5 Mechanical Specification — Mechanical Specification

Downloads

Certificates4

UL Certificate (RS-35)(EN) PDF Download

CB Certificate (RS-35)(EN) PDF Download

TUV Certificate (RS-35)(EN) PDF Download

EMC Certificate (RS-35)(EN) PDF Download

Test reports1

Test Report (RS-35-5)(EN) PDF Download

FAQ

Can I use the RS-35-5 for a 5V PLC accessory or small industrial controller?

Yes, if the load requires a constant 5V supply and stays within 7A and 35W. That makes it suitable for low-voltage industrial control electronics, compact controllers, and similar 5V devices that do not exceed the unit's rated output.

Is the RS-35-5 a fit for embedded computing or SBC-based equipment that runs on 5V?

It can be, because the supply provides constant 5V output up to 7A with 35W total capacity. It is best matched to embedded platforms, edge devices, and processor boards that specifically require 5V and remain inside those current and power limits.

Can this 5V power supply be used for automation sensors and logic modules?

It can support 5V automation electronics when the combined demand stays at or below 7A and 35W. The RS-35-5 is intended for constant-voltage loads, so it fits 5V logic modules, sensor electronics, and other low-voltage control devices rated for 5V.

How does the RS-35-5 compare with the other 5V models in the RS series?

Within the 5V RS-35 series, the listed models are RS-35-3.3 at 23.1W and 7A, RS-35-5 at 35W and 7A, RS-35-12 at 36W and 3A, RS-35-15 at 36W and 2.4A, RS-35-24 at 36W and 1.5A, and RS-35-48 at 38.4W and 0.8A. The RS-35-5 offers the highest rated power among the 5V options in this specific 35W series.

Is the RS-35-5 suitable for outdoor or high-temperature locations?

The published specs show an operating temperature range of -25°C to +70°C and note 70°C operation plus 5G vibration resistance. No IP rating is listed, so the specs support temperature-capable indoor enclosure use, but they do not establish outdoor or weather-exposed suitability.
