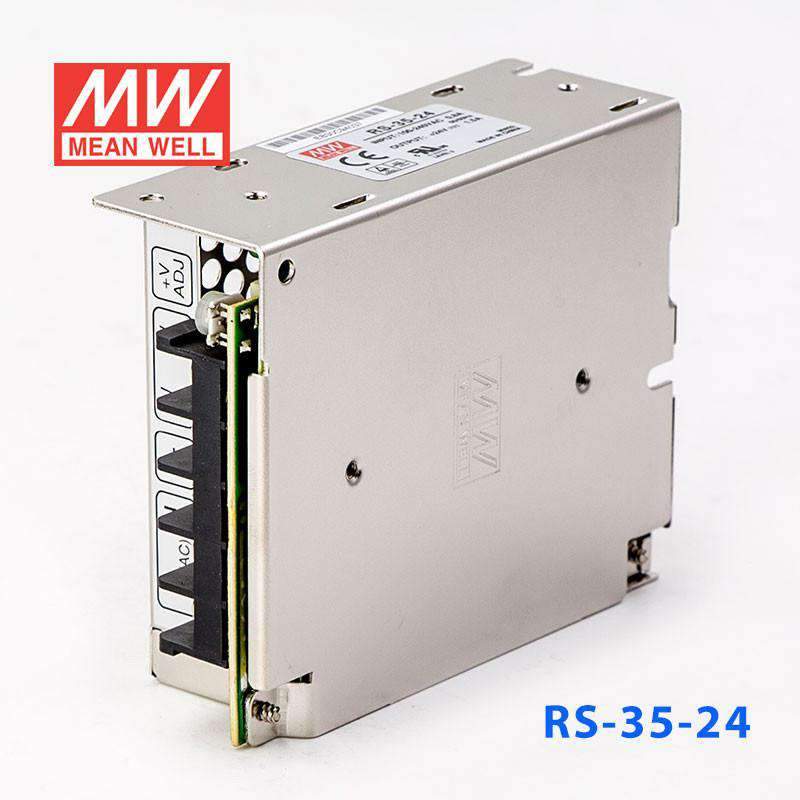

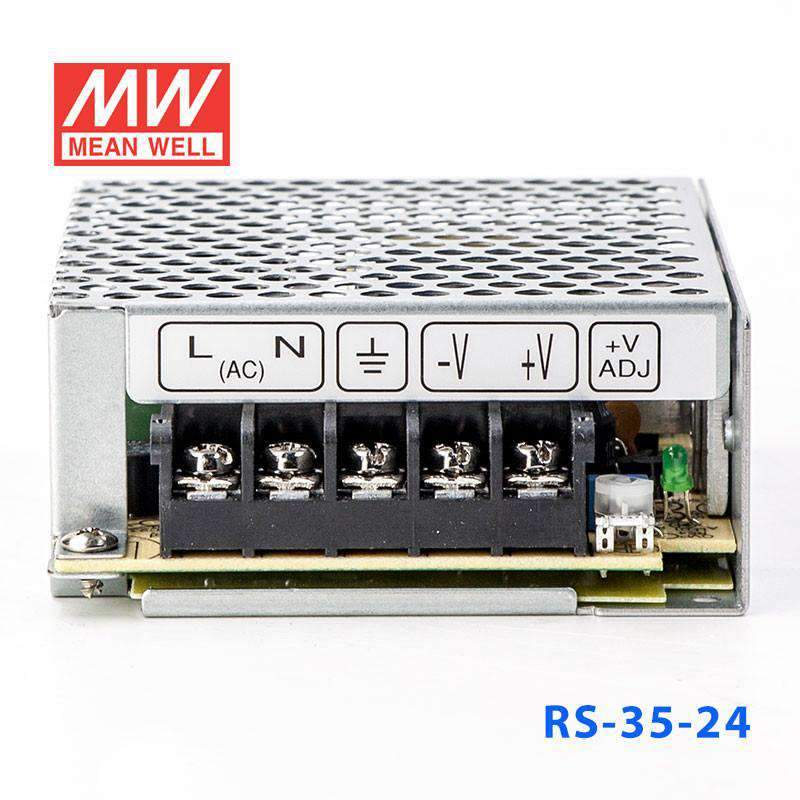

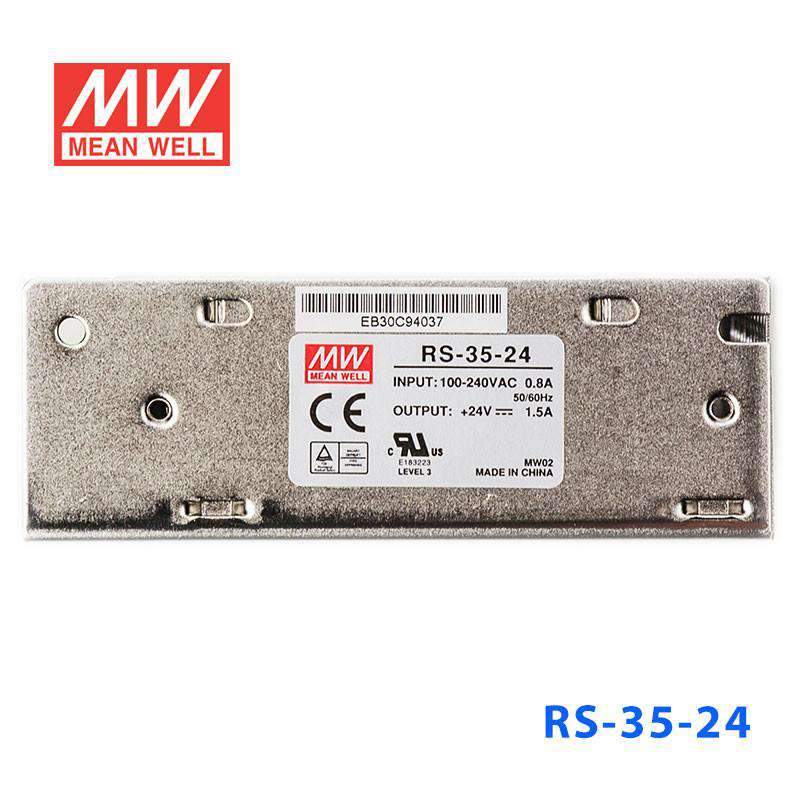

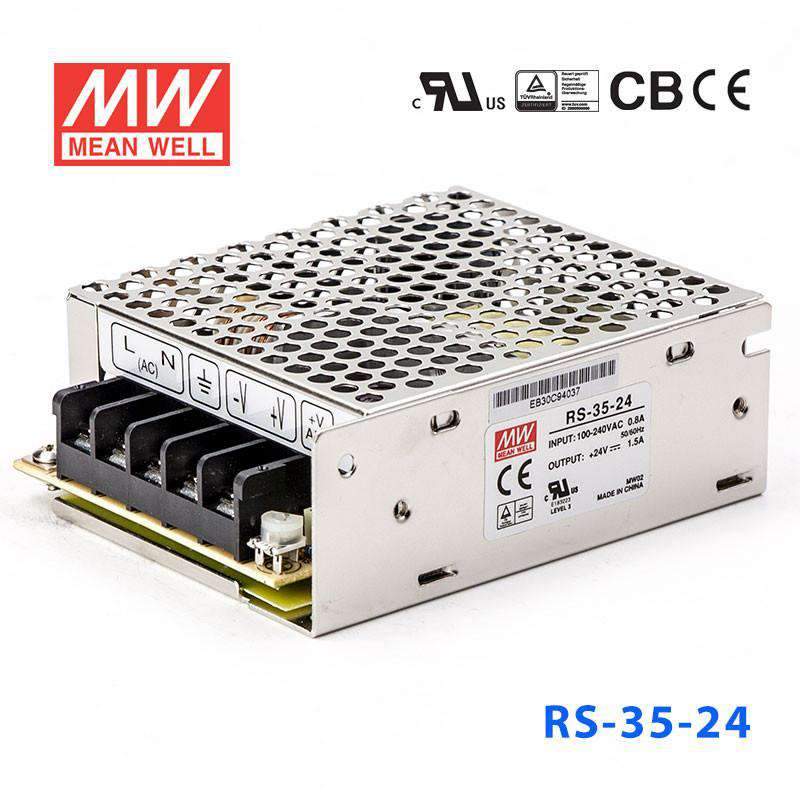

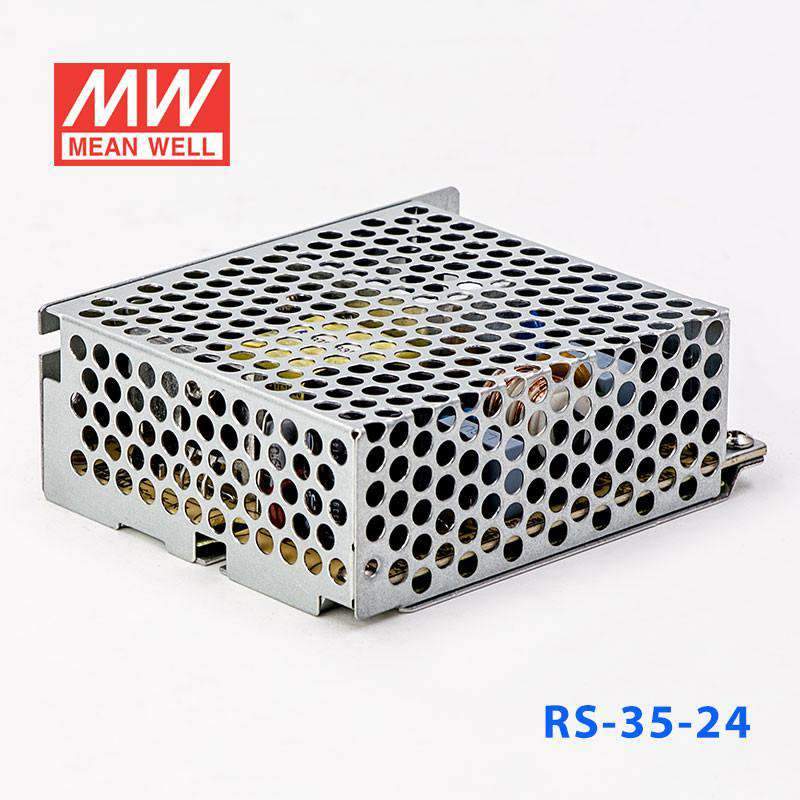

Mean Well RS-35-24 Power Supply 35W 24V 1.5A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation
SKU RS-35-24
$17.32 USD
Shipping calculated at checkout.

Select model — 7 in this family

RS-35-24
In stock
|

Overview

RS-35-24 is the 24V output model of this series: rated current 1.5A, rated power 36W, typical efficiency 88%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-35-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.5A
CURRENT RANGE
0 ~ 1.5A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
22 ~ 27.6V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATIONNote.4
±0.5%
LOAD REGULATIONNote.5
±0.5%
SETUP, RISE TIME
500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
88%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 36A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-24 Mechanical Specification
Mechanical Specification
RS-35-24 Block Diagram
Block Diagram
RS-35-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-35-24 for a small PLC, sensor group, or 24V automation circuit?

Yes, if the connected 24V DC automation load stays within 36W and 1.5A. That makes it suitable for lighter 24V control circuits, small sensor groups, or compact automation assemblies.

Is the RS-35-24 suitable for industrial control cabinets that use 24V DC?

It is a practical choice for protected control cabinets where the equipment requires constant 24V DC and the load does not exceed 1.5A. The compact 99.0 × 82.0 × 36.0 mm size also helps in tighter enclosures.

Can this 24V model power embedded or industrial communications hardware?

It can power embedded or industrial communications hardware that is rated for a constant 24V DC input and remains within 36W. The 88-264VAC input range supports deployment in a wide range of AC-powered facilities.

Is the RS-35-24 for indoor use only?

The published specs show an operating range of -25°C to +70°C, but no IP rating is given. Without an IP rating, it is better treated as a supply for indoor panels or other protected enclosures rather than exposed outdoor use.

How does RS-35-24 compare with other 35W outputs in the RS series?

The published specs show an operating range of -25°C to +70°C, but no IP rating is given. Without an IP rating, it is better treated as a supply for indoor panels or other protected enclosures rather than exposed outdoor use.
