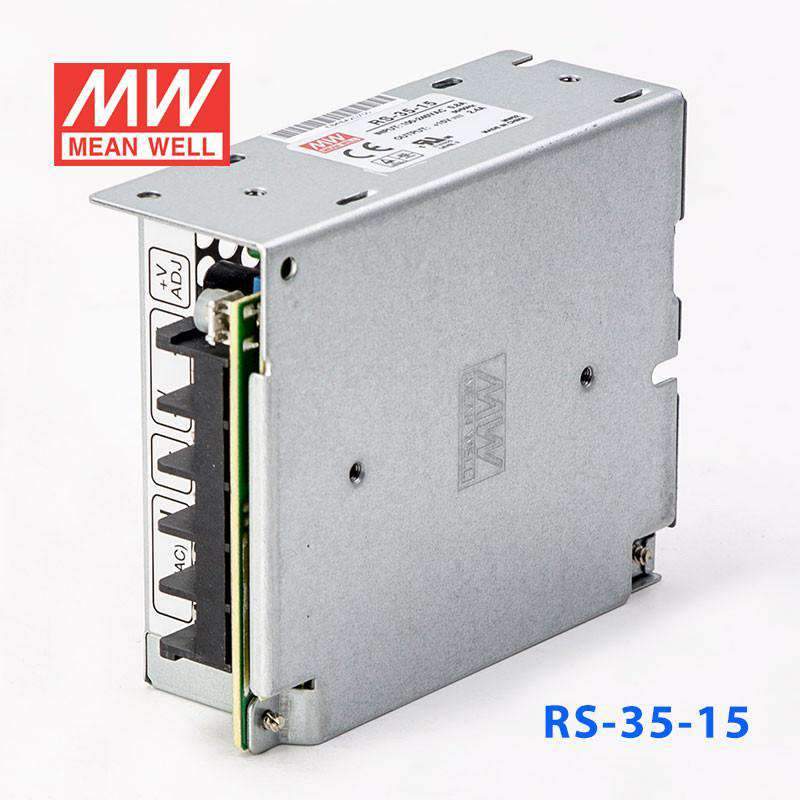

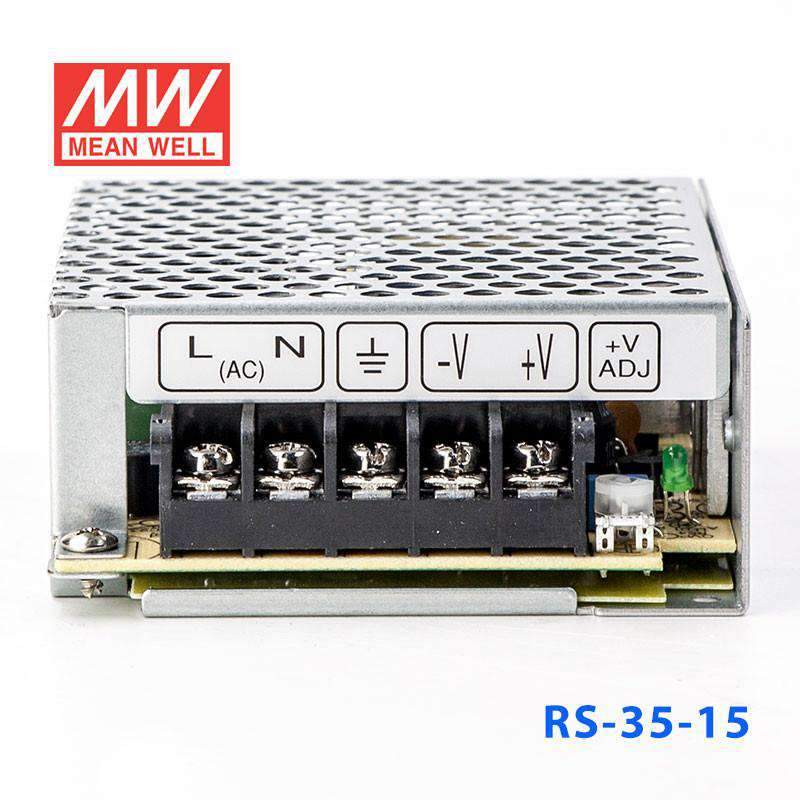

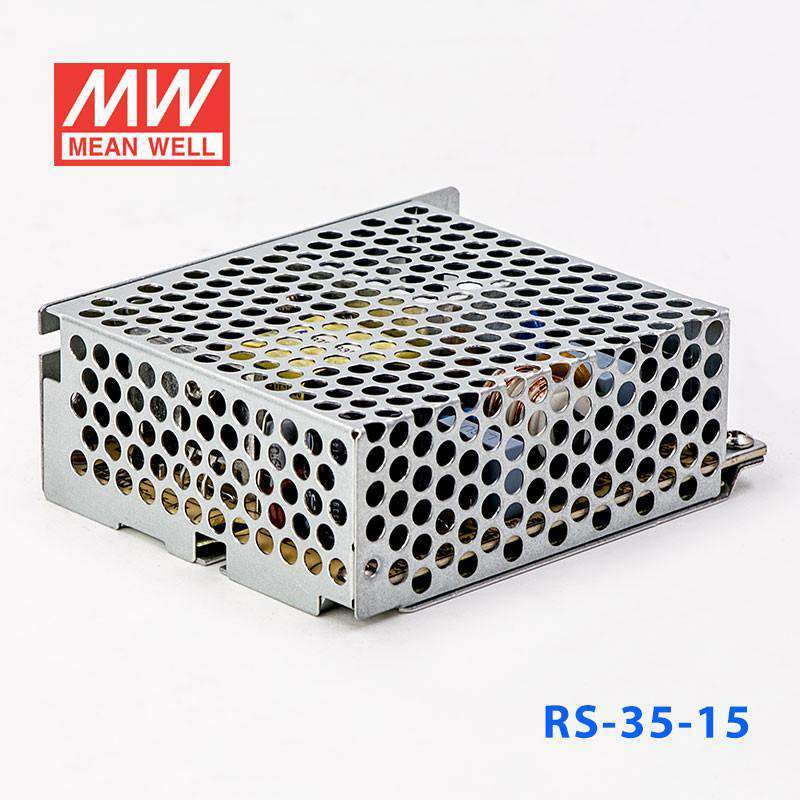

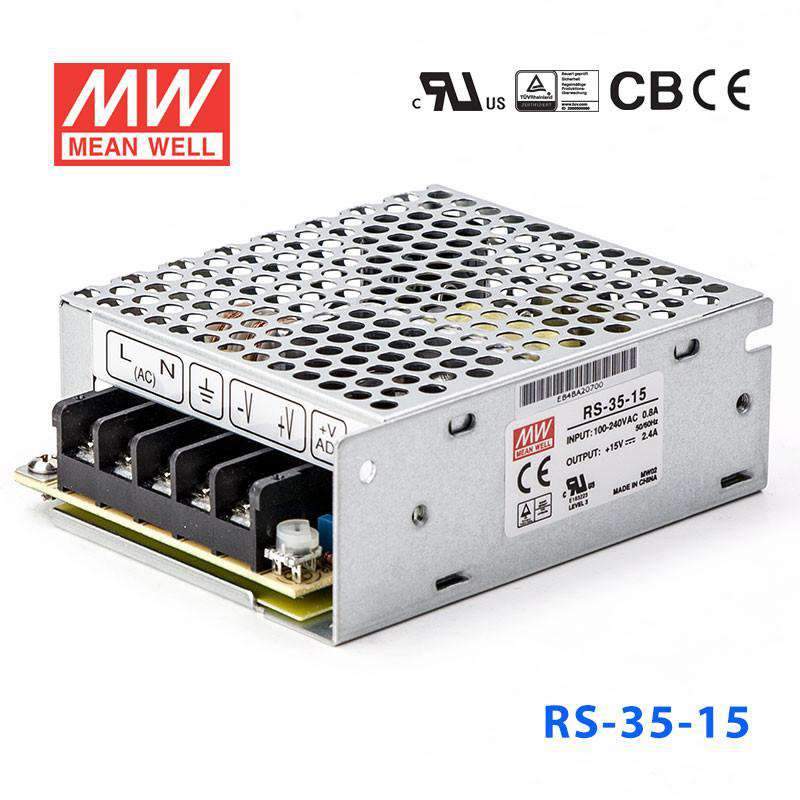

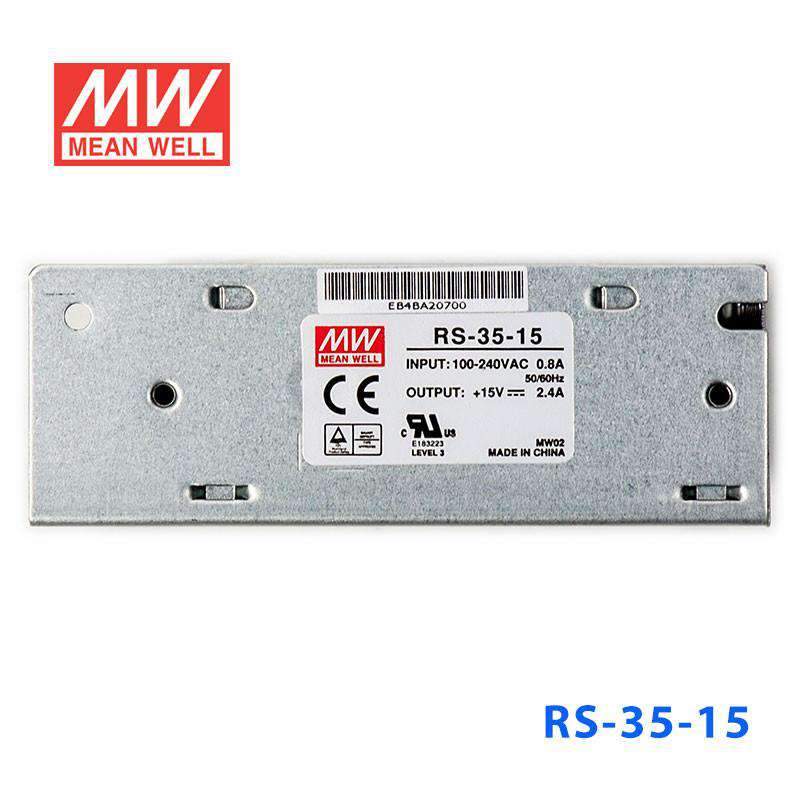

Mean Well RS-35-15 Power Supply 35W 15V 2.4A

Name: Mean Well RS-35-15 Power Supply 35W 15V 2.4A
Brand: Mean Well
SKU: RS-35-15
Price: 17.32 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-35-15

$17.32 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-35-15

RS-15-15 15W 15V In stock$10.75 USD

RS-25-15 25W 15V In stock$12.61 USD

RS-35-15 35W 15V Low stock$17.32 USD

RS-50-15 50W 15V Low stock$18.74 USD

RS-75-15 75W 15V In stock$20.57 USD

RS-100-15 100W 15V Low stock$26.79 USD

RS-150-15 150W 15V In stock$32.60 USD

Product variants

In stock

Overview

RS-35-15 is the 15V output model of this series: rated current 2.4A, rated power 36W, typical efficiency 86%.

Features

Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-35-15Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 2.4A
CURRENT RANGE: 0 ~ 2.4A
RATED POWER: 36W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 86%
AC CURRENT (Typ.): 0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.): COLD START 36A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*82*36mm (L*W*H)
PACKING: 0.3Kg; 45pcs/14Kg/0.76CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-15 Mechanical Specification — Mechanical Specification

RS-35-15 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-35)(EN) PDF Download

CB Certificate (RS-35)(EN) PDF Download

TUV Certificate (RS-35)(EN) PDF Download

EMC Certificate (RS-35)(EN) PDF Download

Test reports1

Test Report (RS-35-15)(EN) PDF Download

FAQ

Can I use the RS-35-15 for 15V industrial instrumentation or analog control equipment?

Yes, if the equipment is designed for a constant 15V DC input and stays within 36W and 2.4A. That makes it suitable for lighter-duty industrial or bench equipment that specifically calls for 15V.

Is the RS-35-15 a good choice for embedded test fixtures or electronics that need 15V DC?

It can be used for embedded fixtures, controllers, or electronics that require a regulated 15V DC supply and draw up to 2.4A. The 88-264VAC input also supports use in locations with different AC input standards.

Can this model power small 15V automation modules inside a machine or cabinet?

Yes, for small automation modules that are rated for constant 15V DC and do not exceed 36W total load. Its miniature 99.0 × 82.0 × 36.0 mm form factor is useful where cabinet space is limited.

Will the RS-35-15 handle demanding industrial environments?

The unit is rated for operation from -25°C to +70°C and is specified to withstand 5G vibration. Those specs make it more suitable for protected industrial equipment than a basic office-only supply, provided the application stays within its electrical ratings.

What is the difference between RS-35-15 and the other 35W RS power supplies?

The 35W RS family includes RS-35-3.3 at 3.3V and 7A, RS-35-5 at 5V and 7A, RS-35-12 at 12V and 3A, RS-35-15 at 15V and 2.4A, RS-35-24 at 24V and 1.5A, and RS-35-48 at 48V and 0.8A. They all share the same 35W power class, with the output voltage and current changing by model.
