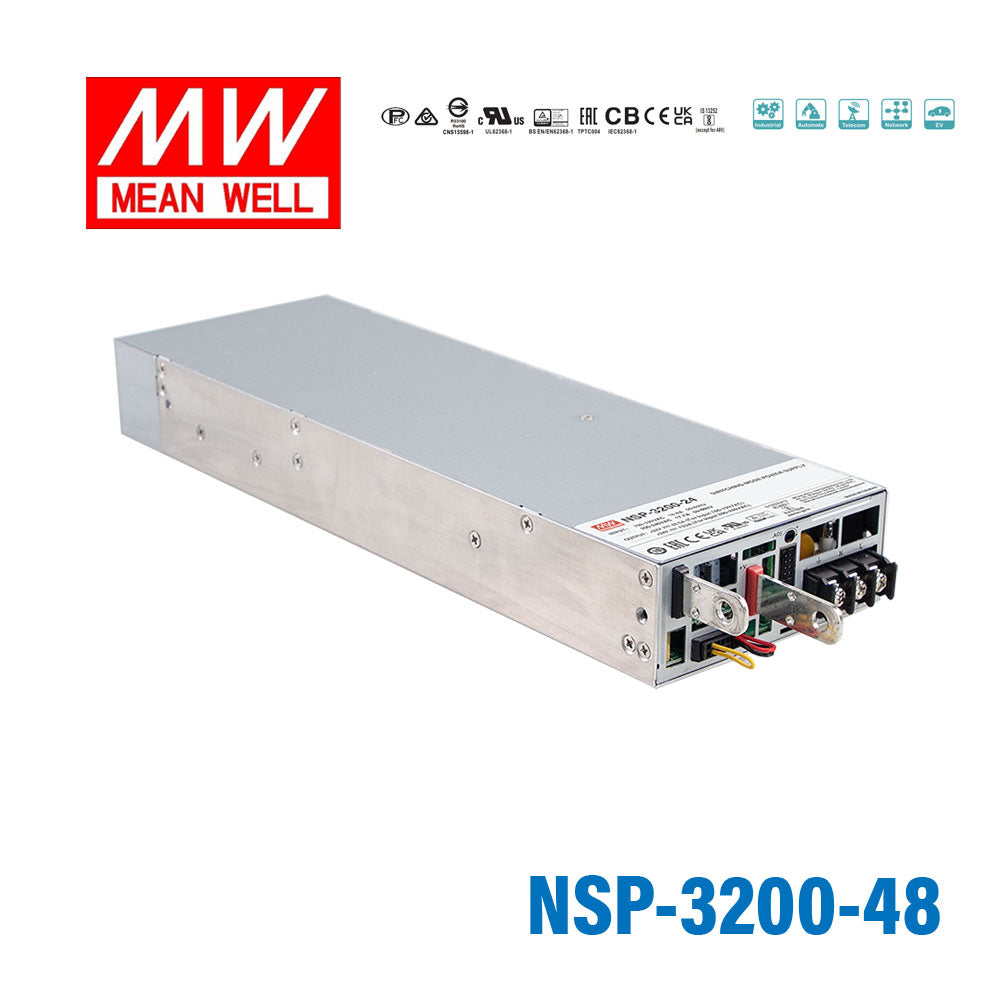

Mean Well NSP-3200-48 3216W 48V Compact Power Supply 67A

Name: Mean Well NSP-3200-48 3216W 48V Compact Power Supply 67A
Brand: Mean Well
SKU: NSP-3200-48
Price: 548.14 USD
Availability: InStock

built-in active PFCefficiency up to 94.5%1U low profilehigh power density up to 37W/inch³

SKU NSP-3200-48

$548.14 USD

Shipping calculated at checkout.

Select model — 2 in this family

NSP-3200-48

NSP-1600-48 1600W 48V Backorder$389.53 USD

NSP-3200-48 3200W 48W Backorder$548.14 USD

Product variants

Available to order

Overview

NSP-3200-48 is the 48V output model of this series: rated current 67A, rated power 3216W, typical efficiency 94.5%.

NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch³. This series operates for 90~264Vac input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the thermostatically controlled fan. Moreover, NSP-3200 provides vast design flexibility by equipping various built-in functions such as output programming, remote ON-OFF control, auxiliary power, and etc.

Features

90~264Vac input with PFC
Output voltage 50~125% programmable
Built-in CANBus protocol
-20~+70℃ wide range operation temperature
Built-in constant current limiting circuit
High efficiency up to 94.5%
Built-in remote ON-OFF control / Remote Sense / 12Vaux power / DC OK signal / OTP alarm signal
Built-in intelligent fan speed control
Protections: Short circuit / Overload / Over voltage / Over temperature
Design refer to SEMI F47 at 200Vac
5 years warranty

Specifications

NSP-3200-48Specifications from the official datasheet (2026-07-20 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 67A
CURRENT RANGE: 0 ~ 67A
RATED POWER: 3216W
RIPPLE & NOISE (max.)^Note.2: 480mVp-p
VOLTAGE ADJ. RANGE: 47.5 ~ 58.8V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230Vac at full load
HOLD UP TIME (Typ.): 16ms / 230Vac at 70% load, 8ms / 230Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264Vac 127 ~ 400Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230Vac at full load
EFFICIENCY (Typ.)^Note.5: 94.5%
AC CURRENT (Typ.)^Note.4: 17A/230Vac
INRUSH CURRENT (Typ.): COLD START 55A/230Vac
LEAKAGE CURRENT: <2mA / 230Vac

PROTECTION

OVERLOAD: 105 ~ 115% rated output power Protection type : Constant current limiting, shut down O/P voltage 5 sec. after O/P voltage is down low, re-power on to recover
OVER VOLTAGE: 63 ~ 75V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage Please refer to the Function Manual in following pages
REMOTE CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5Vdc. Please refer to the Function Manual in following pages
AUXILIARY POWER: 12Vaux @ 0.8A, tolerance ±10%
ALARM SIGNAL: Isolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages
CANBus INTERFACE: Communication provides functions such as control, setting and monitoring
FAN NOISE (Typ.)^Note.7: Built-in intelligent fan speed control detect by PSU'S internal temperature
FAN NOISE (Typ.) 10% load with Ta=25℃: 38dB
FAN NOISE (Typ.) 70% load with Ta=25℃: 38dB

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.8)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BIS IS 13252(Part 1):2010/ IEC 60950-1 : 2005 (for 24V only), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac I/P-FG:2KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024, BS EN/EN61000-6-2, design refer to SEMI F47 at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 637.4K hrs min. Telcordia SR-332 (Bellcore) ; 63.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 325.8*107*41mm (L*W*H)
PACKING: 2.24Kg;4pcs/10Kg/1.09CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The efficiency is measured at 75% load.
6. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
7. FAN noise test set up according to ISO-7779.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

NSP-3200-48 BLOCK DIAGRAM — BLOCK DIAGRAM

NSP-3200-48 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

NSP-3200-48 DERATING CURVE — DERATING CURVE

NSP-3200-48 FUNCTION MANUAL — FUNCTION MANUAL

NSP-3200-48 3. Voltage Drop Compensation — 3. Voltage Drop Compensation

NSP-3200-48 Illustration (page 5) — Illustration (page 5)

NSP-3200-48 4. Alarm Signal Output — 4. Alarm Signal Output

NSP-3200-48 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NSP-3200-48 Accessory List — Accessory List

NSP-3200-48 Installation Diagram — Installation Diagram

Typical applications

Downloads

Datasheet1

NSP-3200-48 datasheetNSP_3200_spec.pdf · 2026-07-20 edition PDF Download

FAQ

What types of systems is the Mean Well NSP-3200-48 best suited for?

This 48V model is positioned for high-reliability applications such as industrial automation, telecom equipment, network systems, PoE power sourcing, security systems, and charging equipment. Its 48V output, 3216W rating and CANBus interface suit systems built around a 48V DC bus.

What input and output specifications matter most on the NSP-3200-48?

The product data identifies this as a 48V, 67A, 3216W output power supply. It accepts a universal 90-264VAC input range, or 127-400VDC, which helps when the same model needs to be used across different mains environments; output derating applies at low input voltages.

How does the NSP-3200-48 compare with other voltage versions in the NSP-3200 series?

The main difference is the output voltage: the series datasheet covers a 24V version (133A, 3192W) and this 48V version (67A, 3216W). The 48V version is the relevant choice when the end equipment is designed around a 48V DC bus, while both keep the same high-reliability enclosed format and feature set.

Does the NSP-3200-48 support remote monitoring or external control features?

Yes. The series includes remote ON/OFF control, remote sense with up to 0.5V compensation, DC-OK and T-Alarm signals for status monitoring, and a CANBus interface. Those features are useful in systems that need centralized control, voltage compensation, or power-good feedback.

Is the NSP-3200-48 designed for demanding environmental conditions?

It is designed for industrial use. The series uses a built-in fan with intelligent speed control based on internal temperature and is rated for -20°C to +70°C operation with derating at higher temperatures. Above 2000m altitude, the ambient temperature must be derated by 5°C per 1000m.

What protection and compliance features does the NSP-3200-48 include?

The series includes overload protection with constant current limiting, plus OVP (63-75V) and OTP protections. It is listed with UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1 and EAC TP TC 004 approvals, with EMC to EN55032 (conducted Class B, radiated Class A), EN55024 and EN61000-6-2.
