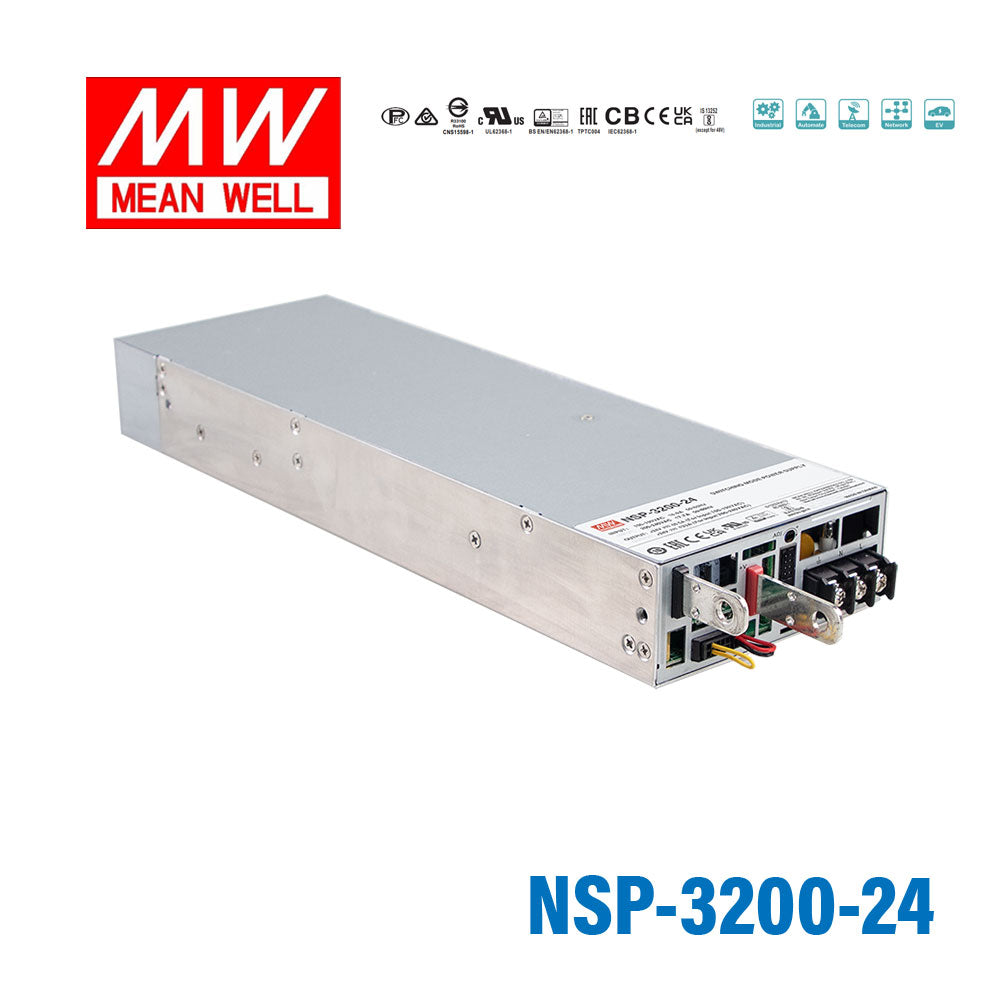

Mean Well NSP-3200-24 3192W 24V Compact Power Supply 133A

Name: Mean Well NSP-3200-24 3192W 24V Compact Power Supply 133A
Brand: Mean Well
SKU: NSP-3200-24
Price: 548.14 USD
Availability: InStock

built-in active PFCefficiency up to 94.5%1U low profilehigh power density up to 37W/inch³

SKU NSP-3200-24

$548.14 USD

Shipping calculated at checkout.

Select model — 2 in this family

NSP-3200-24

NSP-1600-24 1600W 24V Backorder$389.53 USD

NSP-3200-24 3200W 24V Backorder$548.14 USD

Product variants

Available to order

Overview

NSP-3200-24 is the 24V output model of this series: rated current 133A, rated power 3192W, typical efficiency 93.5%.

NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch³. This series operates for 90~264Vac input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the thermostatically controlled fan. Moreover, NSP-3200 provides vast design flexibility by equipping various built-in functions such as output programming, remote ON-OFF control, auxiliary power, and etc.

Features

90~264Vac input with PFC
Output voltage 50~125% programmable
Built-in CANBus protocol
-20~+70℃ wide range operation temperature
Built-in constant current limiting circuit
High efficiency up to 94.5%
Built-in remote ON-OFF control / Remote Sense / 12Vaux power / DC OK signal / OTP alarm signal
Built-in intelligent fan speed control
Protections: Short circuit / Overload / Over voltage / Over temperature
Design refer to SEMI F47 at 200Vac
5 years warranty

Specifications

NSP-3200-24Specifications from the official datasheet (2026-07-20 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 133A
CURRENT RANGE: 0 ~ 133A
RATED POWER: 3192W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 23.5 ~ 30V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230Vac at full load
HOLD UP TIME (Typ.): 16ms / 230Vac at 70% load, 8ms / 230Vac at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264Vac 127 ~ 400Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230Vac at full load
EFFICIENCY (Typ.)^Note.5: 93.5%
AC CURRENT (Typ.)^Note.4: 17A/230Vac
INRUSH CURRENT (Typ.): COLD START 55A/230Vac
LEAKAGE CURRENT: <2mA / 230Vac

PROTECTION

OVERLOAD: 105 ~ 115% rated output power Protection type : Constant current limiting, shut down O/P voltage 5 sec. after O/P voltage is down low, re-power on to recover
OVER VOLTAGE: 31.5 ~ 37.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage Please refer to the Function Manual in following pages
REMOTE CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5Vdc. Please refer to the Function Manual in following pages
AUXILIARY POWER: 12Vaux @ 0.8A, tolerance ±10%
ALARM SIGNAL: Isolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages
CANBus INTERFACE: Communication provides functions such as control, setting and monitoring
FAN NOISE (Typ.)^Note.7: Built-in intelligent fan speed control detect by PSU'S internal temperature
FAN NOISE (Typ.) 10% load with Ta=25℃: 38dB
FAN NOISE (Typ.) 70% load with Ta=25℃: 44dB

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.8)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BIS IS 13252(Part 1):2010/ IEC 60950-1 : 2005 (for 24V only), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVac I/P-FG:2KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024, BS EN/EN61000-6-2, design refer to SEMI F47 at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 637.4K hrs min. Telcordia SR-332 (Bellcore) ; 63.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 325.8*107*41mm (L*W*H)
PACKING: 2.24Kg;4pcs/10Kg/1.09CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. The efficiency is measured at 75% load.
6. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
7. FAN noise test set up according to ISO-7779.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

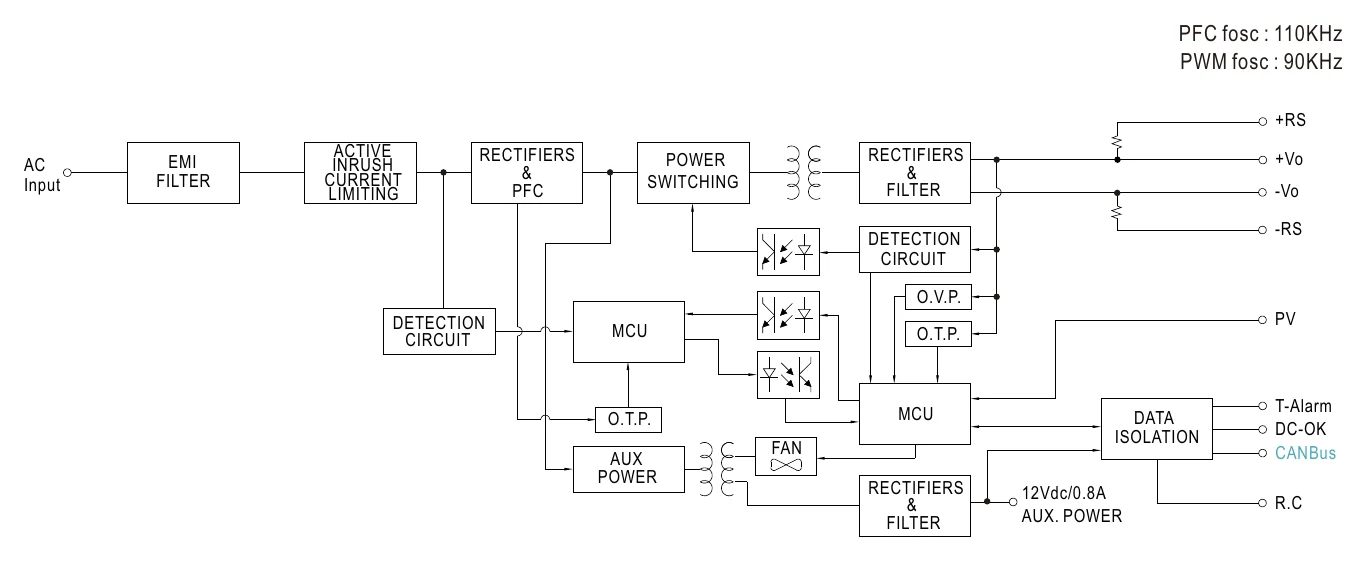

NSP-3200-24 BLOCK DIAGRAM — BLOCK DIAGRAM

NSP-3200-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

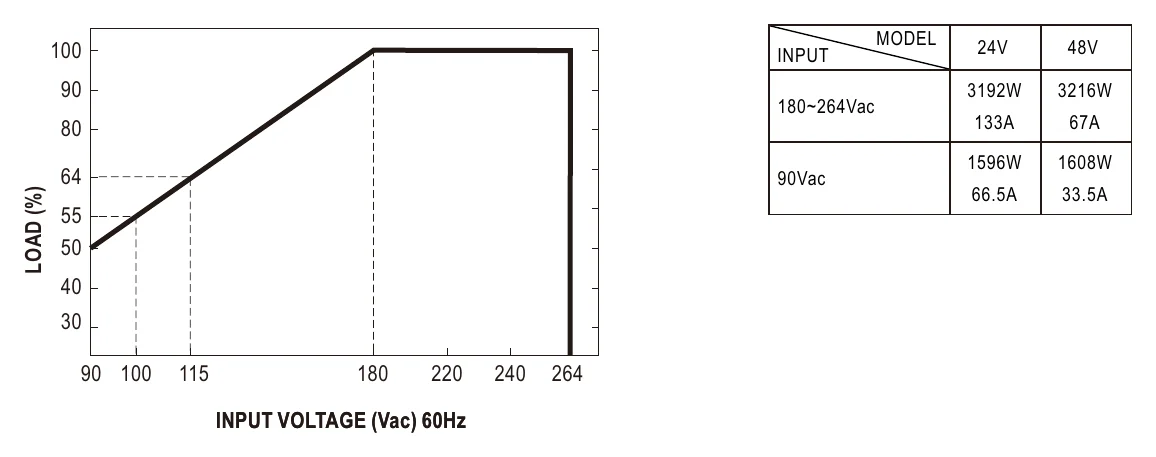

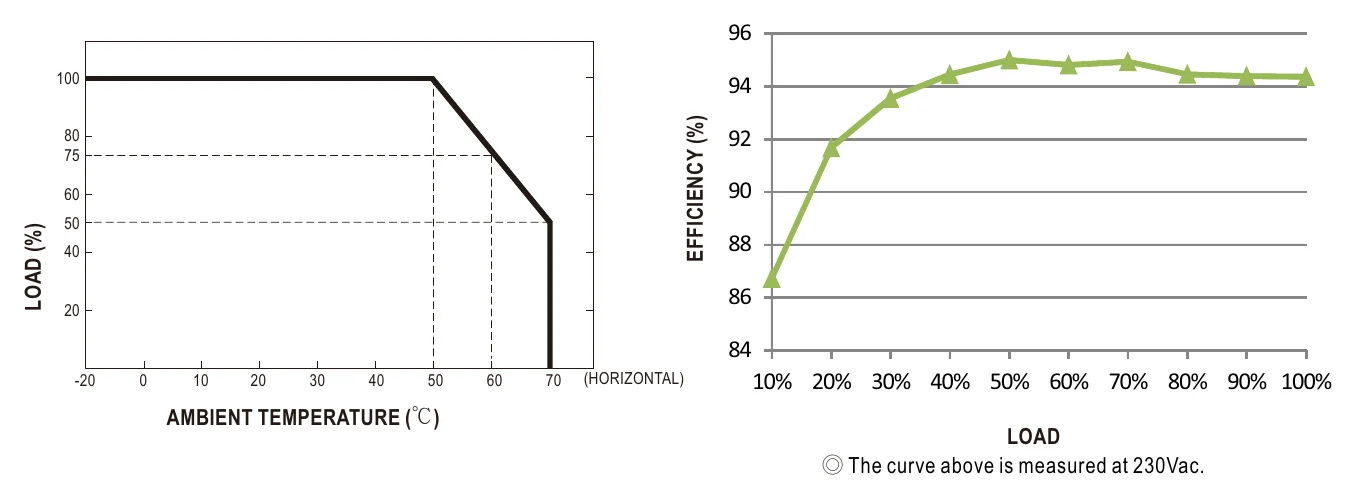

NSP-3200-24 DERATING CURVE — DERATING CURVE

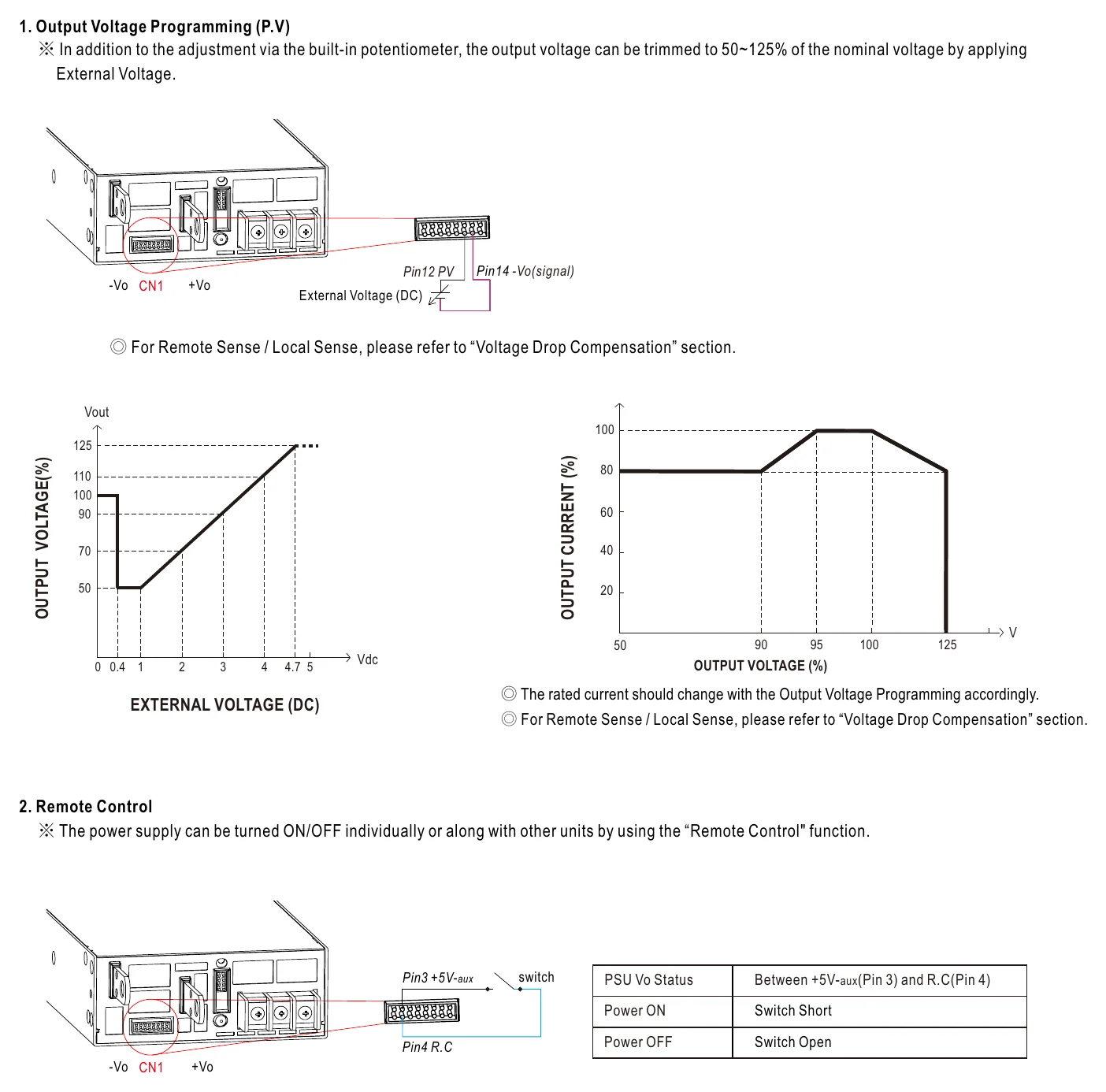

NSP-3200-24 FUNCTION MANUAL — FUNCTION MANUAL

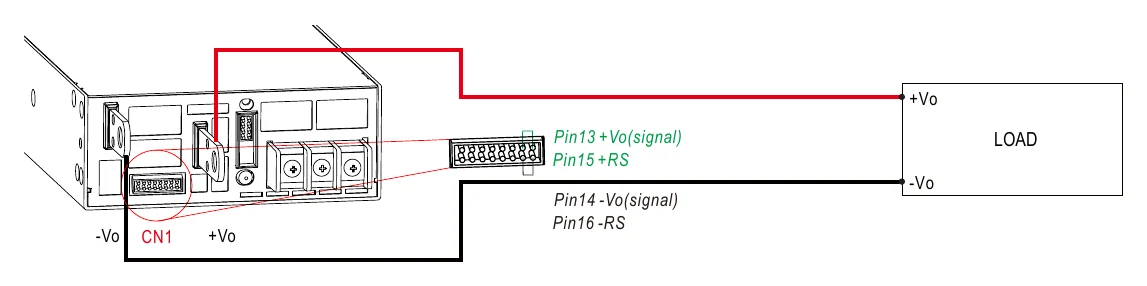

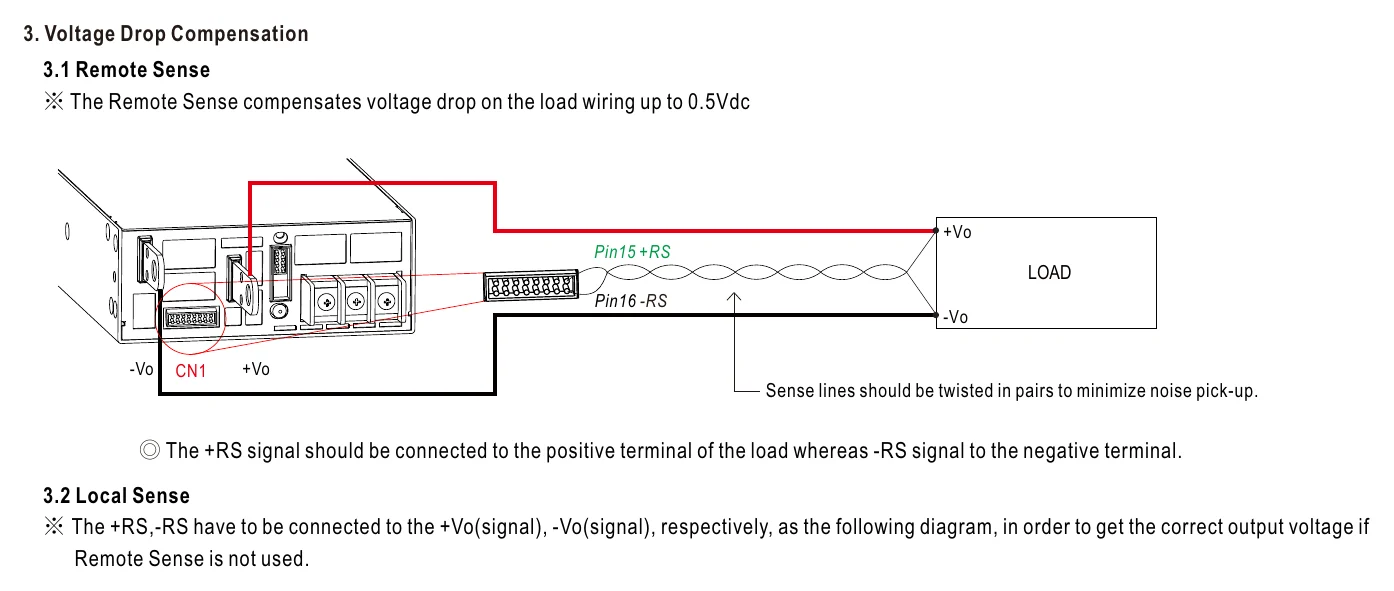

NSP-3200-24 3. Voltage Drop Compensation — 3. Voltage Drop Compensation

NSP-3200-24 Illustration (page 5) — Illustration (page 5)

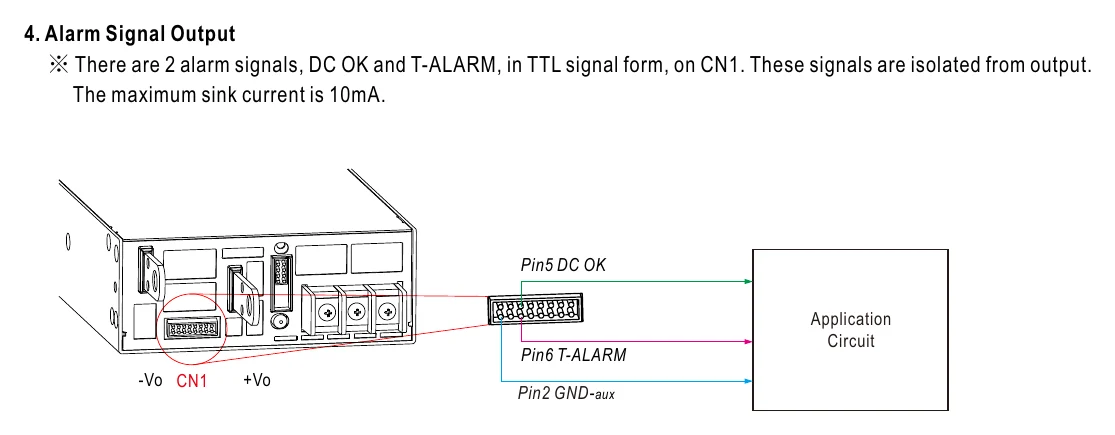

NSP-3200-24 4. Alarm Signal Output — 4. Alarm Signal Output

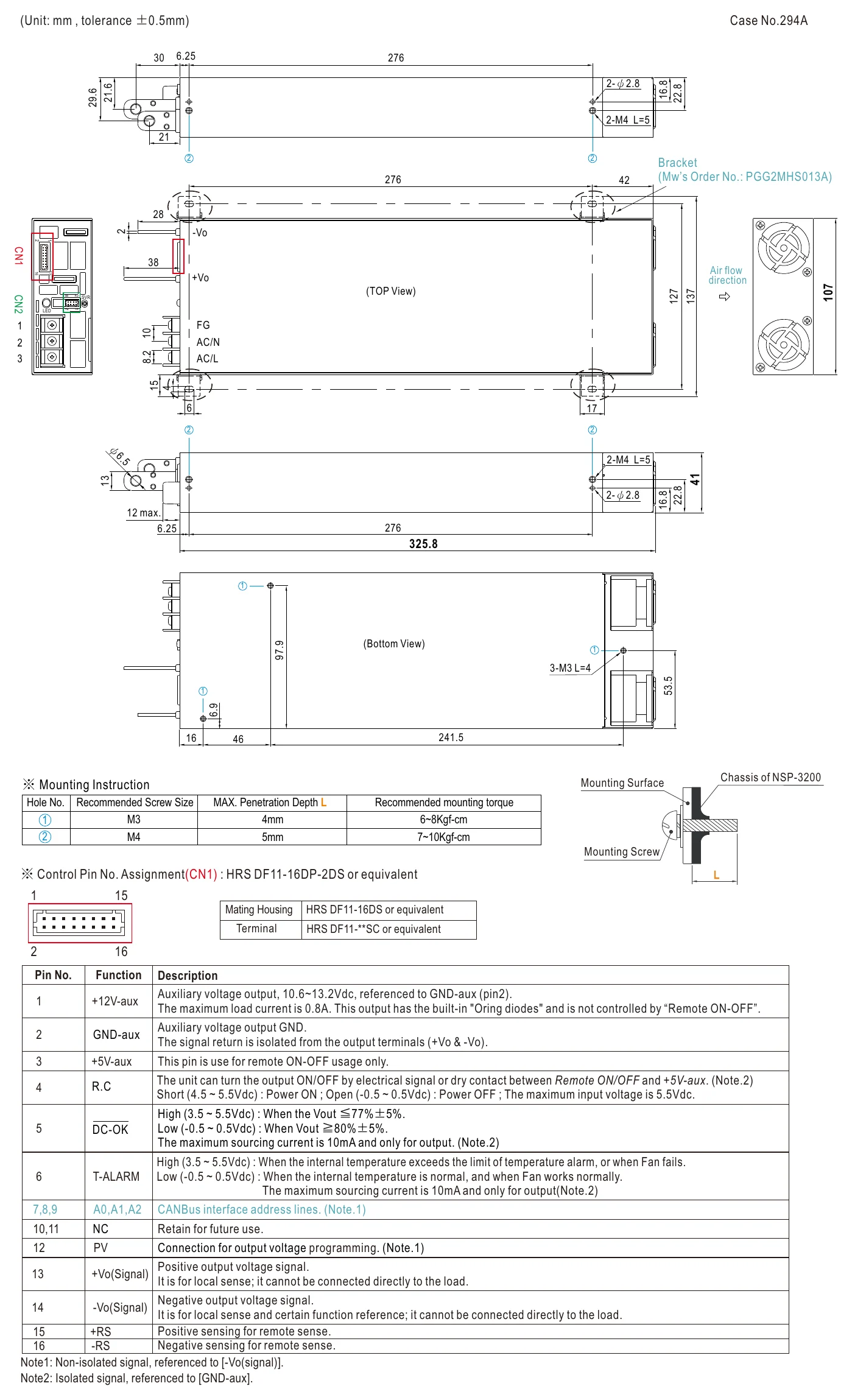

NSP-3200-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

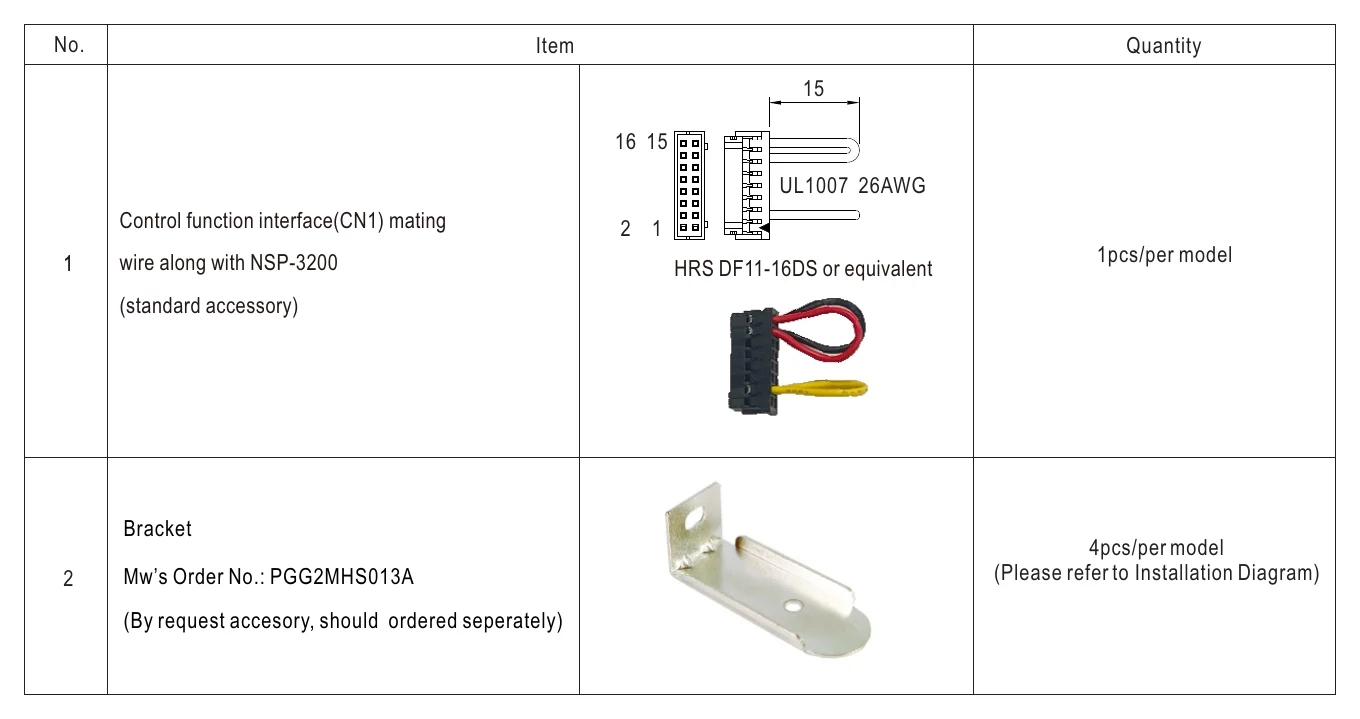

NSP-3200-24 Accessory List — Accessory List

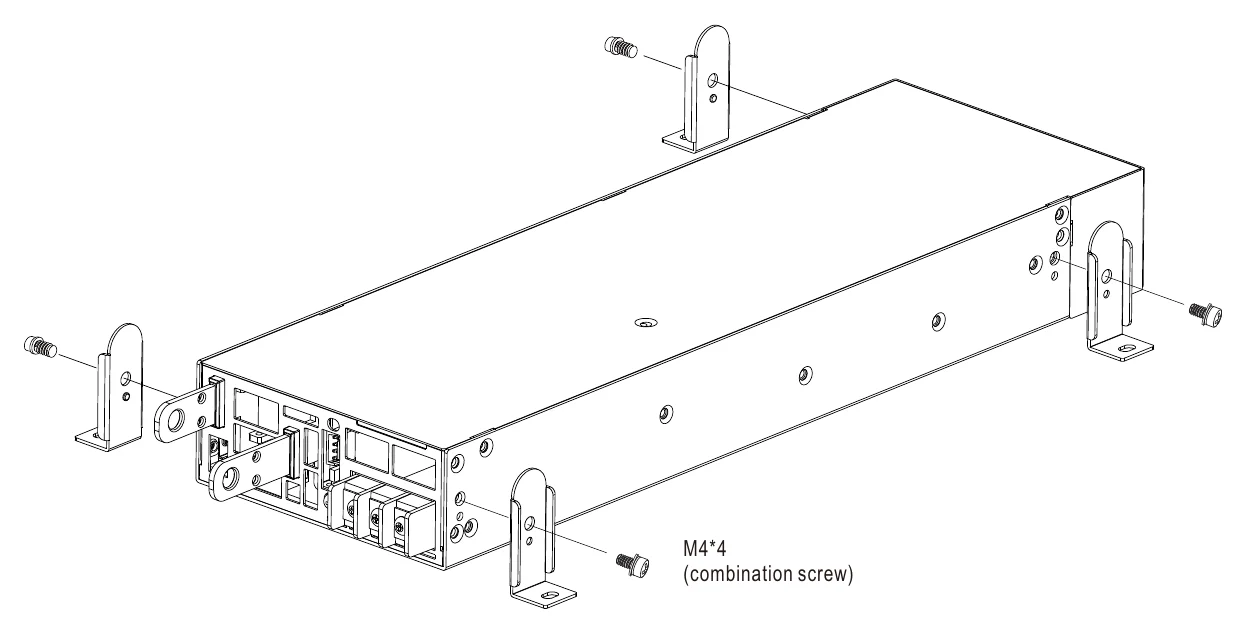

NSP-3200-24 Installation Diagram — Installation Diagram

Typical applications

Downloads

Datasheet1

NSP-3200-24 datasheetNSP_3200_spec.pdf · 2026-07-20 edition PDF Download

FAQ

What is the output rating of the Mean Well NSP-3200-24?

The Mean Well NSP-3200-24 is a 24V enclosed AC/DC power supply rated at 3192W. It provides up to 133A of rated current, making it suitable for high-power industrial and commercial DC loads. This model is designed for applications that need substantial 24V output capacity from a compact enclosed supply.

What types of applications is the NSP-3200-24 typically used for?

This model is intended for demanding applications such as industrial automation, mechanical equipment, telecommunications, network systems, PoE power sourcing and charging systems. Its high output capacity and high-reliability industrial design make it a strong fit for professional environments rather than light-duty consumer use. Buyers typically choose it when they need a robust 24V supply for continuous operation.

Is the NSP-3200-24 suitable for harsh operating environments?

It is built for industrial installations. The datasheet lists a working temperature range of -20°C to +70°C (output derating applies at higher ambient temperatures, see the derating curve), 20-90% RH non-condensing humidity and 2G vibration testing. Cooling is by a built-in fan with intelligent speed control based on the internal temperature.

Does the NSP-3200-24 support energy-efficient operation?

Yes. The datasheet lists a typical efficiency of 93.5% (measured at 75% load) and a PFC stage with a typical power factor of 0.97 at 230VAC full load. Those characteristics help reduce wasted energy and support more efficient operation in high-power systems.

What monitoring and control features are included on the NSP-3200-24?

According to the datasheet, this model includes remote ON/OFF control, remote sense (up to 0.5V compensation), output voltage programming, isolated DC-OK and T-Alarm signals, a 12V/0.8A auxiliary output, a CANBus interface and built-in intelligent fan speed control. These features are useful in systems that need status monitoring and tighter power-supply management. They can help support more advanced equipment designs without changing the core 24V output rating.

Does the NSP-3200-24 include built-in protection features?

Yes. The datasheet lists overload protection at 105-115% of rated output power with constant current limiting, overvoltage protection at 31.5-37.5V, and overtemperature protection. These protections are important for reducing risk in high-power applications and supporting long-term reliability.

How does the NSP-3200-24 compare with lower-power 24V enclosed power supplies?

The main differentiator is output capacity: this model is rated for 24V output at up to 133A, which places it in a much higher-power class than standard 24V enclosed supplies. It is better suited to large DC loads, centralized power architectures, and industrial systems where lower-wattage models would be undersized. Buyers typically select it when power headroom and reliability are more important than minimizing size or cost.
