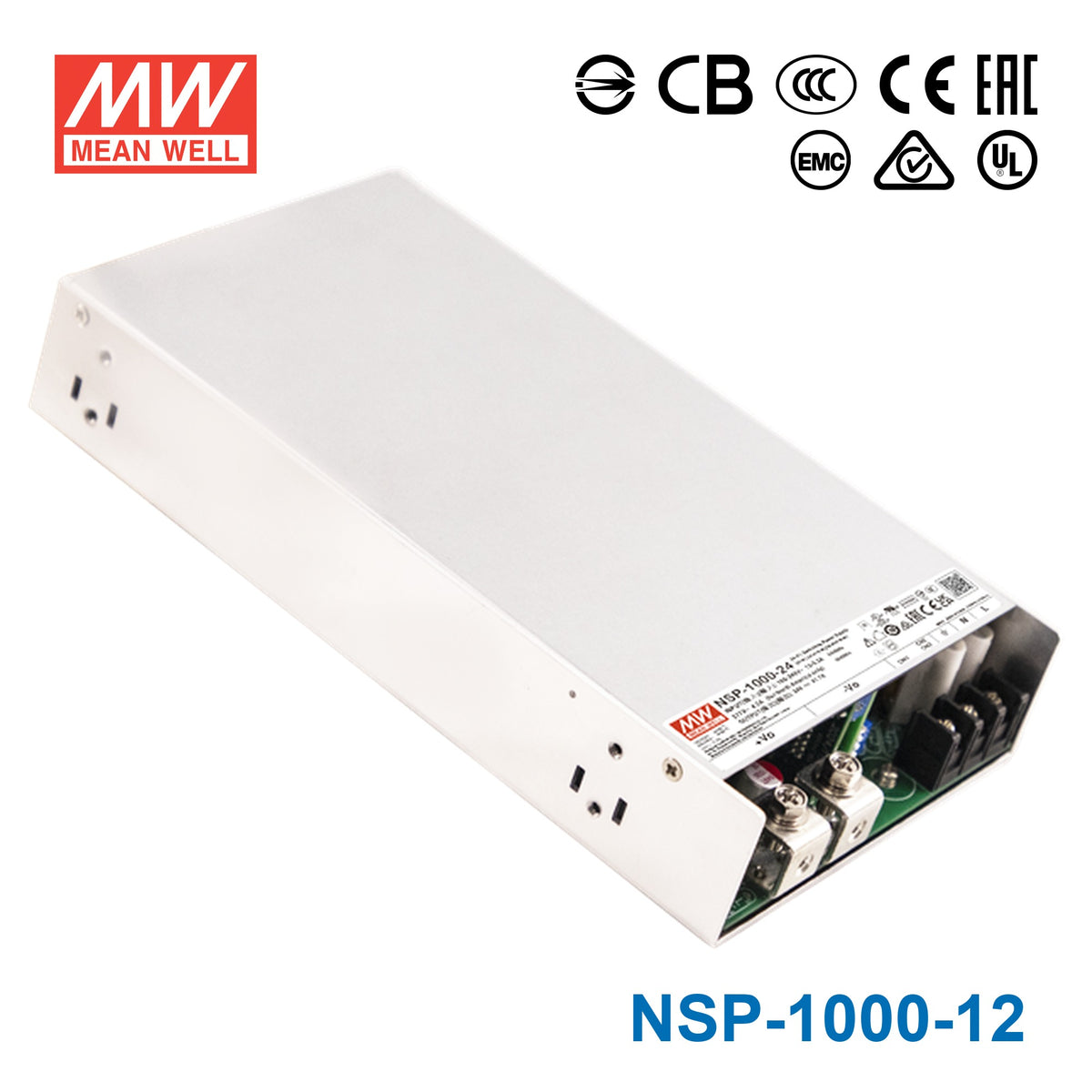

Mean Well NSP-1000-12 1000.8W high reliable multi-industry power supply 12.0V 83.4A

Name: Mean Well NSP-1000-12 1000.8W high reliable multi-industry power supply 12.0V 83.4A
Brand: Mean Well
SKU: NSP-1000-12
Price: 249.41 USD
Availability: InStock

1000W multi-industry enclosed power supply12.0VDC output200% peak power (5s)up to 92% efficiency85–305VAC input

SKU NSP-1000-12

$249.41 USD

Shipping calculated at checkout.

Available to order

Overview

NSP-1000-12 is the 12V output model of this series: rated power 1000.8W, typical efficiency 92%.

The NSP-1000 series is a 1000W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries. Key features include: compact size (230*127*41 mm) for better space utilization in system installations, ultra-wide input range of 85~305Vac for global compatibility, up to 94% efficiency for energy-saving and carbon reduction, programm-able output voltage (0~120%) and current (0~100%), constant current design with 200% peak power capability, parallel output capacity up to 4000W, wide operating temperature range from -40 to +85℃ (+60℃ at full load), compliance with OVCⅢ, built-in Remote Control /Remote Sense/DC OK signal/auxiliary power, internal PCB coating, complete protections, certifications for multiple safety standards including 62368-1, 60601-1, 61558-1, 60335-1, 62477-1, and 61010-1, as well as 2 X MOPP compliance and extremely low leakage current (<350μA). It is suitable for BF-rated medical equipment and comes with a 5-years warranty, making it a highly cost-effective solution for industrial power supply needs.

Features

85~305Vac input with PFC(277Vac available)
Global certificates in multi-fields(ITE 62368-1, Medical 60601-1, Household 60335-1,Industrial 61558-1/-2-16/61010-1/-2-201, Energy converter 62477-1 & SEMI47 approved)
200% peak power capability
High efficiency up to 94%
Output voltage 0~120% and output current 0~100% programmable
Current sharing up to 4000W(3+1) for parallel use
Built-in ORing MOS (by request, Order NO.:NSP-1000-xxOR/MODOR)
Built-in CANBus; MODBus protocol (by request)
-40~+85℃ wide range operation temperature(> +60℃ derating)
Extremely low leakage current<350uA, 2 x MOPP, suitable for BF medical applications
Built in constant current limiting circuit
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in remote ON/OFF control/Remote Sense/ DC OK signal
Auxiliary 5V and 12V
Over voltage category Ⅲ (OVC Ⅲ)
Operating altitude up to 5000 meters
Built-in intelligent fan speed control, low noise <24dB
Conformal coating
5 years warranty

Specifications

NSP-1000-12Specifications from the official datasheet (2026-09-11 edition)

OUTPUT

DC VOLTAGE: 12V
CURRENT: 83.4A
CURRENT RANGE: 0 ~ 83.4A
RATED POWER: 1000.8W
PEAK CURRENT(5 sec.): 166.7A
PEAK POWER(5 sec.): 2000W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 14.4V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.5: 2500ms, 80ms/115Vac 1500ms, 80ms/230Vac 1500ms, 80ms/277Vac
HOLD UP TIME (Typ.): 12ms @ 70% load, 8ms @full load

INPUT

VOLTAGE RANGE: 85 ~ 305Vac 120 ~ 431Vdc
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.98/115Vac; 0.95/230Vac; 0.92/277Vac at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 12A/115Vac 6A/230Vac 5A/277Vac
INRUSH CURRENT (Typ.): COLD START 25A/115Vac 40A/230Vac 50A/277Vac
LEAKAGE CURRENT: Earth leakage current <350μA(rms)@277Vac touch current<100μA(rms) @ 277Vac

PROTECTION

SHORT CIRCUIT Peak Power Mode: Constant current limiting, unit will shut down after 5 Sec, AC repower on to recover
SHORT CIRCUIT Current Limiting Mode: Constant current limiting, recovers automatically after abnormal condition is removed

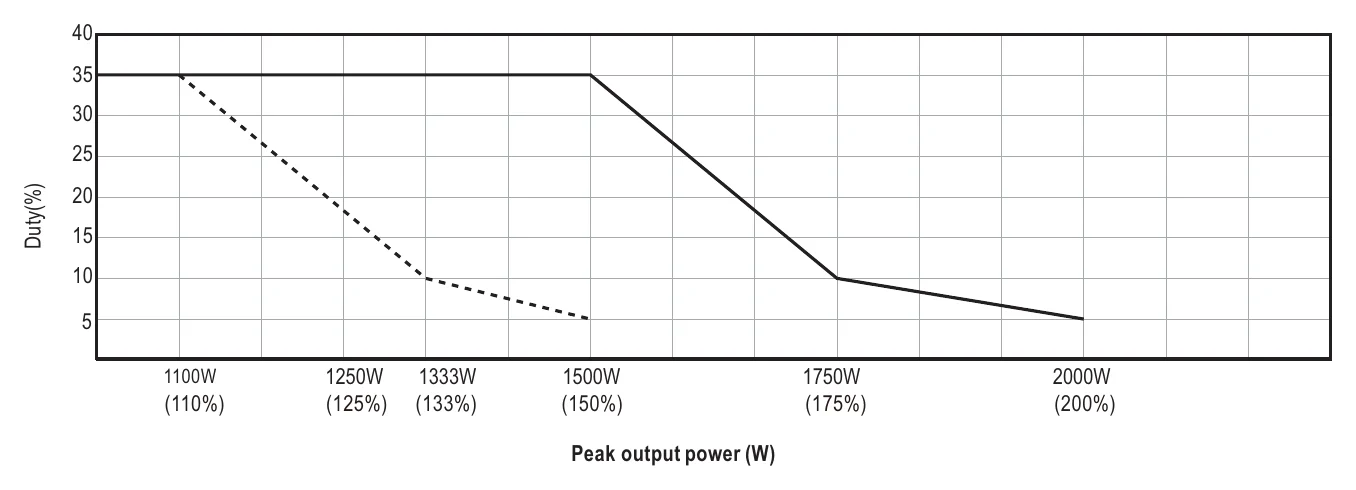

OVERLOAD Peak Power Mode: From 105% to 200% of rated output power, unit will shut down after 5 seconds of continuous operation. AC repower on to recover. At >200% of rated output power, constant current limiting is activated.Unit will shut down after 5 seconds of continuous operation. AC repower on to recover
OVERLOAD Current Limiting Mode: Constant current limiting, recovers automatically after abnormal condition is removed
OVER VOLTAGE: 15 ~ 19V Protection type : Shut down and latch off output voltage, re-power on to recover
OVER TEMPERATURE: Protection type : Shut down output voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT CURRENT PROGRAMMABLE(PC): Adjustment of constant current level is allowable between 0 ~ 100% of rated current. Please refer to the Function Manual.
OUTPUT VOLTAGE PROGRAMMABLE(PV)^Note.6: Adjustment of output voltage is allowable to 0 ~ 120% of nominal output voltage. Please refer to the Function Manual.
PARALLEL: Up to 4000W or (3+1) units. Please refer to the Function Manual.
AUXILIARY POWER: 5Vaux @ 0.2A Tolerance ±15% , ripple 150mVp-p 12Vaux @ 0.8A Tolerance ±15% , ripple 450mVp-p
REMOTE CONTROL: By electrical signal or dry contact Power ON: RC short Power OFF: RC open.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5Vdc
DC OK SIGNAL: Contact rating(max.):5Vdc/10mA resistive load
CANBus or MODBus INTERFACE(By request): Communication provides functions such as control, setting and monitoring
FAN NOISE (Typ.)^Note.7: Built-in intelligent fan speed control detect by PSU'S internal temperature 10% load with Ta=25℃ 18dB 70% load with Ta=25℃ 24dB

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 8~10)

SAFETY STANDARDS: CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1; IEC62477-1 DEKRA BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1(3.2 Version);BS EN/EN62477-1 UL UL62368-1, ANSI/AAMI ES60601-1(3.2 Version),UL61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TP TC 004 SEMI F47 approved; KC/BIS KC 62368-1 and BIS IS 13252(Part 1) certified, No stock, contact sales by request
ISOLATION RESISTANCE^Note.11: Primary-Secondary: 2xMOPP, Primary-Earth: 1xMOPP, Secondary-Earth: 1xMOPP
OVER VOLTAGE CATEGORY^Note.12: IEC/EN 61558-1/-2-16 (OVC Ⅲ , altitude up to 2000M) IEC/EN/UL 62368-1 (OVC Ⅱ, altitude up to 5000M) IEC/EN 60335-1 (OVC Ⅱ, altitude up to 5000M) IEC/EN/ANSI/AAMI ES60601-1 (OVC Ⅱ, altitude up to 4000M) IEC/EN/UL 61010-1/-2-201 (OVC Ⅱ, altitude up to 5000M) IEC/EN 62477-1 (OVC Ⅱ, altitude up to 5000M)
SAFETY EXTRA-LOW VOLTAGE(SELV): IEC/EN 61558-2-16 (SELV, 12 ~ 60V) IEC/EN 60335-1 (SELV, 12 ~ 36V) IEC/EN/UL 62368-1 (SELV/ES1, 12 ~ 48V)
WITHSTAND VOLTAGE: I/P-O/P:4KVac I/P-FG:2KVac O/P-FG:1.5KVac
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832 Class B
Conducted BS EN/EN55014-1(CISPR14-1)
Conducted BS EN/EN55011(CISPR11) Class B
Radiated BS EN/EN55032(CISPR32),CNS 15936,GB/T 9254.1,KS C 9832 Class B
Radiated BS EN/ENEN55014-1(CISPR14-1)
Radiated BS EN/EN55011(CISPR11) Class B
Harmonic Current BS EN/EN61000-3-2(IEC61000-3-2) Class A
Voltage Flicker BS EN/EN61000-3-3(IEC61000-3-3)
EMC IMMUNITY: BS EN/EN55035 ( CISPR35 ) , BS EN/EN61000-6-2 (IEC61000-6-2),B S EN/EN60601-1-2(IEC60601-1-2), BS EN/EN55014-2(CISPR14-2),KS C 9835,SEMI F47 tested at 200Vac

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
Radiated BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3, 10V
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 910.8K hrs min. Telcordia SR-332 (Bellcore) ; 87.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 230*127*41mm
PACKING: 1.4Kg;9pcs/12.6Kg/0.85CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230Vac input, rated load and 25℃ of ambient temperature.
2. Derating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
4. Tolerance: includes set up tolerance, line regulation and load regulation.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. If use PV signal to adjust Vo, under certain operation conditions, ripple noise of Vo might go over rating defined in this specification.
7. FAN noise test set up according to ISO-7779.
8. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.
9. Some factory or model may not have the BIS logo, please contact your MEAN WELL sales for more information.
10. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. MOPP is suitable for 100-240Vac input only
12. The ambient temperature derating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

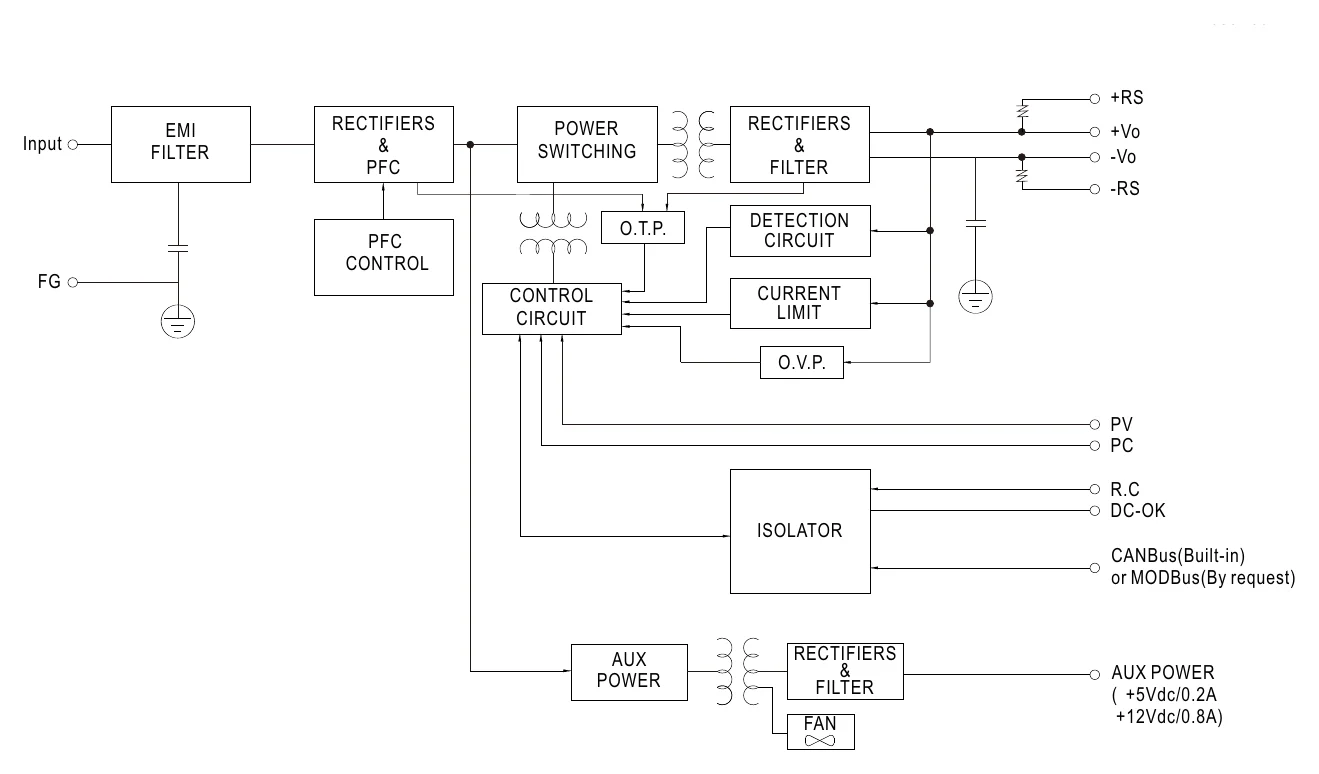

NSP-1000-12 Block Diagram — Block Diagram

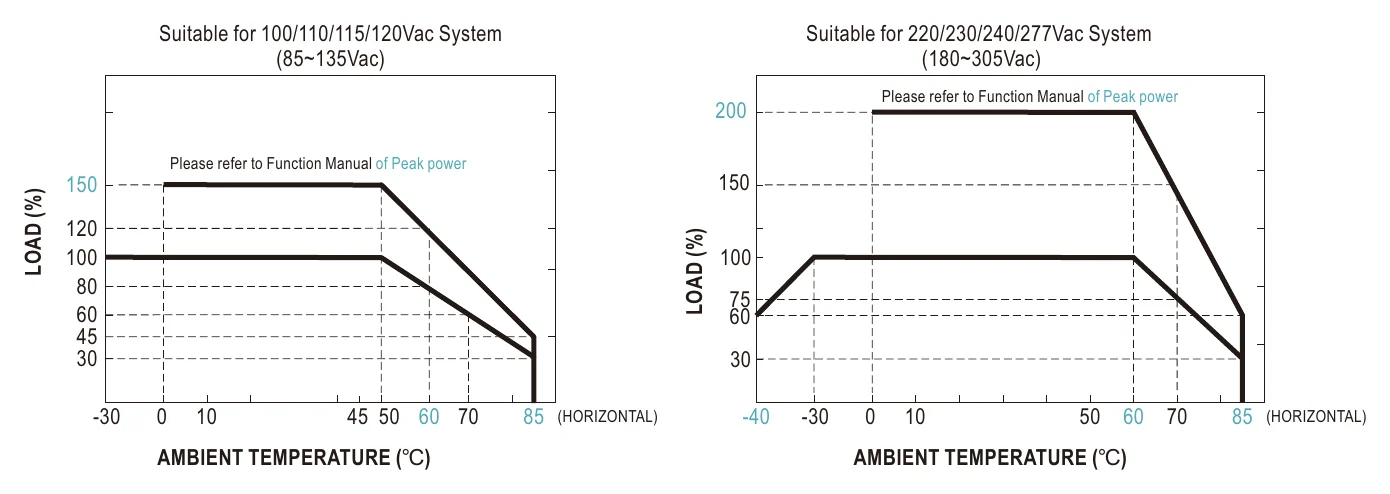

NSP-1000-12 Derating Curve — Derating Curve

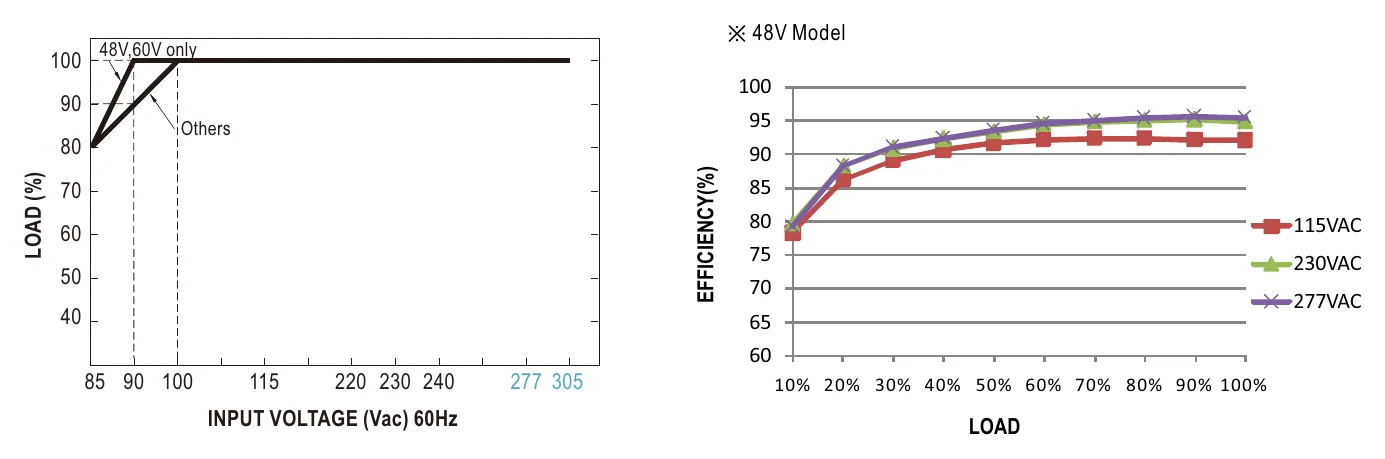

NSP-1000-12 Output Derating vs Input Voltage — Output Derating vs Input Voltage

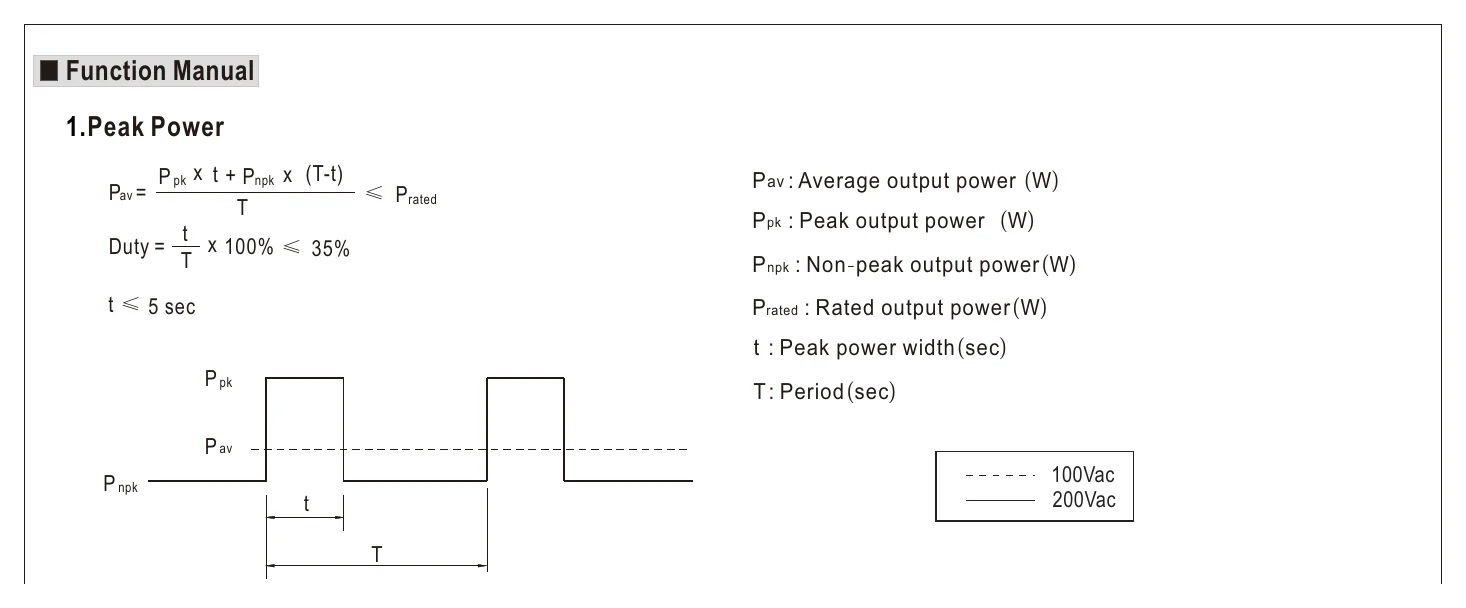

NSP-1000-12 Function Manual — Function Manual

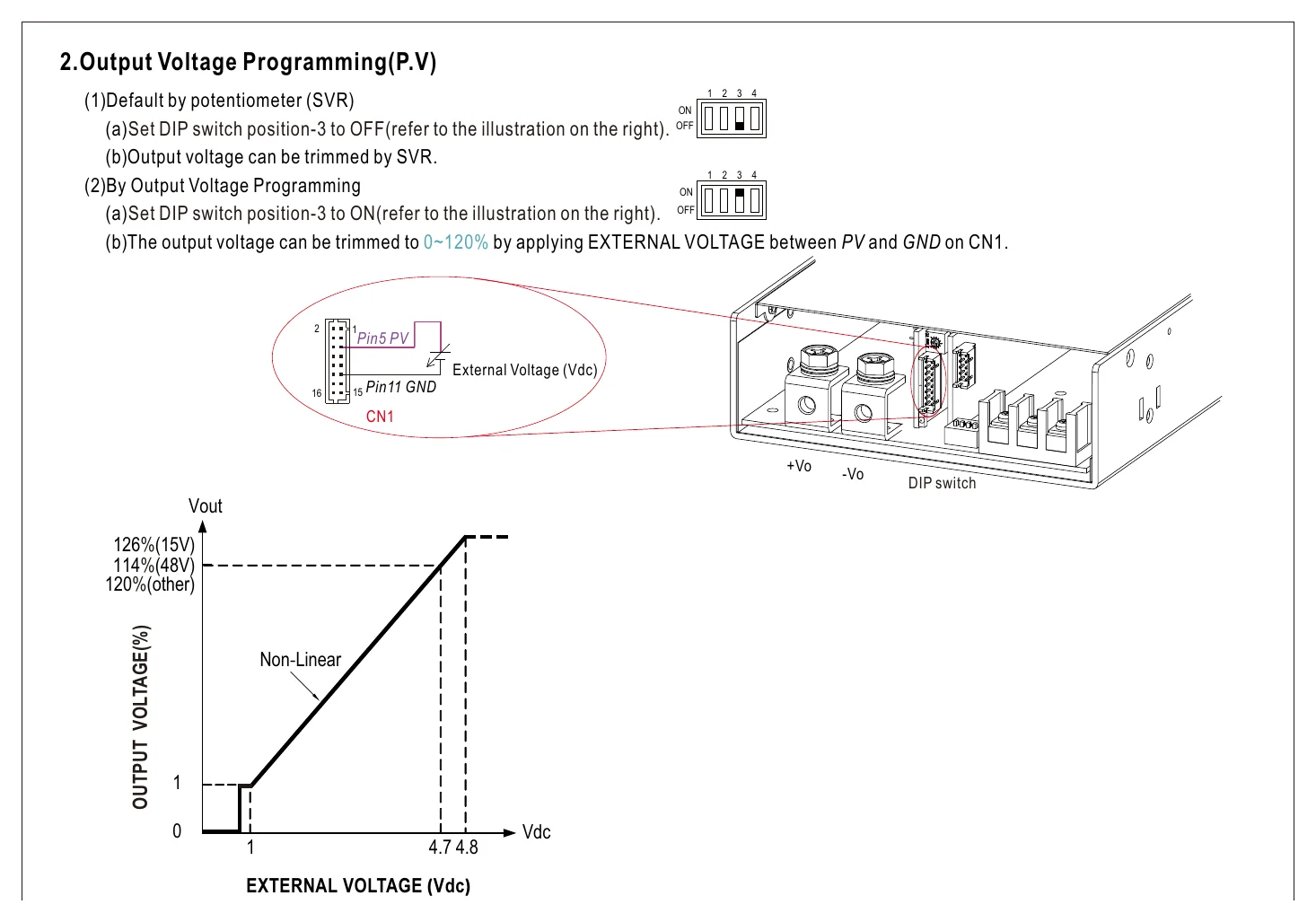

NSP-1000-12 2.Output Voltage Programming(P.V) — 2.Output Voltage Programming(P.V)

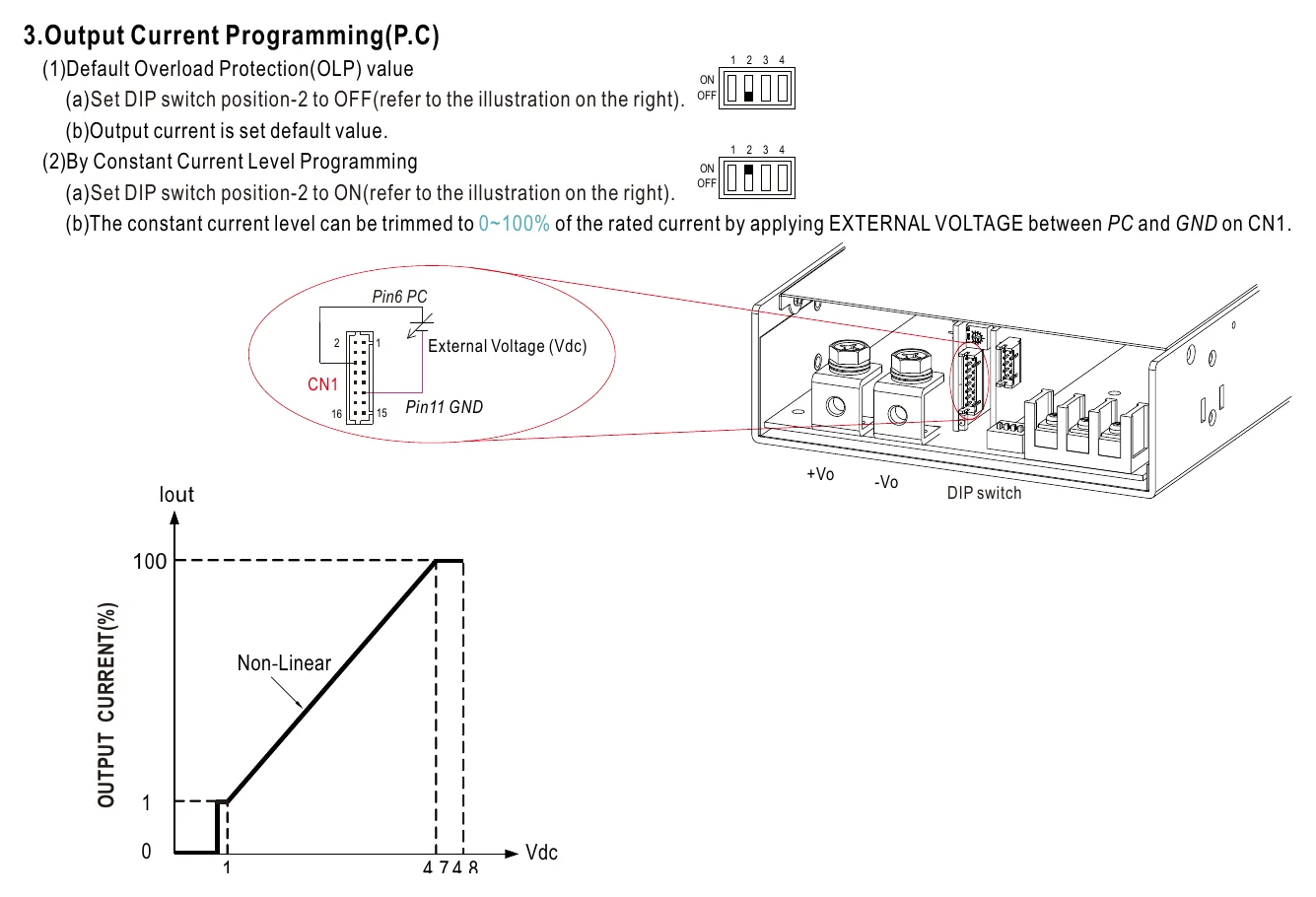

NSP-1000-12 3.Output Current Programming(P.C) — 3.Output Current Programming(P.C)

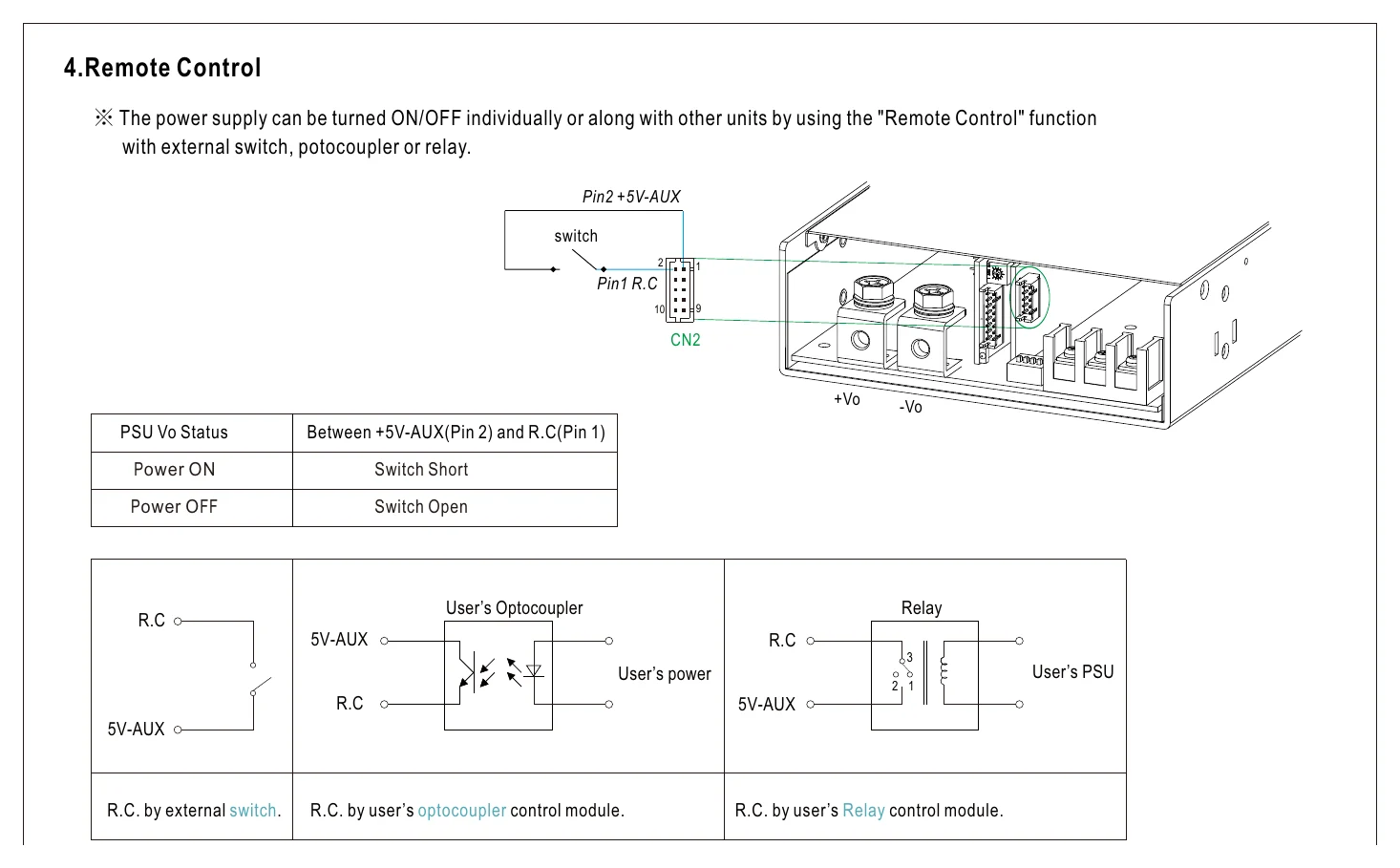

NSP-1000-12 4.Remote Control — 4.Remote Control

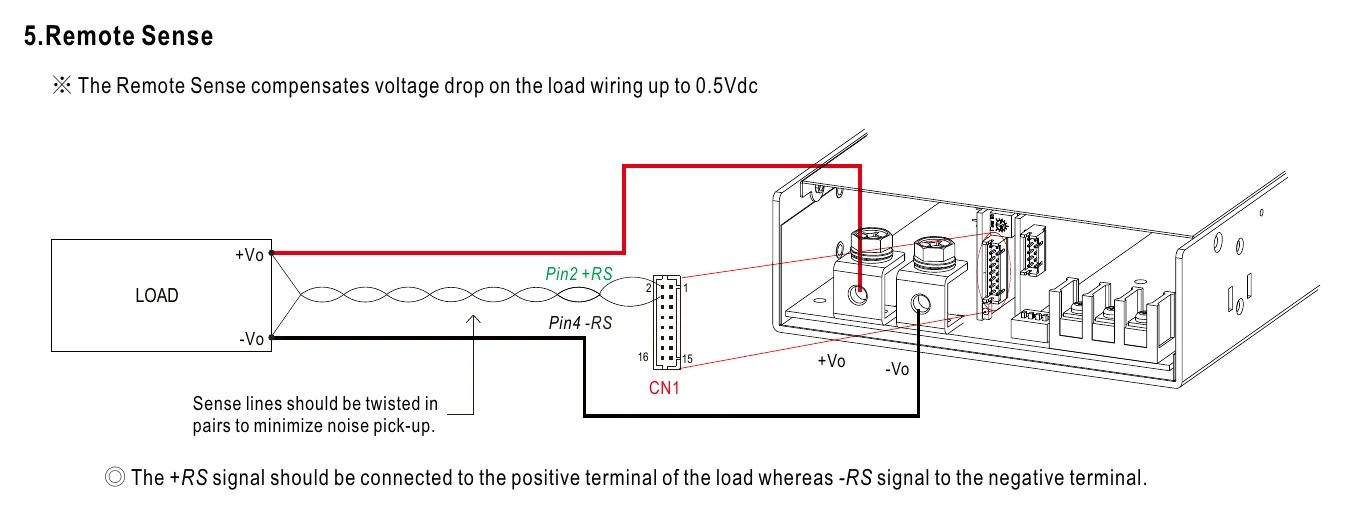

NSP-1000-12 5.Remote Sense — 5.Remote Sense

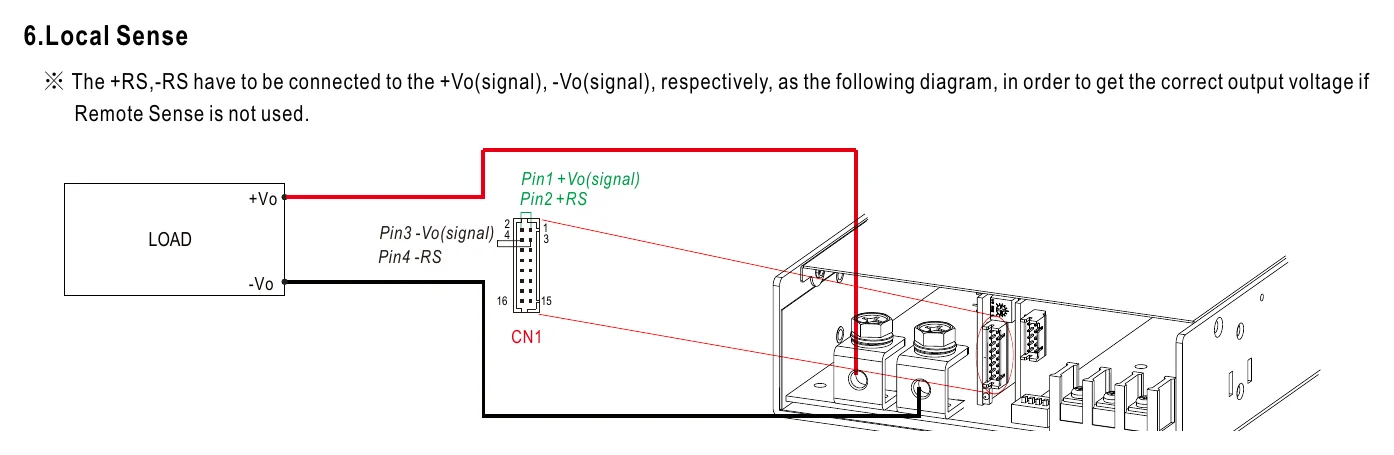

NSP-1000-12 6.Local Sense — 6.Local Sense

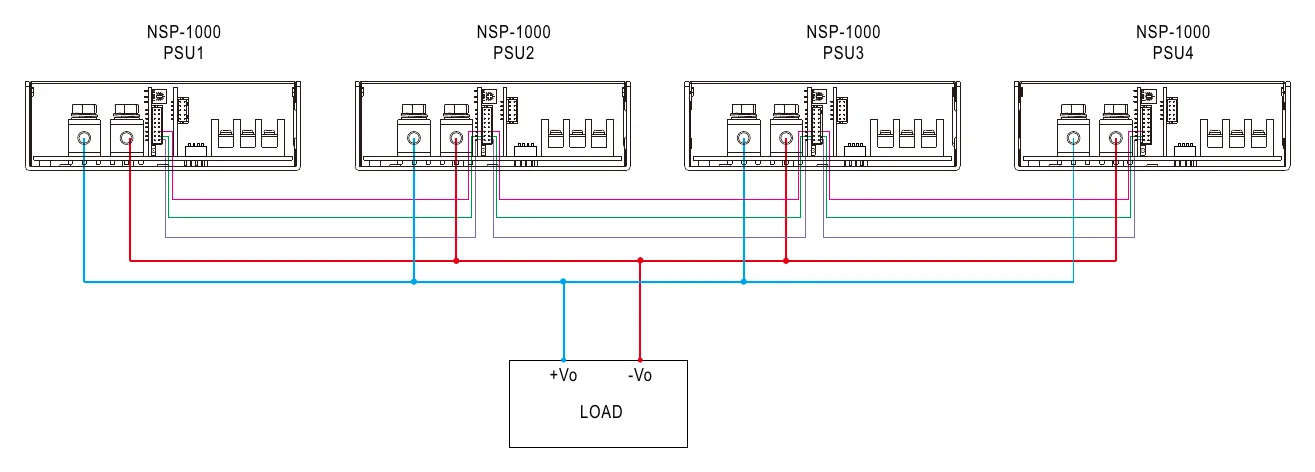

NSP-1000-12 7. Parallel Function — 7. Parallel Function

NSP-1000-12 7. Parallel Function (2) — 7. Parallel Function (2)

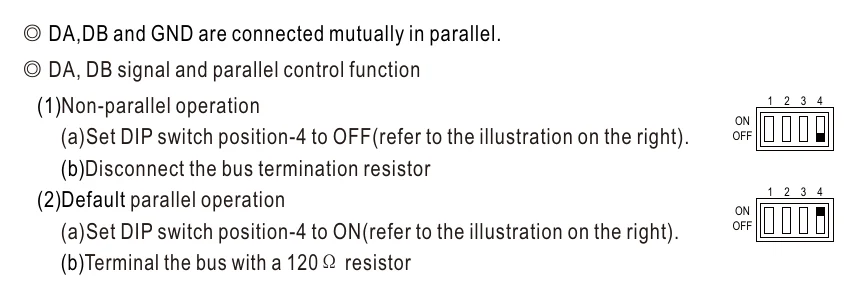

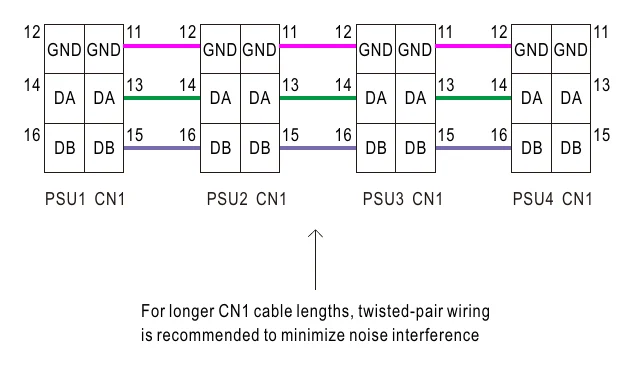

NSP-1000-12 ◎ DA,DB and GND are connected mutually in parallel. — ◎ DA,DB and GND are connected mutually in parallel.

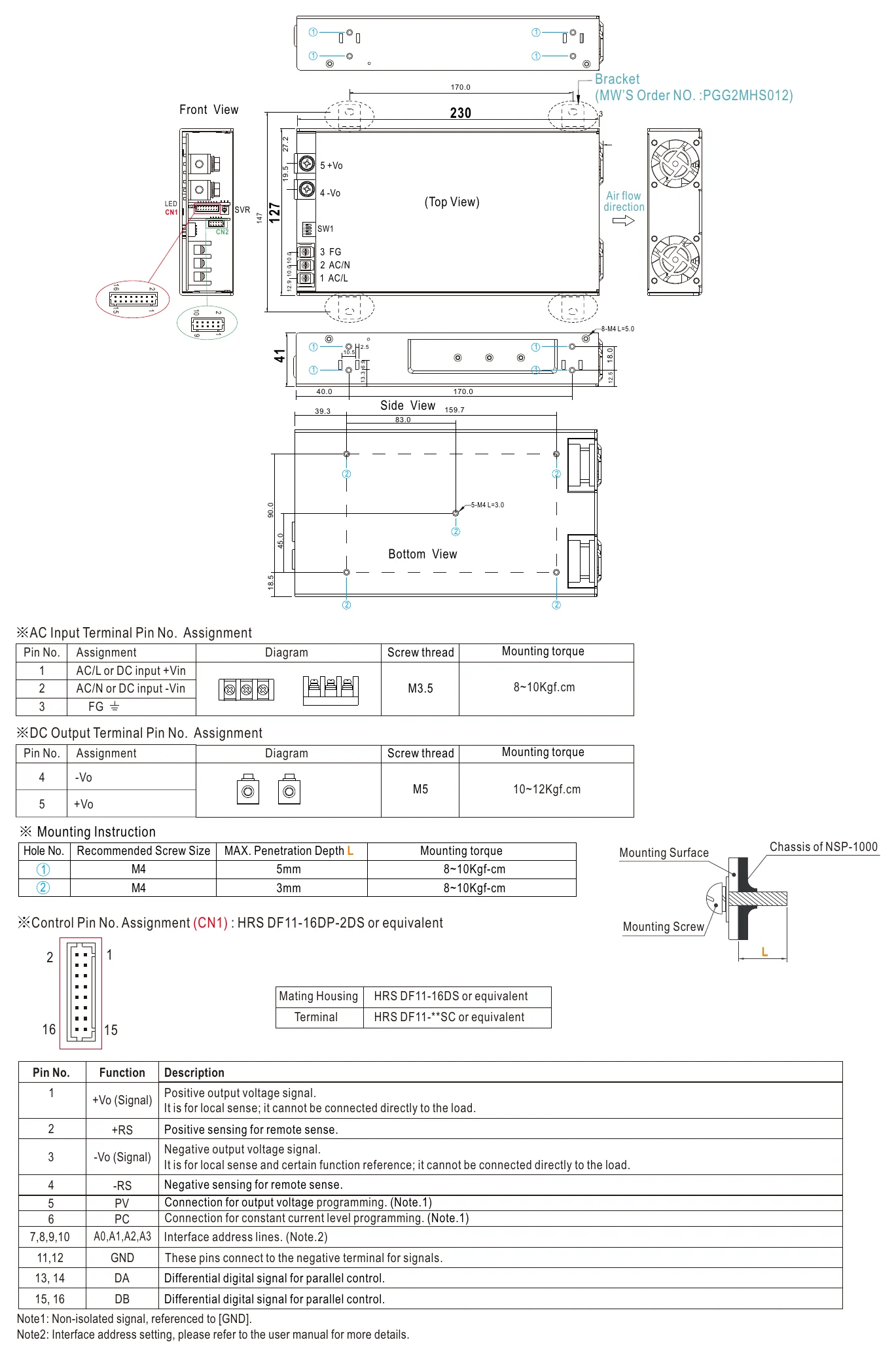

NSP-1000-12 Mechanical Specification — Mechanical Specification

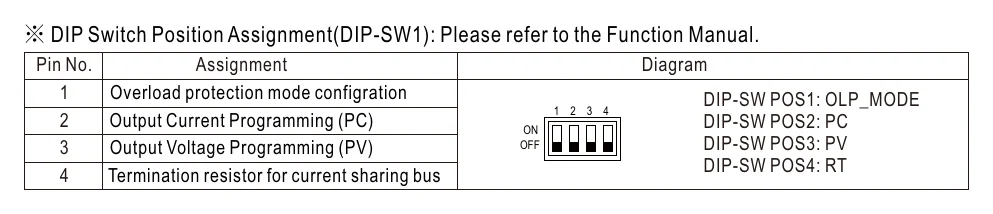

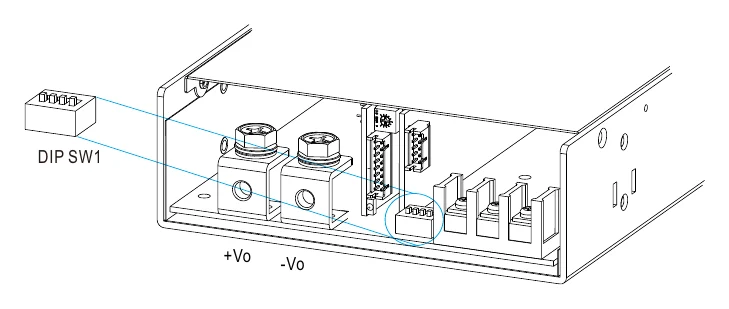

NSP-1000-12 ※ DIP Switch Position Assignment(DIP-SW1): Please refer… — ※ DIP Switch Position Assignment(DIP-SW1): Please refer…

Typical applications

Industrial automation machinery/control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices
Supercapacitor
