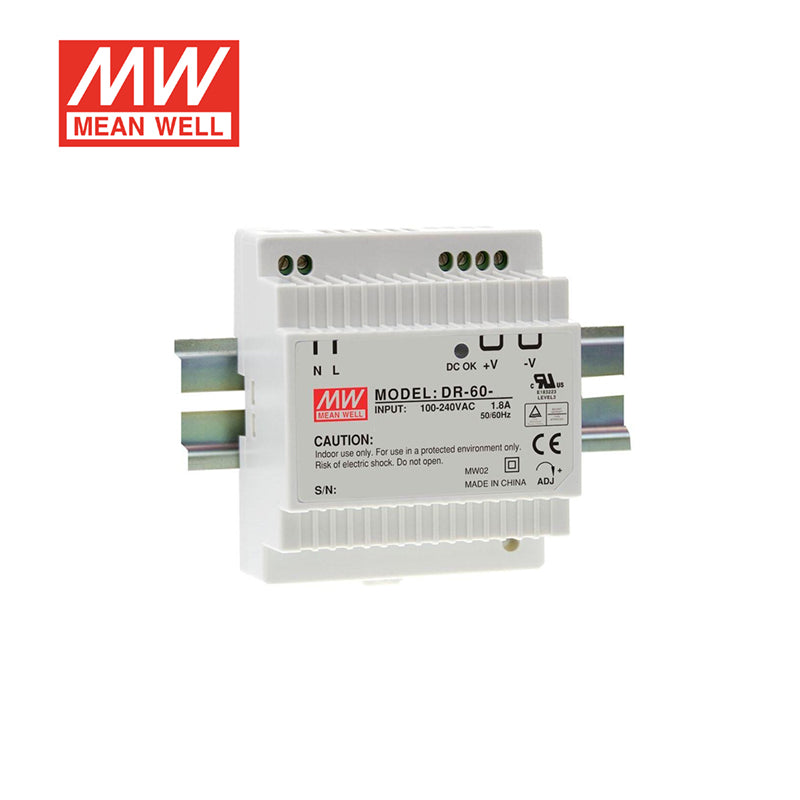

Mean Well DR-60-15 DIN Series Switching Power Supply
$16.99 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| Can be installed on DIN rail TS-35/7.5 or 15 |
| UL 508 (industrial control equipment) approved |
| Isolation class II |
| LED indicator for power on |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 1.0% |
| Overload protection Range | 105 ~ 160% rated output power |
| Overload protection Type | Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -20 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1 approved, Design refer to EN50178 |
| Dimension (LxWxH) (mm) | 78*93*56mm (L*W*H) |
| Packing | 0.3Kg; 48pcs/15.4Kg/1.12CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesDR Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage88V~264V
-
Standards MetUL
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length3.07 in
-
Width3.66 in
-
Height2.2 in
-
Weight0.66 lb
