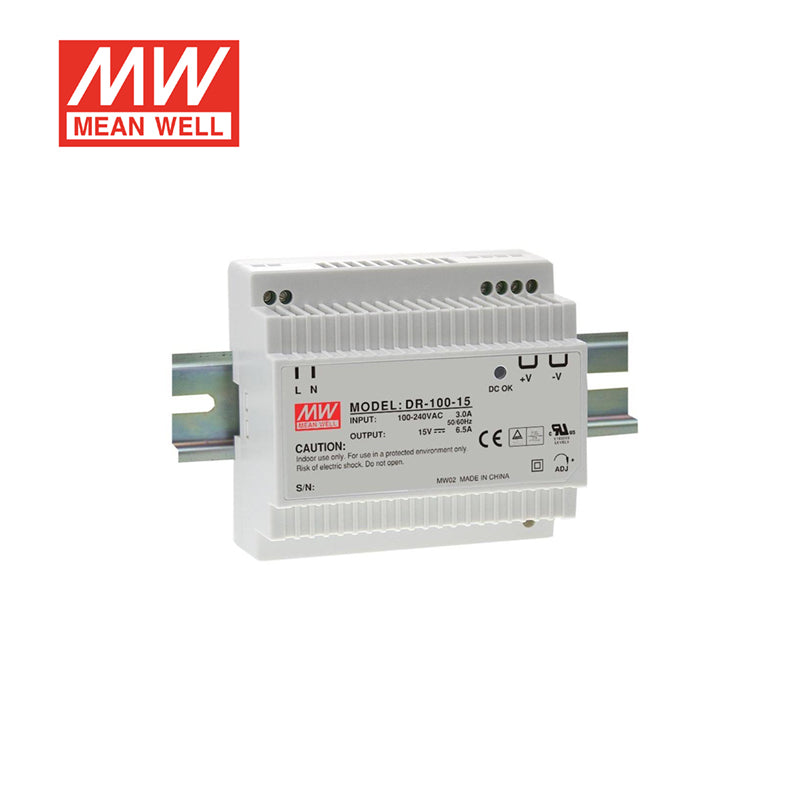

Mean Well DR-100-15 DIN Series Switching Power Supply

$24.30 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
Isolation class II
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

Line regulation (max.) ± 1.0%
Load regulation (max.) ± 1.0%
Overload protection Range 105 ~ 160% rated output power
Overload protection Type Constant current limiting, recovers automatically after fault condition is removed
Over-voltage protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature -20 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards UL60950-1 approved, Design refer to EN50178
Dimension (LxWxH) (mm) 78*93*56mm (L*W*H)
Packing 0.3Kg; 48pcs/15.4Kg/1.12CUFT

Specifications

  • Brand
    Mean Well
  • Series
    DR Series
  • Power Rating
    97.5 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    6.5 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    UL
  • Operating Temperature
    -20°C~60°C
  • Warranty
    3 Year
  • Length
    3.94 in
  • Width
    3.66 in
  • Height
    2.2 in
  • Weight
    0.77 lb

File Downloads
