Mean Well DPU-3200-24 power supply 3200W 24V 133A

Name: Mean Well DPU-3200-24 power supply 3200W 24V 133A
Brand: Mean Well
SKU: DPU-3200-24
Price: 704.28 USD
Availability: InStock

high efficiency up to 94.5%output voltage and current level programmableactive current sharing up to 16000W(4+1)

SKU DPU-3200-24

$704.28 USD

Shipping calculated at checkout.

In stock

Overview

DPU-3200-24 is the 24V output model of this series: rated current 133A, rated power 3192W, typical efficiency 93.5%.

DPU-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch3. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded by the industry. Each model is cooled by the thermostatically controlled fan. Moreover, DPU-3200 provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and etc.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 16000W (4+1)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
Optional PMBus or CANBus protocol
5 years warranty

Specifications

DPU-3200-24Specifications from the official datasheet (2024-09-04 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 133A
CURRENT RANGE: 0 ~ 133A
RATED POWER: 3192W
RIPPLE & NOISE (max.)^Note.2,3: 300mVp-p
VOLTAGE ADJ. RANGE: 23.5 ~ 30V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC at 75% load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.)^Note.6: 93.5%
AC CURRENT (Typ.)^Note.5: 17A/230VAC
INRUSH CURRENT (Typ.): COLD START 55A/230VAC
LEAKAGE CURRENT: <2mA / 230VAC

PROTECTION

OVERLOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE: 31.5 ~ 37.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV): Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage Please refer to the Function Manual in following pages
CONSTANT CURRENT LEVEL PROGRAMMABLE(PC): Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
AUXILIARY POWER: 5V @ 0.3A, tolerance ±10%, ripple 150mVp-p, 12V @ 0.8A, tolerance ±10%, ripple 450mVp-p
ALARM SIGNAL: Isolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 10}: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 502.9K hrs min. Telcordia SR-332 (Bellcore) ; 44.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 325.8*107*41mm (L*W*H)
PACKING: 2.76Kg;4pcs/12Kg/0.81CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under variable load application or parallel operation ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the output load is more than 5%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The efficiency is measured at 75% load.
7. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
8. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
9. When 2 or more PSUs are in parallel connection, long cable(s) used for parallel connection might generate higher noise to communication signal. Thus, we suggest using proper filtering part(s) to avoid interference on communication .
10. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

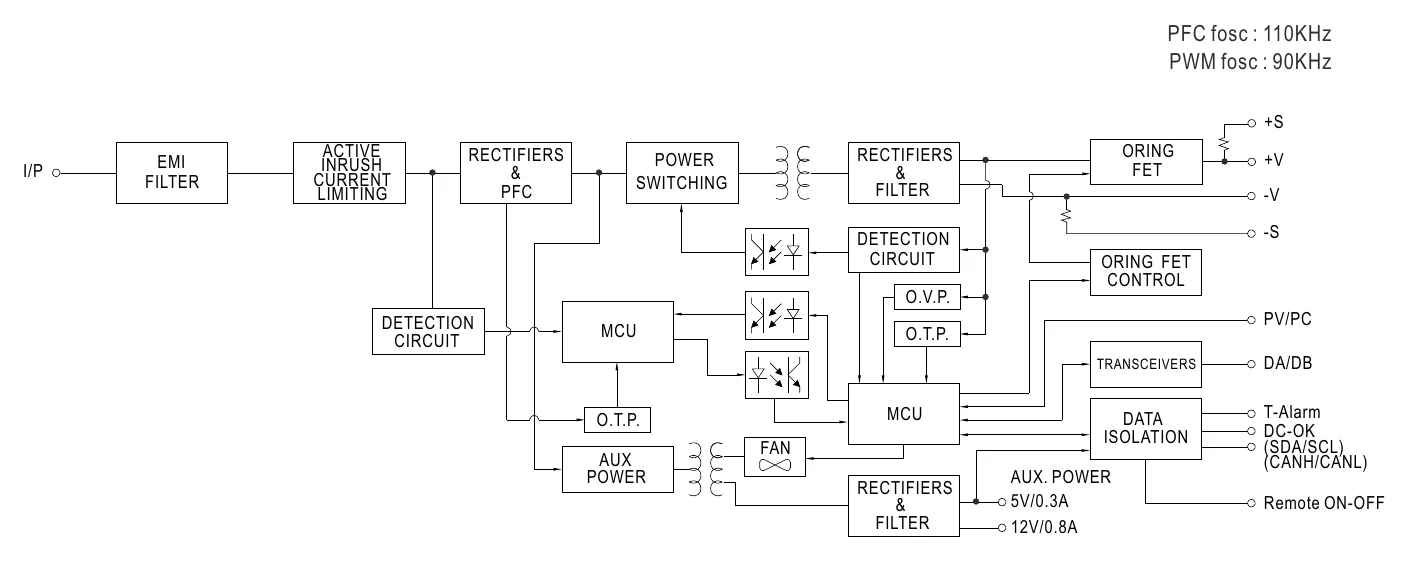

DPU-3200-24 BLOCK DIAGRAM — BLOCK DIAGRAM

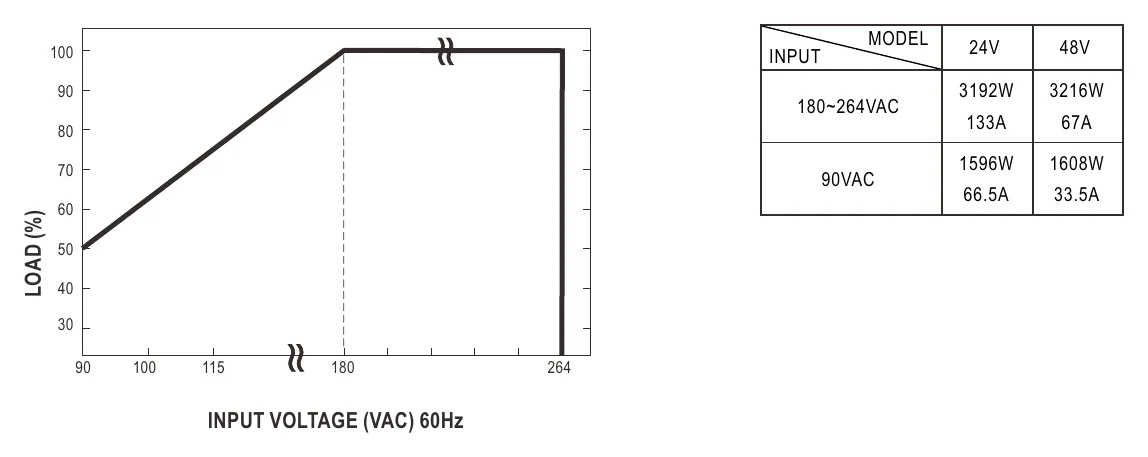

DPU-3200-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

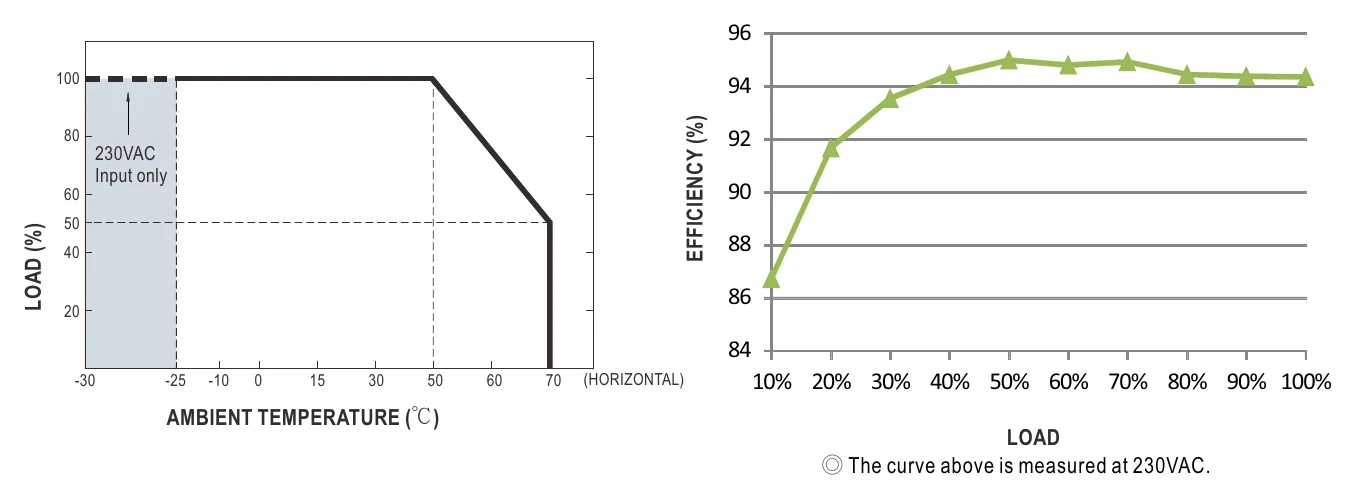

DPU-3200-24 DERATING CURVE — DERATING CURVE

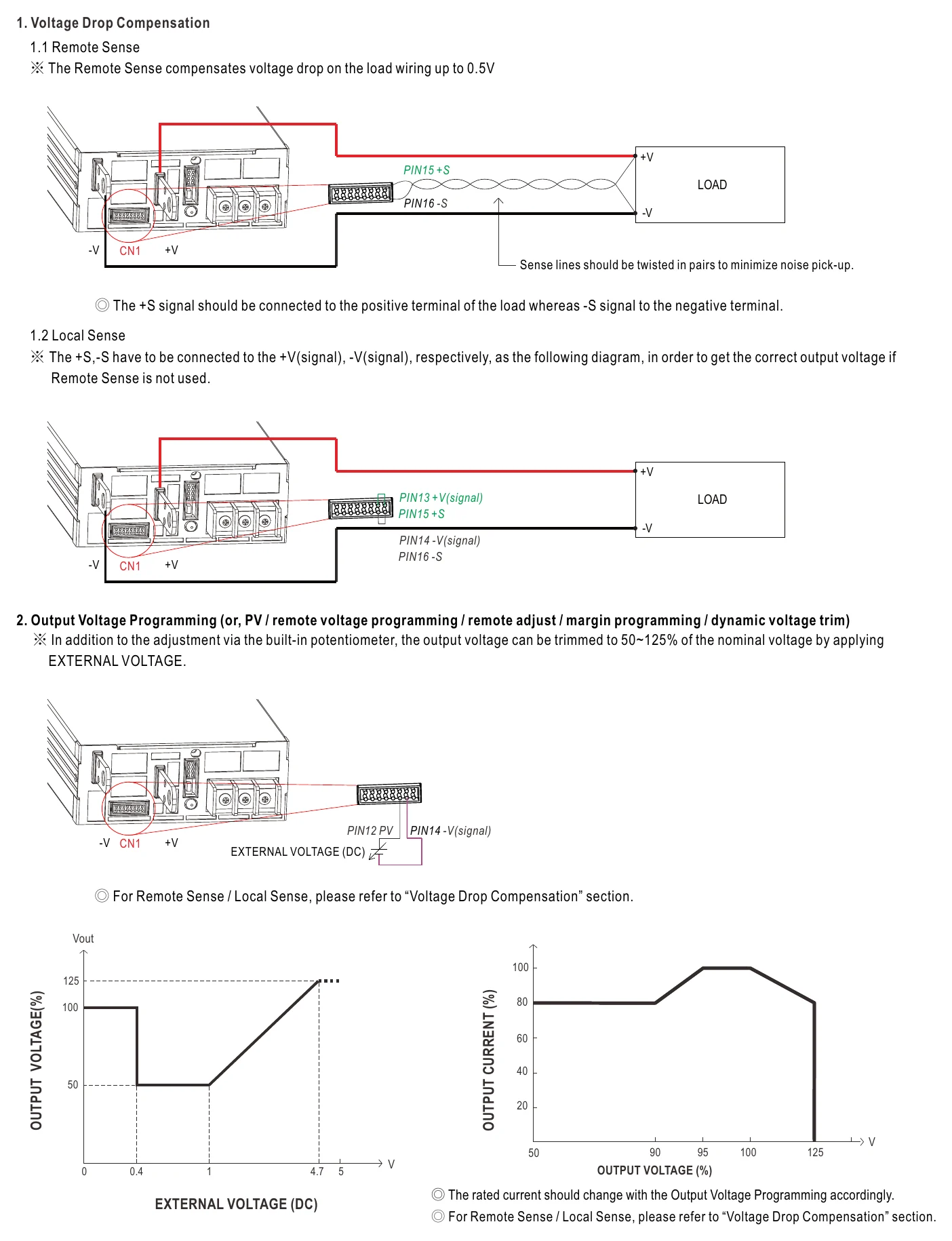

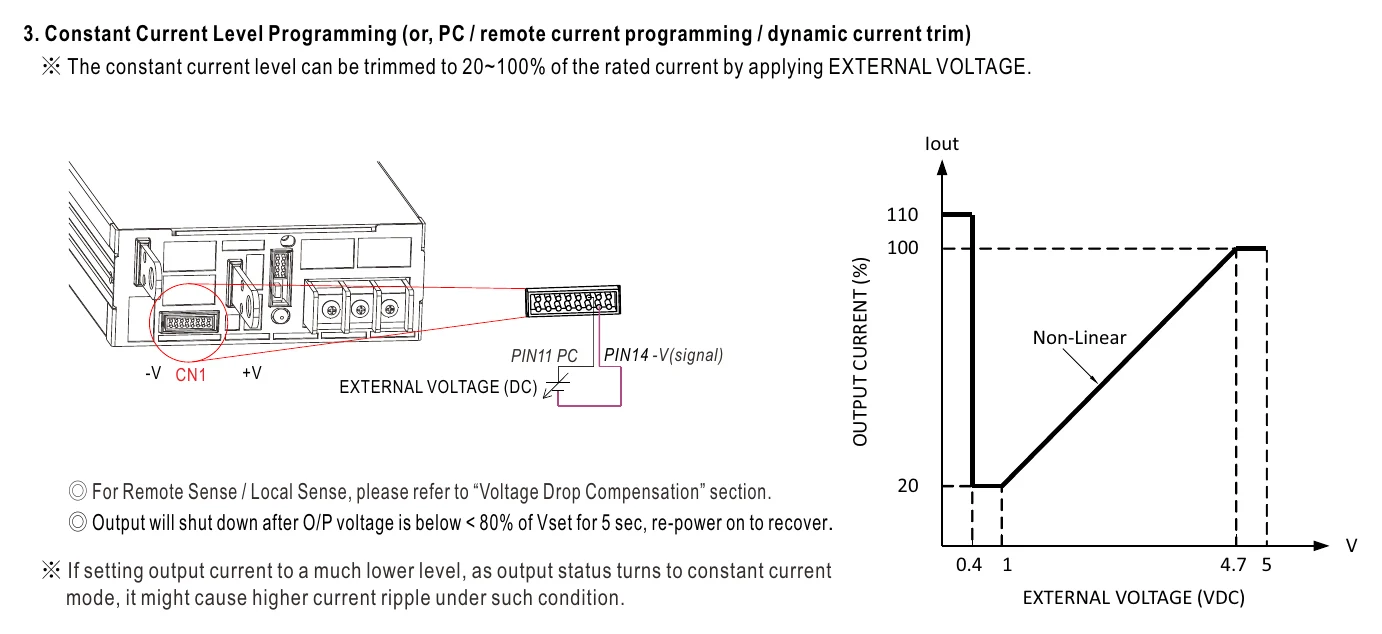

DPU-3200-24 FUNCTION MANUAL — FUNCTION MANUAL

DPU-3200-24 (%)OUTPUTCURRENT — (%)OUTPUTCURRENT

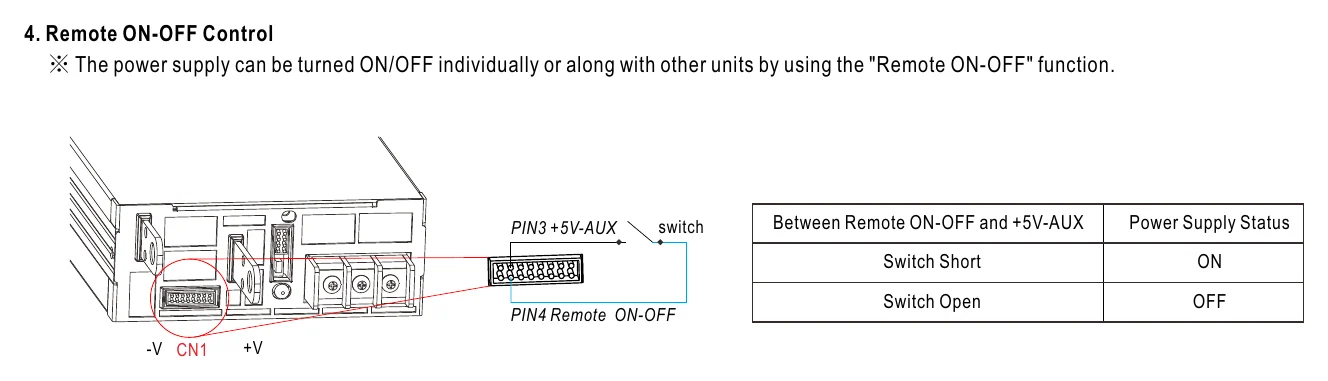

DPU-3200-24 4. Remote ON-OFF Control — 4. Remote ON-OFF Control

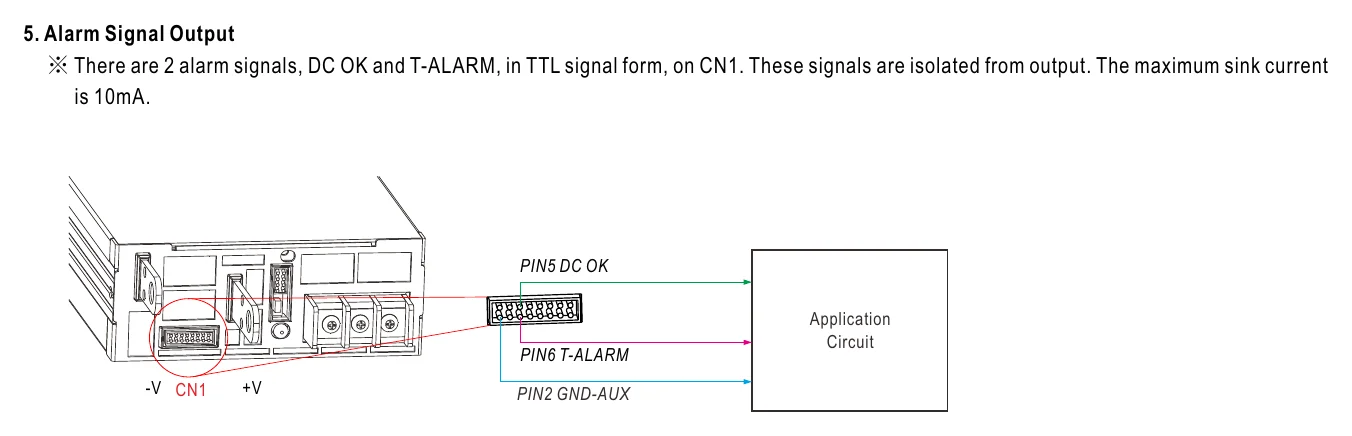

DPU-3200-24 5. Alarm Signal Output — 5. Alarm Signal Output

DPU-3200-24 D P U - 3 2 0 0 series — D P U - 3 2 0 0 series

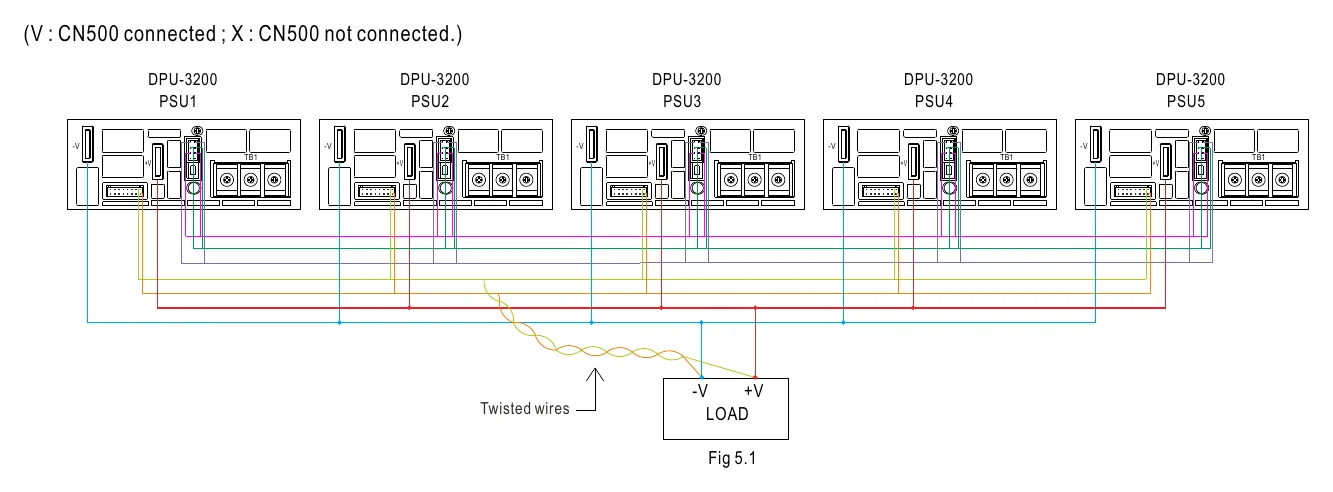

DPU-3200-24 (V : CN500 connected ; X : CN500 not connected.) — (V : CN500 connected ; X : CN500 not connected.)

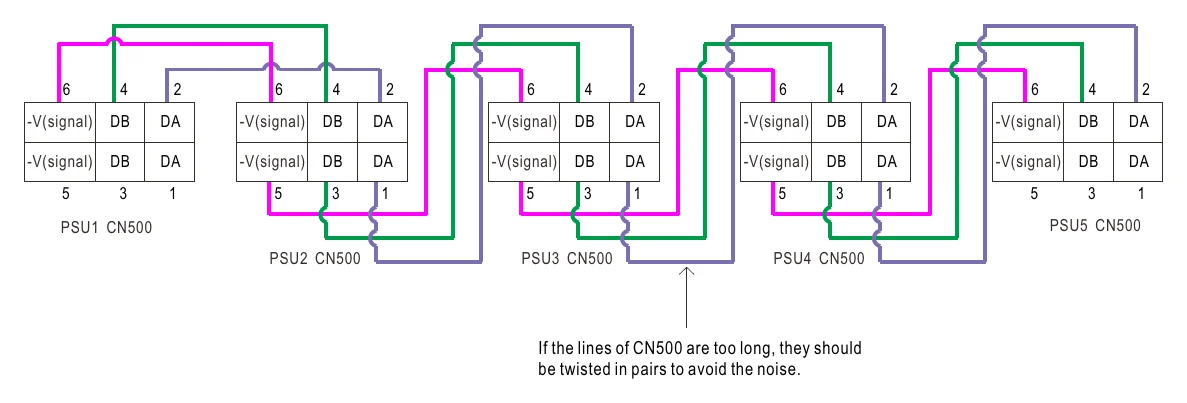

DPU-3200-24 (V : CN500 connected ; X : CN500 not connected.) (2) — (V : CN500 connected ; X : CN500 not connected.) (2)

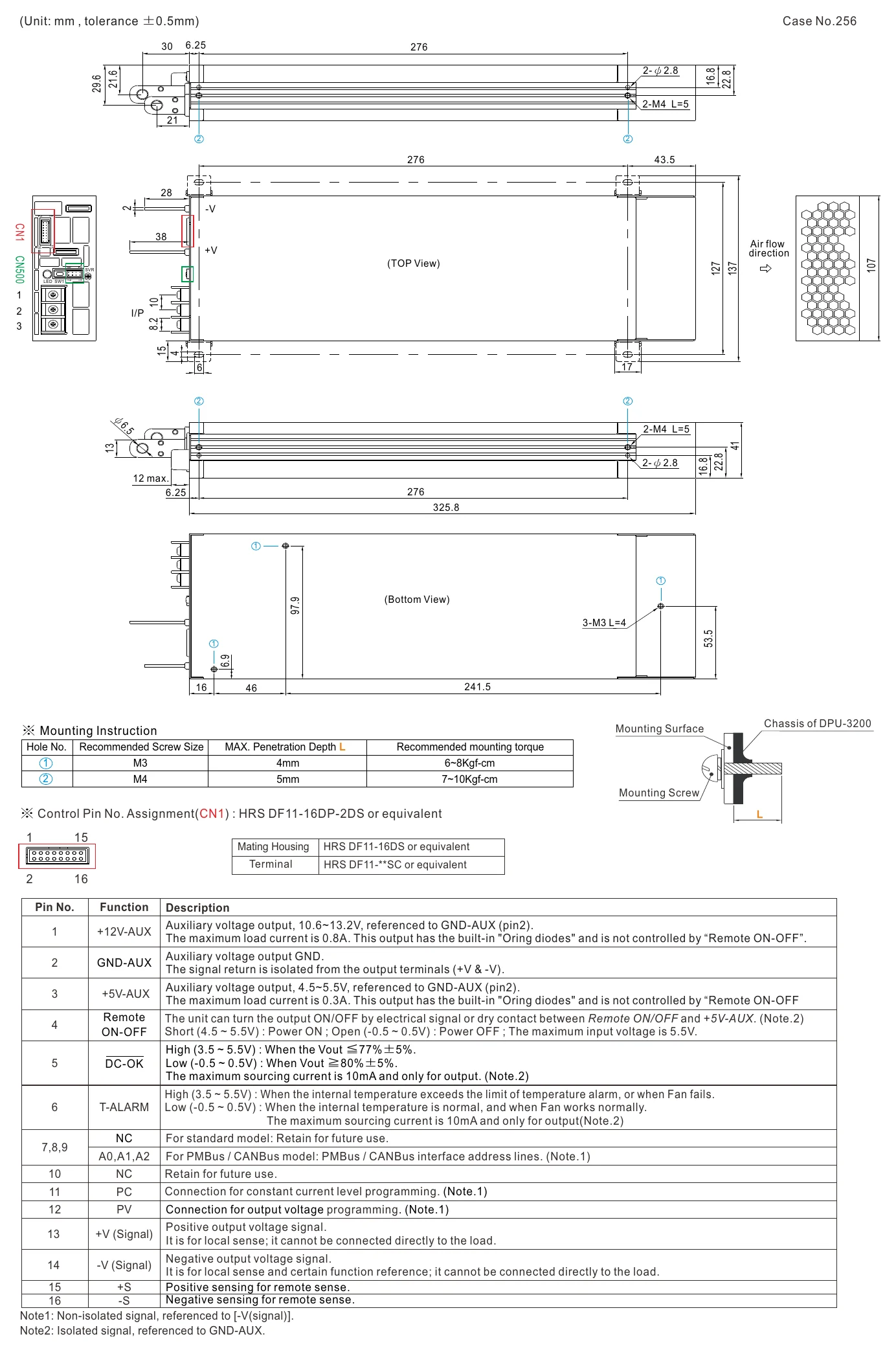

DPU-3200-24 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

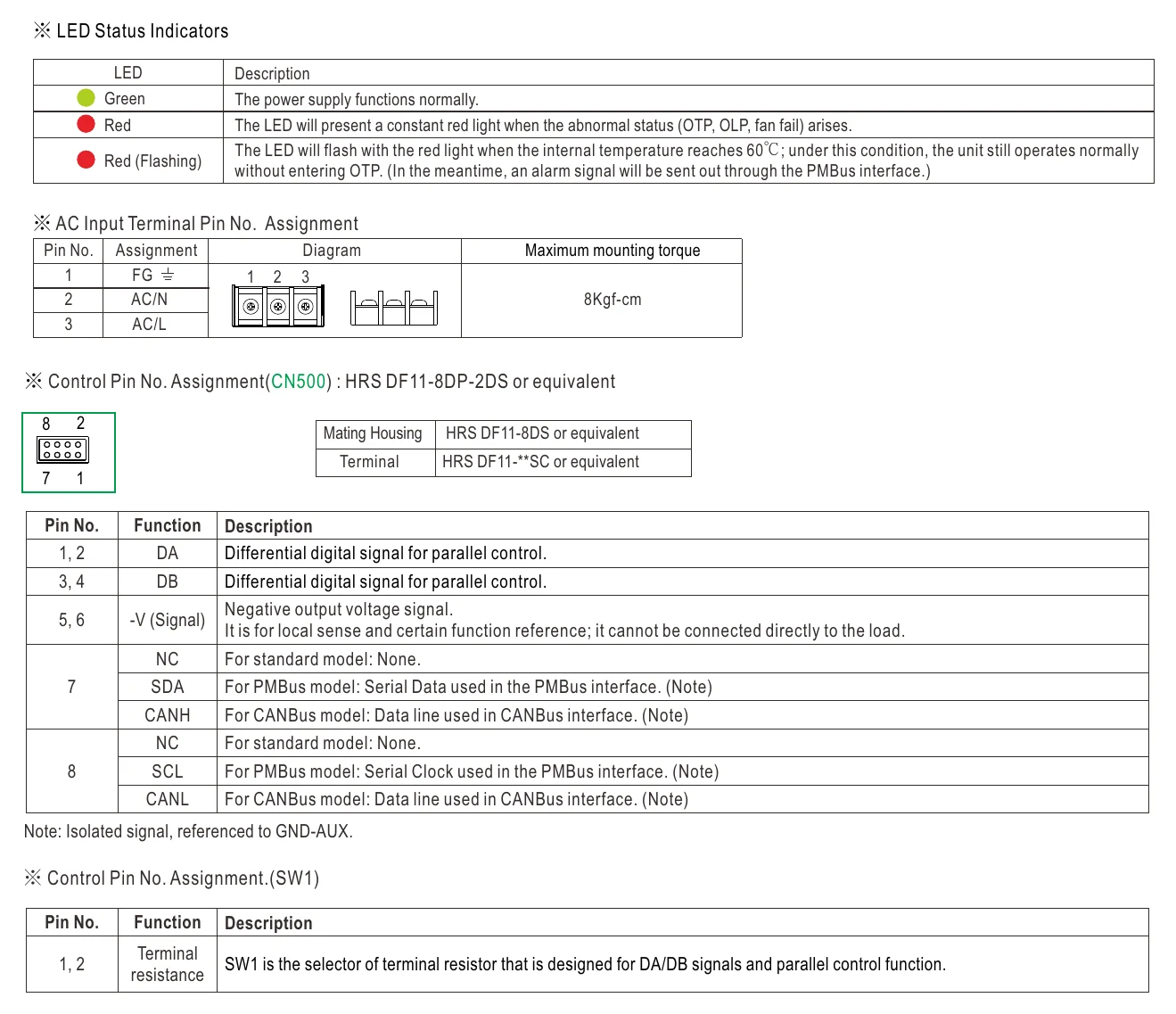

DPU-3200-24 ※ LED Status Indicators — ※ LED Status Indicators

Typical applications

Downloads

Certificates10

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-TUV-3nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB(UL)-3nd Certificate PDF Download

Mean Well DBR-DRP-DBU-DPU-NSP-3200-DHP-1UT-CB-(UL)-2nd Certificate PDF Download

Mean Well DBR-DBU-DPU-3200-DHB-DHP-12K1UT-DHP-1UT-A-CB(60950) Certificate PDF Download

Mean Well DBR-DBU-DPU-3200-DHB-DHP-12K1UT-DHP-1UT-A-CB(62368) Certificate PDF Download

Mean Well DPU-DBU-3200-EMC Certificate PDF Download

Mean Well DPU-DBU-3200-UK-dec Certificate PDF Download

Mean Well DPU-DBU-3200-CE-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well DPU-3200-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPU-3200-24 for a high-current 24V industrial control cabinet?

Yes, this model is a constant-voltage 24V supply rated for 3192W and 133A, which fits high-current 24V control and automation systems. Its programmable output voltage and current level can also help where system-level control is required.

Is the DPU-3200-24 suitable for 24V DC bus power in factory automation equipment?

It is designed for constant-voltage 24V output and can deliver up to 133A, so it fits large 24V DC bus applications that need substantial power. The wide 90-264VAC input range also supports use in varied AC supply environments.

Can this power supply be used for 24V industrial loads that need scalable power capacity?

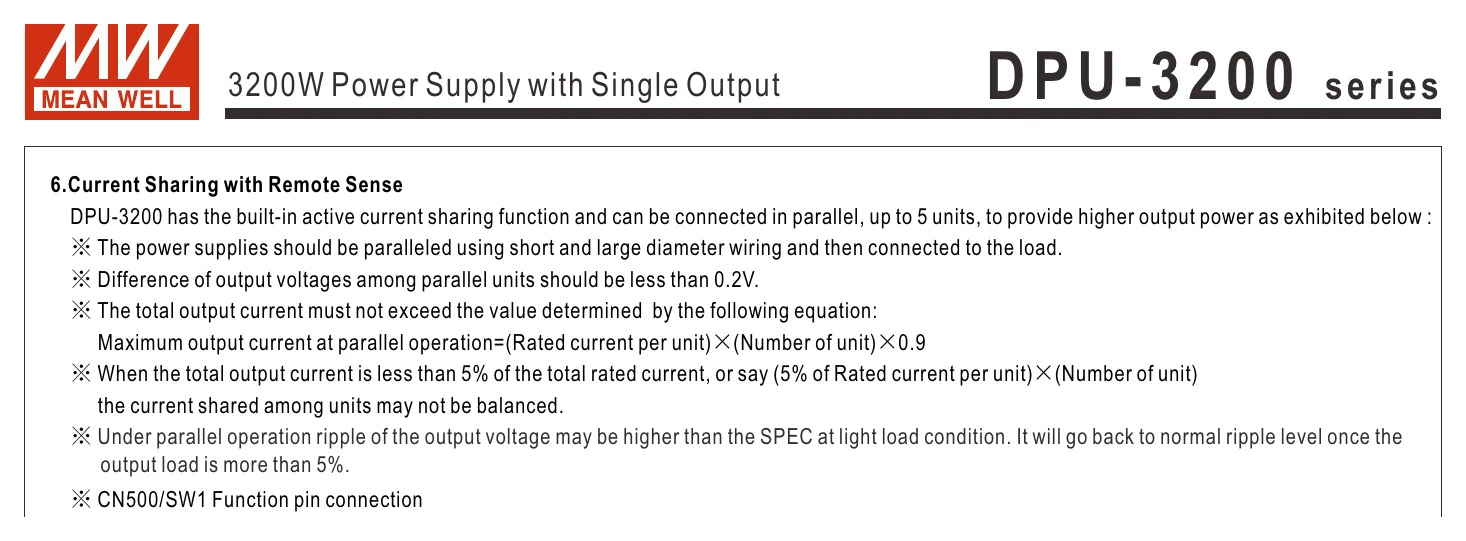

Yes, the DPU-3200-24 has built-in active current sharing and up to 5 units can be connected in parallel for higher total capacity; total output current must not exceed rated current per unit × number of units × 0.9. On its own, the unit is rated at 3192W with 24V output.

Would the DPU-3200-24 fit a 24V embedded or telecom-style rack power application?

It can be suitable where a compact, high-power 24V source is needed, since it provides 3192W in a 325.8 × 107.0 × 41.0 mm housing. The typical efficiency of 93.5% is also relevant in dense equipment environments where power loss matters.

How does the DPU-3200-24 compare with the DPU-3200-48?

The DPU-3200-24 is rated at 3192W with 24V output and 133A output current. The sibling DPU-3200-48 is rated at 3216W with 48V output and 67A output current.

Is the DPU-3200-24 appropriate for outdoor or harsh-temperature installations?

The operating temperature range is -30°C to +70°C, with load derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specs, so the product data does not establish suitability for exposed outdoor or washdown environments.
