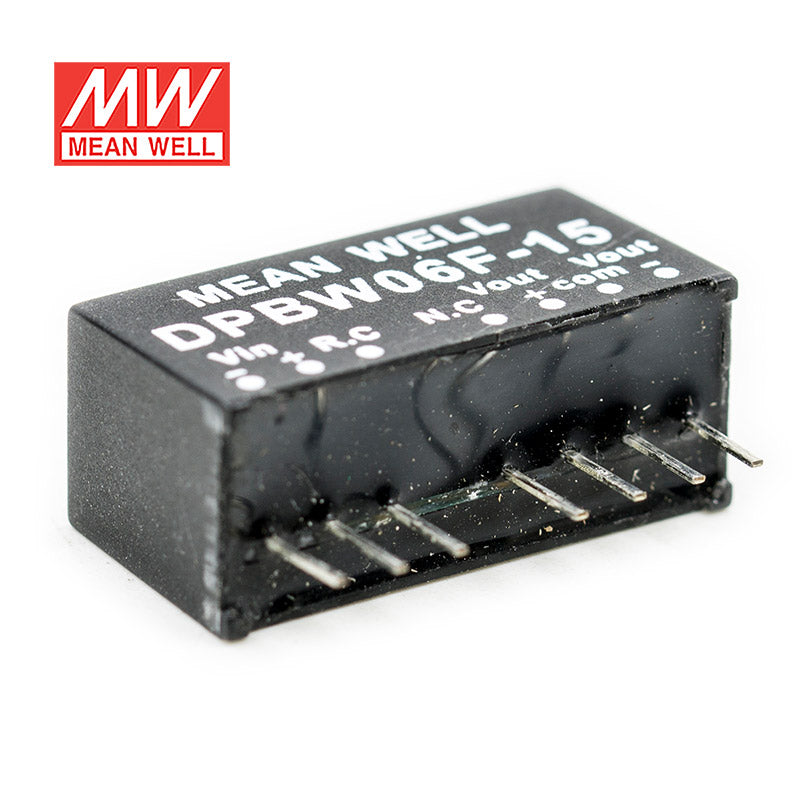

Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out 200mA

Name: Mean Well DPBW06F-15 DC-DC Converter - 6W - 9~36V in ±15V out 200mA
Brand: Mean Well
SKU: DPBW06F-15
Price: 11.48 USD
Availability: InStock

SKU DPBW06F-15

$11.48 USD

Shipping calculated at checkout.

Available to order

Overview

DPBW06F-15 is the ±15V output model of this series: rated power 6W, typical efficiency 88%.

SPBW06 and DPBW06 series are 6W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPBW06F-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 7mA
INPUT CURRENT FULL LOAD: 288mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 200mA
EFFICIENCY (TYP.): 88%
CAPACITOR LOAD (MAX.)^{* For each output}: *220μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 580KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin (Please refer to the application circuit in following page)

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 65℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 50pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 1850Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPBW06F-15 Plug Assignment — Plug Assignment

DPBW06F-15 Remote ON/OFF Control — Remote ON/OFF Control

DPBW06F-15 EMC Suggestion Circuit — EMC Suggestion Circuit

Typical applications

Downloads

Certificates2

Certificate (SPBW03-DPBW03-CE-dec)(EN) PDF Download

Certificate (SPBW-DPBW03-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPBW06F-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPBW06F-15 for low-power 15V analog control circuits?

Yes, it is intended for applications that need a constant 15V output at up to 6W. That makes it more appropriate for low-power analog, control, and interface circuitry than for larger 15V equipment loads.

Is the DPBW06F-15 suitable for embedded instrumentation modules?

It can be a good fit for embedded instrumentation sections that need a regulated ±15V rail and compact packaging. The converter measures 21.8 x 9.2 x 11.1 mm and works across a 9-36VDC input range.

Can this model be used in automation systems with variable input supply conditions?

It is designed for systems where the available input falls within 9-36VDC and the load needs a constant-voltage ±15V output. The 6W power rating keeps it in the low-power automation and control category.

What is the difference between the DPBW06F-15 and the other DPBW06F models?

All listed models in the DPBW06F group are rated at 6W. The DPBW06F-05 provides ±5V and ±600mA, the DPBW06F-12 provides ±12V and ±250mA, and the DPBW06F-15 provides ±15V and ±200mA.

Can the DPBW06F-15 be used in outdoor cabinets or extreme temperatures?

The specified operating range is -40°C to +85°C, which supports wide-temperature equipment use. No IP rating is shown in the specs, so outdoor exposure protection is not confirmed here.
