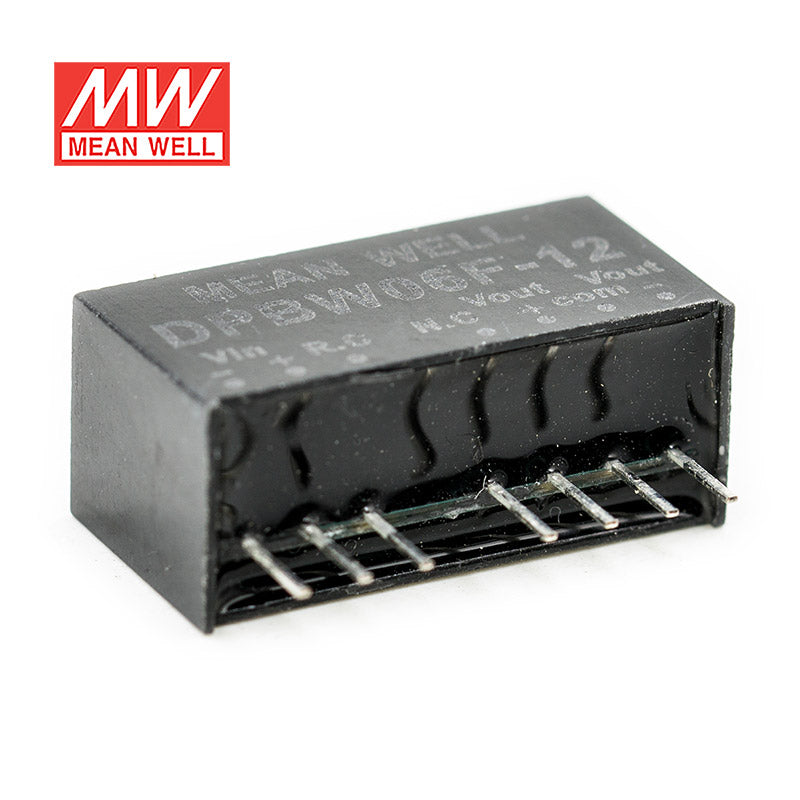

Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out 250mA

Name: Mean Well DPBW06F-12 DC-DC Converter - 6W - 9~36V in ±12V out 250mA
Brand: Mean Well
SKU: DPBW06F-12
Price: 11.48 USD
Availability: InStock

SKU DPBW06F-12

$11.48 USD

Shipping calculated at checkout.

Available to order

Overview

DPBW06F-12 is the ±12V output model of this series: rated power 6W, typical efficiency 88%.

SPBW06 and DPBW06 series are 6W isolated and regulated module type DC-DC converter with SIP8 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPBW06F-12Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 6mA
INPUT CURRENT FULL LOAD: 288mA
VOLTAGE RANGE: 9~36Vdc ,
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±0 ~ 250mA
EFFICIENCY (TYP.): 88%
CAPACITOR LOAD (MAX.)^{* For each output}: *660μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 580KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin (Please refer to the application circuit in following page)

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 65℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 50pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A/B with external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A/B with external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 1850Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.5g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPBW06F-12 Plug Assignment — Plug Assignment

DPBW06F-12 Remote ON/OFF Control — Remote ON/OFF Control

DPBW06F-12 EMC Suggestion Circuit — EMC Suggestion Circuit

Typical applications

Downloads

Certificates2

Certificate (SPBW03-DPBW03-CE-dec)(EN) PDF Download

Certificate (SPBW-DPBW03-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPBW06F-12)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPBW06F-12 for 12V control circuits in factory equipment?

Yes, it is suited to low-power 12V control electronics that need constant-voltage output. The unit is rated at 6W and supports a 9-36VDC input range, which fits many compact industrial control designs.

Is the DPBW06F-12 appropriate for embedded 12V sensor or relay subsystems?

It can be a fit for embedded 12V subsystems where the total demand stays within 6W. Its 21.8 x 11.1 x 9.2 mm dimensions also make it practical in dense boards or small automation assemblies.

Can this converter support 12V instrumentation electronics in a wide-input system?

It is intended for low-power 12V instrumentation or monitoring sections that need a constant-voltage rail from a 9-36VDC input. The 6W rating means it is better for control and interface electronics than for heavier 12V loads.

How does the DPBW06F-12 compare with the 5V and 15V versions in the same series?

The listed DPBW06F siblings all have a 6W rating. The DPBW06F-05 is ±5V and ±600mA, the DPBW06F-12 is ±12V and ±250mA, and the DPBW06F-15 is ±15V and ±200mA.

Is the DPBW06F-12 suitable for outdoor use or temperature-challenging environments?

Its operating temperature is specified from -40°C to +85°C, so the temperature range is broad. Because no IP rating is listed, the provided specs do not establish suitability for direct outdoor exposure.
