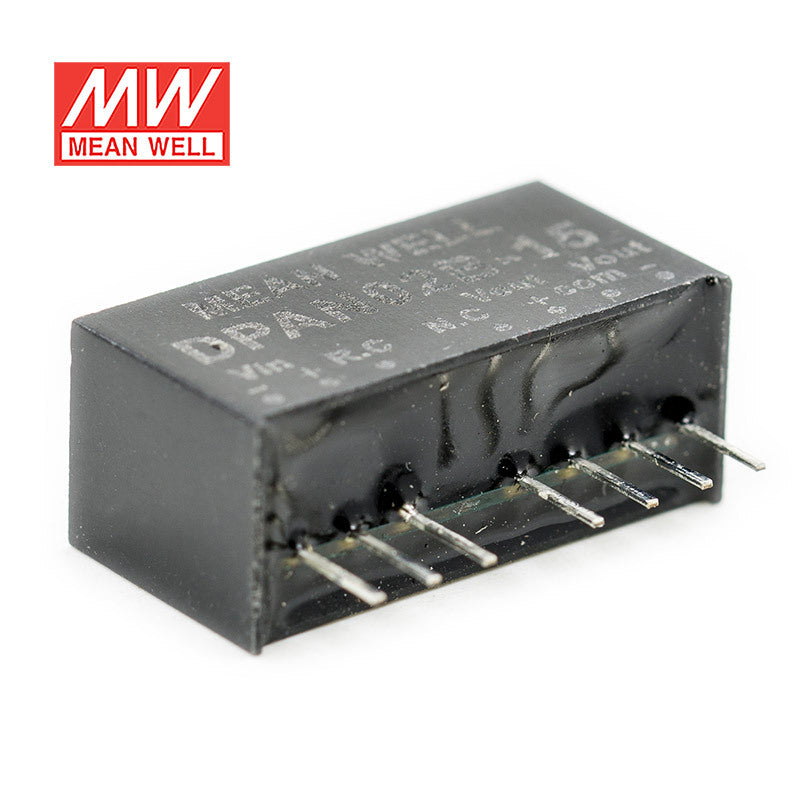

Mean Well DPAN02B-15 DC-DC Converter - 2W - 18~36V in ±15V out 67mA

Name: Mean Well DPAN02B-15 DC-DC Converter - 2W - 18~36V in ±15V out 67mA
Brand: Mean Well
SKU: DPAN02B-15
Price: 8.74 USD
Availability: InStock

$8.74 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DPAN02B-15 is the ±15V output model of this series: rated power 2W, typical efficiency 85%.

SPAN02 and DPAN02 series are 2W isolated and regulated module type DC-DC converter with SIP 8 package. It features international standard pins, a high efficiency up to 85%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated class A without additional components, overload and continuous-mode short circuit protection, etc. The models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP8 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 85%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

DPAN02B-15Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (18 ~ 36V)
INPUT CURRENT NO LOAD: 19mA
INPUT CURRENT FULL LOAD: 100mA
VOLTAGE RANGE: 18~36Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 15Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 1000mA Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24V and 48Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 67mA
EFFICIENCY (TYP.): 85%
CAPACITOR LOAD (MAX.)^{* For each output}: *67μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin : 4.2Vdc ; 12Vin : 7.3Vdc ; 24Vin : 15.5Vdc ; 48Vin : 31Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 5Vin : 3Vdc ; 12Vin : 5.8Vdc ; 24Vin : 12Vdc ; 48Vin : 24Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin <0.8Vdc or open circuit; Power OFF: R.C. ~ -Vin >4 ~ 15Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 10pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 2500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.7g ; 14pcs/per tube, 2058pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPAN02B-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SPAN02-DPAN02-CE-sec)(EN) PDF Download

Certificate (SPAN-DPAN02-UK-dec)(EN) PDF Download

Test reports1

Test Report (DPAN02B-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPAN02B-15 for low-power instrumentation circuits that need ±15V output?

Yes, this model is suitable for low-power instrumentation and analog support circuits where ±15V output is required from an 18-36VAC input. Its 2W rating and 0.07A output current place it in the small-signal power category.

Is the DPAN02B-15 a good match for compact embedded control hardware with dual 15V rails?

It can fit embedded hardware that needs ±15V constant-voltage output and stays within the converter's 2W capacity. The 21.8 × 11.1 × 9.2 mm form factor supports compact board-level designs.

Can the DPAN02B-15 be used in industrial automation equipment for isolated low-power analog stages?

It is appropriate for low-power analog or conditioning stages that need a regulated ±15V rail from an 18-36VAC source. The -40°C to +90°C operating range also aligns with industrial equipment that sees broader temperature variation.

What are the main differences between the DPAN02B-05, DPAN02B-12, and DPAN02B-15?

These three models share the same 2W power rating, 18-36VAC input range, and 21.8 × 11.1 × 9.2 mm dimensions. The difference is the output version: 5V for DPAN02B-05, ±12V at 0.08A for DPAN02B-12, and ±15V at 0.07A for DPAN02B-15.

Is the DPAN02B-15 suitable for outdoor installations?

The converter is specified for -40°C to +90°C operation, so it can handle a wide temperature span. However, no IP rating is listed, so the specs do not define resistance to rain, washdown, or dust without additional enclosure protection.
