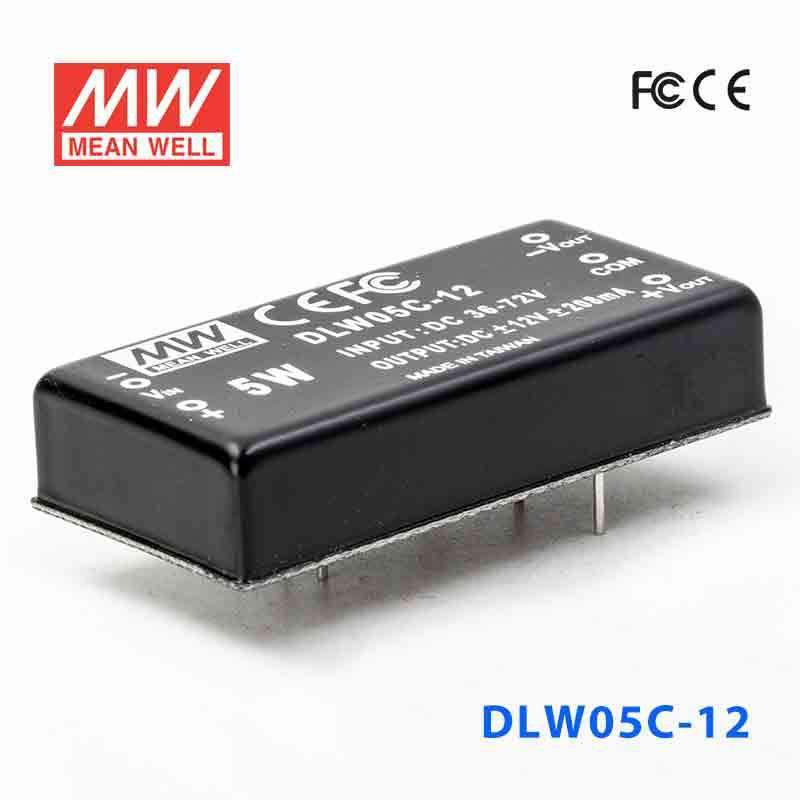

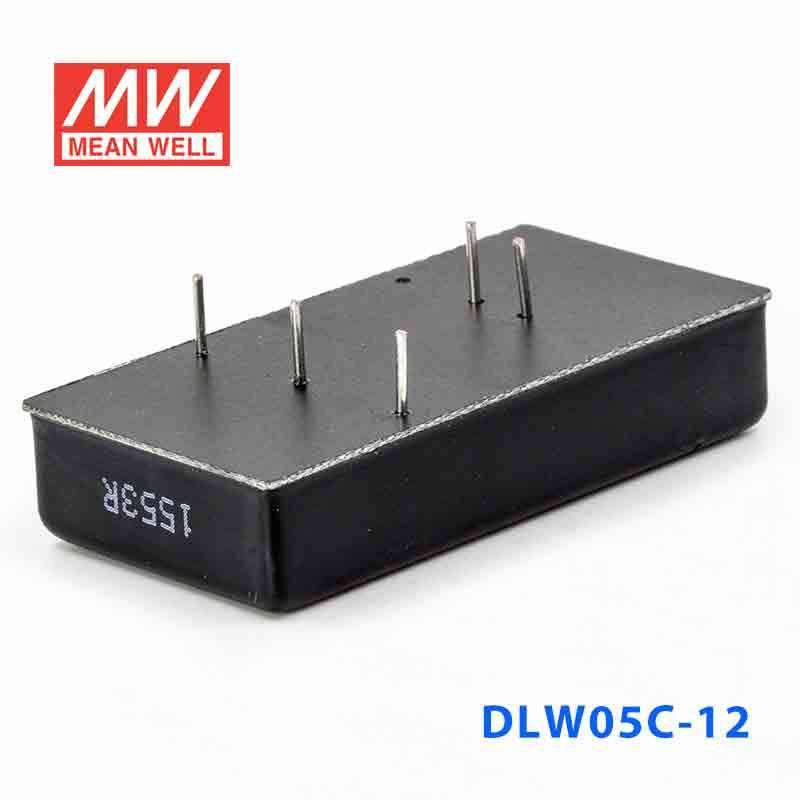

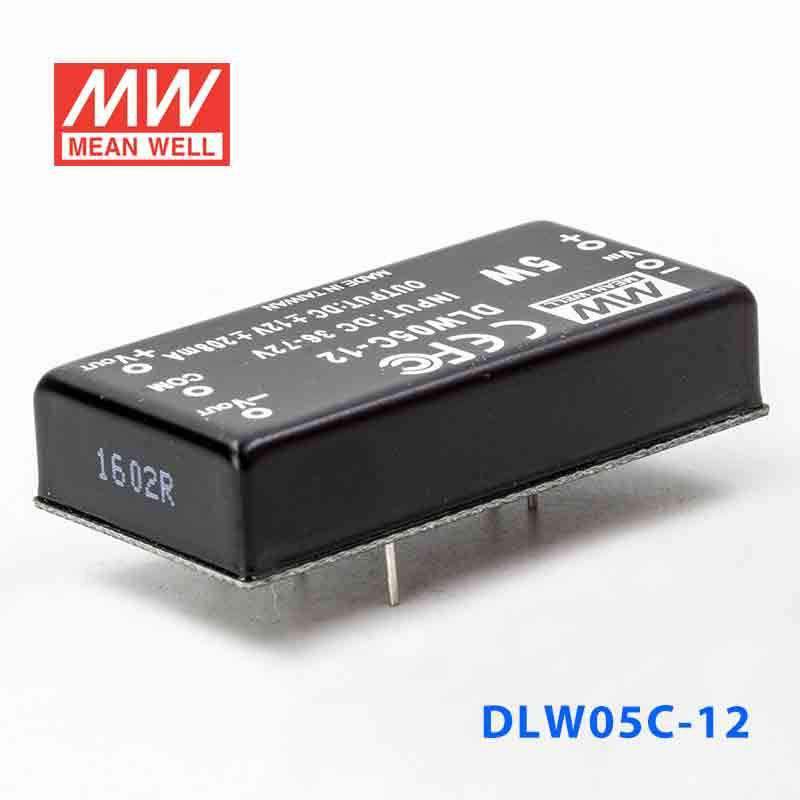

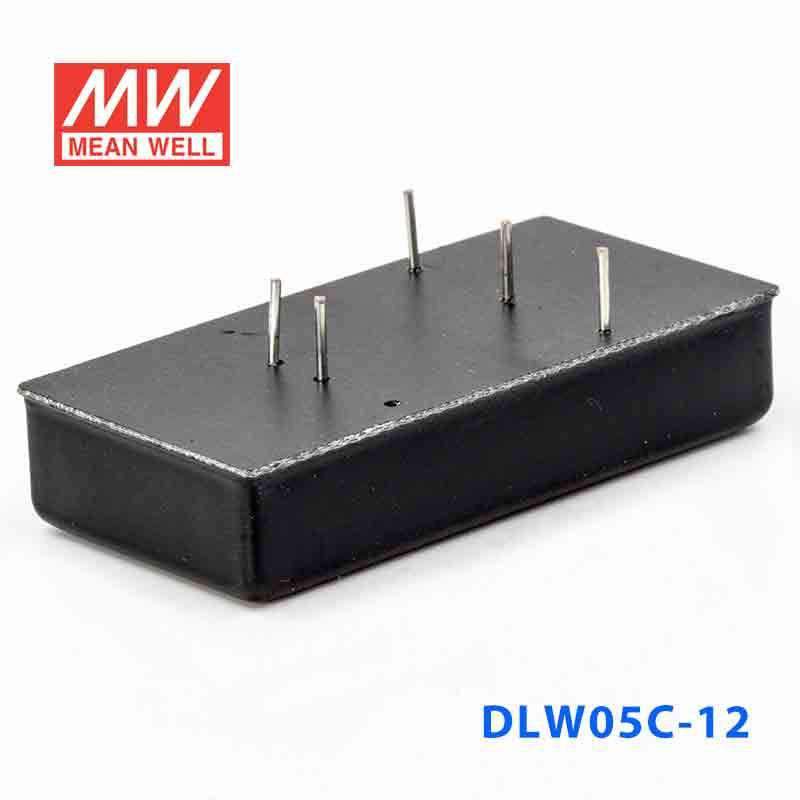

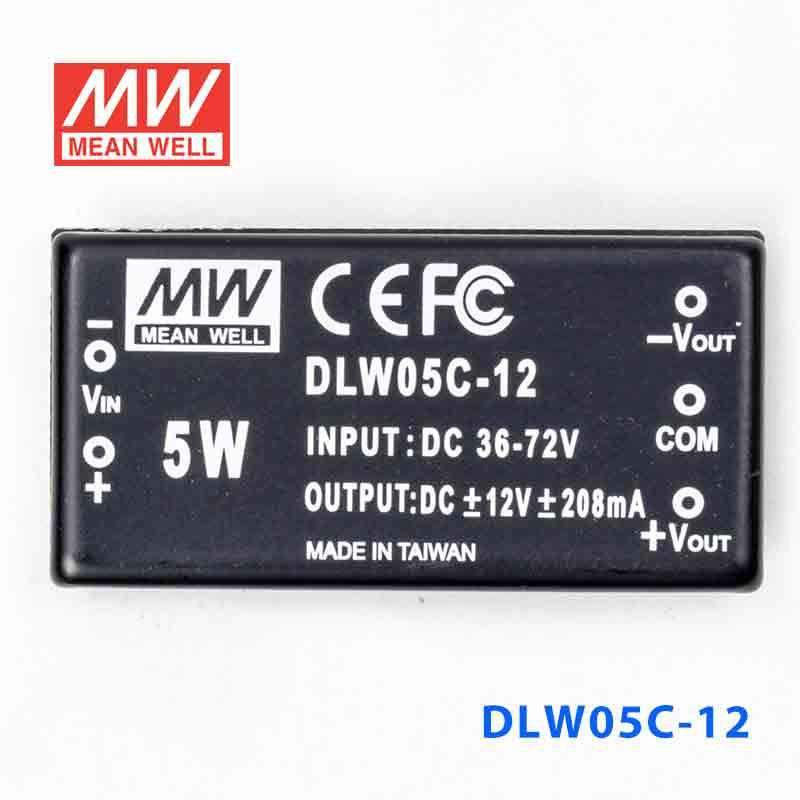

Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out 208mA
Overview
DLW05C-12 is the ±12V output model of this series: rated power 5W, typical efficiency 83%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±12V
- CURRENT RANGE
- ±20.8 ~ ±208mA
- RATED POWER
- 5W
- RIPPLE & NOISE (max.)Note.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.2%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY (Typ.)
- 83%
- DC CURRENT Full load
- 135mA
- DC CURRENT No load
- 10mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVERLOAD
- 160 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 800khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*25.4*11.27mm or 2.0"*1.0"*0.44" inch (L*W*H)
- PACKING
- 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DLW05C-12 in a 48V automation system that needs a 12V rail?
This model accepts 36-72VDC input and provides a regulated ±12V dual output at 5W. That makes it suitable for low-power automation electronics or interface modules that need ±12V derived from a higher-voltage source in that input range.
Is the DLW05C-12 suitable for embedded 12V analog or control circuits?
It can be used where the design needs a regulated ±12V output and the upstream supply is within 36-72VDC. Because the rated power is 5W, it is better suited to compact control, sensing, or signal-processing sections than to larger 12V loads.
Would the DLW05C-12 fit a compact industrial electronics design?
Its dimensions are 50.8 × 25.4 × 11.27 mm and its weight is 31.2 g, so it is built for compact integration. That physical format can work well in small embedded or industrial assemblies where a ±12V rail is needed from a 36-72VDC input source.
Can this converter be used in uncontrolled indoor environments?
The operating temperature range is -25°C to +71°C (with load derating per the derating curve) and humidity 20% to 90% RH non-condensing, which supports a wide range of indoor equipment conditions. The specs do not list an IP rating, so the product data does not support claiming outdoor, sealed, or washdown use.
How does the DLW05C-12 differ from the other DLW05C outputs?
The series keeps the same 5W platform and 36-72VDC input while changing output options. The DLW05C-05 is ±5V with up to ±500mA, the DLW05C-12 is ±12V with up to ±208mA, and the DLW05C-15 is ±15V with up to ±167mA.
