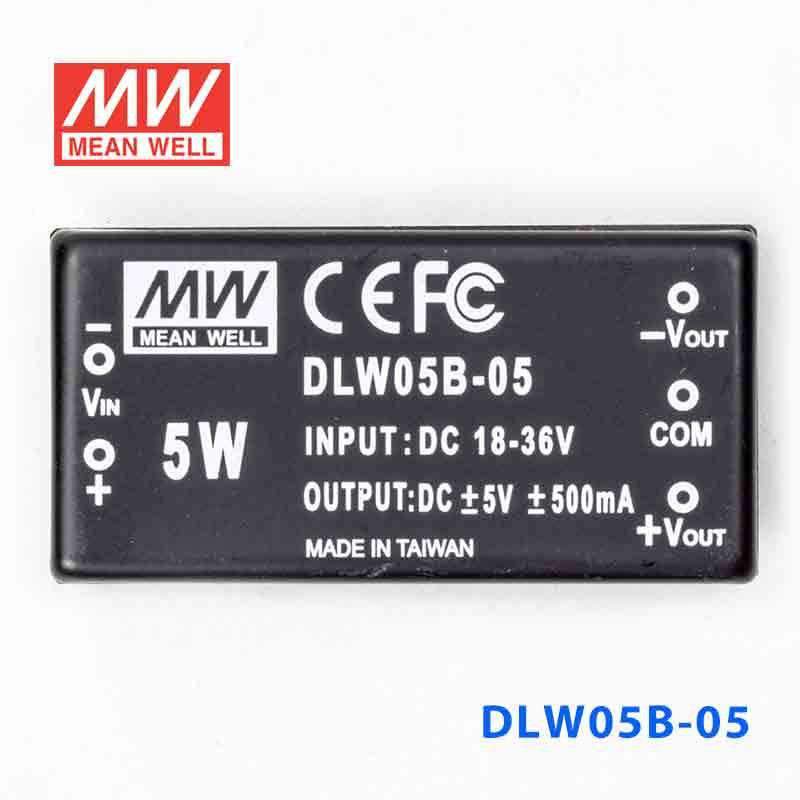

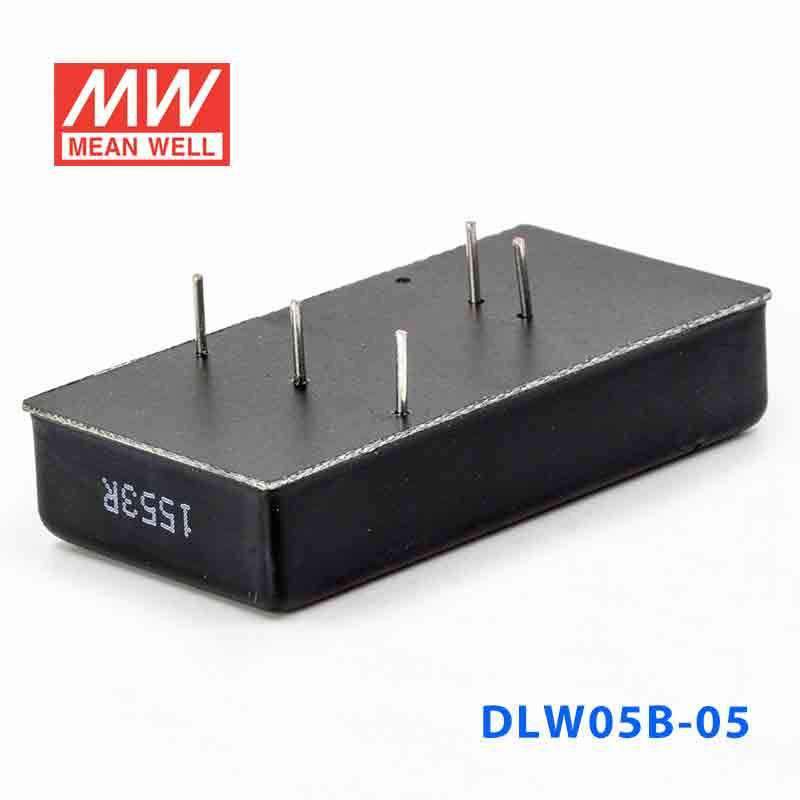

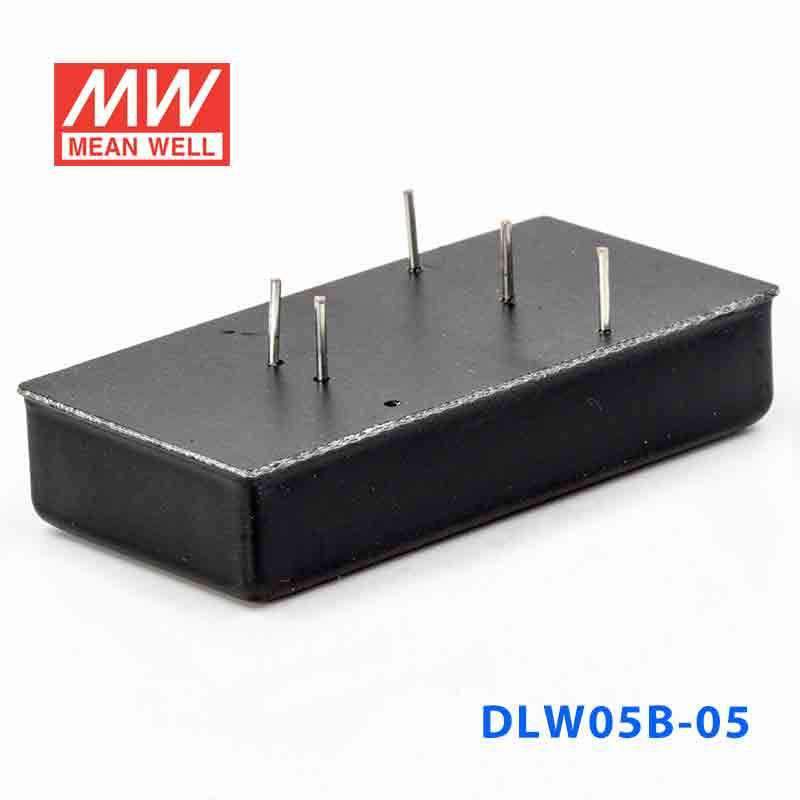

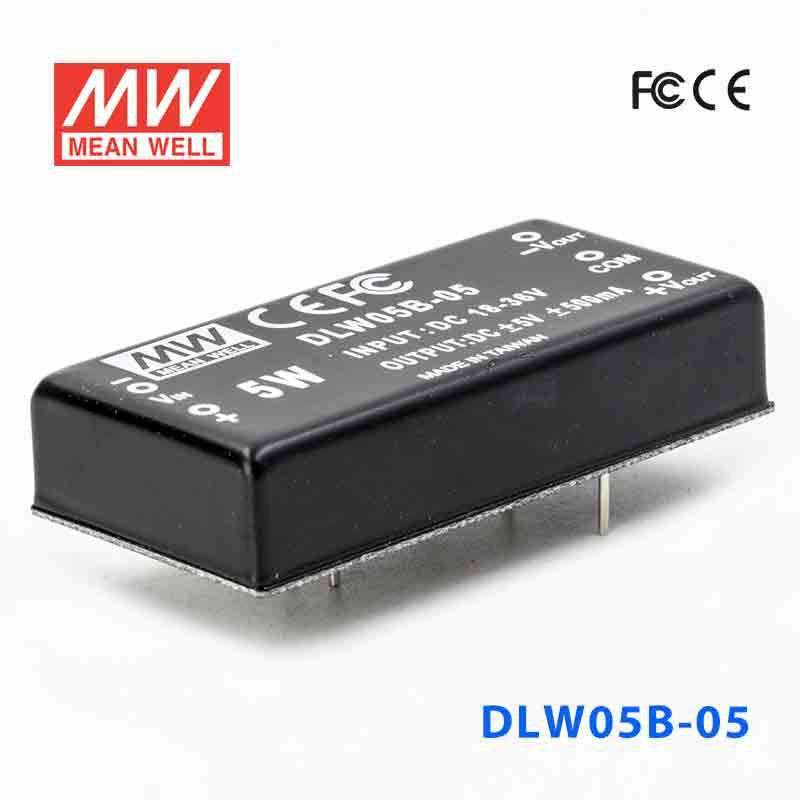

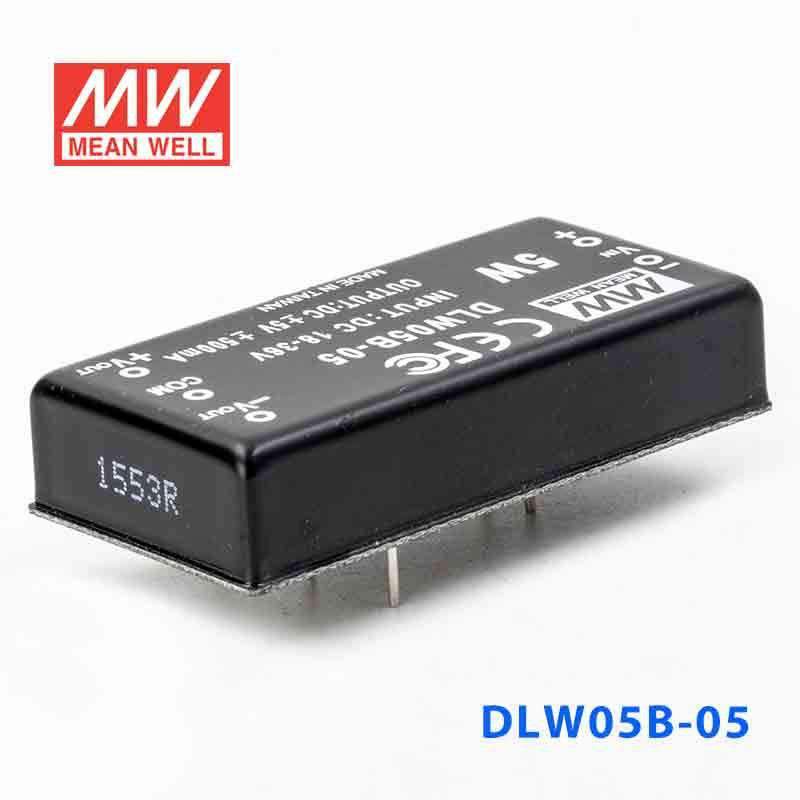

Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out 500mA
Overview
DLW05B-05 is the ±5V output model of this series: rated power 5W, typical efficiency 77%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±5V
- CURRENT RANGE
- ±50 ~ ±500mA
- RATED POWER
- 5W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.2%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 50KHz min.
INPUT
- VOLTAGE RANGE
- 18 ~ 36VDC
- EFFICIENCY (Typ.)
- 77%
- DC CURRENT Full load
- 270mA
- DC CURRENT No load
- 16mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVERLOAD
- 160 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 800khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*25.4*11.27mm or 2.0"*1.0"*0.44" inch (L*W*H)
- PACKING
- 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DLW05B-05 in a 24V-class industrial cabinet to generate 5V for control electronics?
Yes, if the source presented to the converter is within 18-36VDC and the electronics need a regulated ±5V output. With a 5W rating, it fits low-power control, monitoring, and interface electronics rather than heavier 5V loads.
Is the DLW05B-05 suitable for small embedded systems in automation equipment with higher DC input ranges?
It is a fit for embedded systems that need a regulated ±5V output when the available input falls in the 18-36VDC range. The small 50.8 × 25.4 × 11.27 mm footprint helps when space is limited inside automation equipment.
Can this model be used for industrial monitoring nodes or interface boards that run on 5V?
Yes, when the monitoring node or interface board needs a regulated ±5V output and stays within the 5W output rating. The 18-36VDC input range makes it more appropriate where the upstream DC source is higher than the A-series 9-18VDC input range.
Can the DLW05B-05 be used in outdoor control boxes?
Its stated operating range is -25°C to +71°C (with load derating per the derating curve), but the provided specifications do not give an IP rating. Without an IP rating, it is safer to treat it as suitable for protected indoor equipment or an enclosure that handles moisture and dust protection.
What changes across the DLW05B output options?
The DLW05B family keeps the same 5W power level, 18-36VDC input range, regulated dual output, 50.8 × 25.4 × 11.27 mm size, 31.2 g weight, and -25°C to +71°C operating temperature. The output choices are DLW05B-05 at ±5V and up to ±500mA, DLW05B-12 at ±12V and up to ±208mA, and DLW05B-15 at ±15V and up to ±167mA.
