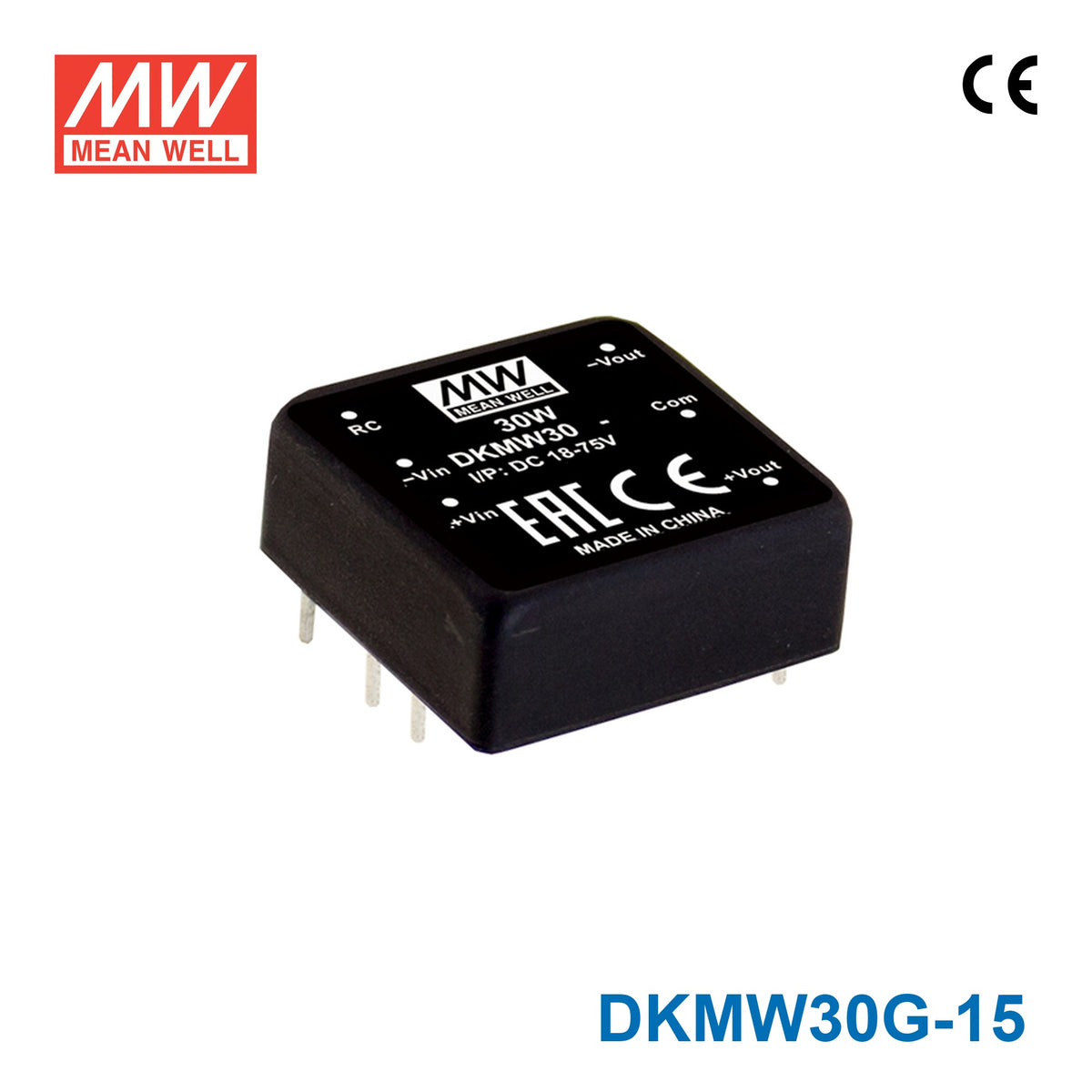

Mean Well DKMW30G-15 DC-DC Converter - 30W - 18~75V in ±15V out 1A

Name: Mean Well DKMW30G-15 DC-DC Converter - 30W - 18~75V in ±15V out 1A
Brand: Mean Well
SKU: DKMW30G-15
Price: 40.74 USD
Availability: InStock

SKU DKMW30G-15

$40.74 USD

Shipping calculated at checkout.

Available to order

Overview

DKMW30G-15 is the ±15V output model of this series: rated power 30W, typical efficiency 89%.

SKMW30 and DKMW30 series are 30W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over temperature, input under voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Specifications

DKMW30G-15Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): 48V (18 ~ 75V)
INPUT CURRENT NO LOAD: 8mA
INPUT CURRENT FULL LOAD: 702mA
OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~1000mA
EFFICIENCY (TYP.): 89%
CAPACITOR LOAD (MAX.)^{* For each output}: *1000μF

INPUT

VOLTAGE RANGE: 18~75Vdc
SURGE VOLTAGE (100ms max.): 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 24Vin models: 6A delay time Type, 48Vin models: 3A delay time Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 3.3/5Vout models: 75mVp-p, other models:100mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.2%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 3.3/5Vout models: 270KHz, other models: 330KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 170% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

UNDER VOLTAGE LOCKOUT Start-up voltage: 24Vin (F-type): 8.8Vdc, 48Vin (G-type): 17Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 24Vin (F-type): 8Vdc, 48Vin (G-type): 16Vdc
REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 60℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1500pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3/5Vout models: 860Khrs, Other models: 1170Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Black coated copper with non-conductive base
PACKING: 19.2g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DKMW30G-15 SKMW30 & DKMW30 series — SKMW30 & DKMW30 series

DKMW30G-15 SKMW30 & DKMW30 series (2) — SKMW30 & DKMW30 series (2)

DKMW30G-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Certificate (SKMW30-DKMW30-CE-dec)(EN) PDF Download

Certificate (SKMW-DKMW30-UK-dec)(EN) PDF Download

Test reports1

Test Report (DKMW30G-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DKMW30G-15 in a 24V or 48V industrial control system that needs 15V rails?

This model is designed for applications with an 18-75VDC input range and a dual ±15V output. With 30W power and ±1A output current, it fits control, automation, and embedded systems that specifically require ±15V constant-voltage rails within that input window.

Is the DKMW30G-15 suitable for embedded boards or instrumentation that need isolated 15V power in a compact space?

It is a compact 30W DC-DC converter with 25.4 × 25.4 × 10.2 mm dimensions and a 19.2g weight. That size and dual ±15V, ±1A output make it relevant for dense embedded or instrumentation designs where ±15V rails are required.

Can this converter be used for industrial analog or automation hardware that runs on 15V?

It can fit automation or industrial electronics that need a dual ±15V output at up to ±1A. The 30W rating and 18-75VDC input range make it more appropriate for control hardware than for higher-power 15V loads.

Is the DKMW30G-15 suitable for outdoor or harsh-temperature installations?

The specified operating temperature is -40°C to +85°C, which supports use across a wide temperature range. No IP rating is listed, so outdoor or washdown suitability is not established from the provided specs and protected enclosure use should be evaluated separately.

How does the DKMW30G-15 compare with the DKMW30G-12?

Both models are 30W converters in the same series. The DKMW30G-15 provides ±15V output at ±1A, while the DKMW30G-12 provides ±12V output at ±1.25A.
