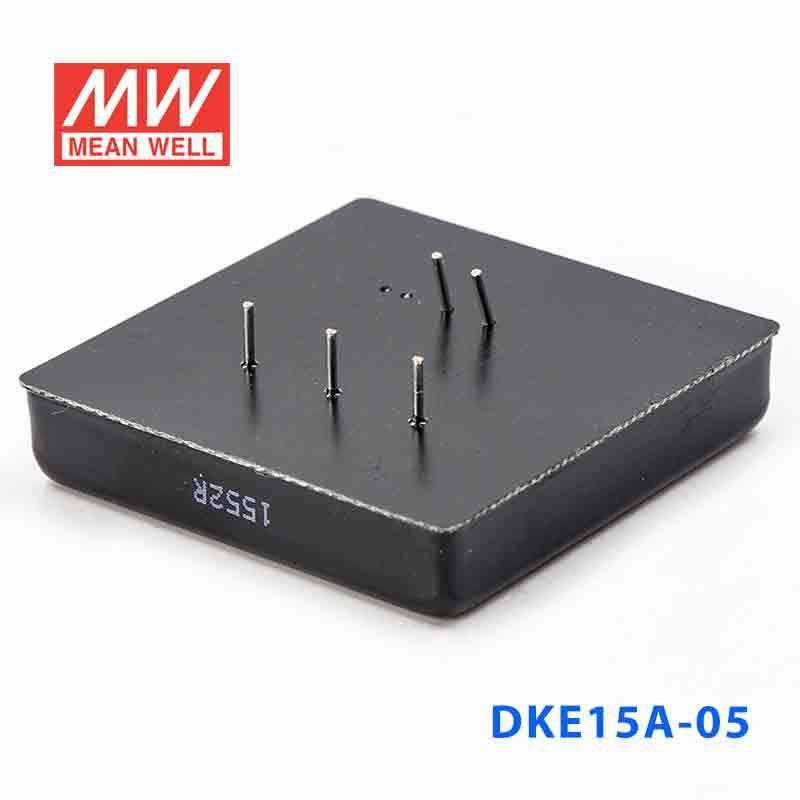

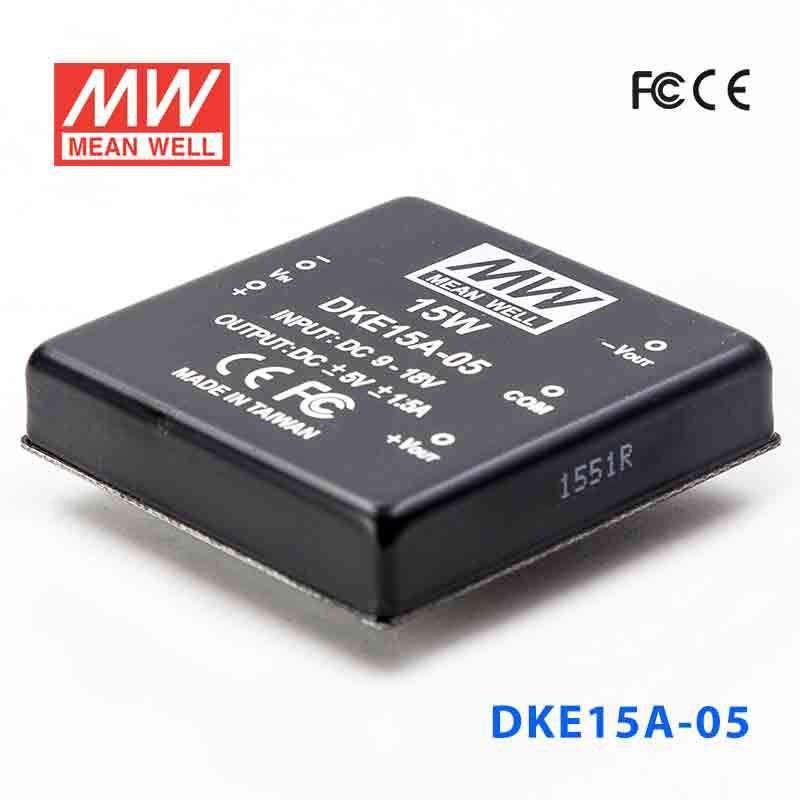

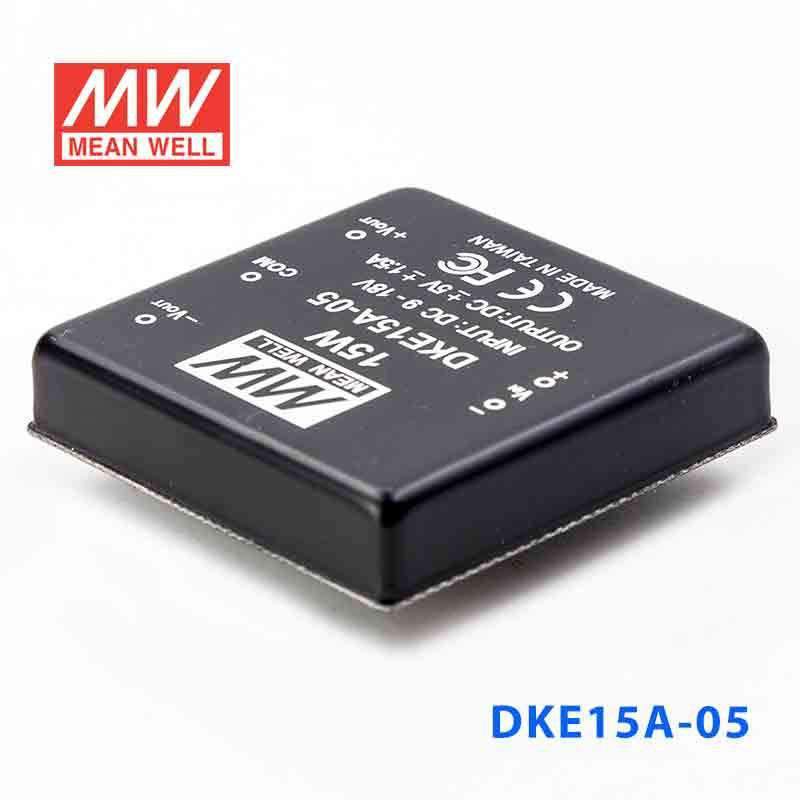

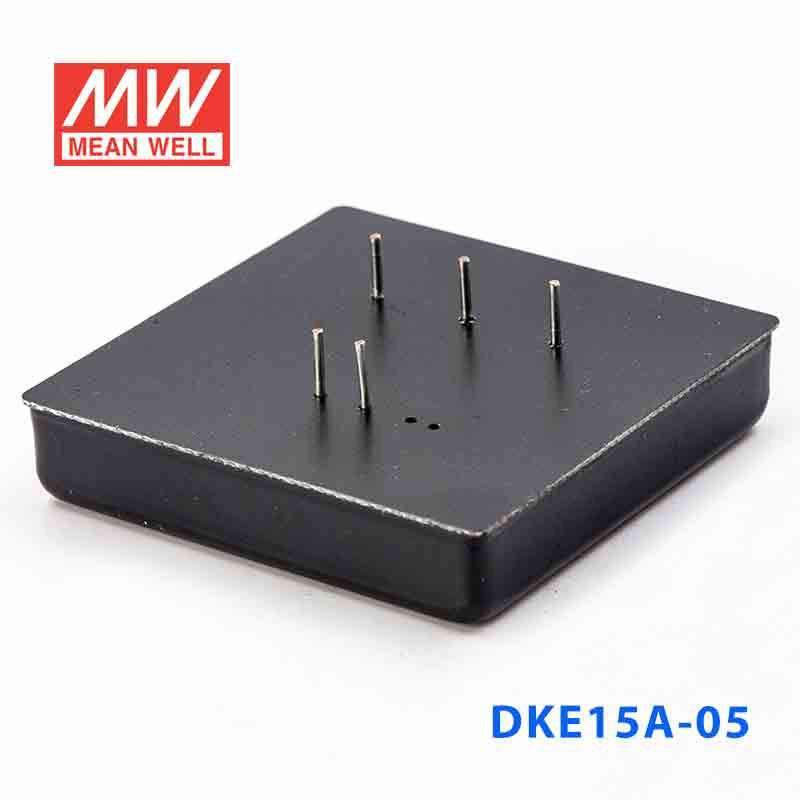

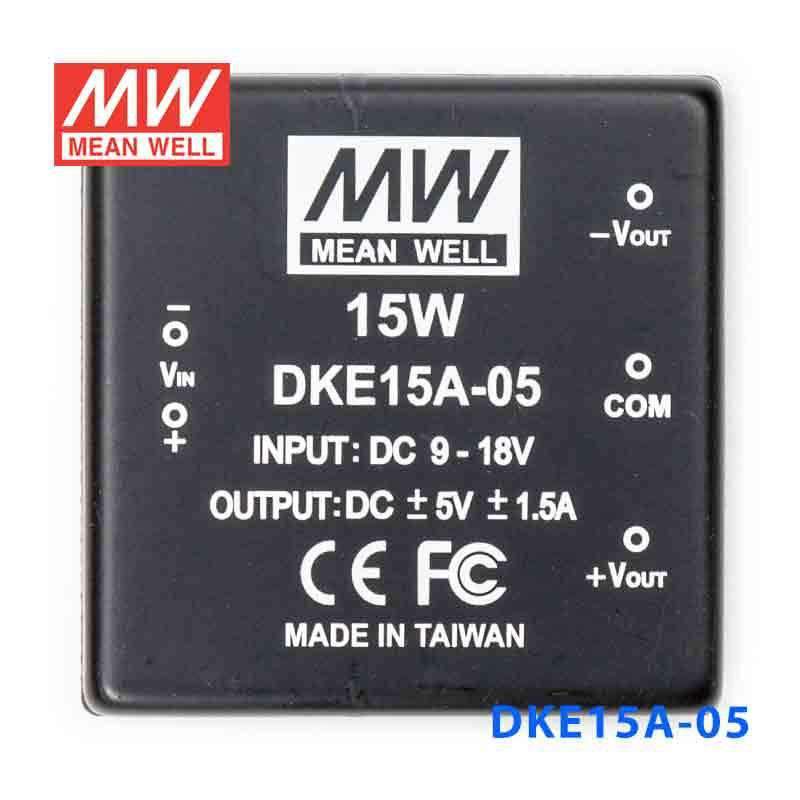

Mean Well DKE15A-05 DC-DC Converter - 15W - 9~18V in ±5V out 1.5A
Overview
DKE15A-05 is the ±5V output model of this series: rated power 15W, typical efficiency 81%.
Features
- 2:1 wide input range
- 4:1 wide input range(optionl)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±5V
- CURRENT RANGE
- ±150 ~ ±1500mA
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.3%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 150KHz min.
INPUT
- VOLTAGE RANGE
- 9 ~ 18VDC
- EFFICIENCY (Typ.)
- 81%
- DC CURRENT Full load
- 1700mA
- DC CURRENT No load
- 40mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25~+71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ ( 0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 300Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*50.8*11.0mm or 2"*2"*0.43" inch (L*W*H)
- PACKING
- 60g ; 5pcs/per tube, 200pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DKE15A-05 for 5V embedded or controller electronics in a 9-18V system?
Yes, this model is intended for a ±5V dual constant-voltage output from a 9-18VDC input range. With a 15W rating, it fits low-power embedded, controller, or automation electronics that need ±5V rather than ±12V, ±15V, or ±24V.
Is the DKE15A-05 suitable for powering 5V industrial sensors or logic circuits?
It can be used for ±5V constant-voltage loads that stay within the 15W power limit. The output current range of up to ±1500mA per output also points it toward smaller control and logic-side applications instead of higher-power 5V equipment.
Can this converter be used inside compact automation equipment with limited space?
It is still a relatively compact unit at 50.8 × 50.8 × 11.0 mm, which can work inside many control or embedded assemblies. The key application fit is ±5V constant-voltage output, 9-18VDC input, and a 15W power ceiling.
How does the DKE15A-05 compare with the other DKE15A models?
The DKE15A family shares 15W power, constant-voltage operation, 9-18VDC input, 50.8 × 50.8 × 11.0 mm dimensions, 60 g weight, and -25°C to +71°C operation with derating. The output options are ±5V at up to ±1500mA for DKE15A-05, ±12V at up to ±625mA for DKE15A-12, ±15V at up to ±500mA for DKE15A-15, and ±24V at up to ±313mA for DKE15A-24.
Is the DKE15A-05 suitable for outdoor environments or wide temperature swings?
The operating temperature range is listed as -25°C to +71°C (with load derating per the derating curve), so temperature performance is defined within that band. No IP rating is provided, so outdoor or exposed-environment suitability cannot be confirmed from the specs shown.
