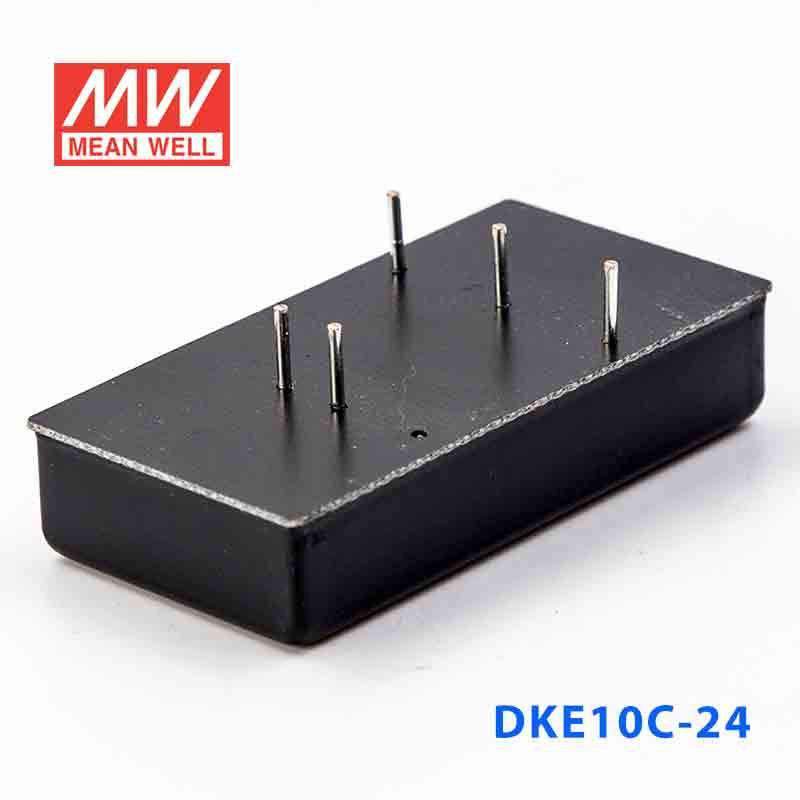

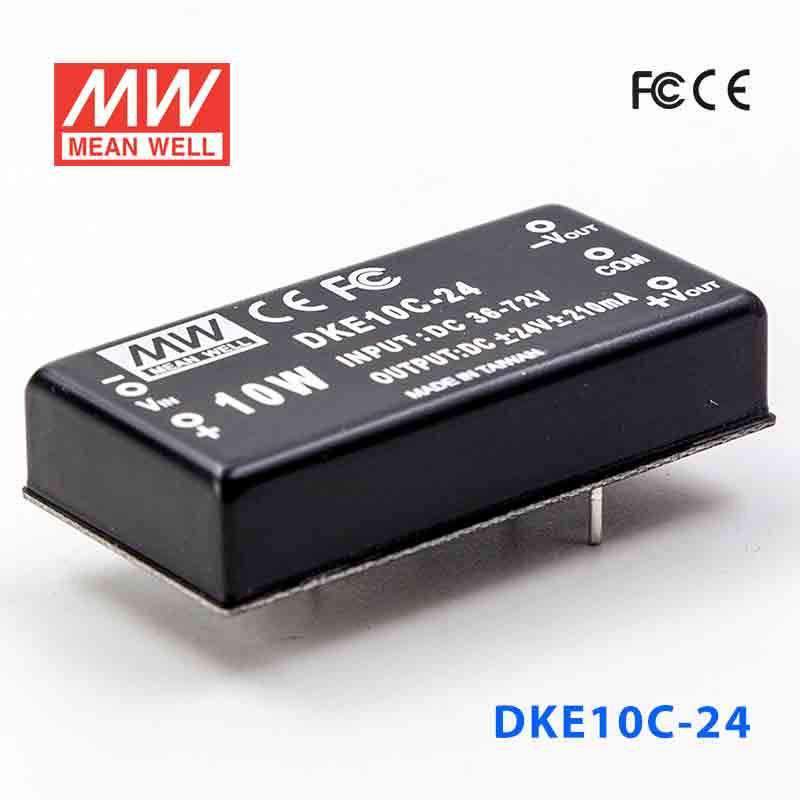

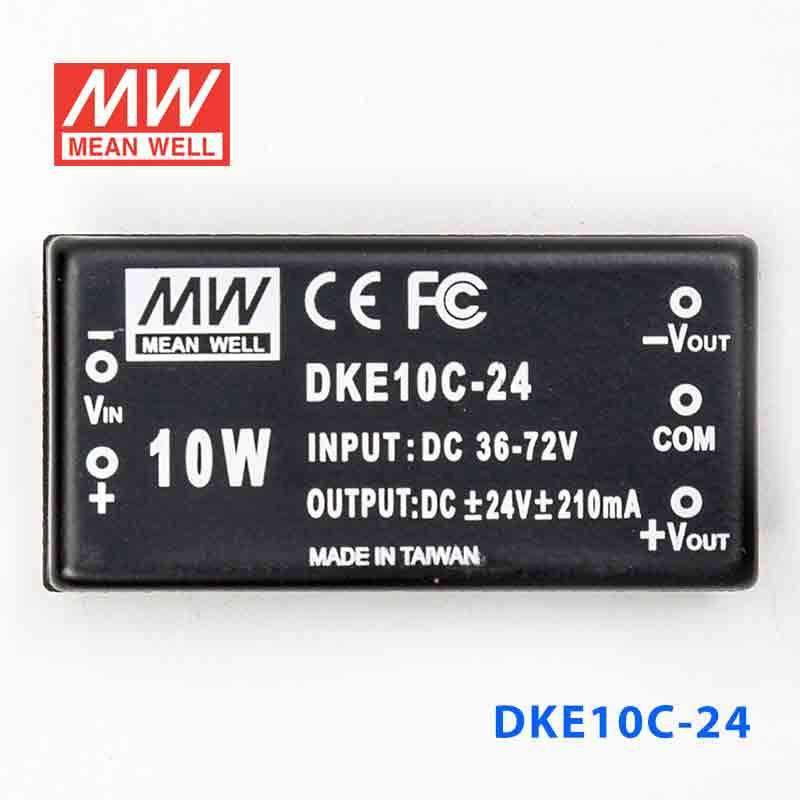

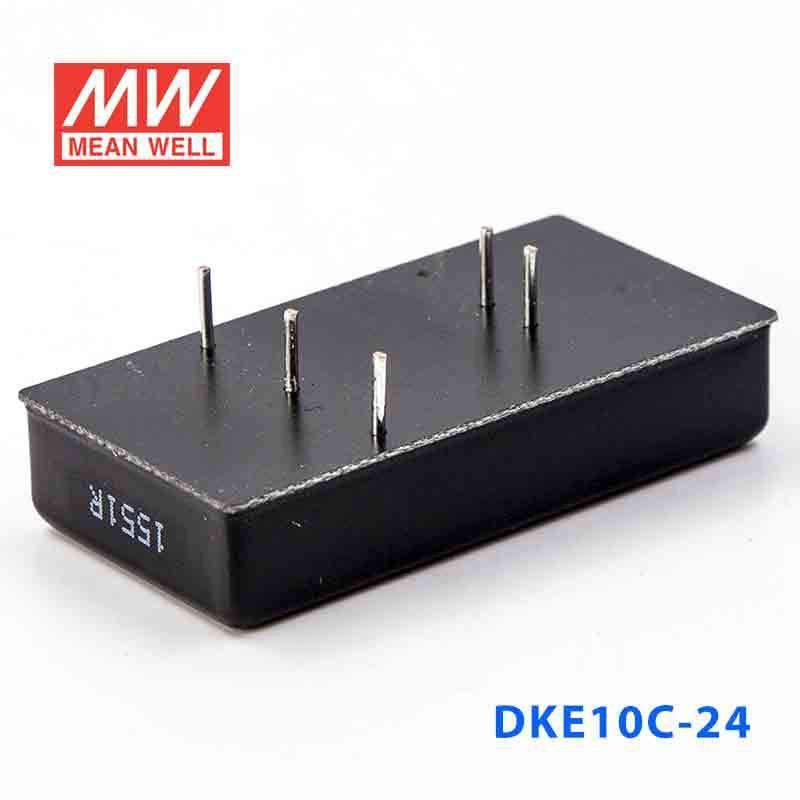

Mean Well DKE10C-24 DC-DC Converter - 10W - 36~72V in ±24V out 210mA
Overview
DKE10C-24 is the ±24V output model of this series: rated power 10W, typical efficiency 85%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±24V
- CURRENT RANGE
- ±21 ~ ±210mA
- RATED POWER
- 10W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p
- LINE REGULATIONNote.3
- ±0.3%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 250KHz min.
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY (Typ.)
- 85%
- DC CURRENT Full load
- 270mA
- DC CURRENT No load
- 8mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
- PACKING
- 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DKE10C-24 for 24V automation or industrial control devices?
Yes, this version provides a regulated ±24V dual output when the source is 36-72VDC. Its 10W rating makes it more suitable for lower-power automation, monitoring, or control electronics than for larger 24V loads.
Is the DKE10C-24 appropriate for 24V sensors, relays, or interface circuits?
It can fit ±24V loads that remain within the 10W power rating. That makes it relevant for smaller 24V industrial electronics where compact size and a wide 36-72VDC input range matter.
Can this model power compact 24V embedded equipment inside a control enclosure?
Yes, if the equipment works from a regulated ±24V dual output and does not exceed 10W. The converter measures 50.8 × 25.4 × 11.2 mm and weighs 31.2 g, which helps where enclosure space is limited.
What are the output differences across the DKE10C family?
The family keeps the same base platform: 10W power, 36-72VDC input, regulated dual output, 50.8 × 25.4 × 11.2 mm size, 31.2 g weight, and -25°C to +71°C operation (refer to the derating curve). The output choices are ±5V at up to ±1000mA, ±12V at up to ±420mA, ±15V at up to ±333mA, and ±24V at up to ±210mA for the DKE10C-24.
Can the DKE10C-24 be used in harsh temperature conditions?
Its specified operating temperature range is -25°C to +71°C (refer to the derating curve), so it is rated across a fairly wide temperature band. No IP rating is listed, so the specs do not confirm outdoor, washdown, or exposed-environment use.
