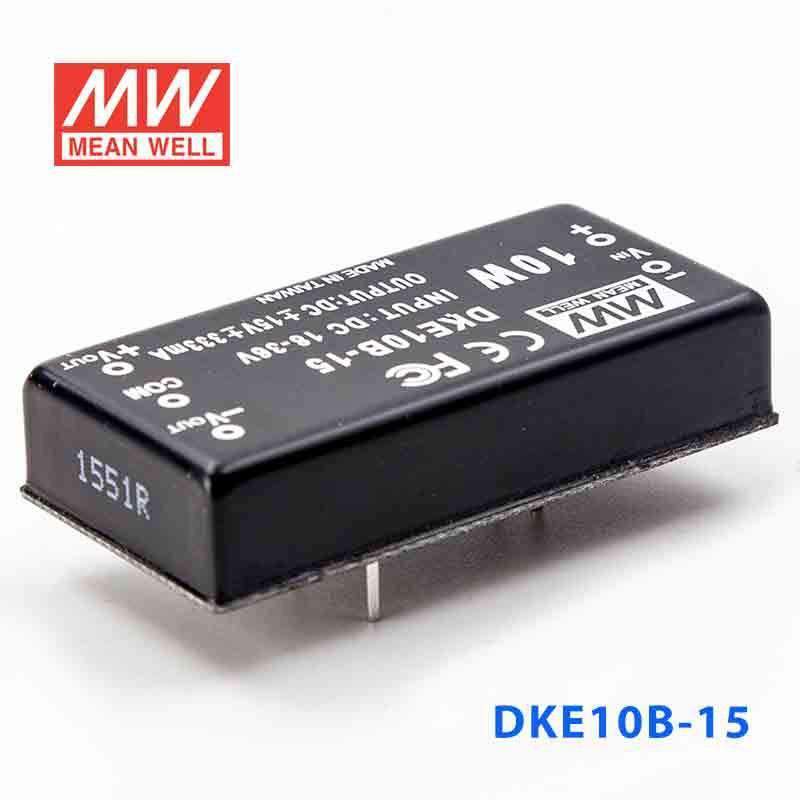

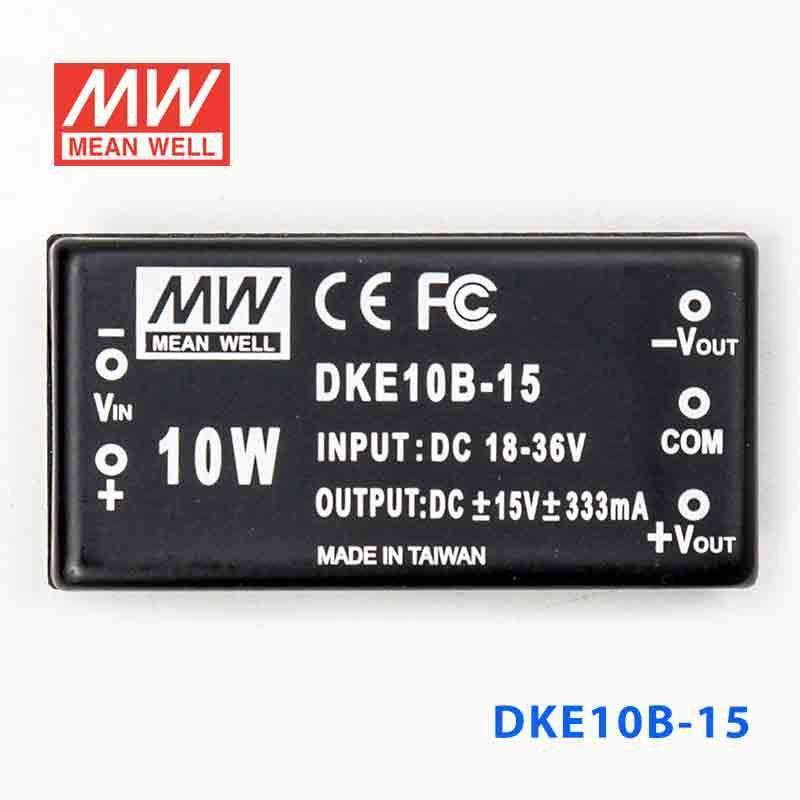

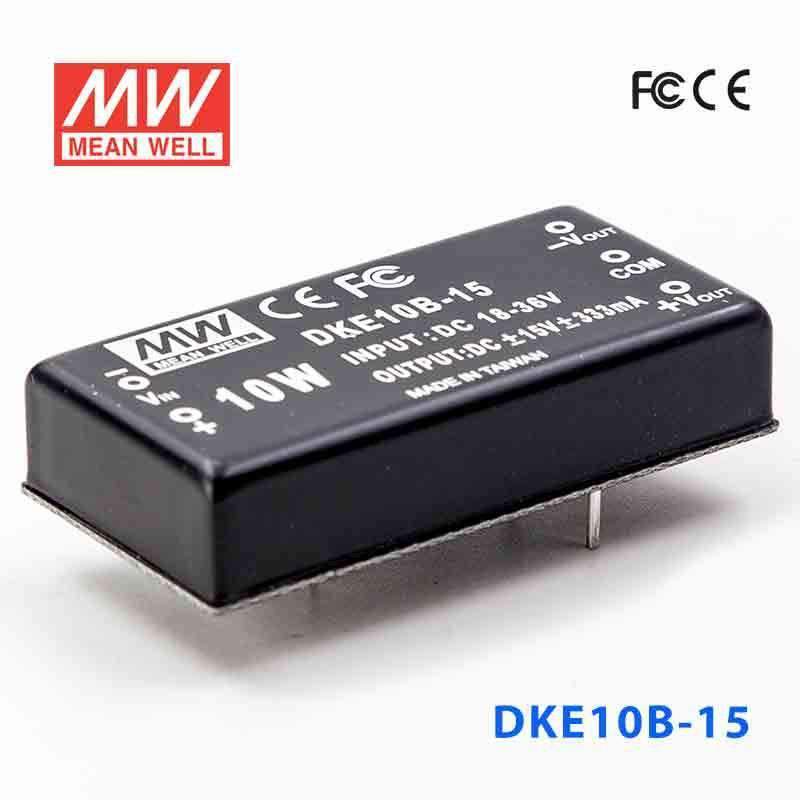

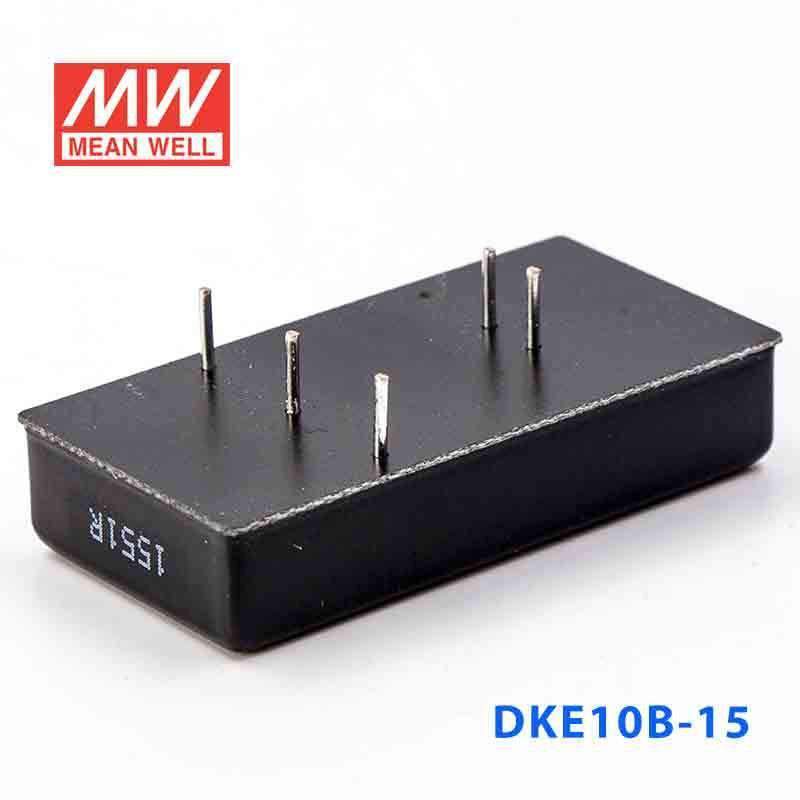

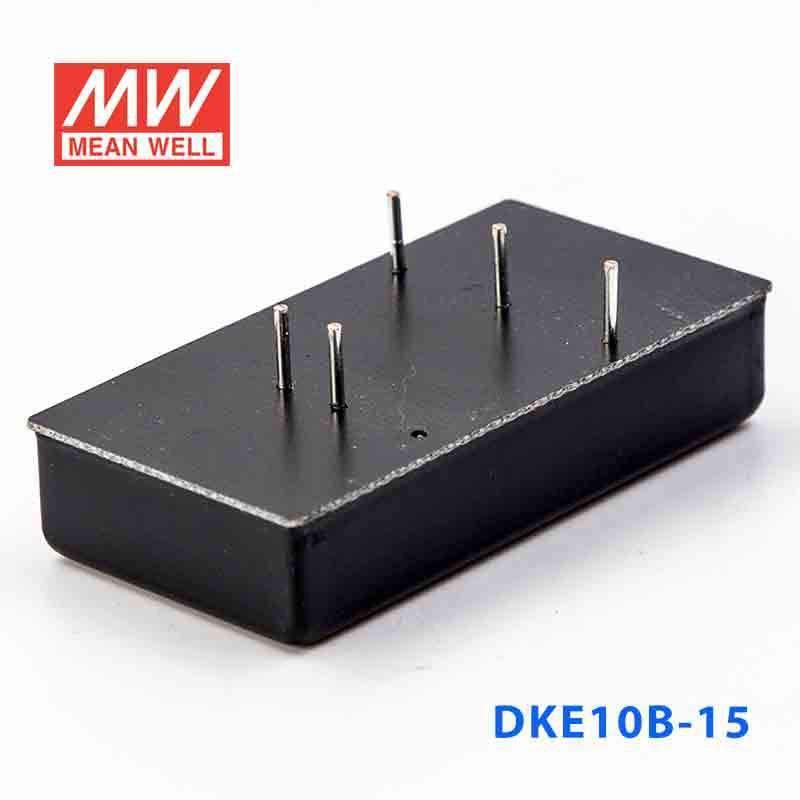

Mean Well DKE10B-15 DC-DC Converter - 10W - 18~36V in ±15V out 333mA
Overview
DKE10B-15 is the ±15V output model of this series: rated power 10W, typical efficiency 80%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±15V
- CURRENT RANGE
- ±33.3 ~ ±333mA
- RATED POWER
- 10W
- RIPPLE & NOISE (max.)Note.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.3%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 250KHz min.
INPUT
- VOLTAGE RANGE
- 18 ~ 36VDC
- EFFICIENCY (Typ.)
- 80%
- DC CURRENT Full load
- 530mA
- DC CURRENT No load
- 16mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
- PACKING
- 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DKE10B-15 for analog measurement or control boards that need ±15V rails?
Yes, this model fits low-power analog measurement, conditioning, or control circuits that require a regulated ±15V output. It is rated for 10W and accepts 18-36VDC input, so it is best matched to compact support-power applications.
Is the DKE10B-15 suitable for embedded data acquisition or instrumentation modules?
It can be a good fit for embedded instrumentation or data-acquisition modules that use bipolar 15V rails. The converter stays compact at 50.8 × 25.4 × 11.2 mm, which is useful when installing it inside small housings or dense assemblies.
Can this model be used in industrial automation equipment with a 24V-class source range?
It is intended for equipment powered from an 18-36VDC input range and needing a regulated ±15V output. That makes it suitable for low-power automation support circuits where the electrical range matches the listed input and output values.
Is the DKE10B-15 appropriate for outdoor or unsealed environments?
The specs give an operating temperature range of -25°C to +71°C, but they do not include any IP rating. On the provided data alone, it should be treated as a converter for protected indoor equipment rather than exposed weather or splash-prone locations.
What are the output options across the DKE10B series if I am comparing models?
The DKE10B series includes four 10W options: DKE10B-05 at ±5V and up to ±1000mA, DKE10B-12 at ±12V and up to ±420mA, DKE10B-15 at ±15V and up to ±333mA, and DKE10B-24 at ±24V and up to ±210mA. This model is the ±15V version in that same input family of 18-36VDC.
