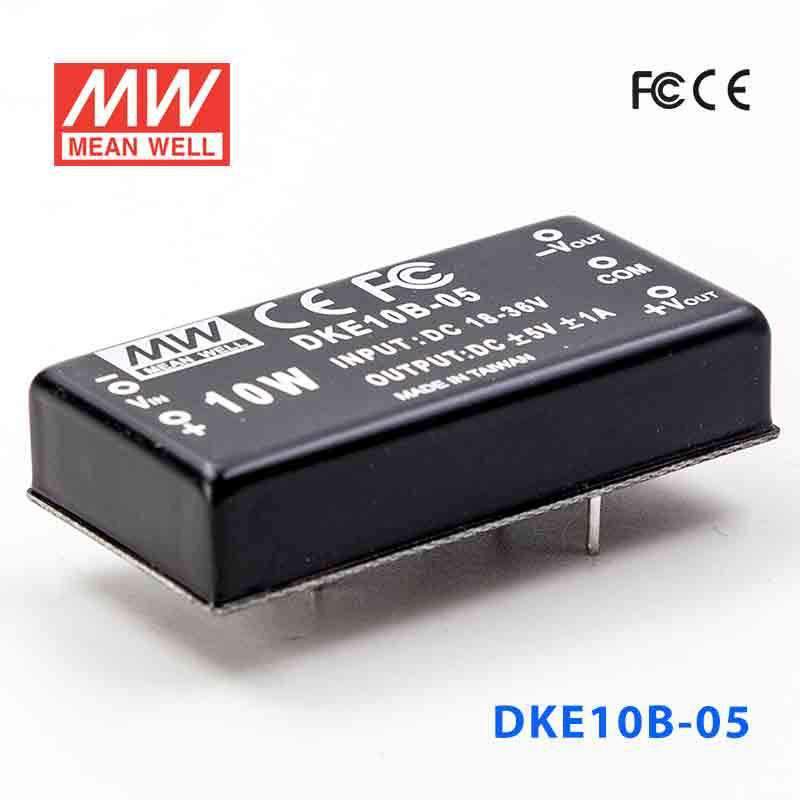

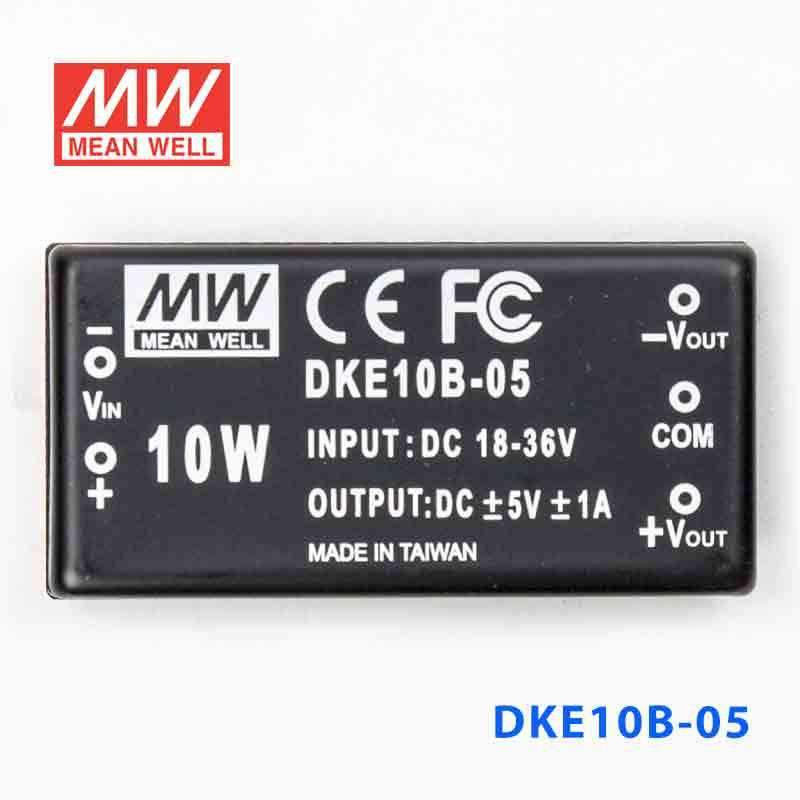

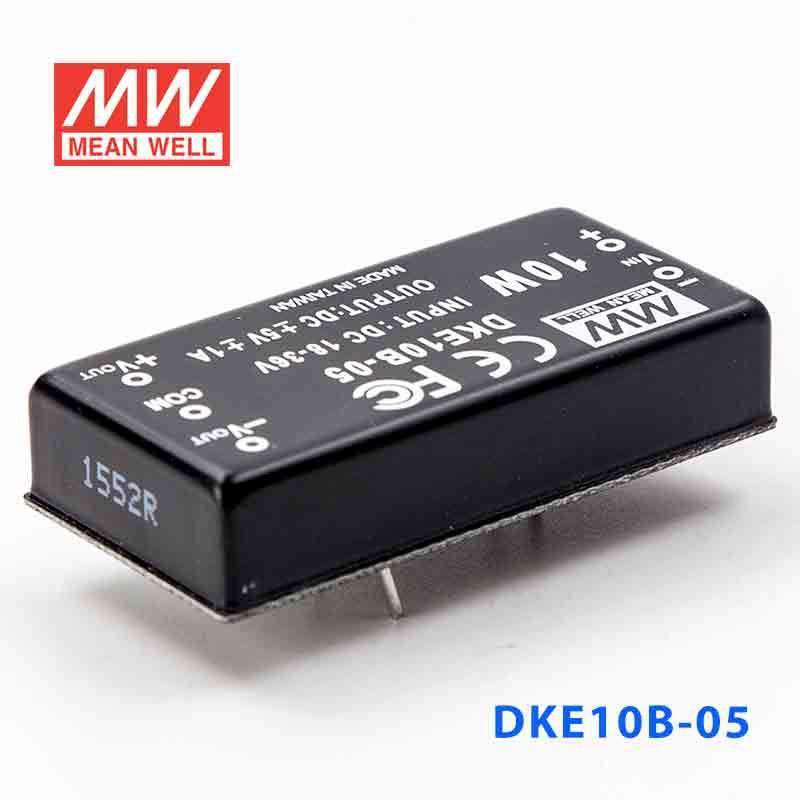

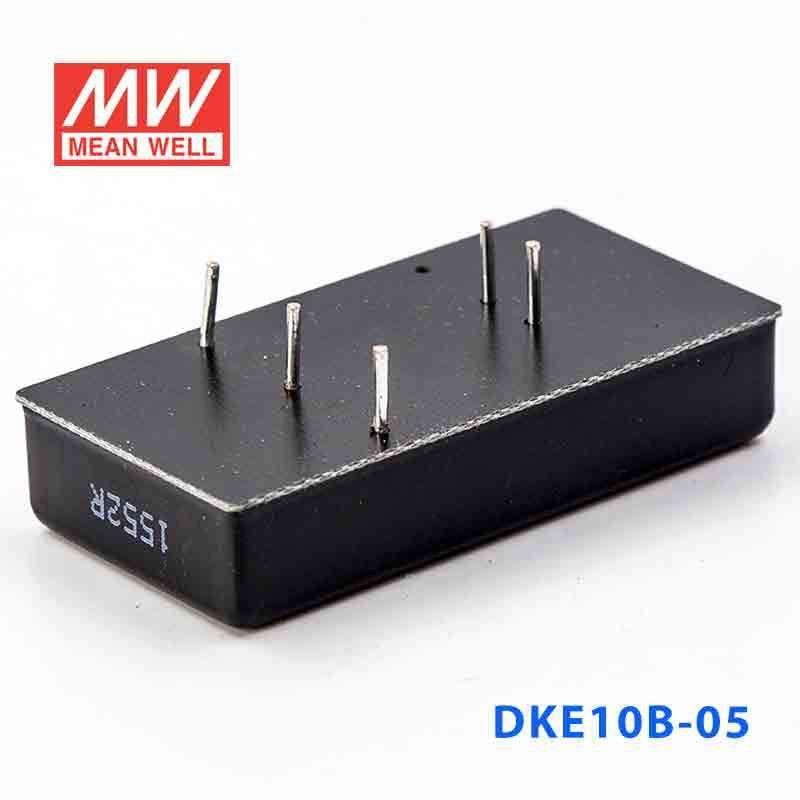

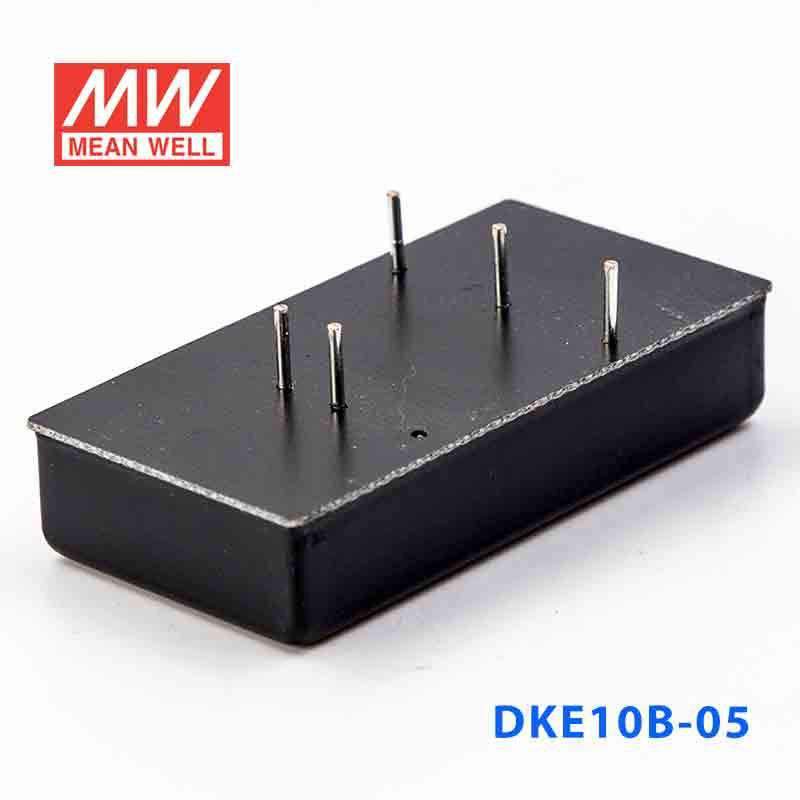

Mean Well DKE10B-05 DC-DC Converter - 10W - 18~36V in ±5V out 1A
Overview
DKE10B-05 is the ±5V output model of this series: rated power 10W, typical efficiency 81%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1500VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / EAC / CE / UKCA
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±5V
- CURRENT RANGE
- ±100 ~ ±1000mA
- RATED POWER
- 10W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.3%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 250KHz min.
INPUT
- VOLTAGE RANGE
- 18 ~ 36VDC
- EFFICIENCY (Typ.)
- 81%
- DC CURRENT Full load
- 530mA
- DC CURRENT No load
- 16mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 160% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 020/2011 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 500Khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 50.8*25.4*11.2mm or 2"*1"*0.44" inch (L*W*H)
- PACKING
- 31.2g ; 10pcs/per tube, 400pcs/40 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DKE10B-05 to power 5V embedded control electronics from an 18-36VDC source?
Yes, this model is intended for systems that need a regulated ±5V dual output from an 18-36VDC input range. It is a low-power 10W converter, so it fits compact embedded control, interface, or support-power duties rather than larger loads.
Is the DKE10B-05 a fit for industrial sensor interface or logic boards that need bipolar 5V power?
It can fit low-power sensor interface boards, logic support circuits, or embedded analog/digital sections that require ±5V rails. The small 50.8 × 25.4 × 11.2 mm package is useful where converter space is tight inside an instrument or controller.
Can this model be used in communications or IT equipment with low-power 5V rails?
It can be used in communications or IT assemblies that have an 18-36VDC source available and only need 10W of regulated ±5V output. The CE and FCC approvals are also relevant for equipment categories where compliance documentation matters.
Is the DKE10B-05 rated for outdoor equipment cabinets?
The operating temperature range is -25°C to +71°C, which covers a broad internal equipment temperature window. However, no IP rating is listed in the provided specs, so the listing does not indicate exposed outdoor or wet-location suitability.
What is the difference between DKE10B-05 and the other DKE10B versions?
The DKE10B family keeps the same 10W platform and 18-36VDC input range while changing the output version. DKE10B-05 is ±5V at up to ±1000mA, DKE10B-12 is ±12V at up to ±420mA, DKE10B-15 is ±15V at up to ±333mA, and DKE10B-24 is ±24V at up to ±210mA.
