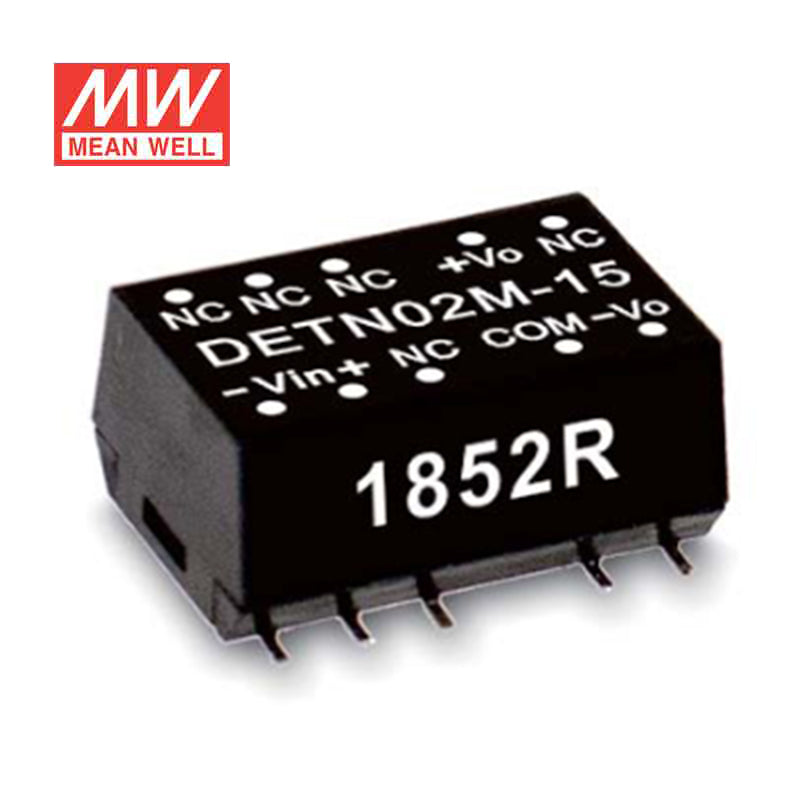

Mean Well DETN02M-05 DC-DC Converter - 2W - 10.8~13.2V in ±5V out 200mA

Name: Mean Well DETN02M-05 DC-DC Converter - 2W - 10.8~13.2V in ±5V out 200mA
Brand: Mean Well
SKU: DETN02M-05
Price: 6.5 USD
Availability: InStock

$6.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DETN02M-05 is the ±5V output model of this series: rated power 2W, typical efficiency 80%.

DETN02 series is 2W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +100℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 83%
Protection: Short circuit
3KVDC I/O isolation
Low cost
Optional reel packing
3 years warranty

Specifications

DETN02M-05Specifications from the official datasheet (2026-09-15 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 12V (10.8 ~ 13.2V)
INPUT CURRENT NO LOAD: 30mA
INPUT CURRENT FULL LOAD: 208mA
OUTPUT VOLTAGE: ±5V
OUTPUT CURRENT: ±20 ~ 200mA
EFFICIENCY (TYP.): 80%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 10.8 ~ 13.2Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 16Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +100℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5,6)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 888Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.2g ; 32pcs/per tube, 3840pcs/ 120 tube/per carton Optional : 1.2g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 470μF/100V.

Technical drawings

DETN02M-05 Mechanical Specification — Mechanical Specification

DETN02M-05 Pin Assignment — Pin Assignment

DETN02M-05 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

Mean Well SFTN02-DETN02-EMC Certificate PDF Download

Mean Well SFTN02-DETN02-CE-dec Certificate PDF Download

Mean Well SFTN02-DETN02-UK-dec Certificate PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DETN02M-05 to generate a 5V rail inside a 12V industrial control board?

Yes, this model is intended for low-power isolated DC-DC conversion in equipment that needs a ±5V output from a 10.8~13.2VDC input range. Its 2W rating makes it a fit for small control, interface, and signal-conditioning sections rather than larger loads.

Is the DETN02M-05 suitable for embedded electronics in a vehicle or battery-based 12V system?

It can fit embedded designs on a nominal 12V source as long as the supply stays within the listed 10.8~13.2VDC input range (surge 16VDC for 100ms max.). The ±5V output and 2W power level make it better suited to compact electronic circuits than higher-power subsystems.

Can this converter be used for low-power automation sensors or logic circuits that need 5V?

Yes, it is appropriate where a ±5V output is needed in a small automation or monitoring circuit. The 2W capacity and compact 15.24 × 10.9 × 7.1 mm package are aligned with tightly packed, low-power designs.

Is the DETN02M-05 suitable for outdoor or harsh exposed environments?

The operating temperature range is -40°C to +100°C, which supports use across a wide temperature span. However, no IP rating is listed, so it is better treated as a board-level part for protected indoor equipment or enclosed systems rather than exposed outdoor use.

How does the DETN02M-05 compare with the other DETN02M series options?

Within this series, the DETN02M-05 is rated 2W with a ±5V output (up to ±200mA), while the DETN02M-12 is 2W with ±12V at up to ±84mA and the DETN02M-15 is 2W with ±15V at up to ±67mA. All three share the same 15.24 × 10.9 × 7.1 mm dimensions, 0.0012 kg weight, and -40°C to +100°C operating temperature range.
