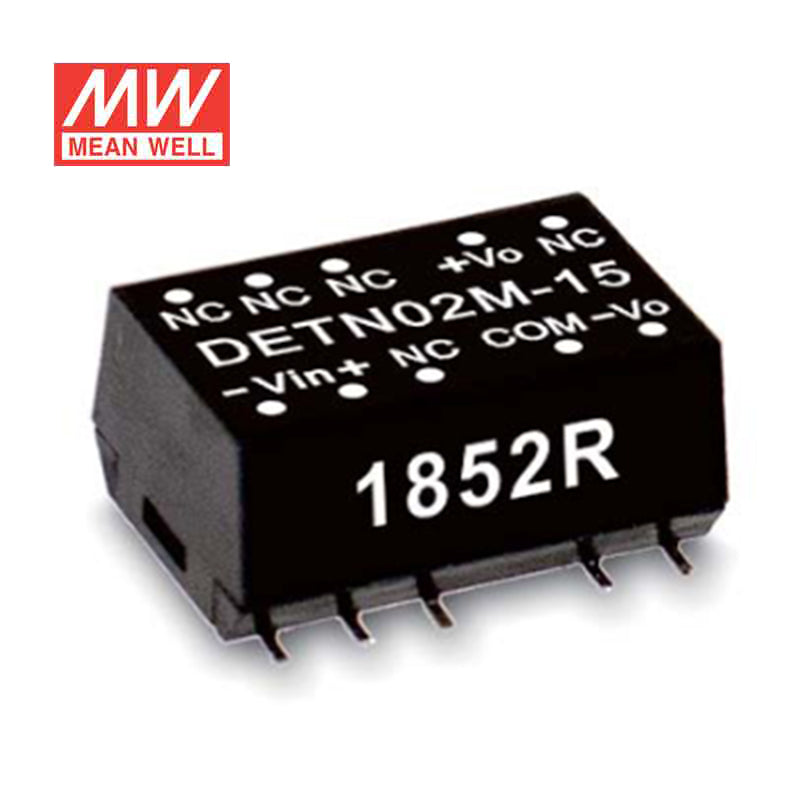

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DETN02L-05 DC-DC Converter - 2W - 4.5~5.5V in ±5V out 200mA

Name: Mean Well DETN02L-05 DC-DC Converter - 2W - 4.5~5.5V in ±5V out 200mA
Brand: Mean Well
SKU: DETN02L-05
Price: 6.5 USD
Availability: InStock

$6.50 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DETN02L-05 is the ±5V output model of this series: rated power 2W, typical efficiency 78%.

DETN02 series is 2W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+100℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, ±5V/±12V/±15V for Dual output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +100℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 83%
Protection: Short circuit
3KVDC I/O isolation
Low cost
Optional reel packing
3 years warranty

Specifications

DETN02L-05Specifications from the official datasheet (2026-09-15 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 5V (4.5 ~ 5.5V)
INPUT CURRENT NO LOAD: 60mA
INPUT CURRENT FULL LOAD: 513mA
OUTPUT VOLTAGE: ±5V
OUTPUT CURRENT: ±20 ~ 200mA
EFFICIENCY (TYP.): 78%
CAPACITOR LOAD (MAX.): 220μF

INPUT

VOLTAGE RANGE: 4.5 ~ 5.5Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc 12Vin models : 16Vdc 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 800mA Slow-Blow Type 12Vin models: 300mA Slow-Blow Type 24Vin models: 170mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2.0%
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +100℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5,6)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air, Level 2±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 888Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 15.24*10.9*7.1mm (0.6*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.2g ; 32pcs/per tube, 3840pcs/ 120 tube/per carton Optional : 1.2g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 470μF/100V.

Technical drawings

DETN02L-05 Mechanical Specification — Mechanical Specification

DETN02L-05 Pin Assignment — Pin Assignment

DETN02L-05 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

Mean Well SFTN02-DETN02-EMC Certificate PDF Download

Mean Well SFTN02-DETN02-CE-dec Certificate PDF Download

Mean Well SFTN02-DETN02-UK-dec Certificate PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DETN02L-05 to power 5V logic rails in an embedded controller or industrial I/O board?

It is intended for isolated ±5V output applications and is rated at 2W. That makes it a fit for low-power embedded, control, or interface circuits that need ±5V output from a 4.5~5.5VDC input range. Its operating range of -40°C to +100°C (with derating at high ambient, per the derating curve) also suits equipment that sees wide internal temperature swings.

Is this DC-DC converter appropriate for low-power analog signal conditioning in automation equipment?

Yes, the DETN02L-05 provides ±5V output in a 2W package, which is commonly aligned with low-power analog support circuitry. The compact 15.24 × 10.9 × 7.1 mm size also makes it practical where board space is tight inside automation hardware.

Can the DETN02L-05 be used in compact IT or communications hardware with limited PCB space?

It is built for compact layouts, with dimensions of 15.24 × 10.9 × 7.1 mm and a weight of 0.0012 kg. For low-power sections that need ±5V output and stay within the 2W rating, it fits dense embedded or communications assemblies well.

Is the DETN02L-05 a good match for isolated support power in small instrumentation modules?

For small instrumentation sections that need ±5V, this model is sized for that role with a 2W rating. Its 3KVDC input-output isolation and EAC TP TC 020/2011 approval can also matter in regulated industrial and electronic equipment.

Can I use this converter outdoors or in harsh environments?

The listed operating temperature is -40°C to +100°C, so the temperature range is broad. However, no IP rating is provided in the product data, so the specs do not establish outdoor exposure or water and dust resistance.

How does the DETN02L-05 compare with the other DETN02L 2W models?

All three listed siblings are 2W parts in the same series. The DETN02L-05 is ±5V at up to ±200mA, the DETN02L-12 is ±12V at up to ±84mA, and the DETN02L-15 is ±15V at up to ±67mA. If you are choosing within the family, the main difference is the output voltage and corresponding output current.
