Mean Well DET01L-12 DC-DC Converter - 1W 5V DC in 12V out 42mA
Overview
DET01L-12 is the model of this series: rated power 1W, typical efficiency 78%.
Features
- 3000VDC I/O isolation
- Internal SMD technology
- Protection: Short circuit
- Cooling by free air convection
- Non-conductive plastic case
- SMD package styles
- 100% full load burn-in test
- Low cost / High reliability
- Approved: UL / CUL
- 1 year warranty

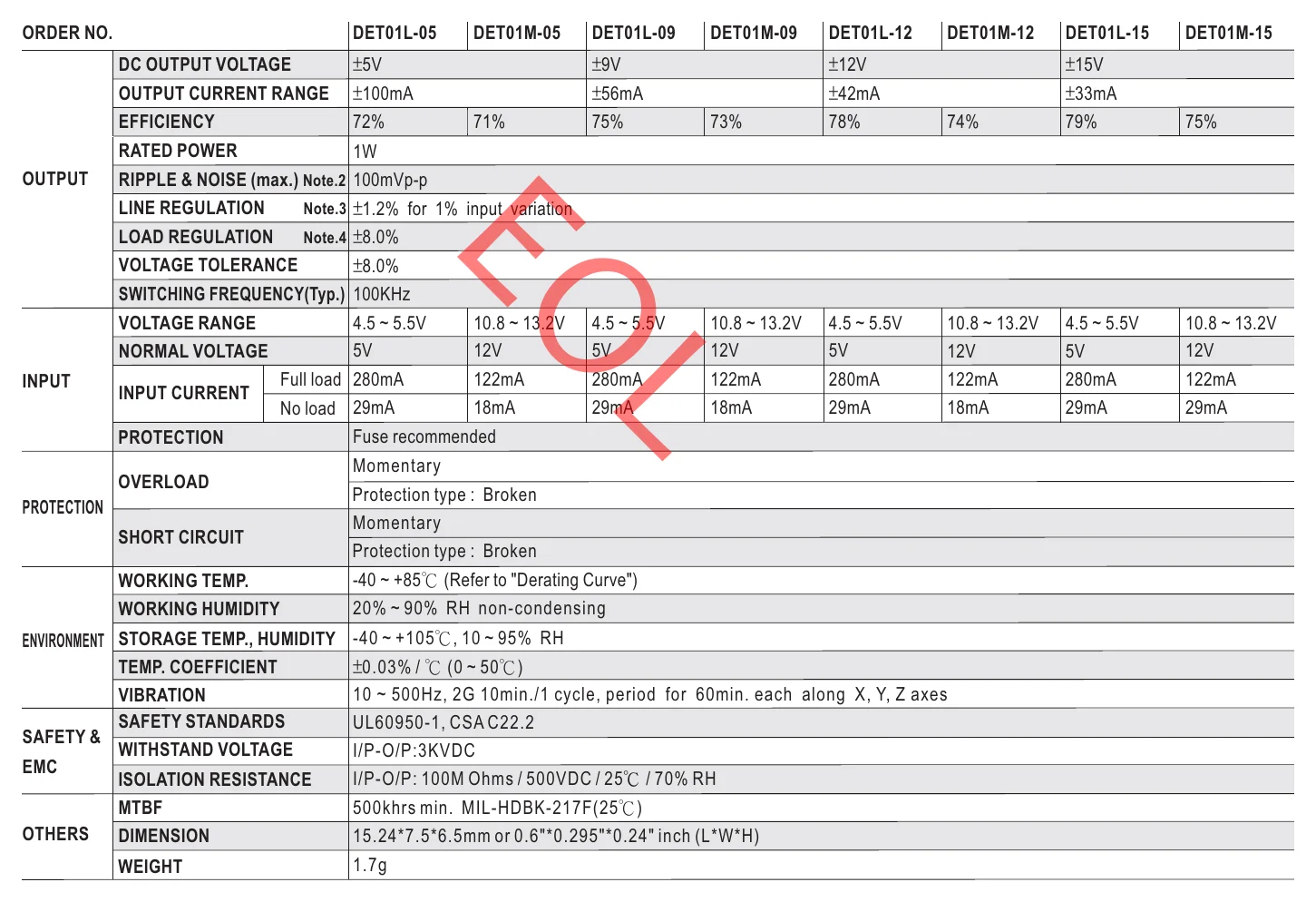

Specifications
OUTPUT
- DC OUTPUT VOLTAGE
- ±12V
- OUTPUT CURRENT RANGE
- ±42mA
- EFFICIENCY
- 78%
- RATED POWER
- 1W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATIONNote.3
- ±1.2% for 1% input variation
- LOAD REGULATIONNote.4
- ±8.0%
- VOLTAGE TOLERANCE
- ±8.0%
- SWITCHING FREQUENCY(Typ.)
- 100KHz
INPUT
- VOLTAGE RANGE
- 4.5 ~ 5.5V
- NORMAL VOLTAGE
- 5V
- INPUT CURRENT Full load
- 280mA
- INPUT CURRENT No load
- 29mA
- PROTECTION
- Fuse recommended
PROTECTION
- OVERLOAD
- Momentary Protection type : Broken
- SHORT CIRCUIT
- Momentary Protection type : Broken
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, CSA C22.2
- WITHSTAND VOLTAGE
- I/P-O/P:3KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
OTHERS
- MTBF
- 500khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 15.24*7.5*6.5mm or 0.6"*0.295"*0.24" inch (L*W*H)
- WEIGHT
- 1.7g
Test conditions and notes4
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH. ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 20% to 100% rated load.

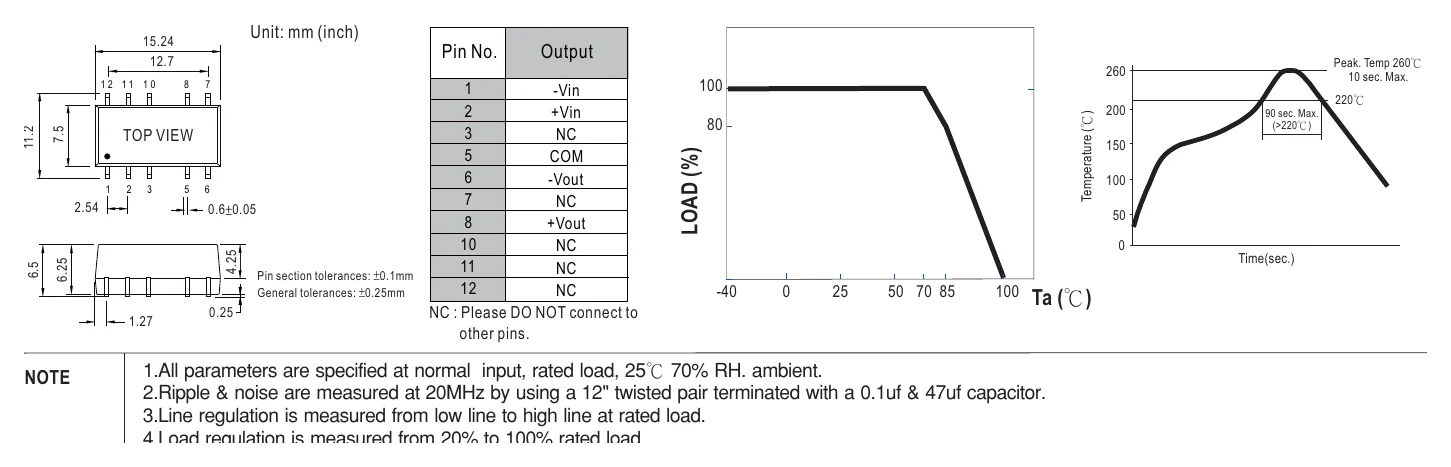

Technical drawings
Downloads
FAQ
What does the Mean Well DET01L-12 do?
The DET01L-12 is a 1W DC-DC converter designed to convert a 5V DC input to a ±12V dual DC output. It is intended for low-power DC power conversion in compact electronic equipment.
What are the main electrical specifications of the DET01L-12?
This model is rated for 1W output power and provides a ±12V dual DC output. Its rated output current is ±42mA, and it operates from a 5V nominal DC input (4.5–5.5V range).
Is the DET01L-12 suitable for electrically isolated applications?
Yes. The DET01L-12 provides 3000VDC input-to-output isolation, which can be important in designs that require separation between input and output circuits. That makes it a stronger choice than non-isolated DC-DC converters for applications where isolation is required.
What protection and reliability features are included in this converter?
The DET01L-12 includes momentary short-circuit and overload protection; sustained faults can damage the unit, so an input fuse is recommended. It is built using internal SMD technology, undergoes a 100% full-load burn-in test, and is described as a low-cost, high-reliability model.
What operating temperature range does the DET01L-12 support?
This model is specified for operation from -40°C to 85°C, with output derating at higher temperatures according to the datasheet's derating curve. That wide temperature range makes it suitable for demanding industrial or embedded environments where ambient conditions can vary significantly.
What approvals and warranty does the Mean Well DET01L-12 have?
The DET01L-12 is approved to UL and CUL standards. It also includes a 1-year warranty from the manufacturer.
