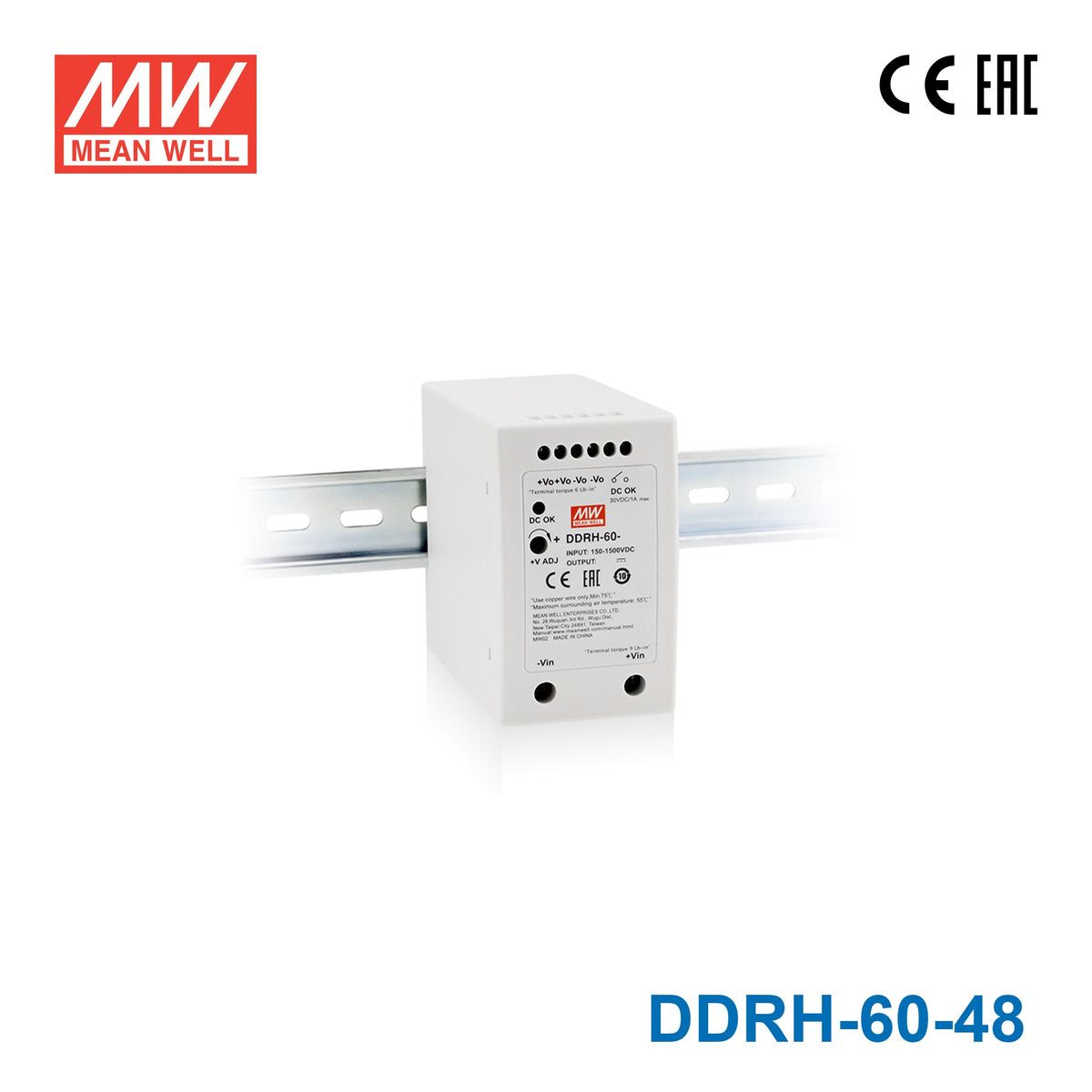

Mean Well DDRH-60-48 Ultra Wide Input DC-DC Converter, 60W 48V 1.25A

Name: Mean Well DDRH-60-48 Ultra Wide Input DC-DC Converter, 60W 48V 1.25A
Brand: Mean Well
SKU: DDRH-60-48
Price: 128.57 USD
Availability: InStock

$128.57 USD

Shipping calculated at checkout.

Model

30W 48V Din 30W 48V PCB 30W 48V Screw 45W 48V Din 45W 48V PCB 45W 48V Screw 60W 48V 120W 48V 240W 48V

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DDRH-60-48 is the 48V output model of this series: rated current 1.25A, rated power 60W, typical efficiency 87%.

DDRH-60 series is a 150 ~ 1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: easy to install DIN rail type, narrow width(57mm) in slim design, -30~+80°C wide range operating temperature, 4KVAC high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. DDRH-60 is compliant with UL1741 and BS EN/EN61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application and so forth.

Features

150~ 1500Vdc 10:1 ultra - wide input range
57mm slim width
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature DC input under voltage / DC input reverse polarity
Fanless design, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-30~+80°C ultra-wide operating temperature (＞+55°C derating)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable(+20%)
Full encapsulated
3 years warranty

Specifications

DDRH-60-48Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 1.25A
CURRENT RANGE: 0 ~ 1.25A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 54V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
EXTERNAL CAPACITANCE LOAD (Max.): 1000μF

INPUT

VOLTAGE RANGE^Note.4: 150 ~ 1500Vdc
EFFICIENCY (Typ.) 200Vdc: 87%
EFFICIENCY (Typ.) 800Vdc: 88%
EFFICIENCY (Typ.) 1500Vdc: 83%
INRUSH CURRENT (max.): COLD START 120A /1500Vdc 80A/800Vdc 30A/150Vdc

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup up mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE: 55 ~ 60V Protection type : Hiccup up mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Protection type : Hiccup up mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range:120 ~ 130Vdc , Under voltage release range:130 ~ 146.5Vdc

FUNCTION

DC OK SIGNAL: Relay contact rating(max.) : 30V / 1A resistive

ENVIRONMENT

WORKING TEMP.: -30 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000 meters /OVCⅡ
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC (Note.7)

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1(LVD) , EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 454.5K hrs min. MIL-HDBK-217F (25℃); 1439.7K hrs min. Telcordia TR/SR-332 (Bellcore) (25℃)
DIMENSION: 57*93.5*105mm (W*H*D)
PACKING: 0.8Kg; 16pcs/12.8Kg/0.84CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 600Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

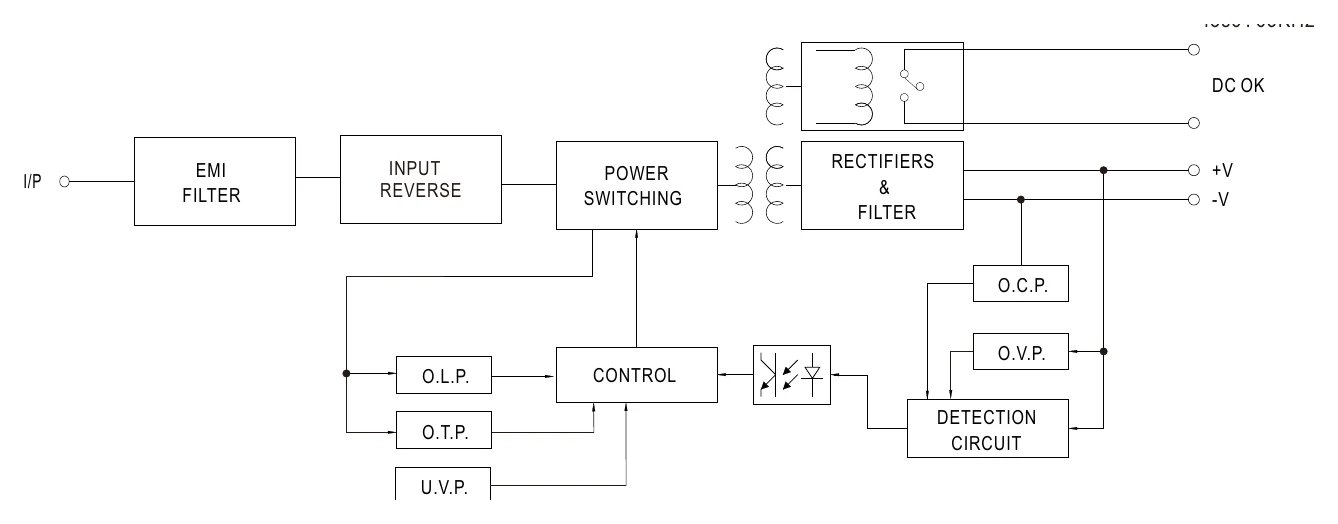

DDRH-60-48 Block Diagram — Block Diagram

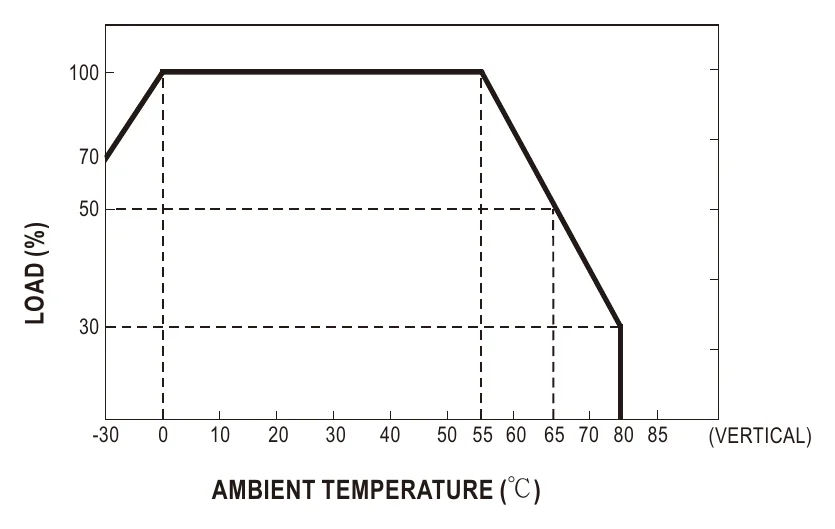

DDRH-60-48 Derating Curve — Derating Curve

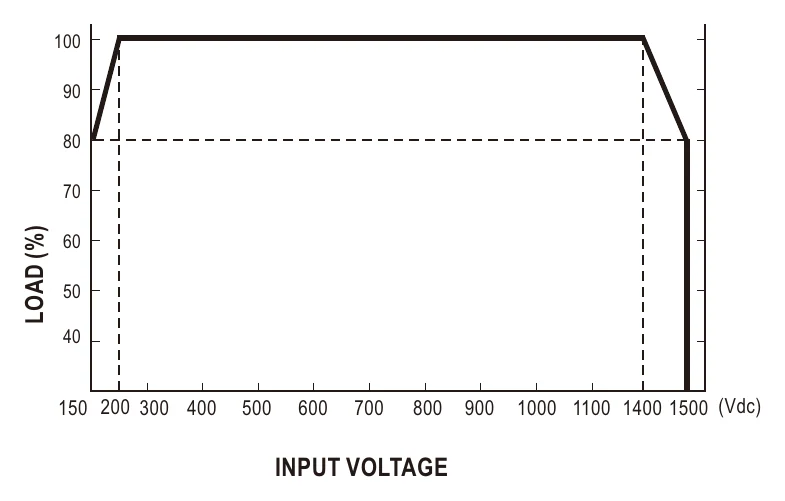

DDRH-60-48 Static Characteristics — Static Characteristics

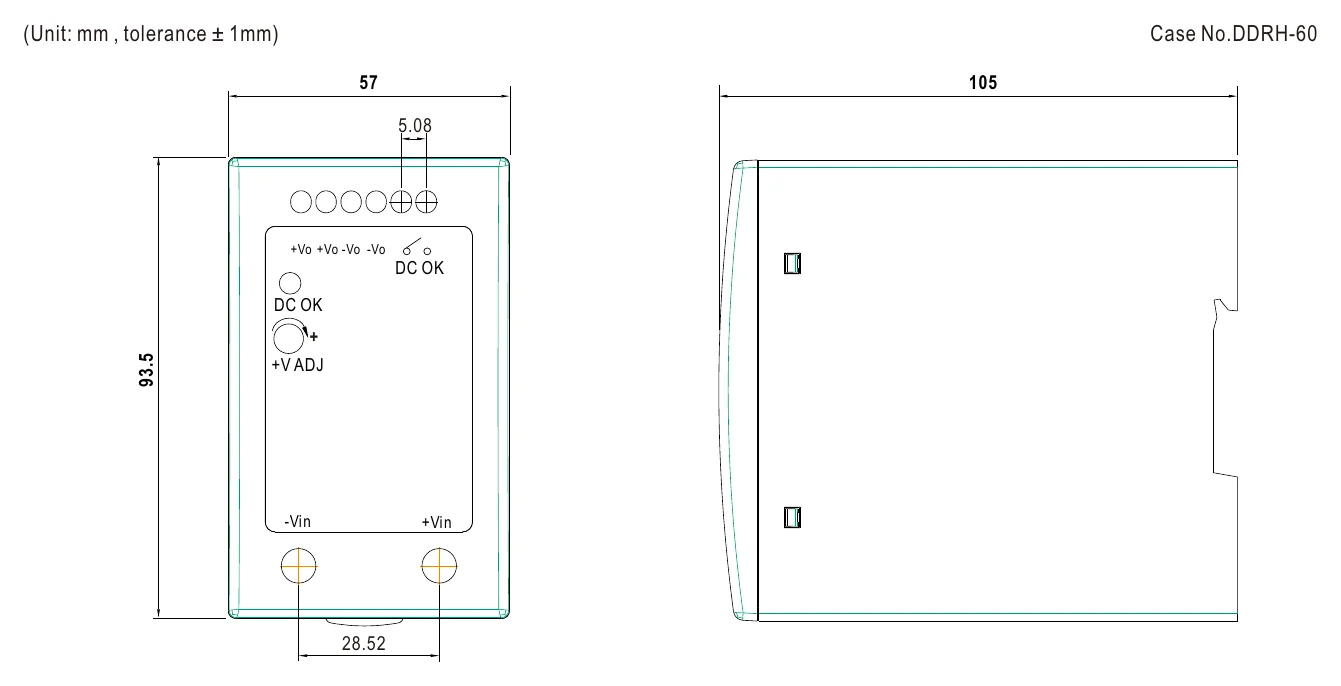

DDRH-60-48 Mechanical Specification — Mechanical Specification

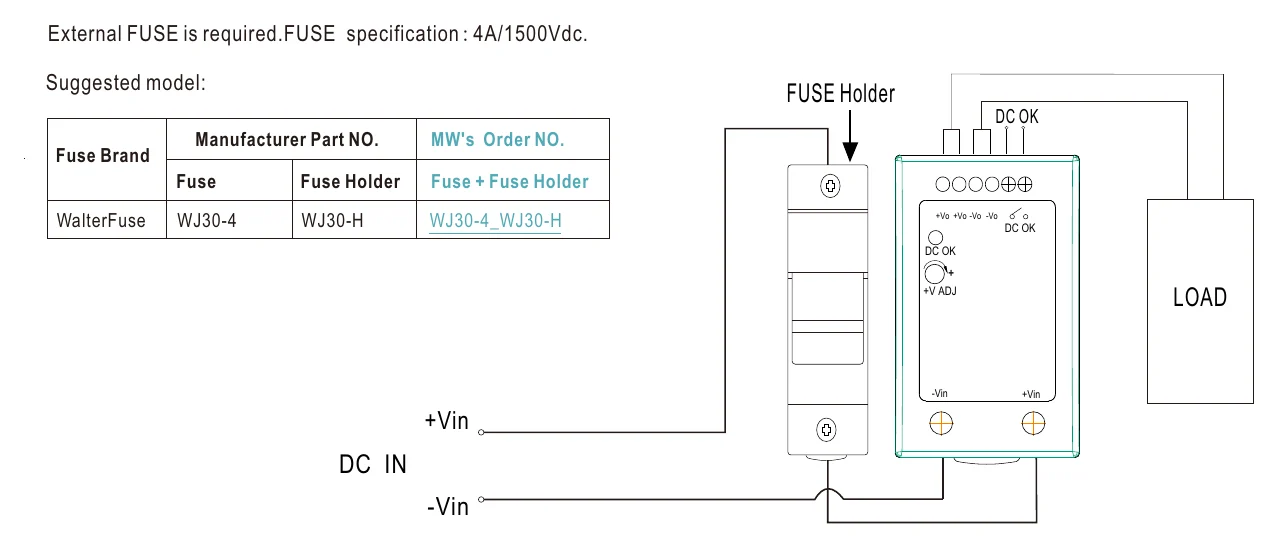

DDRH-60-48 External FUSE wiring instruction — External FUSE wiring instruction

DDRH-60-48 Installation Instruction — Installation Instruction

Typical applications

Downloads

Certificates2

CE Certificate(DDRH-60)(EN) PDF Download

EMC Certificate(DDRH-60)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the DDRH-60-48 supply 48V to PoE network switches in industrial Ethernet infrastructure powered from a high-voltage DC bus?

Yes. The DDRH-60-48 outputs 48V at 1.25A (60W) and accepts 150–1500VDC input, making it suitable for powering 48V PoE switches or injectors in industrial Ethernet networks where the source bus is a high-voltage DC system.

Is the DDRH-60-48 suitable for powering 48V DC fans, drives, or cooling systems in process control enclosures?

At 60W and 1.25A on a 48V rail, the DDRH-60-48 can supply 48V cooling fans and small 48V DC loads used in process control enclosures that receive power from a high-voltage DC distribution bus.

Can the DDRH-60-48 be deployed in traction or rail environments with varying DC link voltages?

The 150–1500VDC input range covers DC link voltages such as 600V and 750V DC, and the unit operates from –30°C to +80°C (with derating, see the derating curve). The sheet lists no railway standards (only UL1741, CSA C22.2 No.107.1-16, IEC62109-1 and EAC), so check compliance for rolling stock use.

Does the adjustable output on the DDRH-60-48 allow fine-tuning for battery float charging at 48V?

The output voltage is adjustable from 48V to 54V, with constant current limiting at 105–135% of rated power. The sheet does not specify a battery charging function, so confirm the float voltage your 48V battery bank requires falls within this range.

Is the DDRH-60-48 appropriate for installation in outdoor roadside or utility cabinets?

The unit operates from –30°C to +80°C (with derating at higher temperatures) with a 57mm slim-width design suited to compact outdoor enclosures. No IP rating is stated for the unit, so the external enclosure must provide rated environmental protection.

How does the DDRH-60-48 compare to the DDRH-60-12 and DDRH-60-24 in the same series?

All share the 150–1500VDC input and 57mm slim-width form factor, and each has an adjustable output. The DDRH-60-48 provides 48V at 1.25A (60W, adjustable 48–54V), versus 24V at 2.5A (24–29V) for the DDRH-60-24 and 12V at 5A (12–15V) for the DDRH-60-12.
