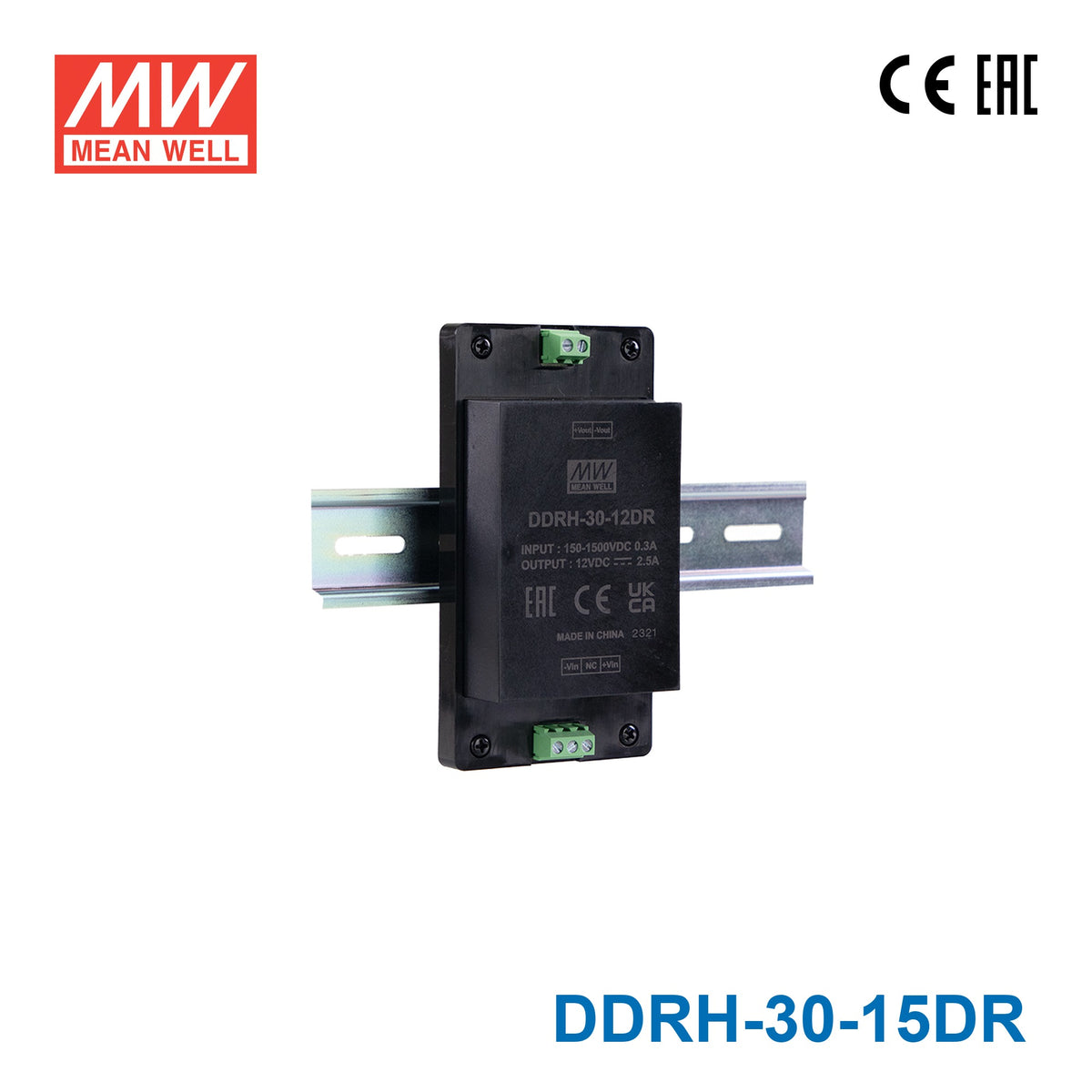

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDRH-30-15DR Ultra Wide Input DC-DC Converter, 30W 15V, Din Rail Type 2A

Name: Mean Well DDRH-30-15DR Ultra Wide Input DC-DC Converter, 30W 15V, Din Rail Type 2A
Brand: Mean Well
SKU: DDRH-30-15DR
Price: 93.95 USD
Availability: InStock

$93.95 USD

Shipping calculated at checkout.

Model

15W 15V Din 15W 15V PCB 15W 15V Screw 30W 15V Din 30W 15V PCB 30W 15V Screw 45W 15V Din 45W 15V PCB 45W 15V Screw

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DDRH-30-15DR is the 15V output model of this series: rated power 30W, typical efficiency 88%.

DDRH-30 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-30 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-30-15DRSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 50mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 2A
EFFICIENCY (Typ.): 88%
CAPACITOR LOAD (MAX.): 2000μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 16ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 144Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 132Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY^Note.4: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 318Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-30-15DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-30-15DR ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-30-15DR DDRH-30-xxST (Screw Terminal Type) — DDRH-30-xxST (Screw Terminal Type)

DDRH-30-15DR DDRH-30-xxDR (DIN Rail Type) — DDRH-30-xxDR (DIN Rail Type)

DDRH-30-15DR Installation Instruction(DDRH-30-xxDR only) — Installation Instruction(DDRH-30-xxDR only)

DDRH-30-15DR External Fuse Wiring Instruction — External Fuse Wiring Instruction

DDRH-30-15DR DDRH-30-xxST — DDRH-30-xxST

DDRH-30-15DR DDRH-30-xxDR — DDRH-30-xxDR

Typical applications

Downloads

Datasheet1

DDRH-30-15DR datasheetDDRH_30_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-30-15DR power 15V industrial analog instruments or signal conditioning equipment?

Yes. The DDRH-30-15DR provides 30W at 15V and 2A, which suits analog instrumentation, signal conditioning modules, and some industrial transmitters that require a 15V supply. Its DIN rail mounting allows it to be installed directly in the same panel as the instruments it powers.

Is the DDRH-30-15DR suitable for powering 15V stepper motor drivers or small motion control modules?

Yes. Compact stepper motor drivers and low-power motion control modules that operate at 15V can be supplied by the DDRH-30-15DR at 30W and 2A. The 10:1 ultra-wide input (150–1500VDC) allows it to interface with high-voltage DC buses common in motion control infrastructure.

Can this unit supply 15V logic rails in an embedded industrial control system?

Yes. The DDRH-30-15DR can provide a regulated 15V logic rail for embedded industrial controllers, DSP boards, or FPGAs that require this voltage. Its DIN rail-mount design fits well in compact control enclosures where panel space is a priority.

What are the environmental operating limits of the DDRH-30-15DR?

The DDRH-30-15DR operates from -40°C to +80°C (with load derating at higher ambient temperatures per the derating curve), covering both cold storage and high-ambient industrial environments. No IP rating is provided for the unit itself, so enclosure-level protection is required when installing in locations exposed to moisture, dust, or contaminants.

How do the DDRH-30-15DR, DDRH-30-15P, and DDRH-30-15ST compare?

All three variants provide 30W, 15V, and 2A output with a 150–1500VDC input range and the same IEC62109-1 (LVD) and EAC TP TC 004 approvals. The DDRH-30-15DR is DIN rail-mount, the DDRH-30-15P is PCB-mount, and the DDRH-30-15ST uses screw terminal connections. Select the variant based on the mounting and wiring method required for the application.
