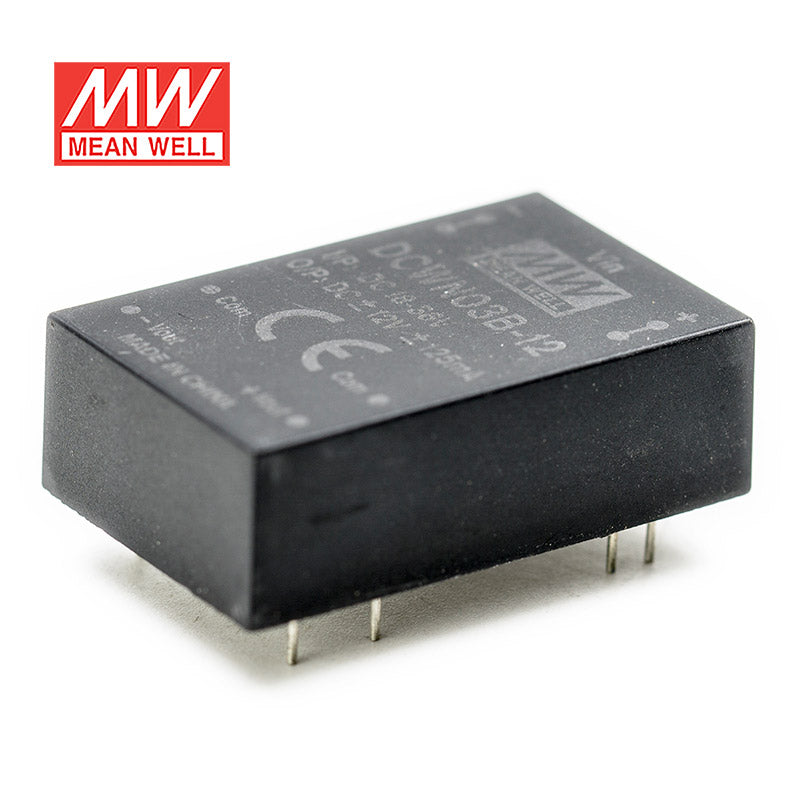

Mean Well DCWN03B-12 DC-DC Converter - 3W 18~36V DC in 12V out 250mA

Name: Mean Well DCWN03B-12 DC-DC Converter - 3W 18~36V DC in 12V out 250mA
Brand: Mean Well
SKU: DCWN03B-12
Price: 9.6 USD
Availability: InStock

$9.60 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DCWN03B-12 is the ±12V output model of this series: rated power 3W, typical efficiency 87%.

SCWN03 and DCWN03 series are 3W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+ 90℃, 3 KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3 . 3V /5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protections: Short circuit (Continuous) / Overload / Input under voltage
3KVDC I/O isolation
3 years warranty

Specifications

DCWN03B-12Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): 24V (18 ~ 36V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 147mA
OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±0 ~ 125mA
EFFICIENCY (TYP.): 87%
CAPACITOR LOAD (MAX.)^{* For each output}: *1000μF

INPUT

VOLTAGE RANGE: 18~36Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 10Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 5Vin models: 1.5A Fast-Acting Type, 12Vin models: 0.8A Fast-Acting Type, 24Vin models: 0.5A Fast-Acting Type, 48Vin models: 250mA Fast-Acting Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 5Vin: 4.2Vdc, 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 250pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 2500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 12.3g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for SCWN03, 25% to 100% rated load for DCWN03.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DCWN03B-12 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates1

CE Certificate(SCWN/DCWN-03)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the DCWN03B-12 typically used for?

The Mean Well DCWN03B-12 is typically used for isolated low-power DC-DC conversion from an 18-36V DC source to a regulated ±12V dual output. With 3W rated power and up to 125mA per output, it fits compact auxiliary and control circuits that need isolated ±12V power.

Is the DCWN03B-12 a good fit for 18-36V input systems that need 12V output?

Yes. The DCWN03B-12 is intended for 18-36V input and ±12V dual output service, provided the load stays within the unit's 3W and 125mA-per-output capacity.

Can the DCWN03B-12 be used in isolated low-power support circuits?

Yes. The converter includes 3KVDC I/O isolation, no minimum load requirement, and a compact DIP24 package, making it suitable for isolated auxiliary ±12V rails in small electronic systems.

Is the DCWN03B-12 suitable for broad operating temperatures?

It is rated for -40°C to +90°C working temperature, which makes it suitable for demanding protected electronic environments. It should still be used inside equipment or enclosure-protected systems.

How does the DCWN03B-12 compare with other DCWN03 12V variants?

The DCWN03B-12 provides 3W at ±12V from an 18-36V input range. The A, C, and E variants provide the same ±12V output but with 9-18V, 36-72V, and 4.5-9V input ranges respectively. The main difference is the source-side voltage window.
