Mean Well A301-2K5-B4 Modified sine wave 2500W 110V - DC-AC Inverter

Name: Mean Well A301-2K5-B4 Modified sine wave 2500W 110V - DC-AC Inverter
Brand: Mean Well
SKU: A301-2K5-B4
Price: 632.18 USD
Availability: InStock

SKU A301-2K5-B4

$632.18 USD

Shipping calculated at checkout.

Available to order

Overview

A301-2K5-B4 is the model of this series: rated power 2500W, typical efficiency 82%.

Features

12V or 24V DC input
Power ON-OFF switch
Input voltage range: -15% ~ +25%
Output voltage regulation:±10%
Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/ Over temp./Output short/Input polarity reverse/Over load.
Output waveform: Modified sine wave
Cooling fan ON-OFF control
ON/OFF remote control(Optional/Order No.: RC-2500)
Approvals: E13/ EAC / CE / UKCA
1 year warranty

Specifications

A301-2K5-B4Specifications from the official datasheet (2023-05-02 edition)Download datasheet PDF

OUTPUT

SAFETY MODEL NO.: A301-2K5
AC VOLTAGE: 110V
RATED POWER: 2500W
SURGE POWER: 5000W
WAVEFORM: Modified Sine Wave
FREQUENCY: 60Hz±1%
AC REGULATION: ±10%
STANDARD RECEPTACLES: TYPE-2* 2ea
LED INDICATOR: Green LED for power on; Yellow LED for O.T.P.; Red LED for O.L.P.; Battery V/A meter

INPUT

DC CURRENT: 250A
NO LOAD CURRENT DRAW: 0.9A
DC VOLTAGE: 12V
VOLTAGE RANGE: 10 ~ 15VDC
EFFICIENCY (Typ.): 82%
DC CONNECTOR: None
FUSE: 30A*12

PROTECTION

BAT. LOW ALARM: 10±0.5V
BAT. LOW SHUTDOWN: 9.5±0.5V
OVER LOAD: >2700W shut down o/p voltage, re-power to recover
OVER VOLTAGE: 15 ~ 17V
OVER TEMPERATURE: 60±5℃/ 140±9oF
OUTPUT SHORT: Shut-off
BAT. POLARITY: By fuse open

ENVIRONMENT

WORKING TEMP.: 0 ~ +25℃@100% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158oF, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 50℃)

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 004 approved
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMI RADIATION: Compliance to BS EN/EN55014-1, EAC TP TC 020
EMS IMMUNITY: Compliance to BS EN/EN55014-2, IEC61000-4-2,3, EAC TP TC 020
LVD: Compliance to BS EN/EN62368-1

OTHERS

MTBF: 37Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 430*210*159mm (L*W*H)
PACKING: 8.7kg ; 2pcs / 19kg / CARTON
COOLING: >40℃ (NTC) fan on
APPLICATIONS: Home appliance, Power tools, Office and Portable equipment and Vehicle ...etc.

Technical drawings

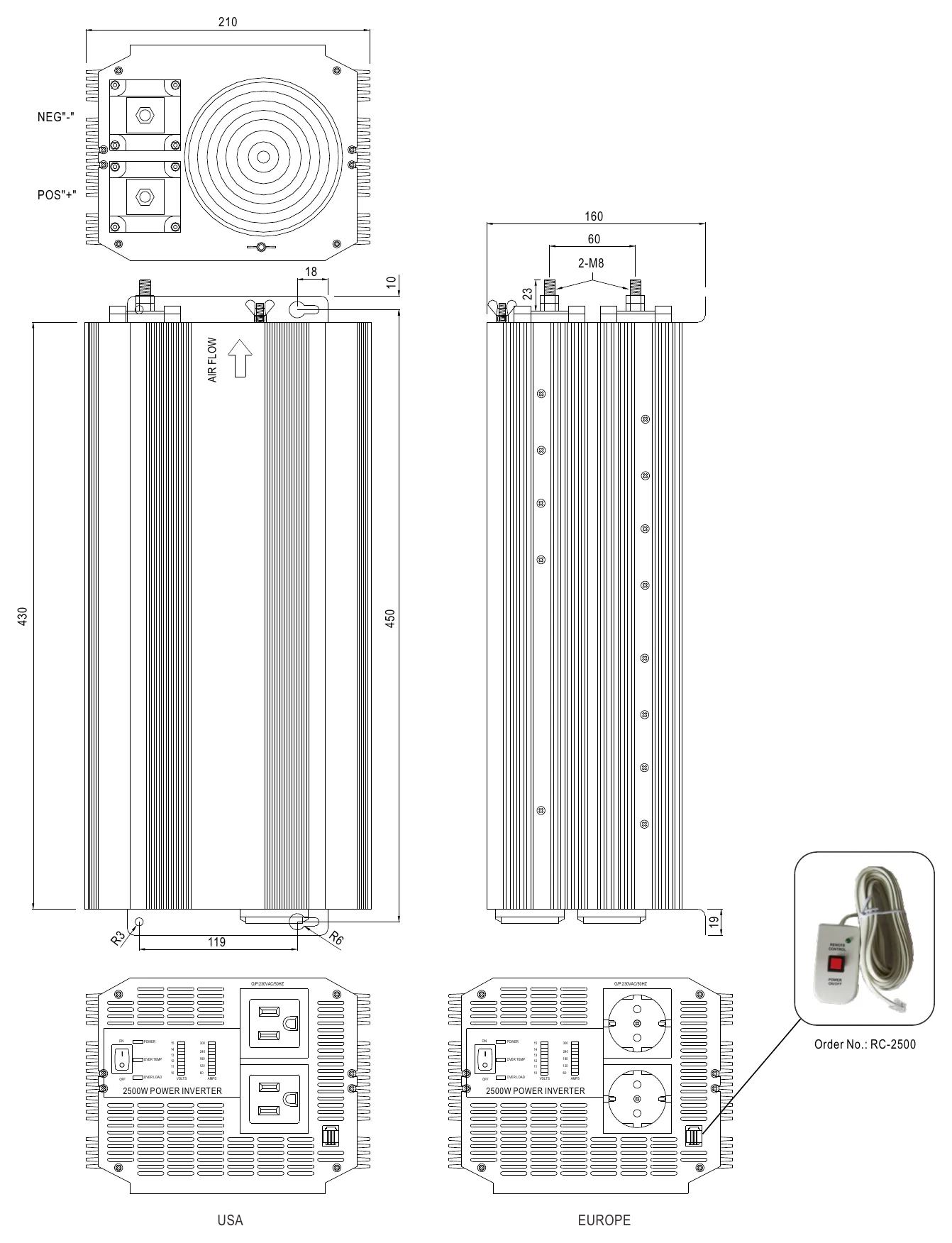

A301-2K5-B4 Mechanical Specification — Mechanical Specification

Downloads

Datasheet1

A301-2K5-B4 datasheetA301_302_2K5_Spec_Sheet.pdf · 2023-05-02 edition PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What type of AC output does the Mean Well A301-2K5-B4 provide?

The A301-2K5-B4 produces a modified sine wave AC output. This makes it suitable for applications that can operate with modified sine wave power rather than requiring a pure sine wave inverter.

What is the power rating of the A301-2K5-B4 inverter?

This model is rated for 2500W output power. It is designed for higher-power DC-to-AC conversion applications where a 110V AC output is needed.

Is the A301-2K5-B4 a 110V or 230V output inverter?

This specific model is listed as a 2500W, 110V DC-AC inverter. The general series information references 110V and 230V output ranges, but this SKU is identified as the 110V version.

What protection features are included in the Mean Well A301-2K5-B4?

The inverter includes battery low alarm, battery low shutdown, over voltage, over temperature, output short, battery reverse polarity (by fuse open), and overload protection. These built-in protections help safeguard the inverter during abnormal operating conditions.

What operating environment is this inverter intended for?

The specified working temperature is 0 to +25°C at 100% load. It also lists an over temperature protection point of 60±5°C, with an NTC-controlled fan that turns on above 40°C to support thermal management during operation.

Does the A301-2K5-B4 support remote control operation?

Yes, the spec sheet shows a remote control panel with an ON/OFF switch, available separately under order number RC-2500.
