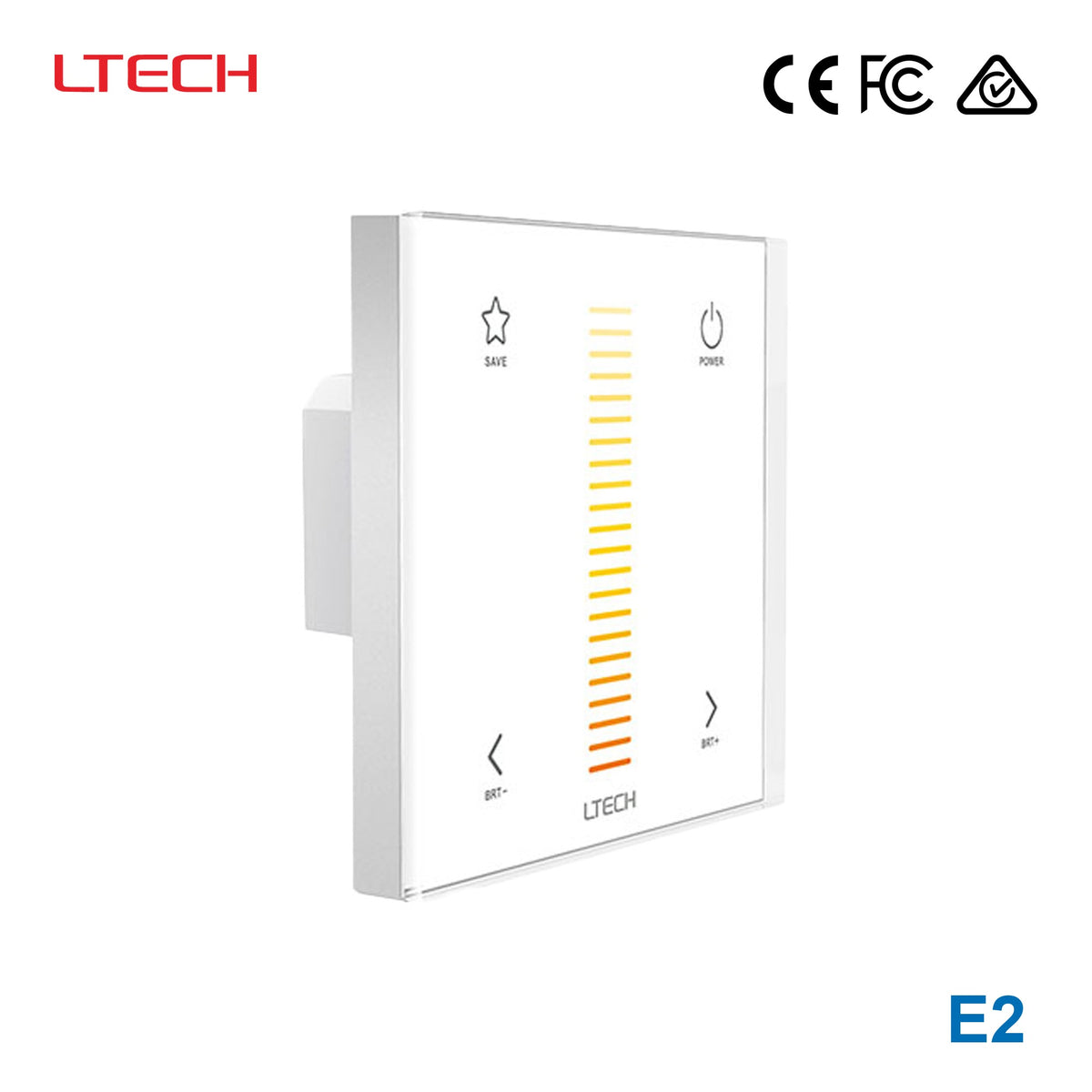

Ltech E2 Single-zone Touch Panel - Colour Temperature

Name: Ltech E2 Single-zone Touch Panel - Colour Temperature
Brand: Ltech
SKU: E2
Price: 53.76 USD
Availability: InStock

SKU E2

$53.76 USD ~~$9,999.00~~

Shipping calculated at checkout.

Available to order

The Ltech E2 is a single-zone colour temperature controller designed for tunable white LED lighting. It combines RF wireless control with PWM power output in one unit, making it suitable for applications where colour temperature adjustment is needed from a wall-style touch panel.

Input 12~24VDC. Operating temperature -20~+55°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 12~24VDC
✓Control protocol: PWM
✓Maximum total load: 96W
✓Operating temperature: -20~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 86 x 86 x 36mm
✓5 year warranty

Frequently Asked Questions

What does the Ltech E2 Single-zone Touch Panel control?

Is the Ltech E2 a single-zone or multi-zone controller?

This model is a single-zone controller. It is intended for controlling one lighting zone, which makes it a good fit for individual rooms, dedicated areas, or standalone commercial lighting sections that need colour temperature adjustment.

What electrical rating does the Ltech E2 support?

The Ltech E2 is rated for 24 V output, 4 A current, and 96 W power. Those published ratings define the operating limits for this specific model and are important when matching it to a compatible tunable white LED load.

Does the Ltech E2 support smart control?

Yes. The product description states that the touch panel can be controlled by smartphone when a gateway is added. That means the E2 can be part of a smarter lighting control setup, while still offering direct touch-panel operation.

Can the Ltech E2 store lighting scenes?

Yes, this model supports scene saving and recall. According to the product description, you can save a preferred scene and recall it with one touch, which is useful in repeatable commercial or architectural lighting environments.

What kind of control interface does the Ltech E2 use?

The E2 uses touch keys with LED indicators and capacitive touch control. Its interface is designed to make colour temperature selection more user-friendly while keeping operation simple at the wall panel.

What environment is the Ltech E2 designed to operate in?

The published operating temperature range for the Ltech E2 is -20°C to 55°C. This gives it a broad working range for indoor control applications where environmental conditions may vary across commercial or technical spaces.

What warranty is offered for the Ltech E2?

The Ltech E2 has a 5-year warranty period based on the provided product data. For buyers comparing commercial-grade LED control products, that warranty can be a useful indicator of intended long-term service use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Outputs	Output Type	Dimming
Ltech Q5 Wireless RF Multi-zone Remote - RGBWW	—	—	—	View
Ltech F4-5A Wireless RF Constant Voltage Controller - 4 Channel	4	PWM	PWM	View
Ltech F4-3A Wireless RF Constant Voltage Controller - 4 Channel	4	PWM	PWM	View
Ltech T2M Wireless RF Multi-zone Remote - Colour Temperature	—	RF Signal	RF Signal	View
Ltech T2 Wireless RF Single-zone Remote - Colour Temperature	—	RF Signal	RF Signal	View
Ltech R4-CC Wireless RF Constant Current Controller - 4 Channel	4	PWM	PWM	View
Ltech M5+M3-3A Mini Controller with RF Remote - Colour Temperature	5	RF Signal	RF Signal	View
Ltech M2+M4-5A Mini Controller with RF Remote - Colour Temperature	4	RF Signal	RF Signal	View
Ltech F5-DMX-4A Wireless RF Constant Voltage Controller - 5 Channel	5	DMX Signal	DMX	View
Ltech F4-DMX-5A Wireless RF Constant Voltage Controller - 4 Channel	4	DMX Signal	DMX	View
Ltech F4-CC Wireless RF Constant Current Controller - 4 Channel	4	PWM	PWM	View
Ltech EX6 Wireless RF/DMX512 Multi-zone Touch Panel - Colour Temperature	—	DMX Signal	DMX	View
Ltech EX2 Wireless RF/DMX512 Single-zone Touch Panel - Colour Temperature	—	DMX Signal	DMX	View
Ltech E5S Multi-zone Touch Panel - RGBWW	5	PWM	PWM	View
Ltech E3S Single-zone Touch Panel - RGB	3	PWM	PWM	View
Ltech DX6 Wireless RF/DMX512 Multi-zone Touch Panel - Colour Temperature	—	DMX Signal,RF Signal	DMX,RF Signal	View
