Mean Well NPP-750-48 759.4W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 11.3A

Name: Mean Well NPP-750-48 759.4W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 11.3A
Brand: Mean Well
SKU: NPP-750-48
Price: 174.99 USD
Availability: InStock

can switch between charger and power supply3 stage chargingonly suitable for lead-acid batteriescharging voltage/current adjustable through panel

SKU NPP-750-48

$174.99 USD

Shipping calculated at checkout.

Available to order

Overview

NPP-750-48 is the 57.6V output model of this series: rated current 11.3A, rated power 759.36W, typical efficiency 93%.

NPP-750 is a miniaturized dual-purpose charger and power supply. In addition to being used as a three-stage charger for lead-acid batteries, it can also be used as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. Other features include: ultra-wide voltage output, adjustable voltage via VR on the panel (10.5~21V, 21~42V, 42~80V), adjustable charging current (50~100%), built-in intelligent fan with variable speed based on temperature to reduce noise and extend fan lifetime, -30~+70°C wide operating temperature, suitability for use in different environments, built-in remote ON/OFF control, compliance to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, multiple built-in protections, and 3-year warranty. The NPP-750 is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.

Features

Multi-function single unit battery charger or power supply operation modes selectable
Output voltage and current adjustable via potentiometer
3-stage charging curve for charging mode
-30~+70℃ wide operating temperature
Multiple protections: Short circuit / Over load / Over voltage / Over temperature
Thermal controlled DC fan for noise reduction
Remote ON-OFF control
Comply with 62368-1+60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) batteries
Carry handle accessory available (Order NO.:Carry handle, sold separately)
3 years warranty

Specifications

NPP-750-48Specifications from the official datasheet (2026-07-06 edition)

OUTPUT (Battery Charger mode, default)

BOOST CHARGE VOLTAGE(Vboost)(default): 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 55.2V
VOLTAGE ADJUSTABLE RANGE: 42 ~ 80V
VOLTAGE ADJUSTABLE RANGE: By built-in potentionmeter
MAX. OUTPUT CURRENT(CC): 11.3A
CURRENT ADJUSTABLE RANGE: 5.65 ~ 11.3A
CURRENT ADJUSTABLE RANGE^Note.3: By built-in potentionmeter
MAX. POWER: 759.36W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^Note.4: 40 ~ 130AH

INPUT (Battery Charger mode, default)

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)^Note.6: 93%
AC CURRENT (Typ.): 8.7A/115VAC 4A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC

PROTECTION (Battery Charger mode, default)

SHORT CIRCUIT^Note.7: Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE: 82 ~ 100V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION (Battery Charger mode, default)

CHARGING STAGE: 3 stage only
CHARGER OK SIGNAL: The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL: The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL: Open : Charger stop charging Short : Charger normal work
FAN ON/OFF CONTROL: Depends on internal temperature

ENVIRONMENT (Battery Charger mode, default)

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Battery Charger mode, default)

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, J62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{Note 8}: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 8}: J55032(H29)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS (Battery Charger mode, default)

MTBF: 883.5K hrs min. Telcordia SR-332 (Bellcore) ; 95.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 230*158*67mm (L*W*H)
PACKING: 1.84Kg; 4pcs/ 9Kg / 1.63CUFT

OUTPUT (Power Supply mode)

DC VOLTAGE: 57.6V
VOLTAGE ADJUSTABLE RANGE: 42 ~ 80V
VOLTAGE ADJUSTABLE RANGE: By built-in potentionmeter
CURRENT ADJUSTABLE RANGE: 5.65 ~ 11.3A
RATED CURRENT: 11.3A
RATED POWER: 759.36W
RIPPLE & NOISE(max.): 480mVp-p
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT (Power Supply mode)

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 8.7A/115VAC 4A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC

PROTECTION (Power Supply mode)

OVERLOAD: 105 ~ 115% rated output power Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
SHORT CIRCUIT: Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE: 82 ~ 100V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION (Power Supply mode)

REMOTE CONTROL: Open : Power OFF Short : Power ON
DC OK: The TTL signal out, DC OK = H(4.5 ~ 5.5V) ; Power supply failure or protection = L(-0.5 ~ +0.5V)
FAN SPEED CONTROL: Depends on internal temperature

ENVIRONMENT (Power Supply mode)

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Power Supply mode)

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, J62368-1,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{Note 4}: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Radiated BS EN/EN55032 (CISPR32),BS EN/EN55014-1 Class B
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 4}: J55032(H29)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Radiated	BS EN/EN55032 (CISPR32),BS EN/EN55014-1	Class B
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS (Power Supply mode)

MTBF: 883.5K hrs min. Telcordia SR-332 (Bellcore) ; 95.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 230*158*67mm (L*W*H)
PACKING: 1.84Kg; 4pcs/ 9Kg / 1.63CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The PSU is considered a component which will be installed into a final equipment. All the radiation tests require an additional 13*26*30 NIZN magnetic clasp or magnetic ring to the output line for CLASS B and without NIZN magnetic clasp or magnetic ring for CLASS A. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

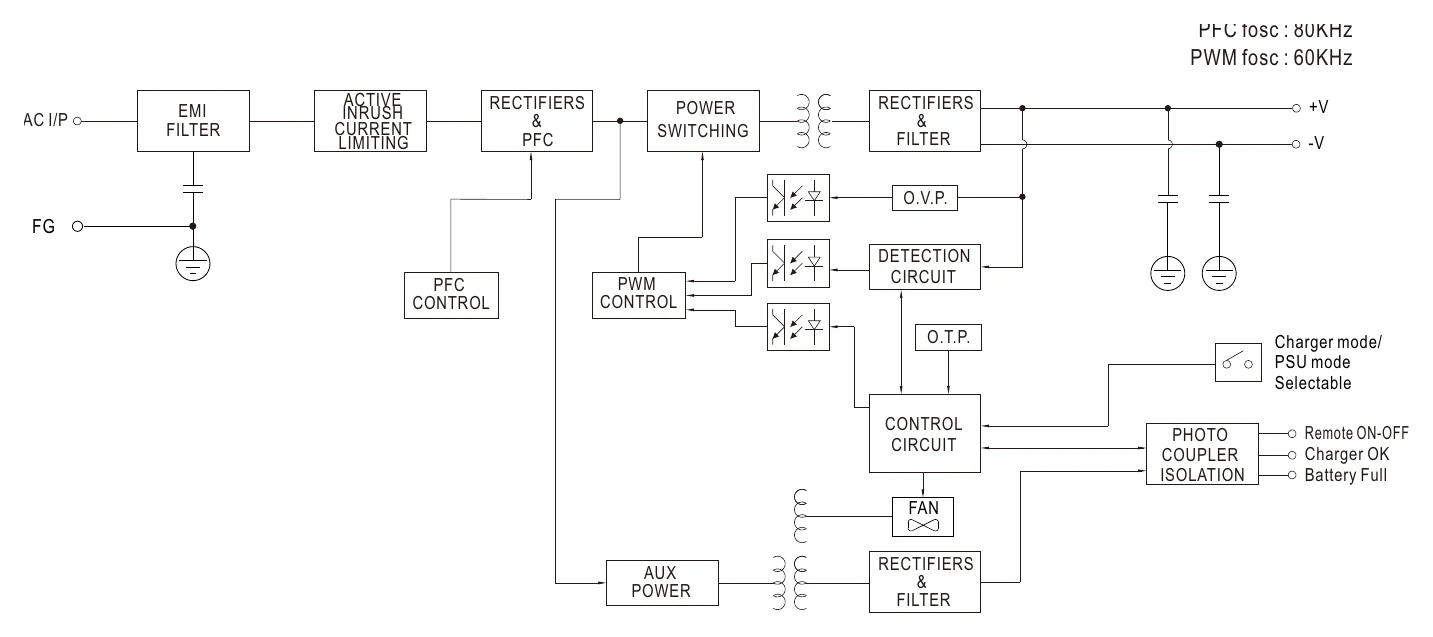

NPP-750-48 Block Diagram — Block Diagram

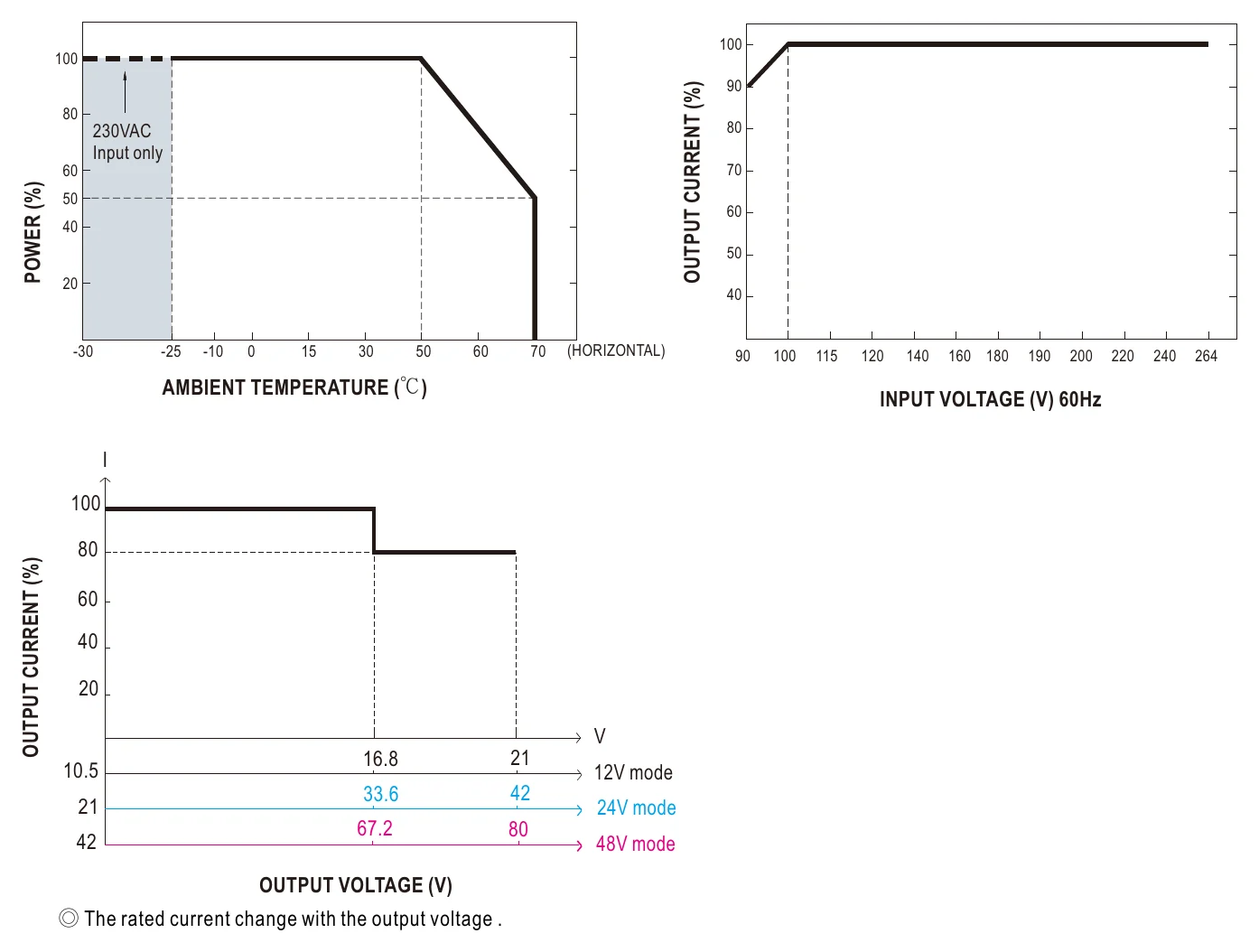

NPP-750-48 Derating Curve — Derating Curve

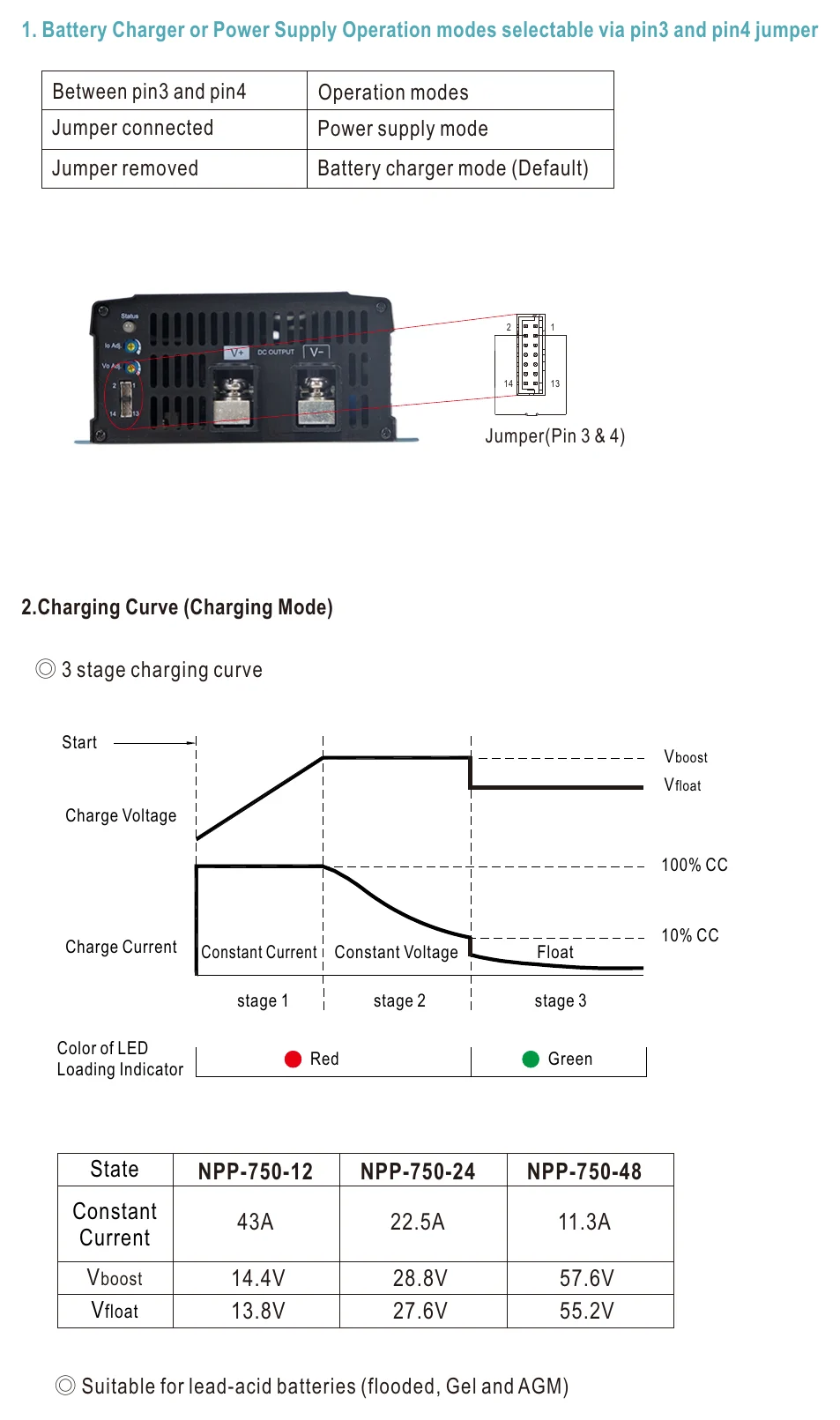

NPP-750-48 Function Manual — Function Manual

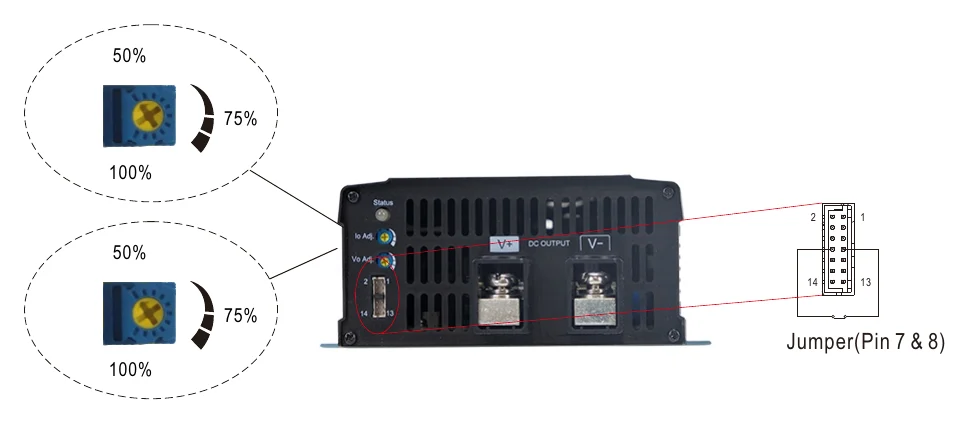

NPP-750-48 Jumper(Pin 7 & 8) — Jumper(Pin 7 & 8)

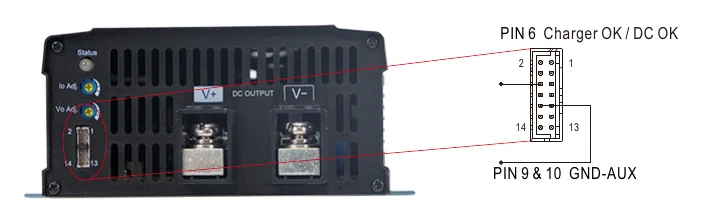

NPP-750-48 3.Charger OK / DC OK Signal — 3.Charger OK / DC OK Signal

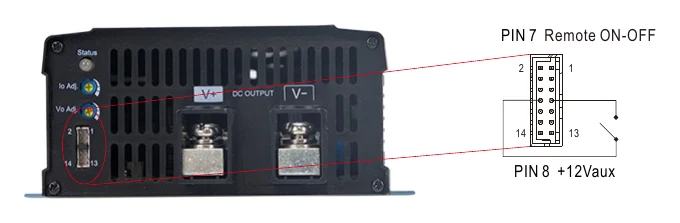

NPP-750-48 4.Remote ON-OFF Control — 4.Remote ON-OFF Control

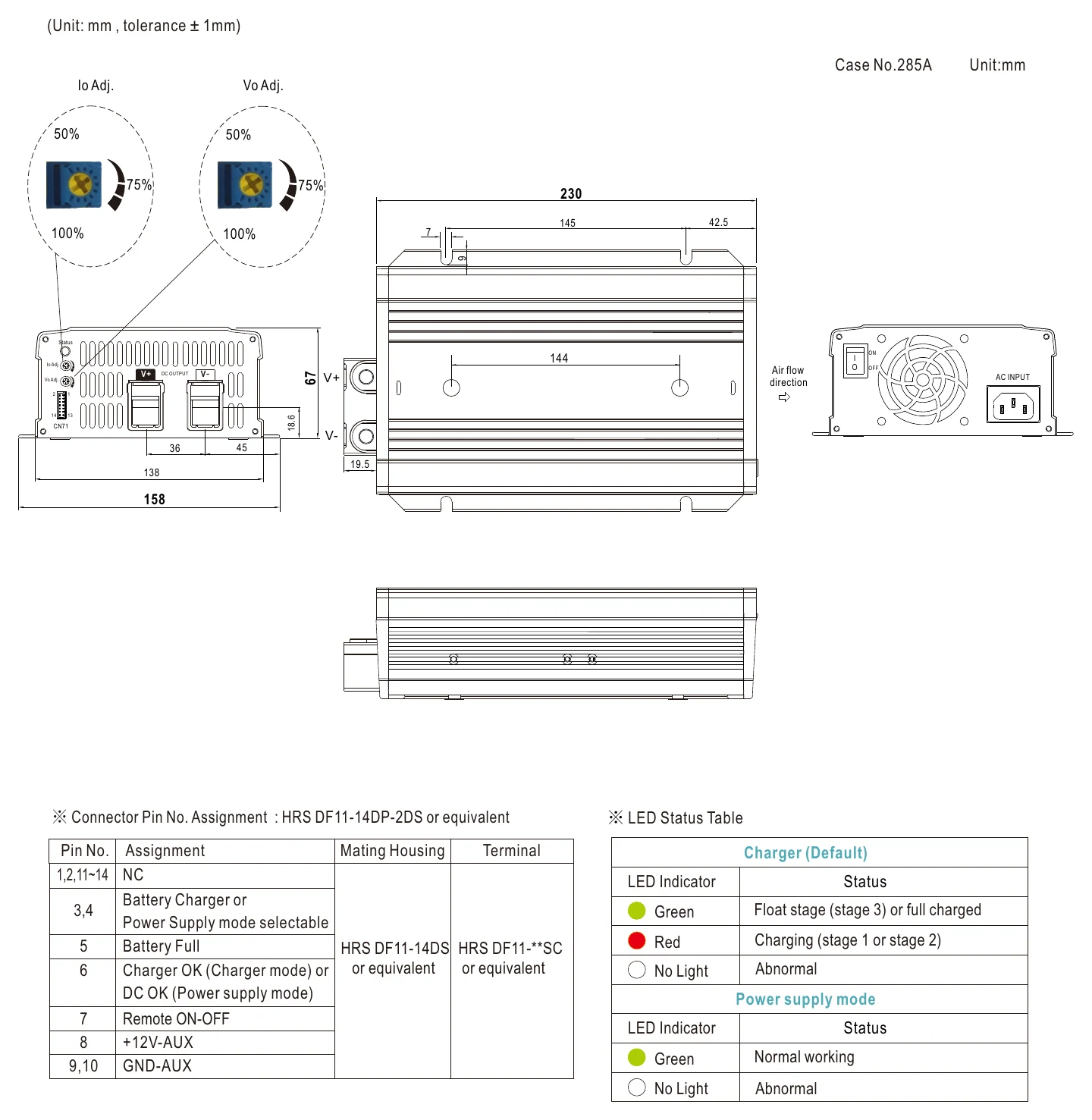

NPP-750-48 Mechanical Specification — Mechanical Specification

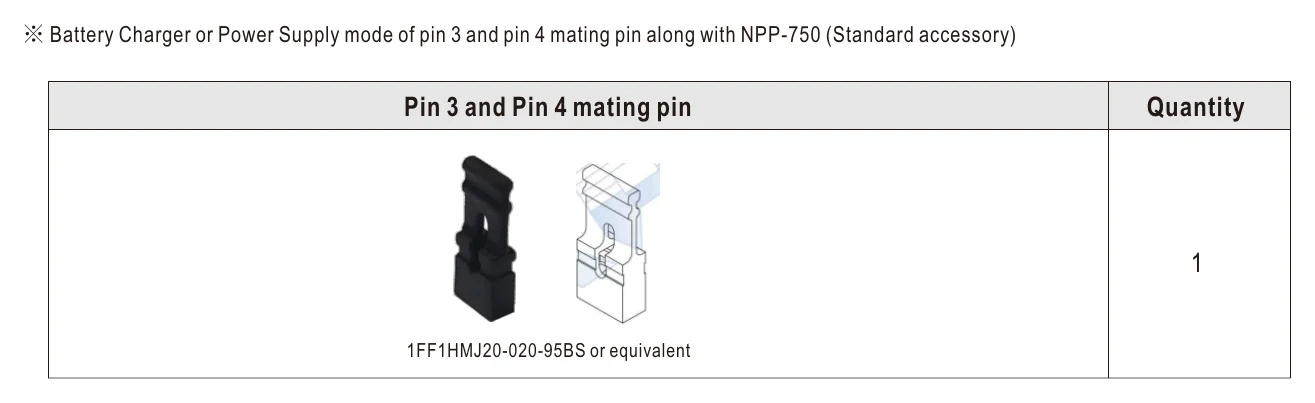

NPP-750-48 Accessory List — Accessory List

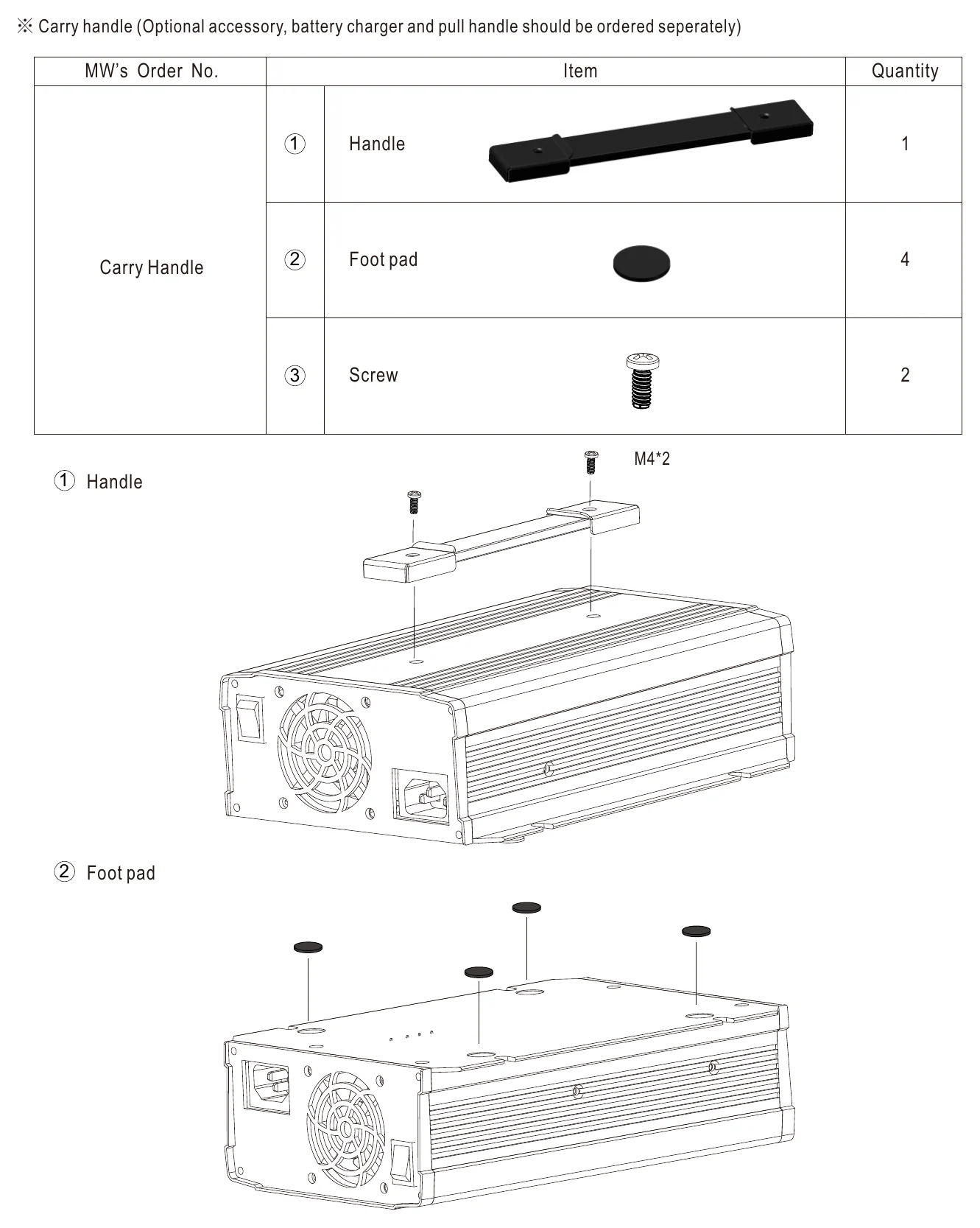

NPP-750-48 ※ Carry handle (Optional accessory, battery charger and… — ※ Carry handle (Optional accessory, battery charger and…

NPP-750-48 INSTALLATION MANUAL — INSTALLATION MANUAL

Typical applications

Radio system backup solution
Electric scooter charger
Camping car、Buses、Heavy duty truck、Specialty vehicles
Surveillance system
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well NPP-750-48 used for?

The NPP-750-48 is a dual-purpose unit that can operate as either a battery charger or a power supply, with the mode selectable by jumper. It is aimed at professional and industrial use cases such as electric scooters, mobile robots, floor scrubbers, security systems, communication equipment, and industrial control systems.

Is the NPP-750-48 a battery charger, a power supply, or both?

This model is designed to serve both roles in a single product. It can be used in charger mode for supported battery-charging applications or in power supply mode when regulated DC output is needed for equipment.

What output does the NPP-750-48 provide?

This model is a 48V-class unit with a listed output voltage of 57.6V and a rated current of 11.3A. It is rated at 759.36W and includes adjustable output voltage and output current controls.

What battery type is the NPP-750-48 suitable for?

Based on the provided product data, the NPP-750-48 is suitable for lead-acid batteries. It also includes a 3-stage charging curve for charging-mode operation.

Can the NPP-750-48 be used in demanding environments?

Yes. The unit has a wide operating temperature range of -30°C to +70°C (with derating per the derating curve), which makes it suitable for tougher indoor or protected equipment environments. It also uses a built-in cooling fan controlled by internal temperature for thermal management.

What protection and compliance features does the NPP-750-48 include?

The NPP-750-48 includes built-in protection for short circuit, overload (in power supply mode), over voltage, and over temperature conditions. It is also listed with multiple safety approvals including CB, UL, Dekra, J62368-1, and EAC, with compliance to 62368-1 and 60335-1/-2-29 standards.
