Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 25A

Name: Mean Well NPP-1700-48 1680W 48V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 25A
Brand: Mean Well
SKU: NPP-1700-48
Price: 319.75 USD
Availability: InStock

can switch between charger and power supply3 stage chargingonly suitable for lead-acid batteriescharging voltage/current adjustable through panel

SKU NPP-1700-48

$319.75 USD

Shipping calculated at checkout.

Available to order

Overview

NPP-1700-48 is the 57.6V output model of this series: rated current 25A, rated power 1680W, typical efficiency 94%.

NPP- 170 0 is a miniaturized dual-purpose charger and power supply. In addition to being used as a three-stage charger for lead-acid batteries, it can also be used as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. Other features include: ultra-wide voltage output, adjustable voltage via VR on the panel (10.5~21V, 21~42V, 42~80V), adjustable charging current (50~100%), built-in intelligent fan with variable speed based on temperature to reduce noise and extend fan lifetime, - 30~+70° C wide operating temperature, suitability for use in different environments, built-in remote ON/OFF control, compliance to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, multiple built-in protections, and 3-year warranty. The NPP- 170 0 is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.

Features

Multi-function single unit battery charger or power supply operation modes selectable
Output voltage and current adjustable via potentiometer
3-stage charging curve for charging mode
-30~+70℃ wide operating temperature
Multiple protections: Short circuit / Over load / Over voltage / Over temperature
Thermal controlled DC fan for noise reduction
Remote ON-OFF control
Comply with 62368-1+60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) batteries
Carry handle accessory available (Order NO.:Carry handle, sold separately)
3 years warranty

Specifications

NPP-1700-48Specifications from the official datasheet (2025-04-11 edition)

OUTPUT (Battery Charger mode, default)

BOOST CHARGE VOLTAGE(Vboost)(default): 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 55.2V
VOLTAGE ADJUSTABLE RANGE: 42 ~ 80V By built-in potentionmeter
MAX. OUTPUT CURRENT(CC): 25A
CURRENT ADJUSTABLE RANGE^Note.3: 12.5 ~ 25A By built-in potentionmeter
MAX. POWER: 1680W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^Note.4: 100 ~ 330AH

PROTECTION (Battery Charger mode, default)

SHORT CIRCUIT^Note.7: Protection type : Constant current limiting, charger will shutdown, re-power on to recover
OVER VOLTAGE: 82 ~ 100V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION (Battery Charger mode, default)

CHARGING STAGE: 3 stage only
CHARGER OK SIGNAL: The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL: The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL: Open : Charger stop charging Short : Charger normal work
FAN ON/OFF CONTROL: Depends on internal temperature

OUTPUT (Power Supply mode)

DC VOLTAGE: 57.6V
VOLTAGE ADJUSTABLE RANGE: 42 ~ 80V By built-in potentionmeter
CURRENT ADJUSTABLE RANGE: 12.5 ~ 25A
RATED CURRENT: 25A
RATED POWER: 1680W
RIPPLE & NOISE(max.): 480mVp-p
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 14.8A/115VAC 9.3A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC
LEAKAGE CURRENT: <0.75mA/240VAC (60335-1/2-29), <1.5mA Peak/240VAC (62368-1)

PROTECTION (Power Supply mode)

OVERLOAD: 105 ~ 115% rated output power Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
SHORT CIRCUIT: Protection type : Constant current limiting, unit will shutdown after, re-power on to recover
OVER VOLTAGE: 82 ~ 100V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION (Power Supply mode)

REMOTE CONTROL: Open : Power OFF Short : Power ON
DC OK: The TTL signal out, DC OK = H(4.5 ~ 5.5V) ; Power supply failure or protection = L(-0.5 ~ +0.5V)
FAN SPEED CONTROL: Depends on internal temperature

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 577.4K hrs min. Telcordia SR-332 (Bellcore) ; 58.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 307.7*184*70mm (L*W*H)
PACKING: 2.96Kg; 4pcs/ 14Kg / 2.58CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The PSU is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

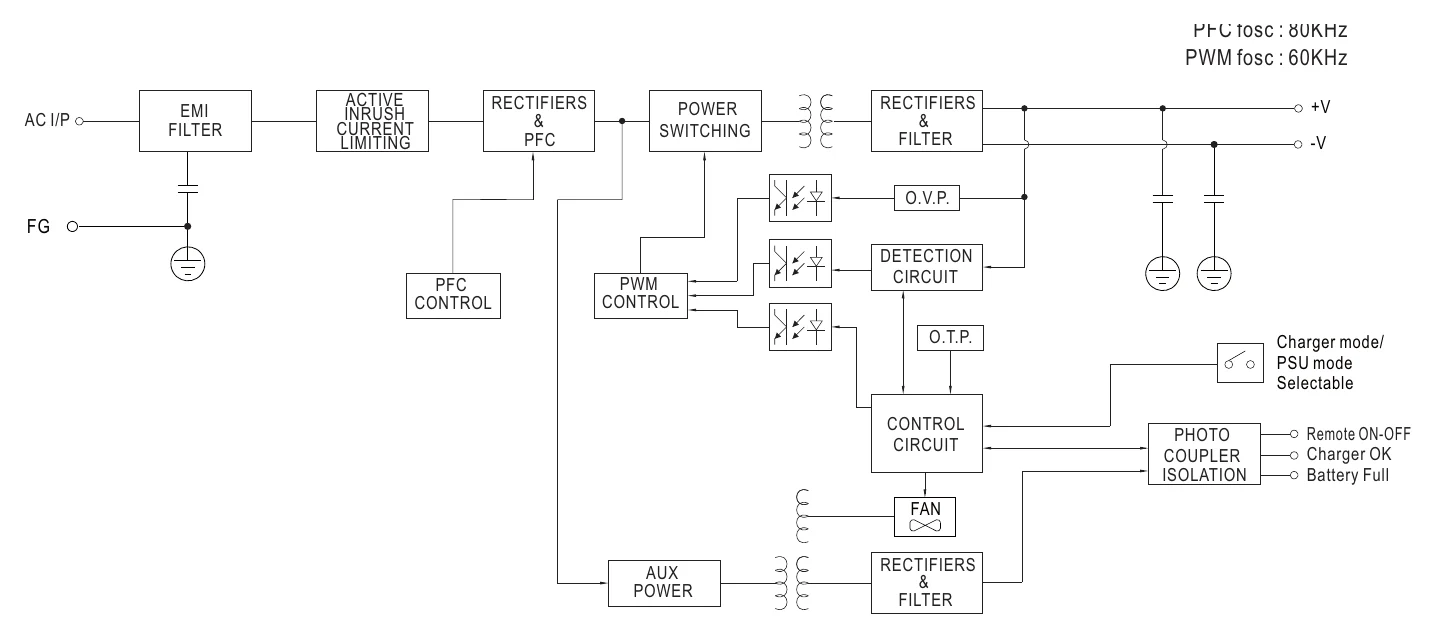

NPP-1700-48 Block Diagram — Block Diagram

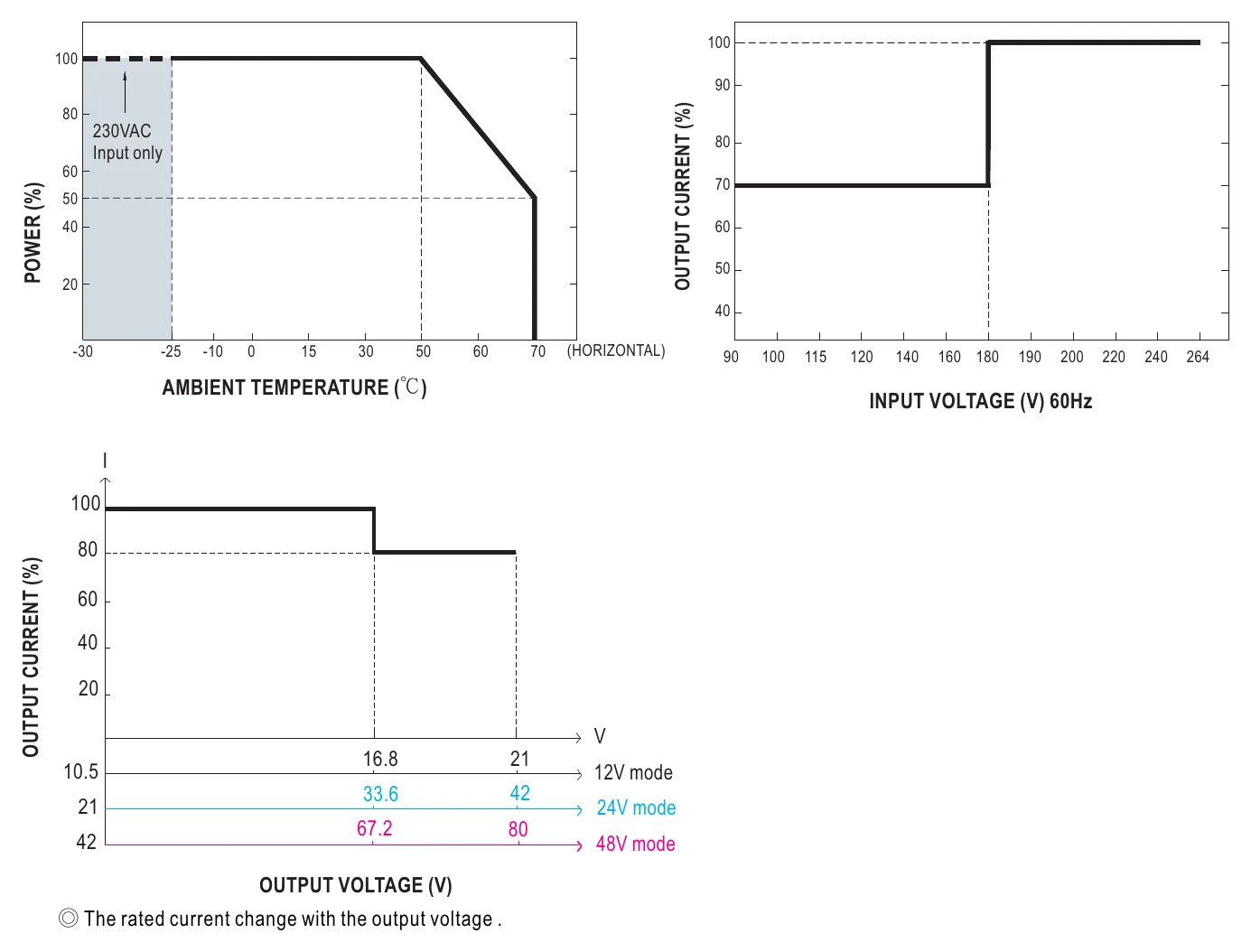

NPP-1700-48 Derating Curve — Derating Curve

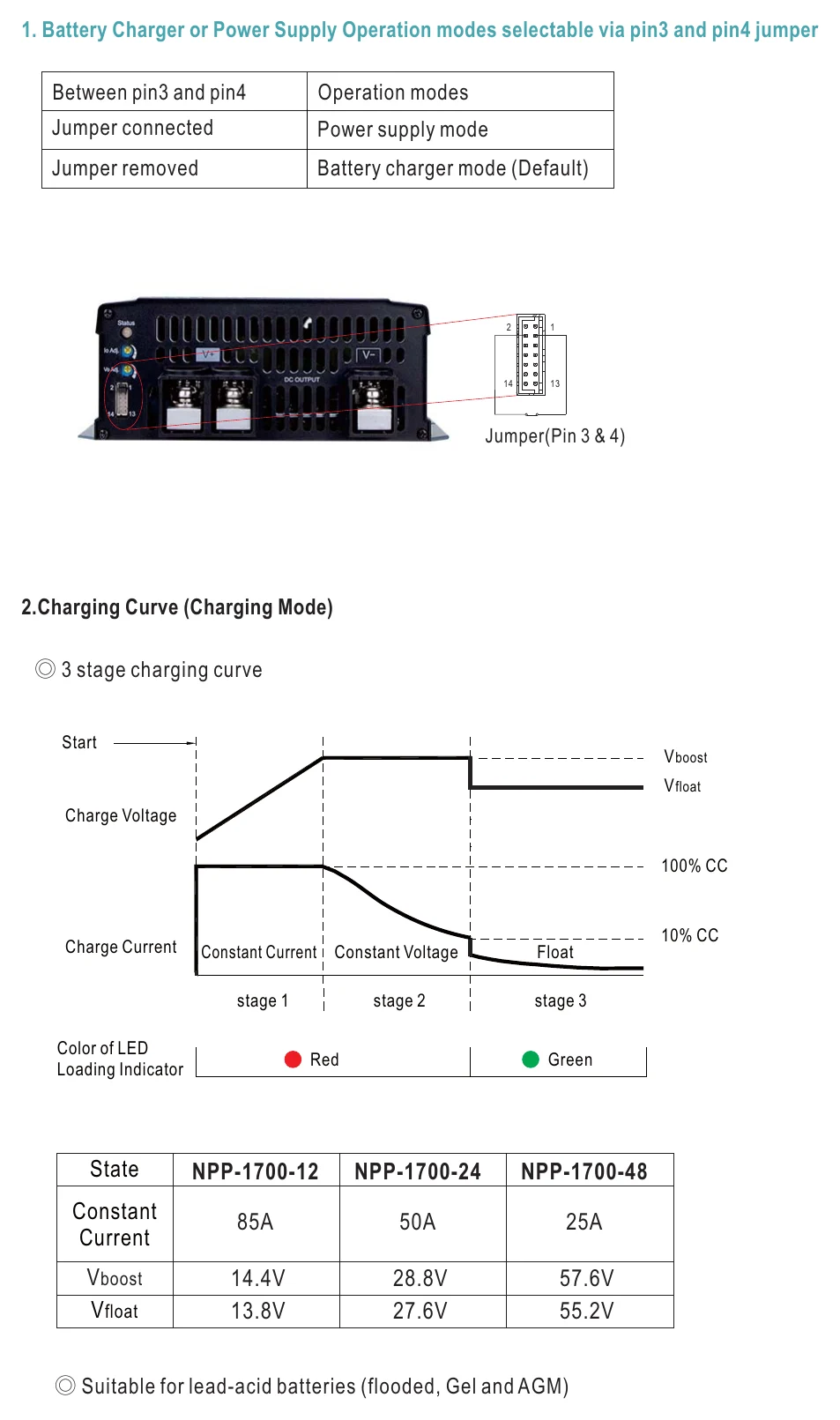

NPP-1700-48 Function Manual — Function Manual

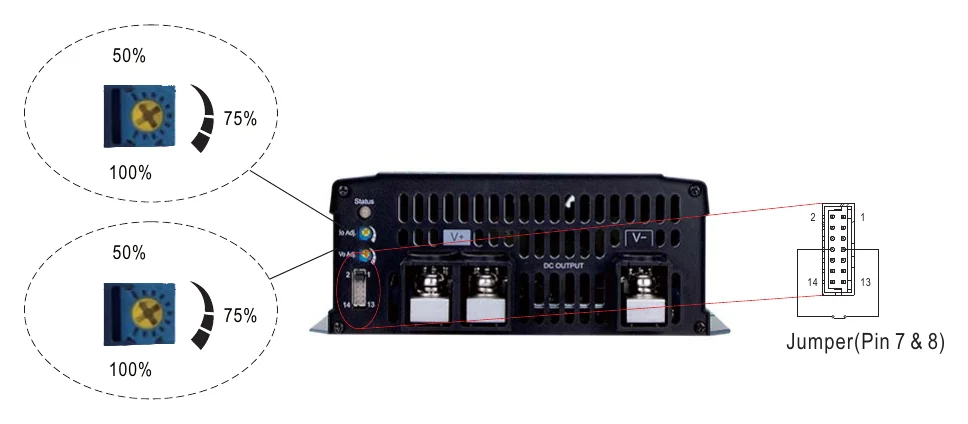

NPP-1700-48 Illustration (page 6) — Illustration (page 6)

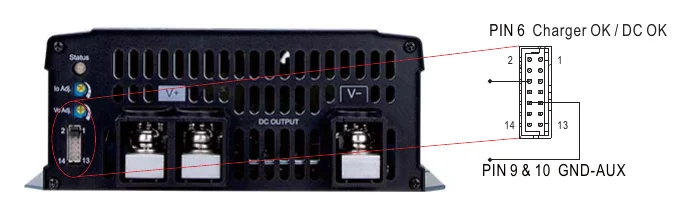

NPP-1700-48 PIN6 Charger OK/DC OK — PIN6 Charger OK/DC OK

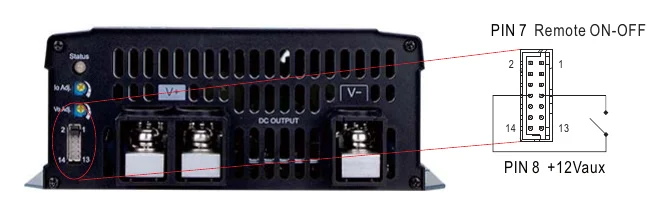

NPP-1700-48 PIN7 Remote ON-OFF — PIN7 Remote ON-OFF

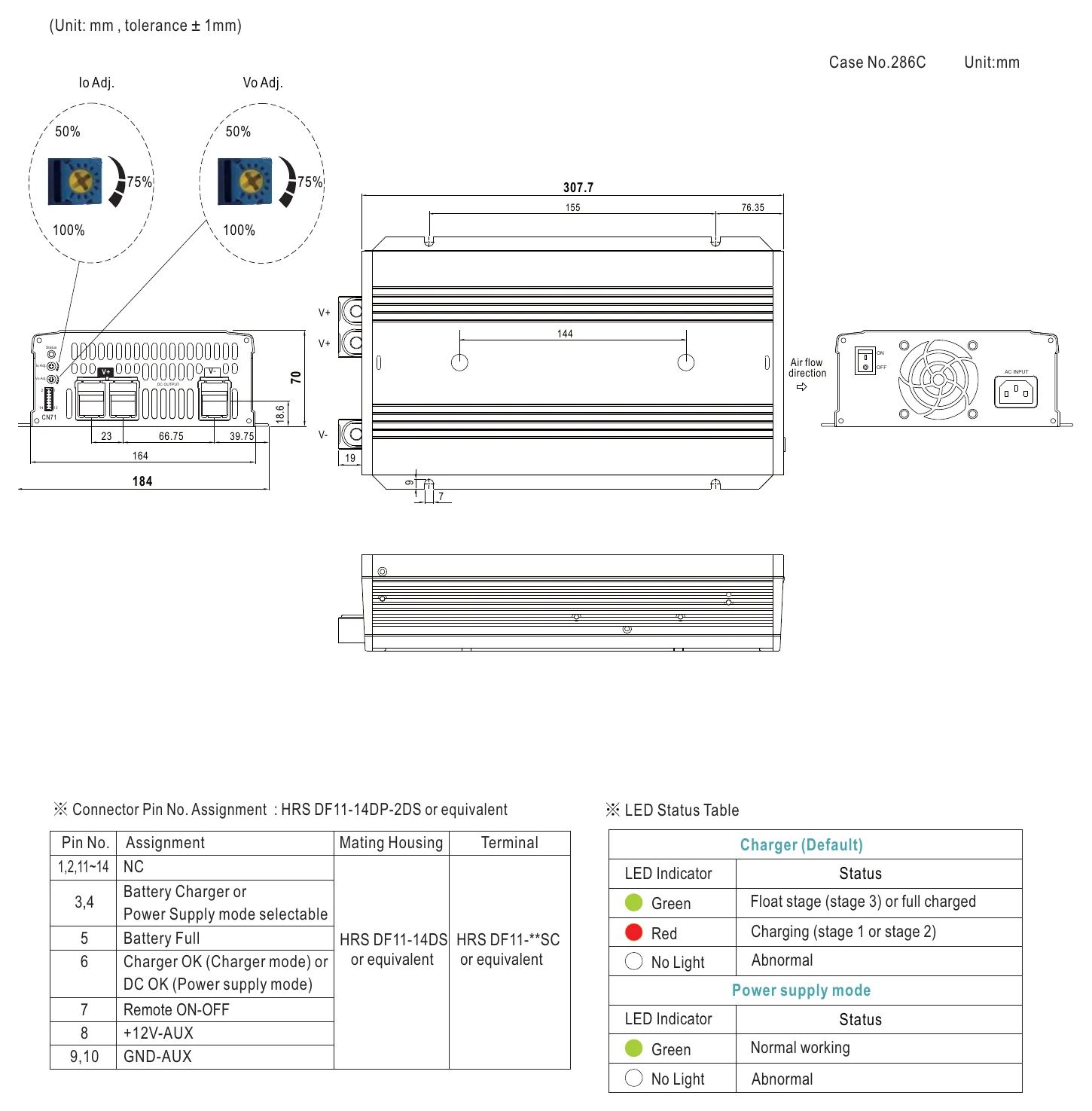

NPP-1700-48 Mechanical Specification — Mechanical Specification

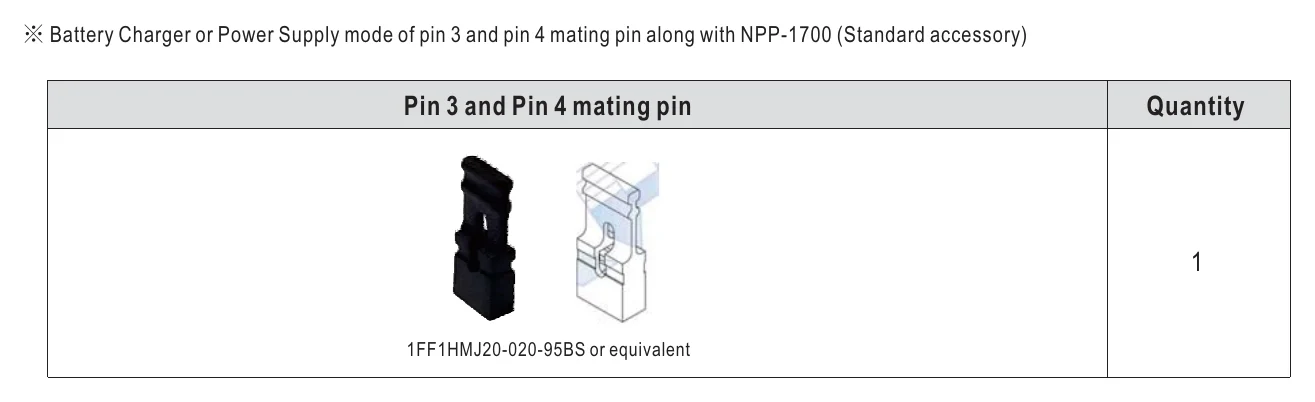

NPP-1700-48 Accessory List — Accessory List

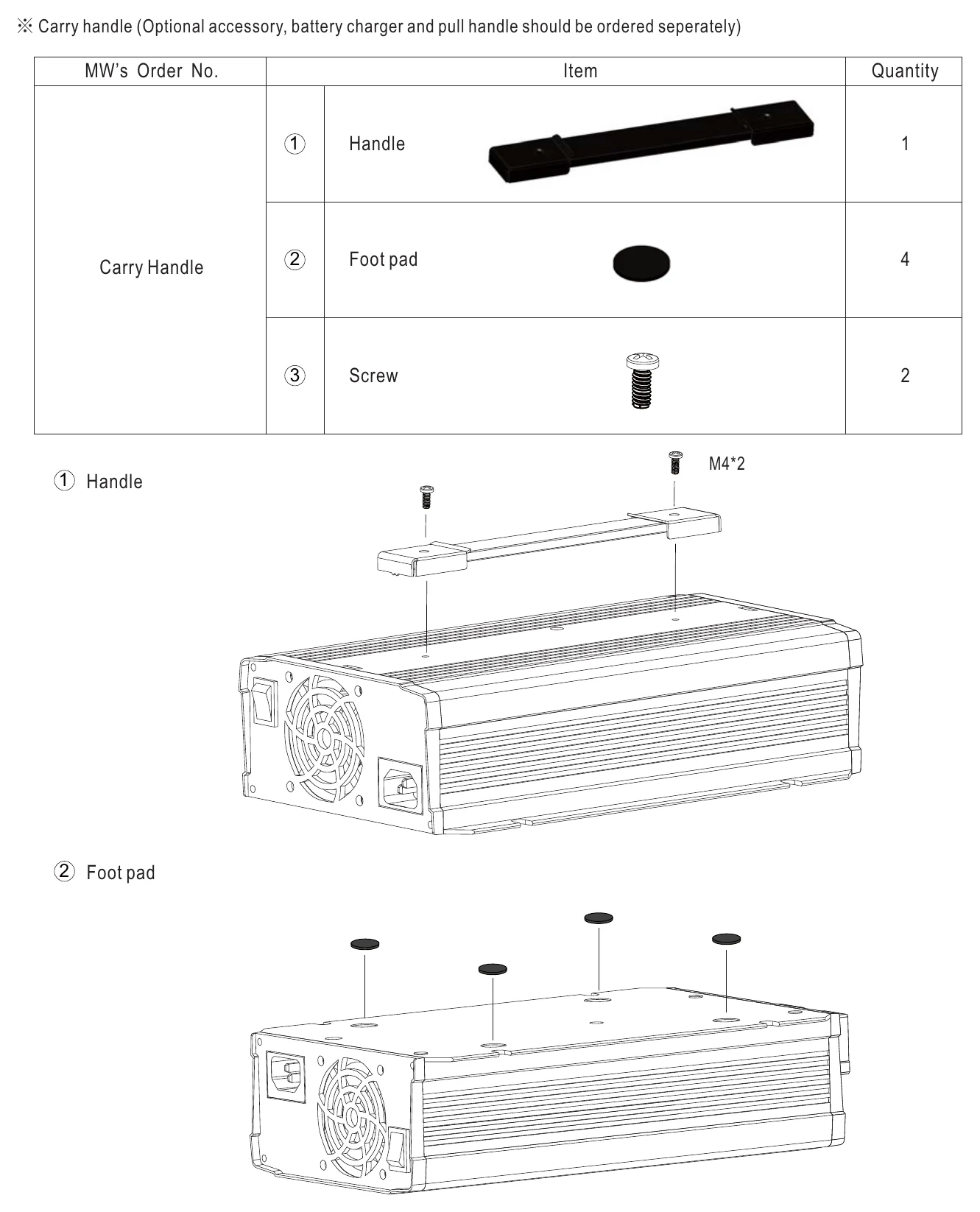

NPP-1700-48 ※ Carry handle (Optional accessory, battery charger and… — ※ Carry handle (Optional accessory, battery charger and…

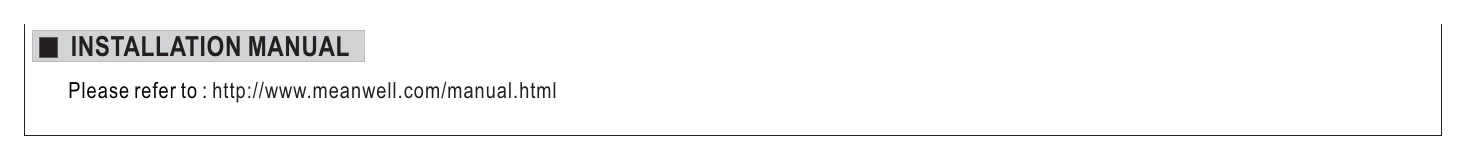

NPP-1700-48 INSTALLATION MANUAL — INSTALLATION MANUAL

Typical applications

Radio system backup solution
Electric scooter charger
Camping car、Buses、Heavy duty truck、Specialty vehicles
Surveillance system
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well NPP-1700-48 designed for?

The NPP-1700-48 is a 2-in-1 unit that can operate as either a battery charger or a power supply, depending on the selected mode. It is intended for high-power 48V-class applications where flexibility between charging and DC output use is valuable.

What are the main output ratings of the NPP-1700-48?

This model is rated for 1680W output power with a nominal output voltage of 57.6V and rated current of 25A. It also supports adjustable output voltage (42 to 80V) and output current (12.5 to 25A) via built-in potentiometers.

Can the NPP-1700-48 be used with different battery chemistries?

Mean Well states that the NPP-1700 series is suitable for lead-acid batteries, including flooded, Gel and AGM types. Li-ion batteries are not listed, so check with Mean Well and your battery vendor before using other chemistries.

How does the NPP-1700-48 differ from a standard fixed-output power supply?

Unlike a standard power supply, this model supports both power supply mode and battery charging mode in a single unit. It also includes a 3-stage charging curve for charging applications, which is a key distinction for battery-focused use cases.

Is the NPP-1700-48 suitable for demanding temperature conditions?

Yes. The specified operating temperature range is -30°C to +70°C (with derating per the derating curve), which suits use in a wide range of environments. It also includes a thermal-controlled cooling fan to help reduce noise while managing heat.

What protection and safety features does the NPP-1700-48 include?

This model includes built-in protection for short circuit, overload, over voltage, and over temperature conditions. It is also listed with multiple safety approvals, including CB, UL, DEKRA and EAC, with compliance to IEC/EN/UL62368-1 and EN60335-1/-2-29.

Is the output adjustable on the NPP-1700-48?

Yes. Mean Well specifies adjustable output voltage via the front-panel potentiometer and adjustable output current from 50% to 100%. This helps buyers fine-tune the unit for application needs within the supported NPP-1700 series ranges.

What warranty is provided with the NPP-1700-48?

The NPP-1700-48 includes a 3-year warranty. That coverage aligns with the product's positioning as a high-power industrial battery charger and power supply solution.
