Mean Well NPP-1200-24 1209.6W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 36A

Name: Mean Well NPP-1200-24 1209.6W 24V Battery Charge& Power Supply 2-in-1, Selectable via Jumper 36A
Brand: Mean Well
SKU: NPP-1200-24
Price: 241.22 USD
Availability: InStock

can switch between charger and power supply3 stage chargingonly suitable for lead-acid batteriescharging voltage/current adjustable through panel

SKU NPP-1200-24

$241.22 USD

Shipping calculated at checkout.

Available to order

Overview

NPP-1200-24 is the 28.8V output model of this series: rated current 36A, rated power 1209.6W, typical efficiency 93%.

NPP- 120 0 is a miniaturized dual-purpose charger and power supply. In addition to being used as a three-stage charger for lead-acid batteries, it can also be used as a constant voltage output power supply to drive general load. The operating mode can be quickly switched by plugging or unplugging a connector on the front panel. Other features include: ultra-wide voltage output, adjustable voltage via VR on the panel (10.5~21V, 21~42V, 42~80V), adjustable charging current (50~100%), built-in intelligent fan with variable speed based on temperature to reduce noise and extend fan lifetime, -30~+70° C wide operating temperature, suitability for use in different environments, built-in remote ON/OFF control, compliance to IEC/EN/UL62368-1 and household EN60335-1/-2-29 dual safety, multiple built-in protections, and 3-year warranty. The NPP- 120 0 is truly an intelligent, safe, and reliable universal dual-purpose charger and power supply with outstanding cost performance.

Features

Multi-function single unit battery charger or power supply operation modes selectable
Output voltage and current adjustable via potentiometer
3-stage charging curve for charging mode
-30~+70℃ wide operating temperature
Multiple protections: Short circuit / Over load / Over voltage / Over temperature
Thermal controlled DC fan for noise reduction
Remote ON-OFF control
Comply with 62368-1+60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) batteries
Carry handle accessory available (Order NO.:Carry handle, sold separately)
3 years warranty

Specifications

NPP-1200-24Specifications from the official datasheet (2025-04-11 edition)

BATTERY CHARGER MODE (Default) - OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 28.8V
FLOAT CHARGE VOLTAGE(Vfloat)(default)^{Note.3: Float charge voltage(Vfloat) adjustable via potentiomerter in battery charger mode.}: 27.6V
VOLTAGE ADJUSTABLE RANGE: 21 ~ 42V (By built-in potentionmeter)
MAX. OUTPUT CURRENT(CC): 36A
CURRENT ADJUSTABLE RANGE^Note.3: 18 ~ 36A (By built-in potentionmeter)
MAX. POWER: 1209.6W
RECOMMENDED BATTERY CAPACITY (AMP HOURS)^{Note.4: This is MEAN WELL's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.}: 120 ~ 420AH

BATTERY CHARGER MODE (Default) - PROTECTION

SHORT CIRCUIT^{Note.7: This protection mechanism is specified for the case the short circuit occurs after the charger is turned on.}: Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE: 43 ~ 52V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

BATTERY CHARGER MODE (Default) - FUNCTION

CHARGING STAGE: 3 stage only
CHARGER OK SIGNAL: The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL: The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL: Open : Charger stop charging Short : Charger normal work
FAN ON/OFF CONTROL: Depends on internal temperature

OUTPUT

DC VOLTAGE: 28.8V
VOLTAGE ADJUSTABLE RANGE: 21 ~ 42V (By built-in potentionmeter)
CURRENT ADJUSTABLE RANGE: 18 ~ 36A
RATED CURRENT: 36A
RATED POWER: 1209.6W
RIPPLE & NOISE(max.): 300mVp-p
VOLTAGE TOLERANCE: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 1800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at 75% load 10ms/230VAC at full load

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)^{In battery charger mode measured at 16.8V charge voltage(12V model), 33.6V charge voltage(24V model), 67.2V charge voltage(48V model).}: 93%
AC CURRENT (Typ.): 12A/115VAC 6.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A at 230VAC

PROTECTION

OVERLOAD: 105 ~ 115% rated output power Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
SHORT CIRCUIT: Protection type : Constant current limiting, unit will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE: 43 ~ 52V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: Open : Power OFF Short : Power ON
DC OK: The TTL signal out, DC OK = H(4.5 ~ 5.5V) ; Power supply failure or protection = L(-0.5 ~ +0.5V)
FAN SPEED CONTROL: Depends on internal temperature

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2, 3V/m
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 2, 3Vrms
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line,Level 3, 2KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 2, 3Vrms
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 625.1K hrs min. Telcordia SR-332 (Bellcore) ; 63.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 250*158*67mm (L*W*H)
PACKING: 1.93Kg; 4pcs/ 10Kg / 1.72CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. Derating may be needed under low input voltages. Please check the derating curve for more details.
4. The PSU is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

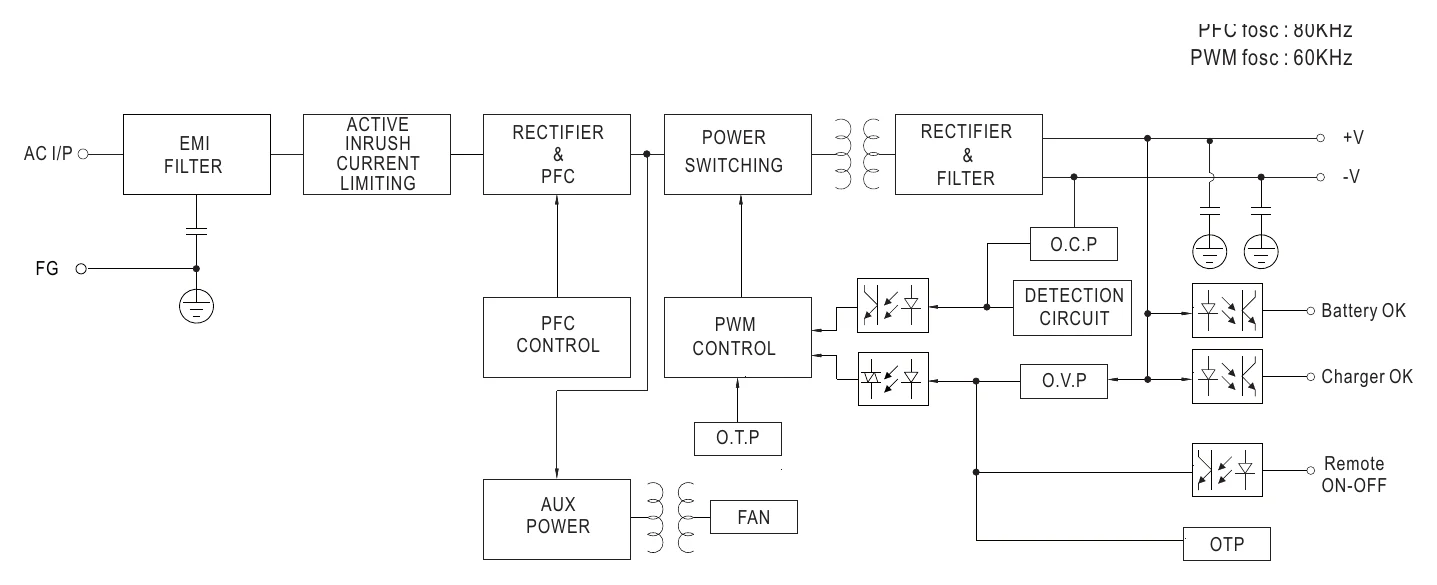

NPP-1200-24 Block Diagram — Block Diagram

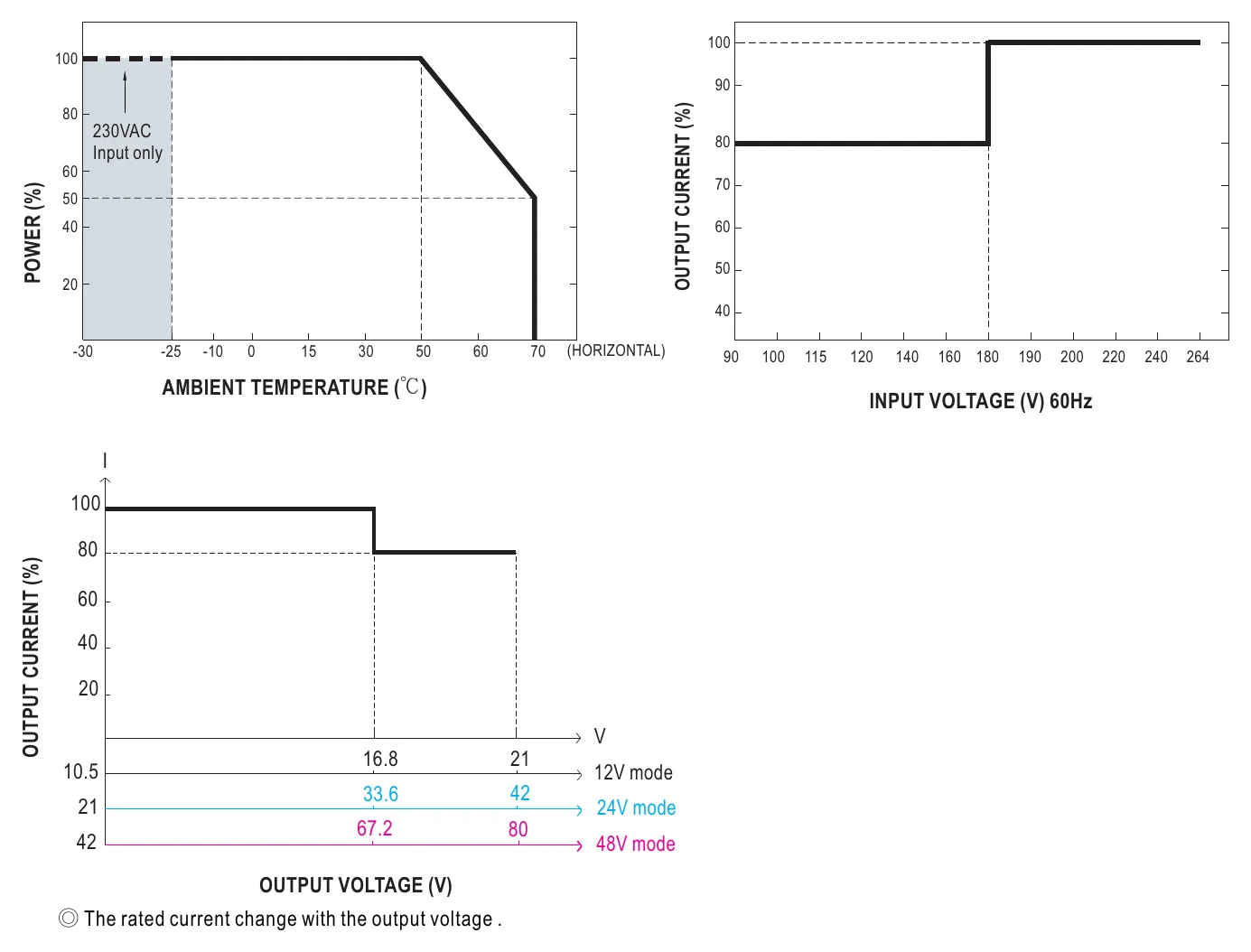

NPP-1200-24 Derating Curve — Derating Curve

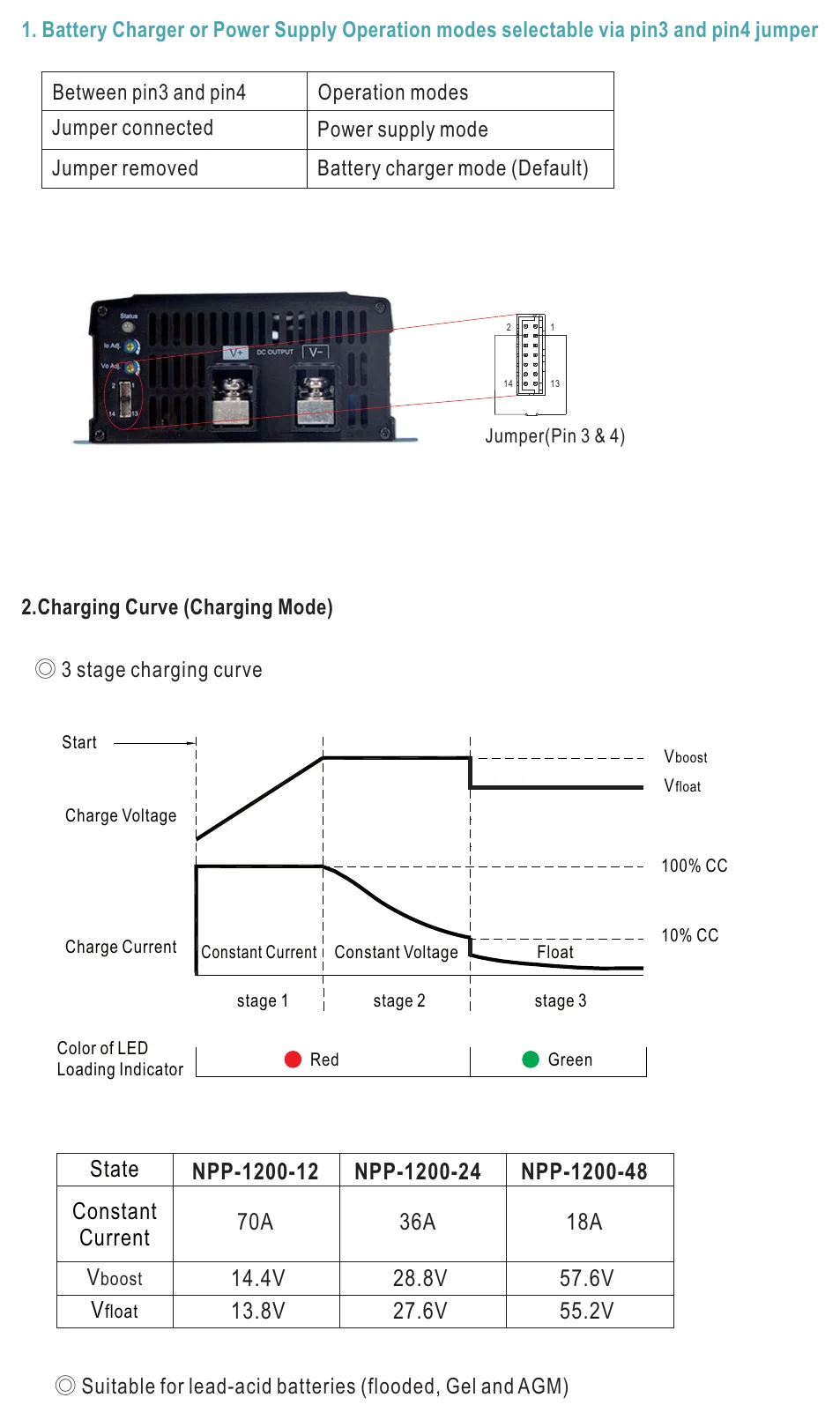

NPP-1200-24 Function Manual — Function Manual

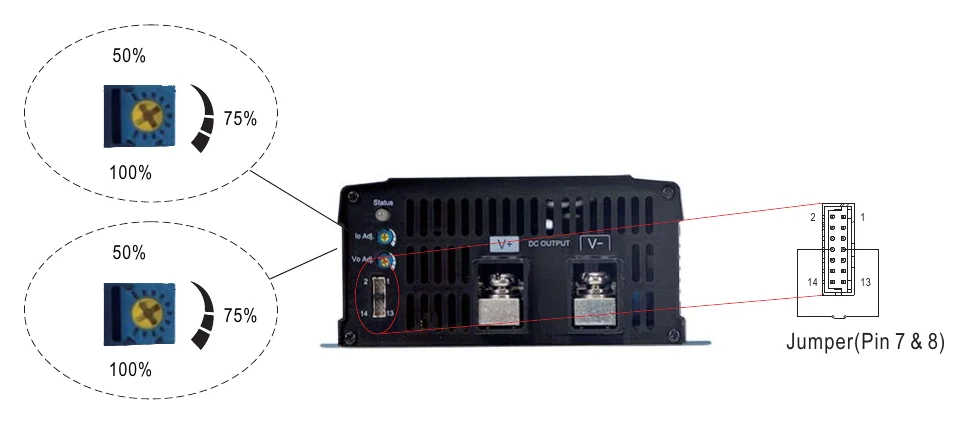

NPP-1200-24 Illustration (page 6) — Illustration (page 6)

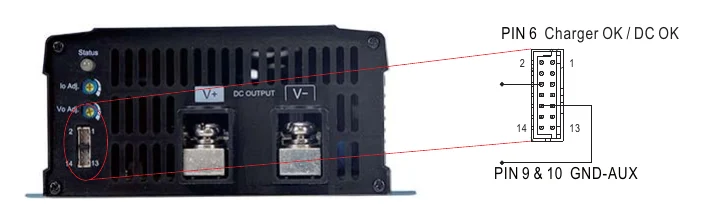

NPP-1200-24 PIN6 Charger OK/DC OK — PIN6 Charger OK/DC OK

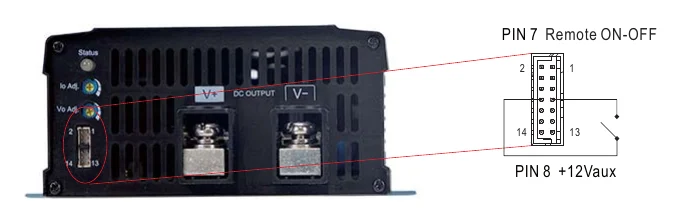

NPP-1200-24 PIN7 Remote ON-OFF — PIN7 Remote ON-OFF

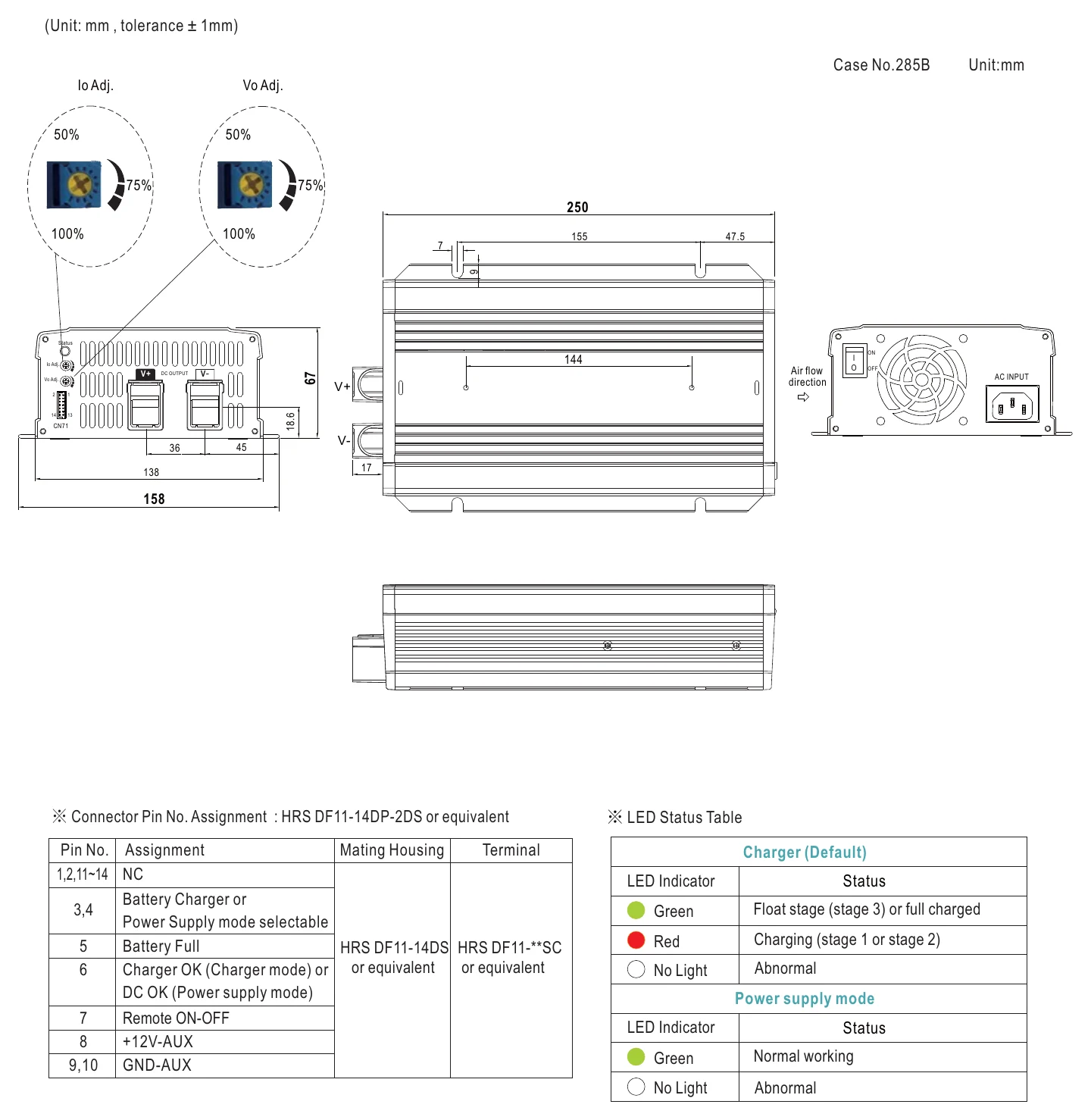

NPP-1200-24 Mechanical Specification — Mechanical Specification

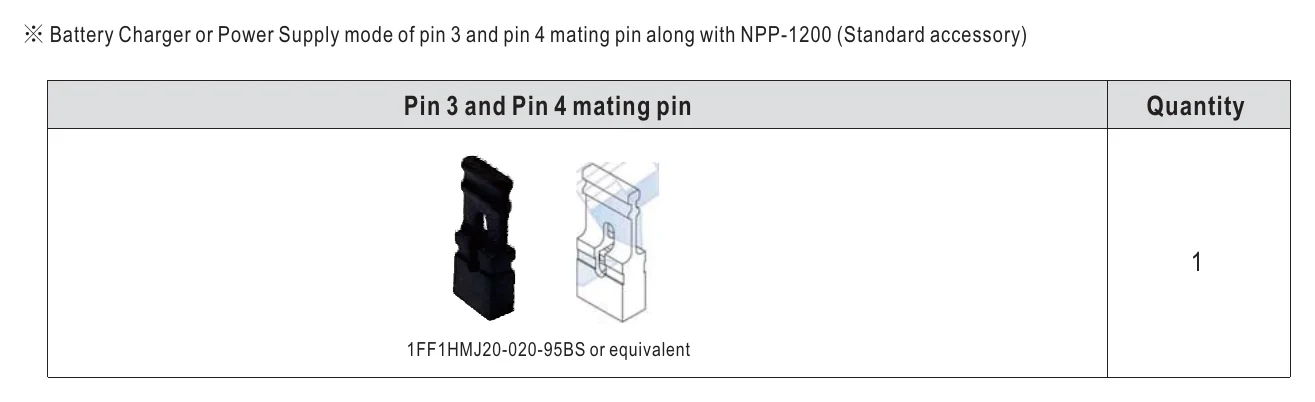

NPP-1200-24 Accessory List — Accessory List

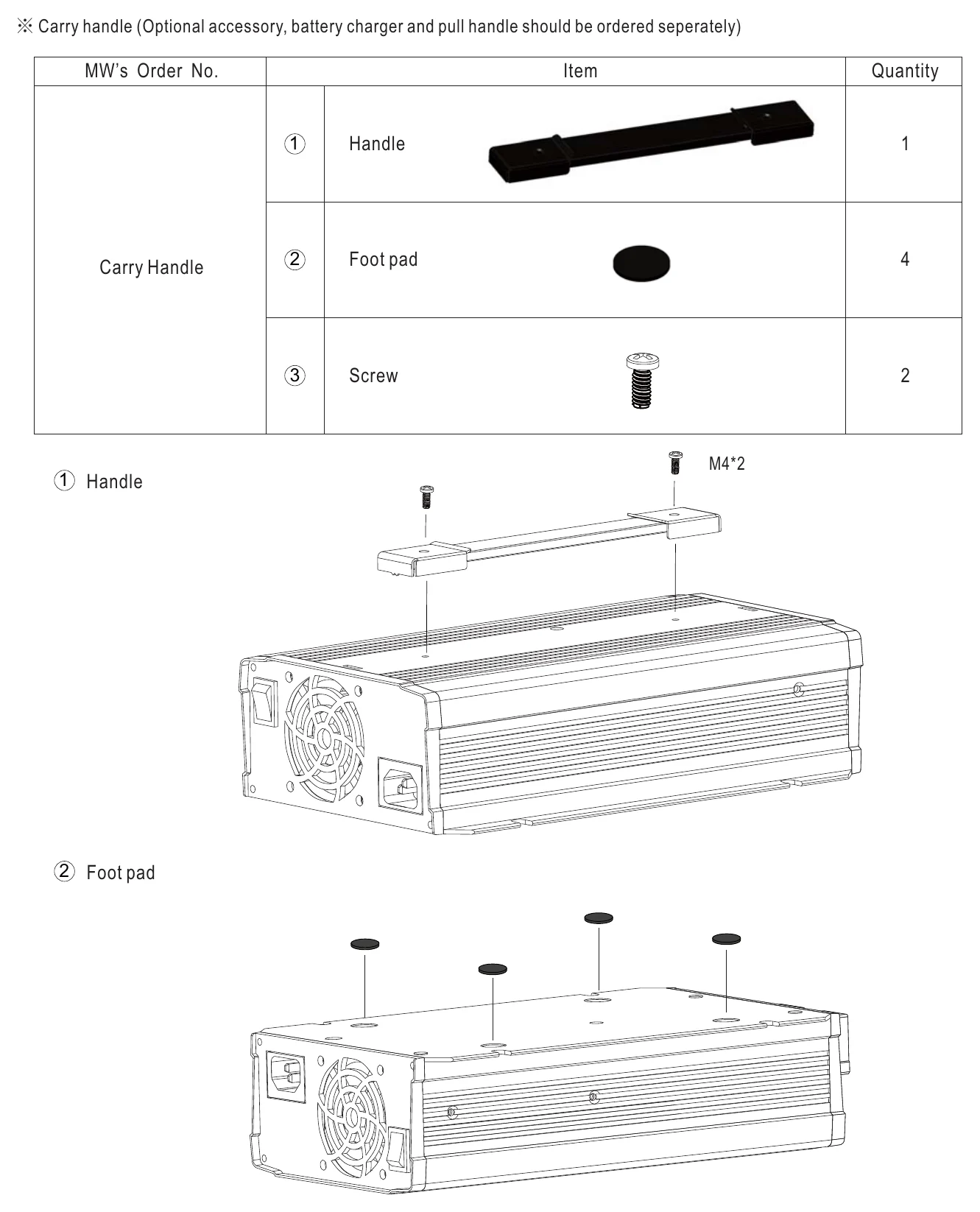

NPP-1200-24 ※ Carry handle (Optional accessory, battery charger and… — ※ Carry handle (Optional accessory, battery charger and…

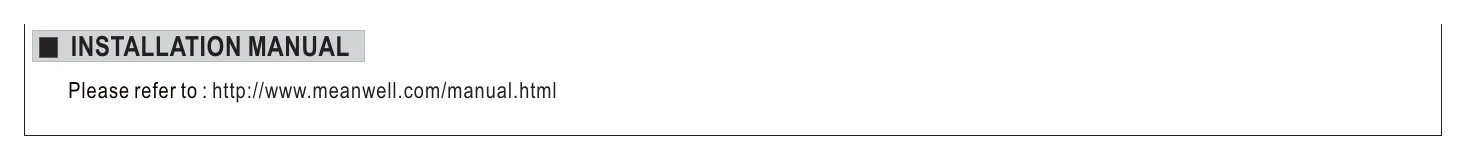

NPP-1200-24 INSTALLATION MANUAL — INSTALLATION MANUAL

Typical applications

Radio system backup solution
Electric scooter charger
Camping car、Buses、Heavy duty truck、Specialty vehicles
Surveillance system
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the Mean Well NPP-1200-24 designed for?

The NPP-1200-24 is a 2-in-1 unit that can operate as either a battery charger or a power supply, with the mode selectable via jumper. It is intended for lead-acid battery applications and also suits systems that need a high-power 24V-class DC output from a single compact unit.

What are the main electrical ratings of the NPP-1200-24?

This model is rated at 1209.6W with a nominal output voltage of 28.8V and a rated current of 36A. It also supports adjustable output voltage and adjustable output current from 50% to 100%, which gives buyers more flexibility within the product's supported range.

Can the NPP-1200-24 be adjusted for different output voltage ranges?

Yes, within its own range. The NPP-1200-24's output voltage is adjustable from 21 to 42V via the potentiometer on the panel, with a default output of 28.8V. The 10.5 to 21V and 42 to 80V ranges belong to the 12V and 48V models of the NPP-1200 series.

What battery type is this model suitable for?

The NPP-1200-24 is specified as suitable for lead-acid batteries. It also includes a 3-stage charging curve in charging mode, which is a key feature buyers often look for in lead-acid charging applications.

Is the NPP-1200-24 suitable for demanding industrial or commercial environments?

Yes. It has a wide operating temperature range of -30°C to +70°C (output derating applies at higher temperatures, per the derating curve) and includes a thermal-controlled cooling fan to help reduce noise while managing heat. The unit also includes built-in protections for short circuit, overload, overvoltage, and overtemperature conditions.

What safety approvals and warranty does the NPP-1200-24 have?

This model is listed with CB, UL, DEKRA, and EAC approvals, including compliance with IEC/EN/UL62368-1 and EN60335-1/-2-29. It is backed by a 3-year warranty.

How does the NPP-1200-24 differ from a standard fixed-output power supply?

Unlike a standard fixed-output power supply, the NPP-1200-24 can serve as either a battery charger or a power supply in one unit. It also offers adjustable voltage and current, plus a 3-stage charging function for lead-acid battery applications, which makes it more versatile than a basic DC supply.
