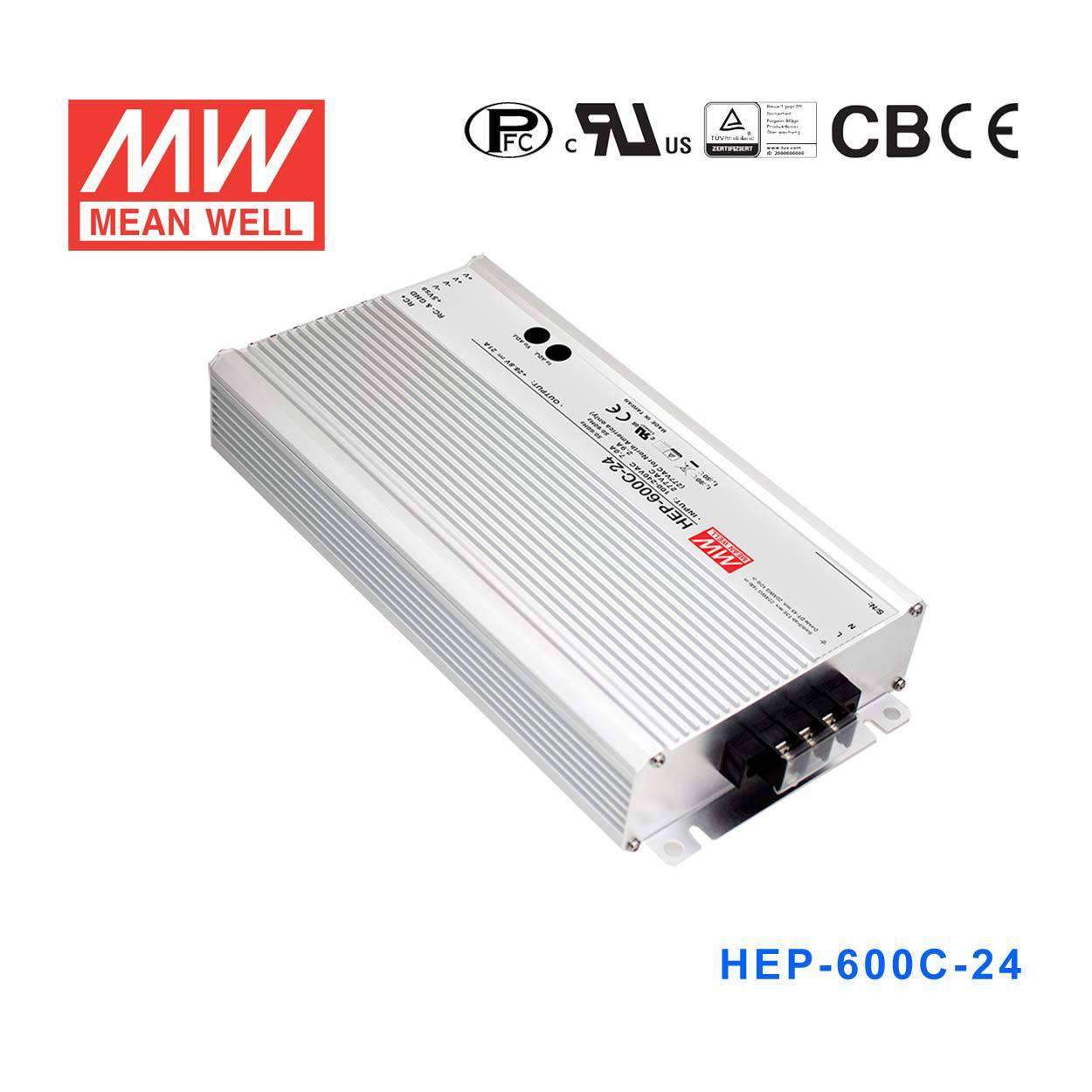

Mean Well HEP-600C-24 Battery Chargers 600W 28.8V 21A - 3 Stage W/PFC

Name: Mean Well HEP-600C-24 Battery Chargers 600W 28.8V 21A - 3 Stage W/PFC
Brand: Mean Well
SKU: HEP-600C-24
Price: 251.89 USD
Availability: InStock

suitable for lead-acid and Li-ion batterieshigh efficiency up to 95.5%operating altitude up to 5000 meterswithstand 10G vibration test

SKU HEP-600C-24

$251.89 USD

Shipping calculated at checkout.

In stock

Overview

HEP-600C-24 is the model of this series: typical efficiency 94.5%.

HEP-600C series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70℃).

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
3 stage charging
Universal AC input / Full range
Built-in active PFC function
No load power consumption <0.5W at remote OFF
High efficiency up to 95.5%
Fanless design, cooling by free air convection
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
-40 ~ +70℃ wide operating range
Output voltage and output current can be adjusted through internal potentiometer
Protection: Short circuit / Over voltage / Over temperature
3 color LED loading indicator
Operating altitude up to 5000 meters (Note.5)
6 years warranty

Specifications

HEP-600C-24Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

BOOST CHARGE VOLTAGE Vboost: 28.8V
FLOAT CHARGE VOLTAGE Vfloat: 27.2V
VOLTAGE ADJ. RANGE: 23 ~ 30.2V
CURRENT ADJ. RANGE: 10.5 ~ 21A
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^{Note 3}: 70 ~ 210AH
BATTERY TYPE: Open & Sealed Lead Acid
OUTPUT CURRENT: 21A

INPUT

VOLTAGE RANGE: 90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.): 94.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER VOLTAGE: 32.5 ~ 36.5V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 10min./1cycle, 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.4: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Compliance to BS EN/EN55032 (CISPR32), radiation class A, conduction class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY^Note.4: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020

OTHERS

MTBF: 857.2K hrs min. Telcordia SR-332 (Bellcore) ; 73.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16Kg/0.9CUFT

Test conditions and notes5

1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

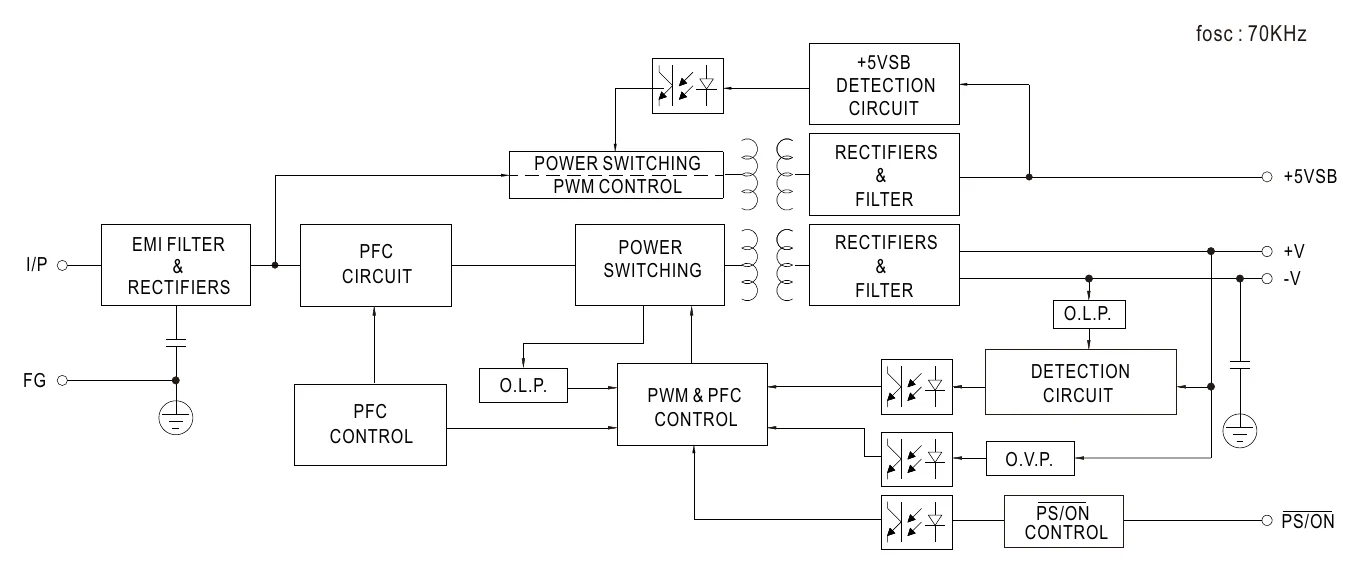

HEP-600C-24 Block Diagram — Block Diagram

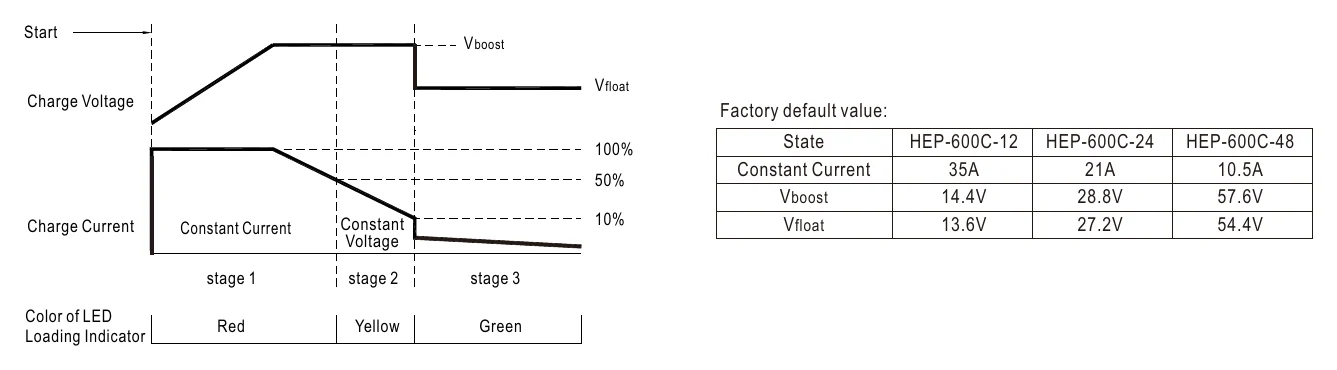

HEP-600C-24 Charging Curve — Charging Curve

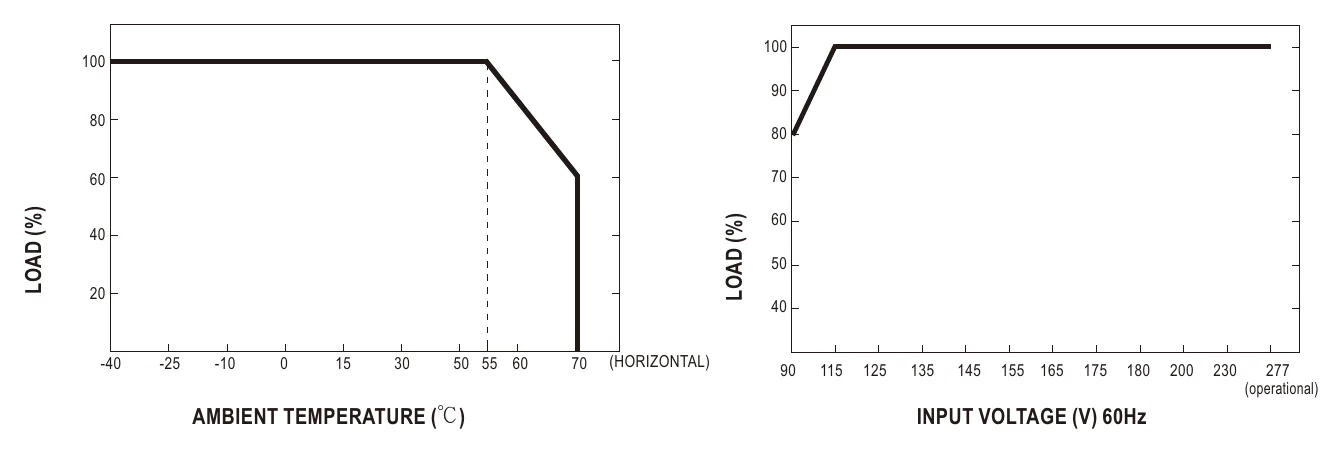

HEP-600C-24 Derating Curve — Derating Curve

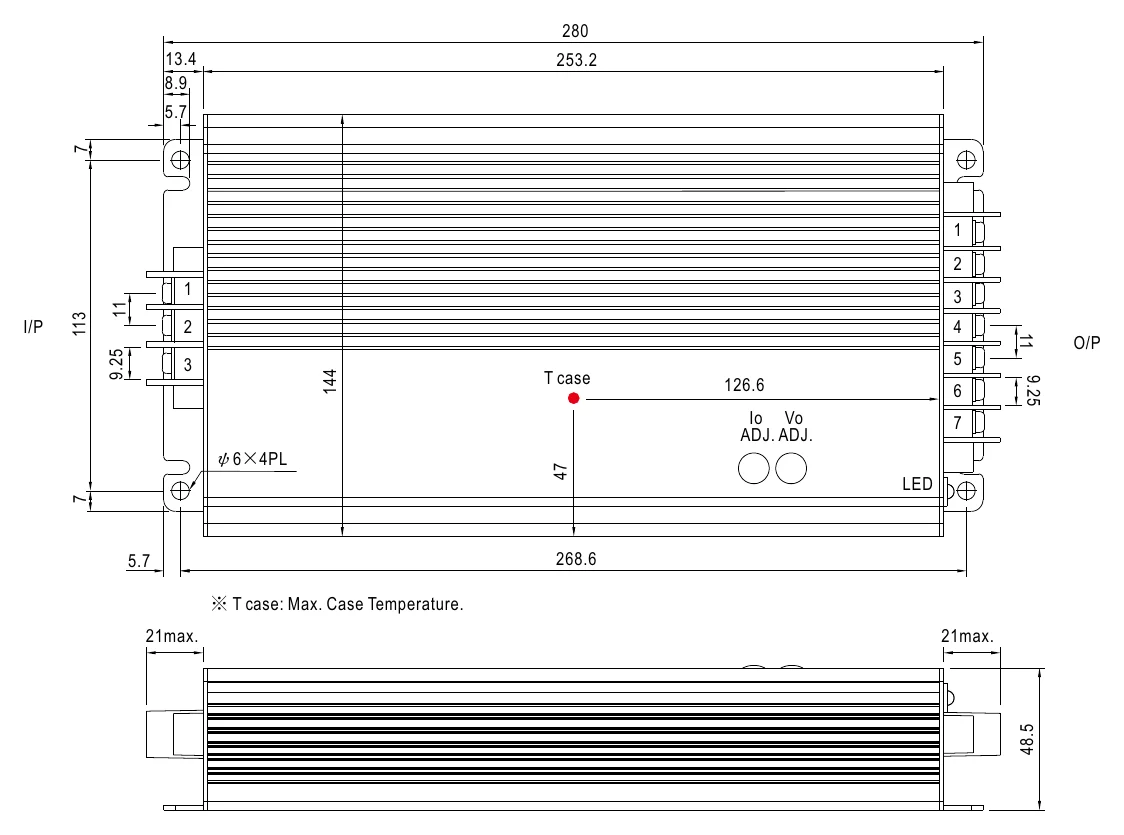

HEP-600C-24 Illustration (page 4) — Illustration (page 4)

Typical applications

Suitable for battery charger at harsh environment
Robotic lawn mower
Electronic transportation vehicle
Recreational craft, personal yacht or workboat
Security network and system
Telecommunication base station
Equipments or instruments with back-up battery

Downloads

Certificates6

Mean Well HEP-600(C)-TUV Certificate PDF Download

Mean Well HEP-600(C)-CB(TUV) Certificate PDF Download

Mean Well HEP-600(C)-CB(UL) Certificate PDF Download

Mean Well HEP-600(C)-EMC Certificate PDF Download

Mean Well HEP-600 (C)-CE-dec Certificate PDF Download

Mean Well HEP-600(C)-UK-dec Certificate PDF Download

Test reports1

Mean Well HEP-600C-24 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the output rating of the Mean Well HEP-600C-24?

The HEP-600C-24 is a 600W battery charger with a 28.8V boost and 27.2V float charge voltage and 21A rated current. It is designed for higher-power DC charging applications that need a regulated 3-stage charging profile. The output current is adjustable from 10.5 to 21A.

What kinds of applications is the HEP-600C-24 suited for?

This model is aimed at industrial and commercial charging of open and sealed lead-acid batteries that need a high-power charger with PFC. Its 600W capacity, 28.8V boost charge voltage, and harsh-environment design make it a fit for demanding B2B environments where durability and stable charging performance matter. Mean Well suggests a battery capacity of 70 to 210AH.

Can the HEP-600C-24 operate in harsh environments?

Yes. The HEP-600C-24 is specified for operation from -40°C to +70°C, subject to the output derating curve. It is also rated for 10G vibration (20 to 500Hz) and 20 to 95% RH non-condensing humidity, which supports use in tougher industrial environments.

What input range does the HEP-600C-24 support?

This charger supports a wide AC input range of 90 to 264VAC (277VAC operational) and also accepts 128 to 370VDC. It also includes built-in power factor correction (PF>0.95 at 230VAC), which is beneficial in installations where power quality and compliance are important. The universal input range makes it suitable for use across varied supply conditions.

How efficient is the Mean Well HEP-600C-24?

The HEP-600C-24 is rated for a typical efficiency of 94.5%. High efficiency helps reduce wasted energy and lowers heat generation during operation. That supports reliable performance in thermally demanding environments.

What protection features are included in the HEP-600C-24?

This model includes over voltage protection (32.5 to 36.5V) and over temperature protection. In both cases the unit shuts down the output voltage and recovers when it is re-powered. These features help protect both the charger and the broader system during abnormal conditions.
