Mean Well

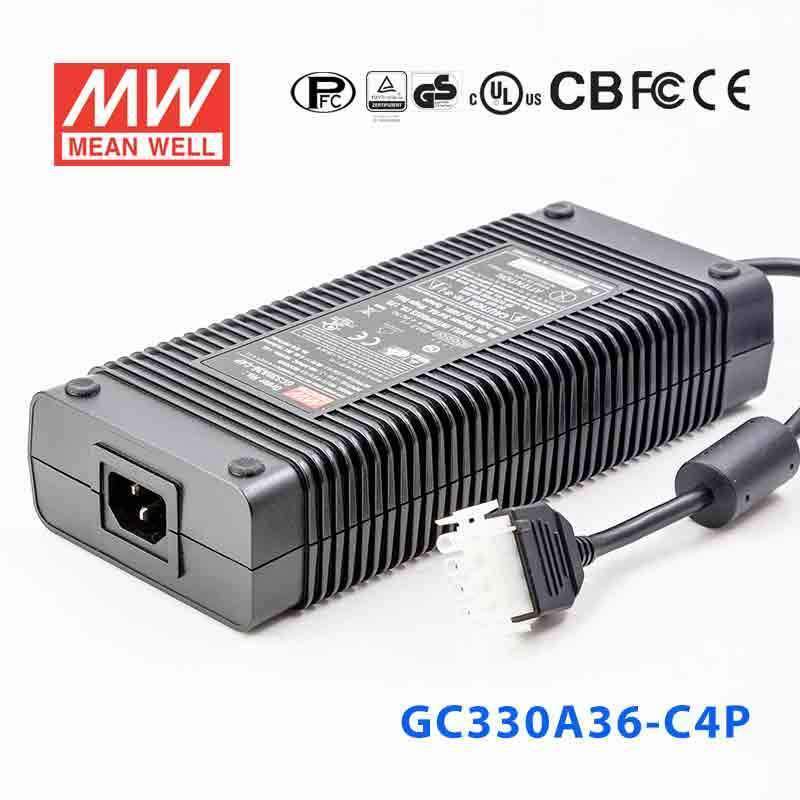

Mean Well GC330A36-C4P Portable Chargers 261.1W 40.8V 6.4A - Green Adaptor

SKU GC330A36-C4P
$94.67 USD
Shipping calculated at checkout.
In stock
|

Overview

GC330A36-C4P is the model of this series: typical efficiency 93.5%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Over voltage / Over temperature
  • Fanless design, cooling by free air convection
  • Fully enclosed plastic case
  • No load power consumption<1W
  • 2 color LED indicator for charging status
  • Approvals : UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC330A36-C4PSpecifications from the official datasheet (2024-06-03 edition)

OUTPUT

SAFETY MODEL NO.
GC330A36
DC VOLTAGE (Typ.)
40.8V
RECOMMENDED BATTERY CAPACITYNote.3
20 ~ 65Ah
PEAK CURRENT(Typ.)Note 5
8A
CONTINUOUS OUTPUT CURRENT (Typ.)Note 6
6.4A
OUTPUT POWER RANGE
261.1 ~ 326.4W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
93.5%
AC CURRENT (Typ.)
4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
1.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
100℃±10℃(RTH2) Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 7
UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020

OTHERS

MTBF
1624.8K hrs min. Telcordia SR-332 (Bellcore) ; 209.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*95*46mm (L*W*H)
PACKING
1.25Kg; 12pcs/16Kg/1.09CUFT

CONNECTOR

PLUG
See page 2
CABLE
See page 2
Test conditions and notes8
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Test condition is at 25℃ the charging current vary with the ambient and components temperature. The lower temperature, the higher charging current.
  6. 6. Maximum charging current will be in the range of 85~110% rated output current.
  7. 7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that whole system complies with the EMC directives.(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

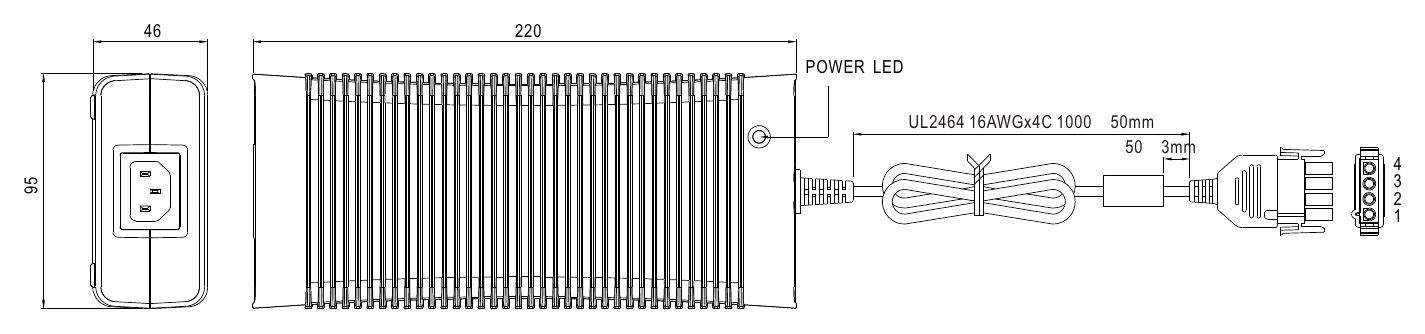

GC330A36-C4P Mechanical Specification
Mechanical Specification

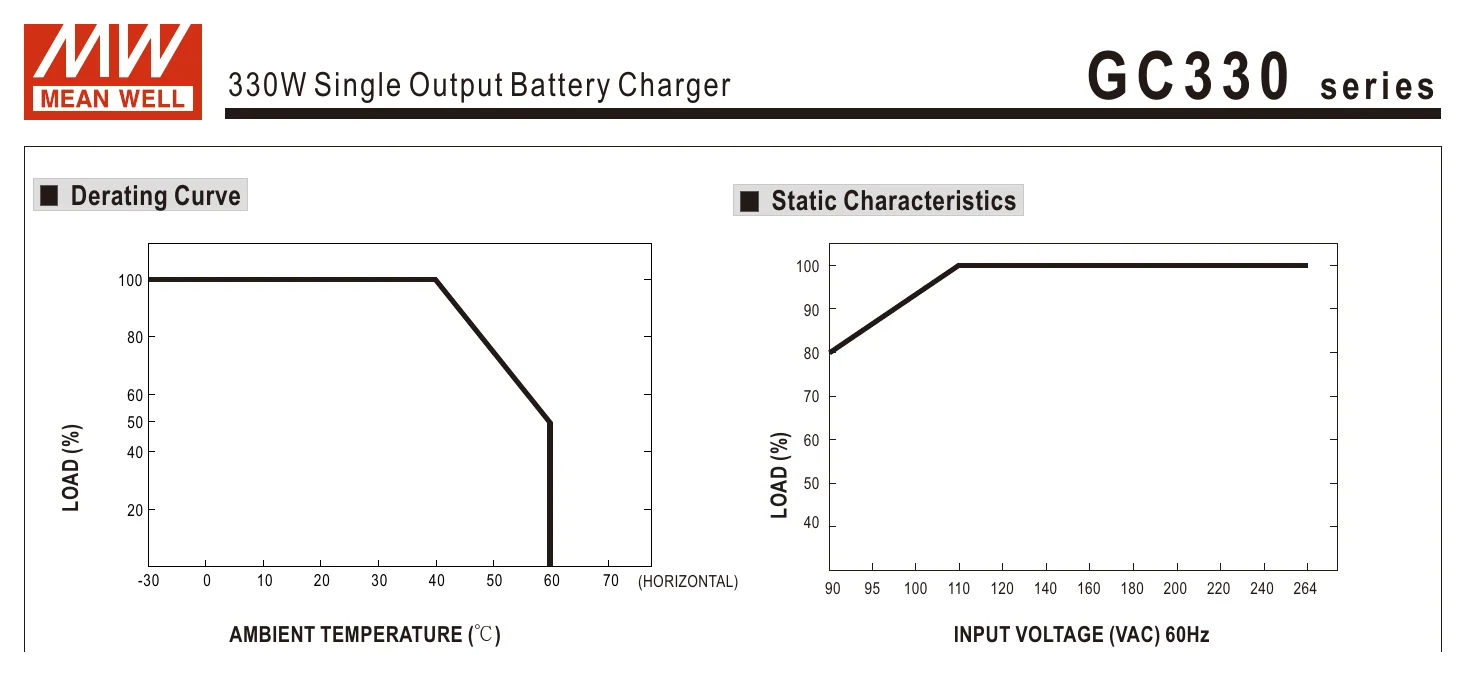

GC330A36-C4P G C 3 3 0 series
G C 3 3 0 series

Downloads

FAQ

What are the main output specifications of the Mean Well GC330A36-C4P?

The GC330A36-C4P has a 261.1 to 326.4W output power range with a nominal output of 40.8V, 6.4A continuous and 8A peak charging current. That makes it suitable for applications needing a higher-power battery charger in this voltage range. It is part of Mean Well's 330W GC330 battery charger series.

What kinds of applications is this charger typically used for?

This model is typically considered for battery charging applications that require a 40.8V DC charging voltage, with a recommended battery capacity of 20 to 65Ah. Its two-stage charging (constant current, then constant voltage float) and red/green charging-status LED suit commercial and industrial equipment. Buyers commonly evaluate it where an external charger with built-in protections is preferred.

Can the GC330A36-C4P operate on international AC input voltage?

Yes. The specified AC input range is 90 to 264VAC, with DC input support of 127 to 370VDC. This full-range input design helps support use across different regional mains standards.

Is this model suitable for demanding temperature environments?

The GC330A36-C4P has a working temperature range of -30°C to +60°C, subject to the manufacturer's derating guidance. That wide range supports use in both cold and warm operating conditions. Buyers should still confirm that their specific enclosure and load conditions stay within the allowed range.

What protection features are included in this charger?

This model includes protection for short circuit, over voltage, and over temperature conditions. Short circuit protection uses hiccup mode with automatic recovery, while over-voltage protection shuts down the output, with recovery by re-powering the unit. These built-in protections are useful for buyers prioritizing equipment safety and power reliability.

How does the GC330A36-C4P compare with a standard low-power adapter?

Compared with a basic low-power adapter, the GC330A36-C4P offers a much higher power rating at 330W (261.1 to 326.4W output range) and includes a high power factor (PF>0.95), 93.5% typical efficiency, and multiple safety approvals. It is also designed as a battery charger with a two-color LED charging-status indicator. That makes it a stronger fit for higher-demand professional applications rather than light-duty consumer electronics.

What certifications and warranty does this model include?

The spec sheet lists safety approval to UL62368-1, TUV BS EN/EN62368-1 and EAC TP TC 004. EMC compliance includes BS EN/EN55032 Class B, FCC Part 15 / CISPR22 Class B and CAN ICES-3(B). The spec sheet does not state a warranty period, so please confirm warranty terms before purchase.
