Mean Well

Mean Well GC30U-4P1J Portable Chargers 30W 14.3V 2.09A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30U-4P1J
$37.51 USD
Shipping calculated at checkout.
In stock
|

Overview

GC30U-4P1J is the model of this series: rated current 2.09A, rated power 30W, typical efficiency 78%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
  • Universal AC input / Full range
  • With USA type 6FT power cord(2pin)
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / EAC / CB / FCC
  • 2 years warranty

Specifications

GC30U-4P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.
GC30U-4
DC VOLTAGE SET ATNote.3
14.3V
RATED CURRENT
2.09A
CURRENT RANGE
0 ~ 2.09A
RATED POWER
30W
RIPPLE & NOISE (max.)Note.4
100mVp-p
CHARGING VOLTAGE RANGENote.5
13.5 ~ 14.5V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
78%
AC CURRENT
0.7A / 100VAC; 0.35A/ 230VAC
INRUSH CURRENT (max.)
40A / 230VAC
LEAKAGE CURRENT(max.)
0.25mA / 240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, CSA22.2, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
405g; 36pcs / 16.5kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

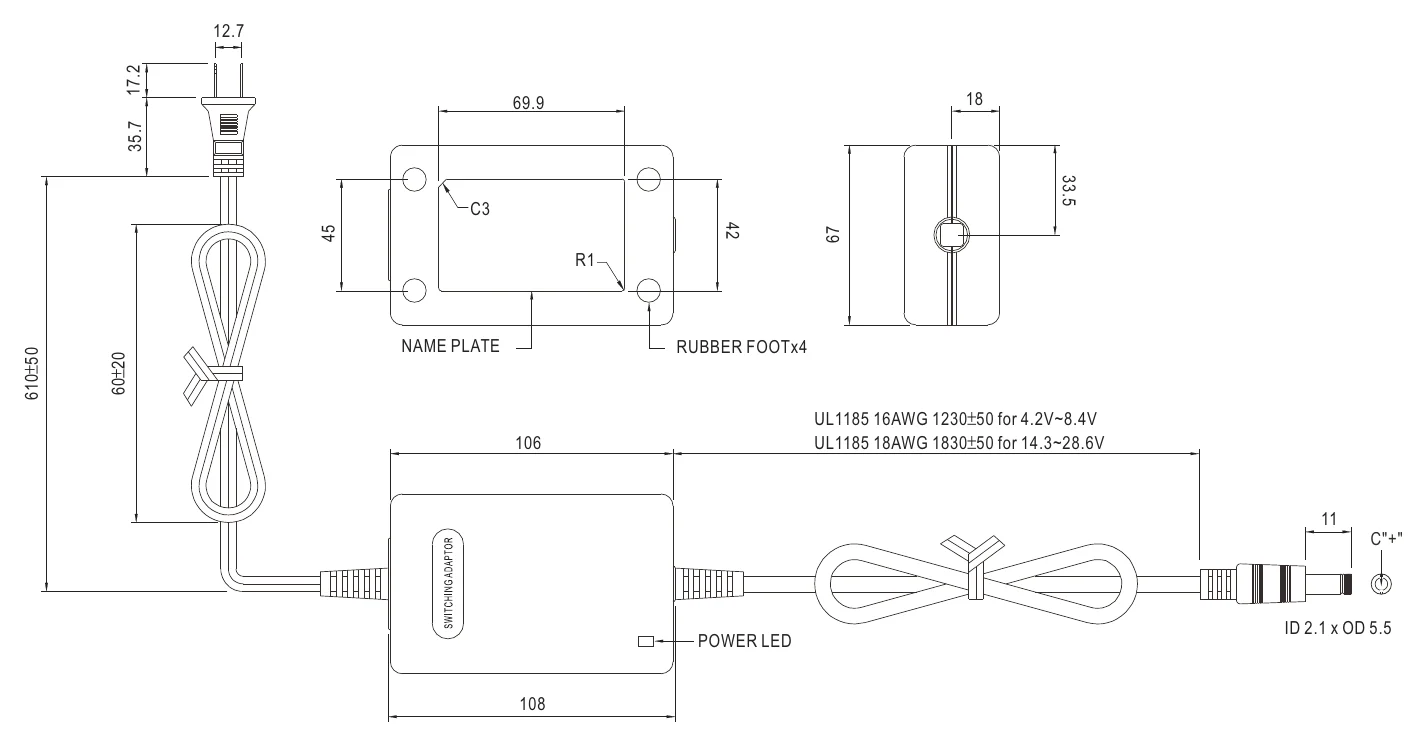

GC30U-4P1J Mechanical Specification
Mechanical Specification

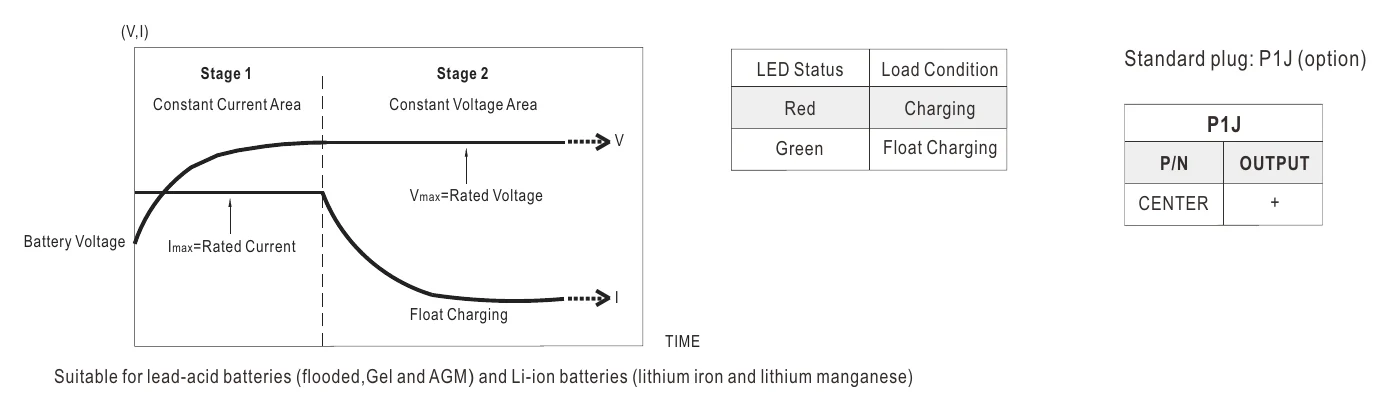

GC30U-4P1J Charging Curve
Charging Curve

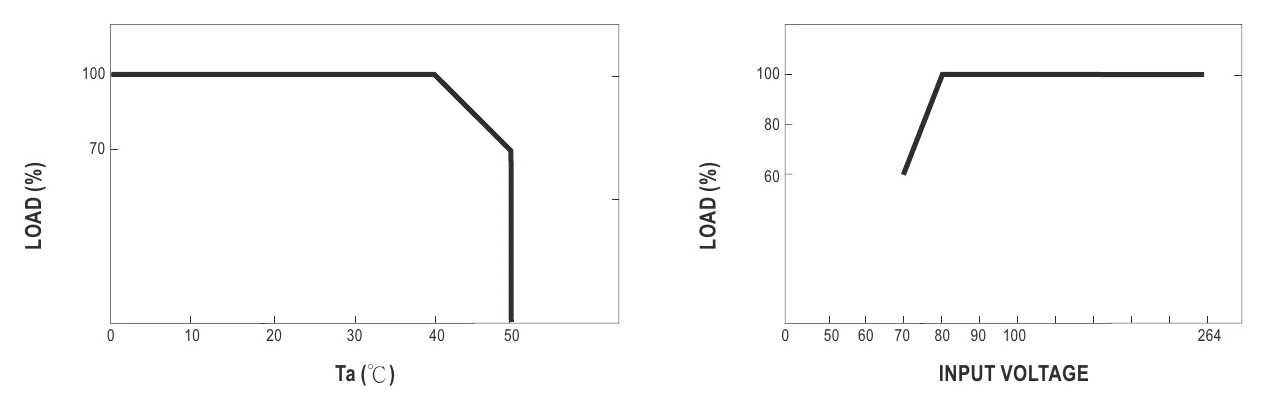

GC30U-4P1J Derating Curve
Derating Curve

Downloads

FAQ

What battery types is the Mean Well GC30U-4P1J designed for?

The GC30U-4P1J is designed for lead-acid batteries, including flooded, gel, and AGM types. It is also intended for certain lithium-ion battery chemistries listed by the manufacturer, including lithium iron and lithium manganese. Buyers should confirm the battery pack's required charging profile matches this model's 14.3V output.

What are the main electrical ratings of the GC30U-4P1J?

This model is rated at 30W with a 14.3V output and 2.09A rated current. It uses constant current and constant voltage charging behavior. The input range is universal at 90 to 264VAC, with 127 to 370VDC also supported.

Is the GC30U-4P1J suitable for portable or field use?

It is a compact external adaptor measuring 108 x 67 x 36 mm and weighing about 0.405 kg. Its rated working range is 0°C to 50°C at 20% to 90% RH non-condensing. Those features make it practical for mobile service kits, bench use, and portable charging applications within those conditions.

What protections and status indicators does the GC30U-4P1J include?

This model includes protection for overload, over voltage, and over temperature. It also has a red/green LED indicator for charging status. These features help support safer operation and quick visual status checks.

What operating environment is the GC30U-4P1J rated for?

The specified working temperature range is 0 to 50 degrees C, with reference to the derating curve, at 20% to 90% RH non-condensing. For compliance-sensitive environments, it carries UL62368-1, CSA22.2, and EAC TP TC 004 safety approval and FCC Part 15 Class B EMC compliance.
