Mean Well

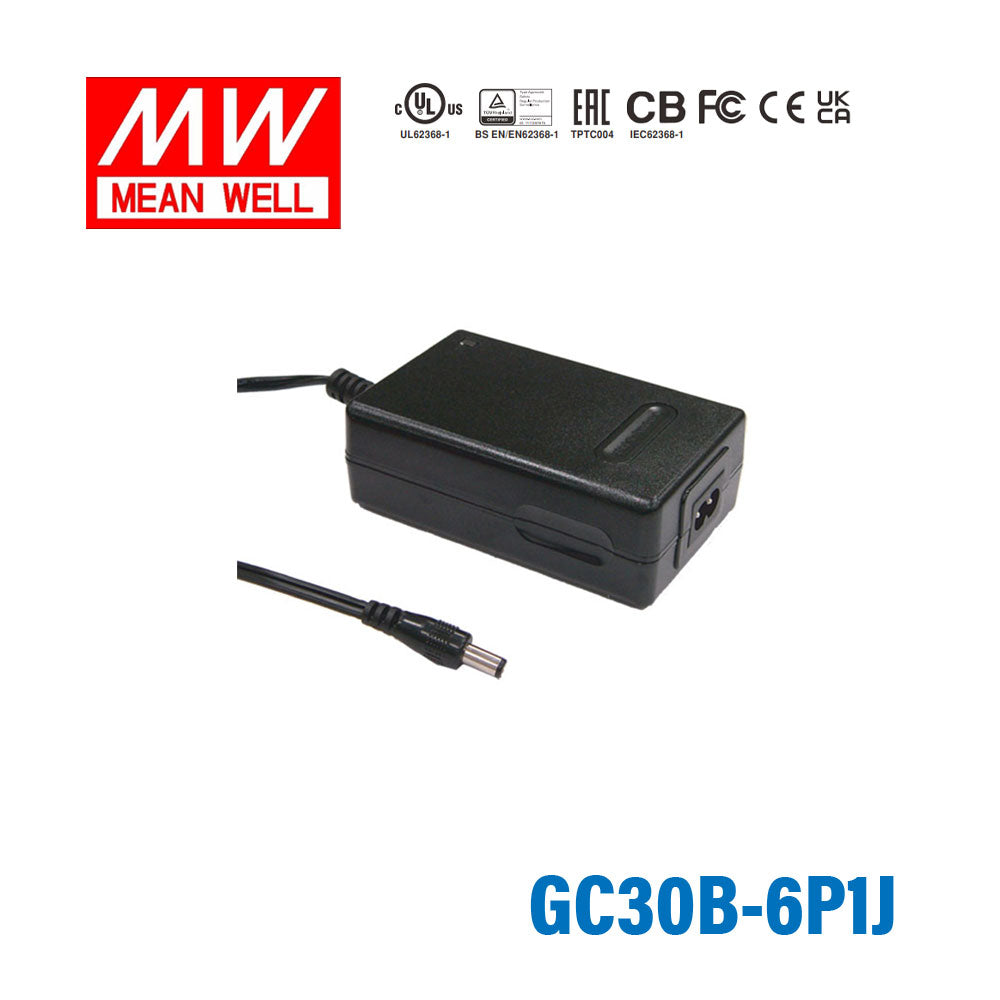

Mean Well GC30B-6P1J Portable Chargers 30W 28.6V 1.04A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30B-6P1J
$35.01 USD
Shipping calculated at checkout.
In stock
|

Overview

GC30B-6P1J is the model of this series: rated current 1.04A, rated power 30W, typical efficiency 80%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
  • Universal AC input / Full range
  • 2 pole AC Inlet IEC320-C8
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC30B-6P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.
GC30B-6
DC VOLTAGE SET ATNote.3
28.6V
RATED CURRENT
1.04A
CURRENT RANGE
0 ~ 1.04A
RATED POWER
30W
RIPPLE & NOISE (max.)Note.4
150mVp-p
CHARGING VOLTAGE RANGENote.5
27.1 ~ 28.8V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
80%
AC CURRENT
0.7A /100VAC; 0.35A/230VAC
INRUSH CURRENT (max.)
40A/230VAC
LEAKAGE CURRENT(max.)
0.25mA /240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
309g; 54pcs / 19kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30B-6P1J Mechanical Specification
Mechanical Specification
GC30B-6P1J Charging Curve
Charging Curve
GC30B-6P1J Derating Curve
Derating Curve

Downloads

FAQ

What battery types is the Mean Well GC30B-6P1J designed to charge?

The GC30B-6P1J is intended for lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion chemistries listed by the manufacturer. This makes it suitable for buyers who need a portable charger for supported battery systems rather than a general-purpose bench supply.

What are the main electrical ratings of the GC30B-6P1J?

This model is rated at 30W with a 28.6V output and 1.04A rated current. Those specifications make it a compact charger option for applications that require this specific charging voltage and modest output current.

Is the GC30B-6P1J suitable for portable or field use?

Yes. It weighs about 0.309 kg and has compact dimensions of 108 x 67 x 36 mm, which supports portable use. Its broad AC input range also helps buyers who need flexibility across different mains power environments.

What input voltage range does this charger support?

The GC30B-6P1J accepts 90 to 264VAC or 127 to 370VDC input. This universal input range is useful for B2B buyers sourcing one charger model for multiple regions or varied power conditions.

Can this charger operate continuously in normal commercial use?

The datasheet specifies constant current and constant voltage charging, followed by float charging, at up to 30W, 28.6V and 1.04A. Ongoing use should stay within those ratings and the 0 to 50°C working range with its derating curve.

What protection features are included in the Mean Well GC30B-6P1J?

This model includes protection against overload, over-voltage, and over-temperature conditions. Overload and over-temperature recover automatically, and over-voltage is clamped by a zener diode, which is relevant for buyers evaluating operational safety.

What operating temperature range is specified for the GC30B-6P1J?

The specified working temperature range is 0°C to 50°C, with reference to the derating curve. Buyers using this charger in warmer or more controlled indoor environments should verify that their application stays within that range.

Does the GC30B-6P1J include certifications and warranty coverage?

Partly. The datasheet lists safety standards UL62368-1, CSA22.2, BS EN/EN62368-1, and EAC TP TC 004, with EMC emission compliance to BS EN/EN55014-1 Class B, FCC Part 15 Class B, and EAC TP TC 020. It does not state a warranty period, so confirm warranty terms with the seller.
