Mean Well

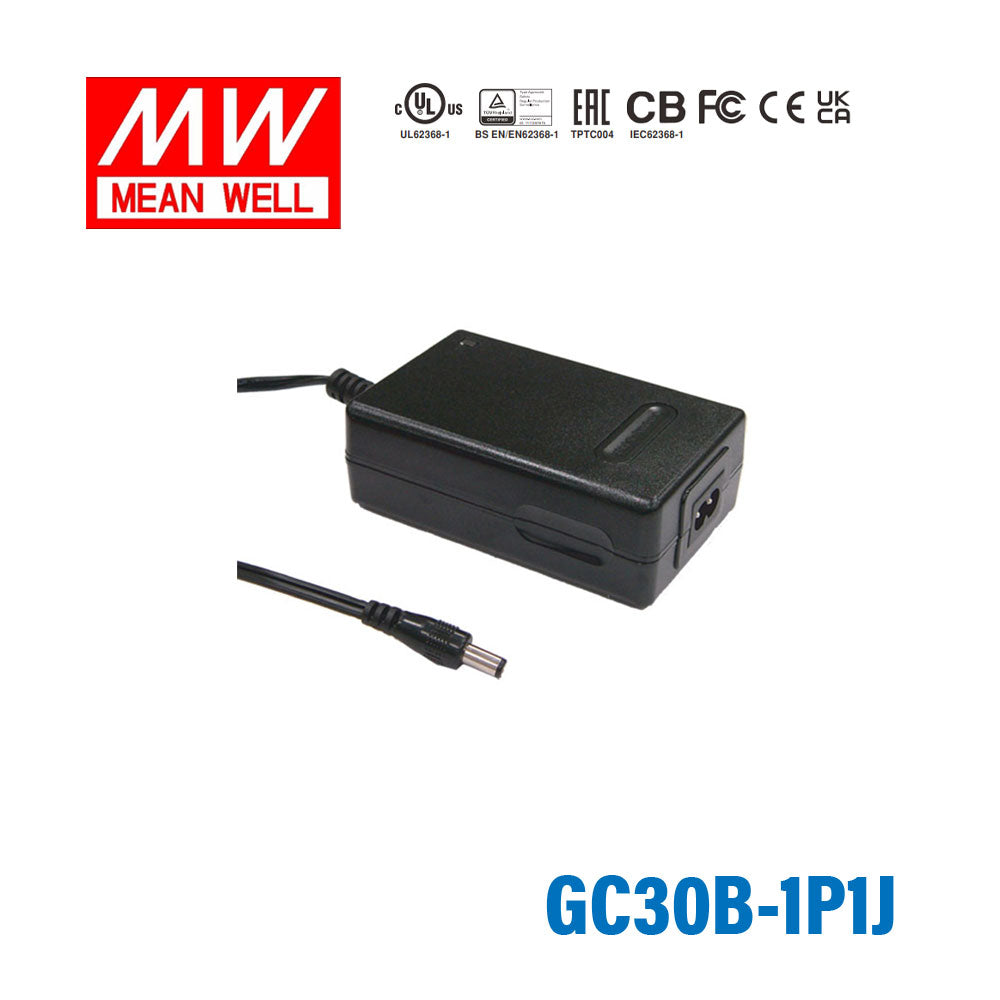

Mean Well GC30B-1P1J Portable Chargers 22.38W 5.6V 3.99A - Green Adaptor

class II powerno load power consumption<1.0Wsuitable for continue loadfor high surge current equipment
SKU GC30B-1P1J
$35.01 USD
Shipping calculated at checkout.
In stock
|

Overview

GC30B-1P1J is the model of this series: rated current 3.99A, rated power 22.38W, typical efficiency 70%.

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and li-ion batteries (lithium iron and lithium manganese)(Note.1)
  • Universal AC input / Full range
  • 2 pole AC Inlet IEC320-C8
  • Class II power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC30B-1P1JSpecifications from the official datasheet (2025-01-23 edition)

OUTPUT

SAFETY MODEL NO.
GC30B-1
DC VOLTAGE SET ATNote.3
5.6V
RATED CURRENT
3.99A
CURRENT RANGE
0 ~ 3.99A
RATED POWER
22.38W
RIPPLE & NOISE (max.)Note.4
50mVp-p
CHARGING VOLTAGE RANGENote.5
5 ~ 5.8V
LINE REGULATIONNote.6
±0.5%
LED INDICATOR
Green LED ON < 100mA, Red LED ON > 250mA
SETUP, RISE, HOLD UP TIME
200ms, 50ms, 16ms at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
70%
AC CURRENT
0.7A /100VAC; 0.35A/230VAC
INRUSH CURRENT (max.)
40A/230VAC
LEAKAGE CURRENT(max.)
0.25mA /240VAC

PROTECTION

OVERLOAD
90 ~ 110% Constant current mode and over 300% pulsing mode Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 135% rated output voltage Protection type : Clamp by zener diode
OVER TEMPERATURE
IC1_Tj > 130℃ Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃(Refer to output load derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, CSA22.2, BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55014-1 class B, FCC part 15 Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020

OTHERS

DIMENSION
108*67*36mm (L*W*H)
PACKING
309g; 54pcs / 19kg / CARTON

CONNECTOR

PLUG
Standard type P1J: 2.1ψ * 5.5ψ * 11mm, tuning fork type center positive for stock ; Other type available by customer requested
CABLE
Standard type 18Awg UL1185 6ft and 4ft for 4.2V~8.4V output only for stock ; Other type available by customer requested
Test conditions and notes6
  1. 1.Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  3. 3.DC voltage: The output voltage set at point measure by plug terminal & 0% load.
  4. 4.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  5. 5.Output charging voltage range is measured from 0% to 100% rated load.
  6. 6.Line regulation is measured from low line to high line at rated load.

Technical drawings

GC30B-1P1J Mechanical Specification
Mechanical Specification
GC30B-1P1J Charging Curve
Charging Curve
GC30B-1P1J Derating Curve
Derating Curve

Downloads

FAQ

What is the Mean Well GC30B-1P1J designed for?

The GC30B-1P1J is a portable charger and AC/DC power supply designed for charging lead-acid batteries, including flooded, gel, and AGM types, as well as certain lithium-ion battery chemistries noted by the manufacturer. It is intended for buyers who need a compact external power unit with constant current and constant voltage operation. Its 22.38W output is suited to lower-voltage applications requiring 5.6V and up to 3.99A.

What are the output ratings of the GC30B-1P1J?

This model is rated for 22.38W total output power. It provides 5.6V output and up to 3.99A rated current. These are the key electrical ratings to match against your equipment or charging requirements.

What input voltage range does this charger support?

The GC30B-1P1J supports a universal input range of 90 to 264VAC, and it also accepts 127 to 370VDC. That wide range makes it suitable for use across many standard power environments. It is built for buyers who need flexibility across regions or facilities with varying input conditions.

Is the GC30B-1P1J suitable for continuous use?

The datasheet specifies constant current and constant voltage charging, followed by float charging, at up to 22.38W, 5.6V and 3.99A. For industrial or commercial buyers, ongoing operation should stay within those rated limits and the 0 to 50°C working range with its derating curve.

What protection features are included in this model?

The GC30B-1P1J includes overload, over-voltage, and over-temperature protection. Overload uses constant current limiting and over-temperature shuts down the output, both recovering automatically; over-voltage at 110% to 135% of rated output is clamped by a zener diode. These protections help support reliable operation.

What operating temperature range is specified for the GC30B-1P1J?

This model is specified for operation from 0°C to 50°C, with reference to the manufacturer’s derating curve. That makes it appropriate for many indoor commercial and light industrial environments. Buyers should confirm the ambient conditions stay within that range for expected performance.

How compact is the Mean Well GC30B-1P1J?

The listed dimensions are 108 x 67 x 36 mm, and the unit weight is 0.309 kg. Its compact size and relatively light weight support portable use. This makes it easier to handle where space and mobility matter.

What certifications and compliance standards does this charger meet?

The datasheet lists safety standards UL62368-1, CSA22.2, BS EN/EN62368-1, and EAC TP TC 004, with EMC emission compliance to BS EN/EN55014-1 Class B, FCC Part 15 Class B, and EAC TP TC 020. These standards are relevant for buyers who need documented compliance for business or regulated purchasing.
