Mean Well

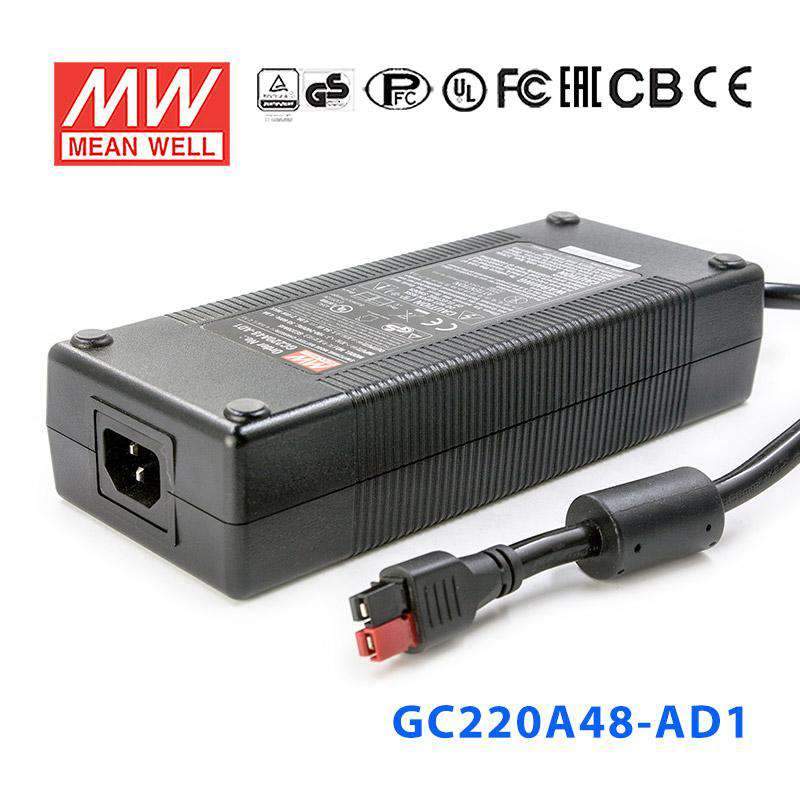

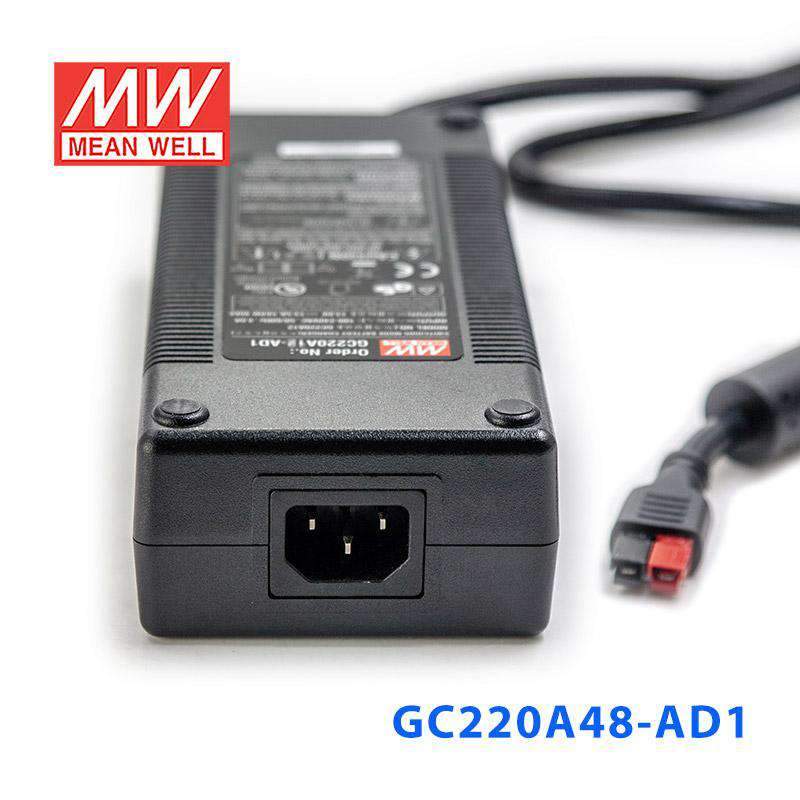

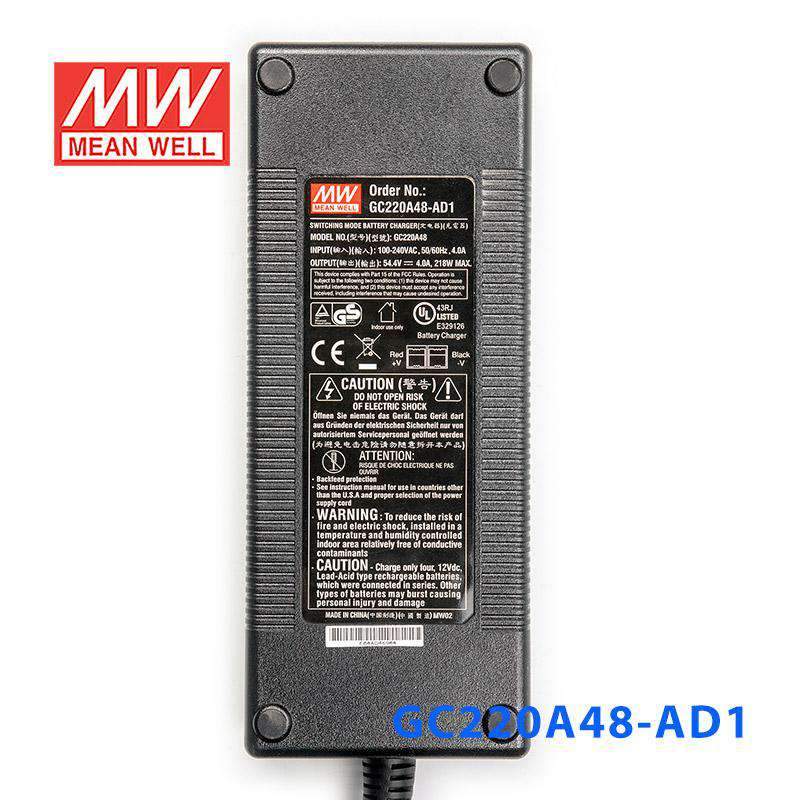

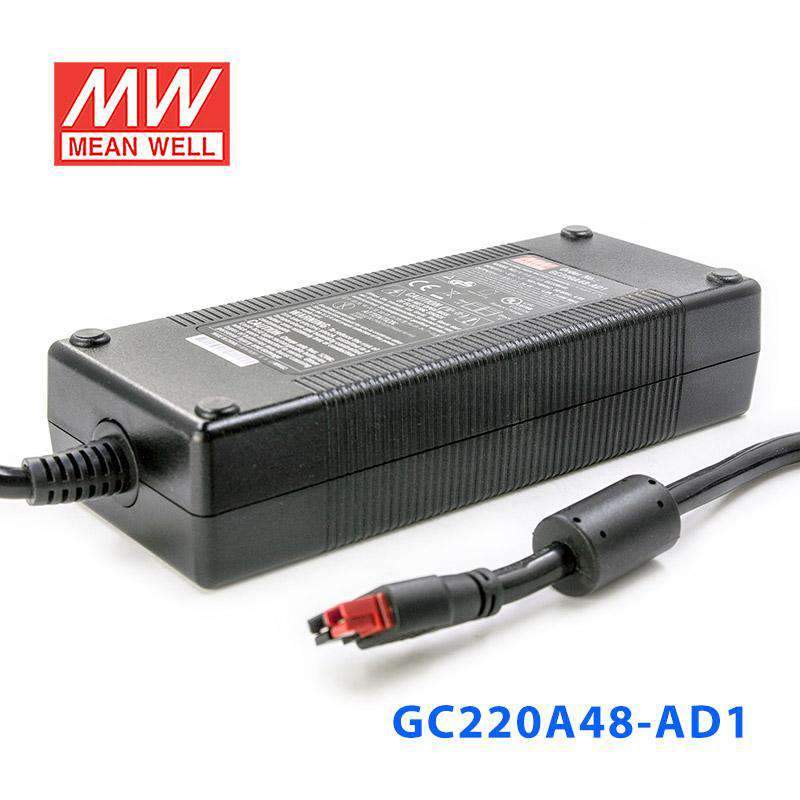

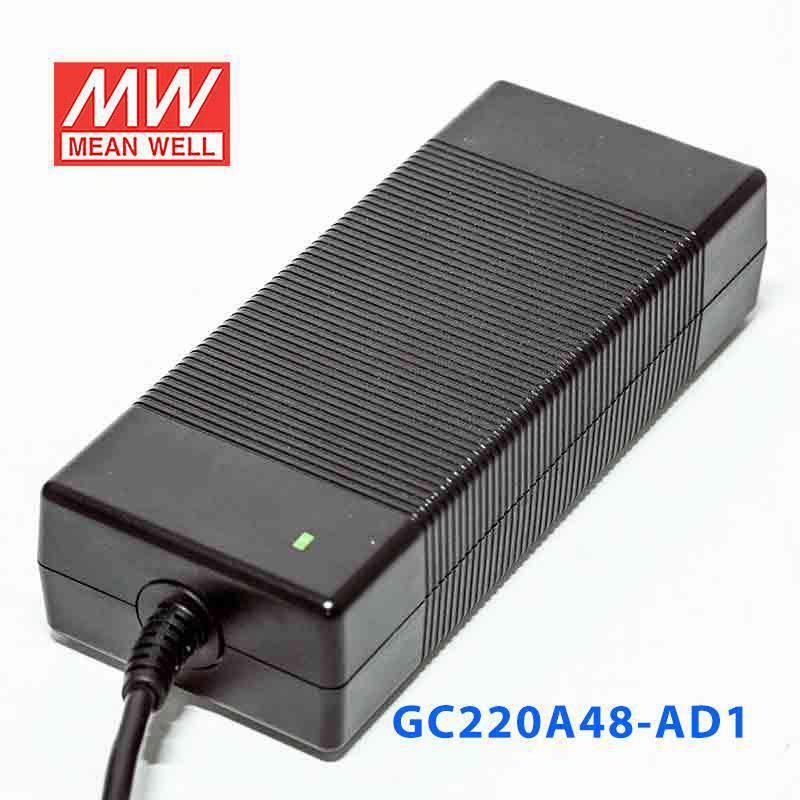

Mean Well GC220A48-AD1 Portable Chargers 217.6W 54.4V 4A - Green Adaptor

SKU GC220A48-AD1
$76.50 USD
Shipping calculated at checkout.
In stock
|

Overview

GC220A48-AD1 is the model of this series: rated power 217.6W, typical efficiency 93%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.90
  • No load power consumption<1W
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC220A48-AD1Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC220A48
DC VOLTAGE (Typ.)
54.4V
RECOMMENDED BATTERY CAPACITYNote.3
20 ~ 65Ah
CONTINUOS OUTPUT CURRENT (Typ.)
4A
RATED POWER
217.6W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.90 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
93%
AC CURRENT
4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
1.5mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
95℃±10℃(TSW1) detect on heatsink of power transistor Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-30 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 6
UL1012 (for GC220Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, EAC TP TC 020

OTHERS

MTBF
1557.3K hrs min. Telcordia SR-332 (Bellcore) ; 170.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
210*85*46mm (L*W*H)
PACKING
1.1Kg; 12pcs/14.2Kg/0.73CUFT(GC220Axx-R7B) 1.2Kg; 12pcs/15.4Kg/1CUFT(GC220Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that whole system complies with the EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

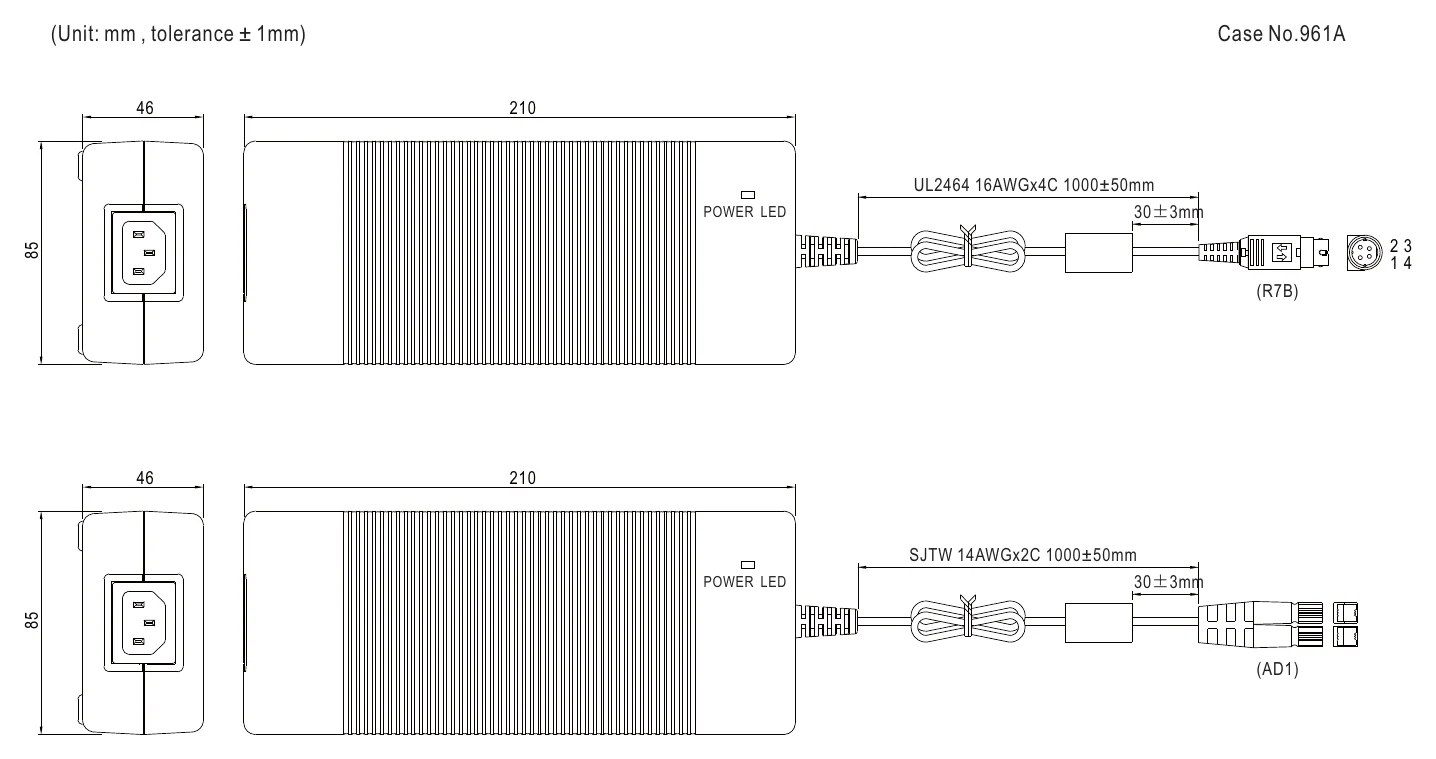

GC220A48-AD1 Mechanical Specification
Mechanical Specification

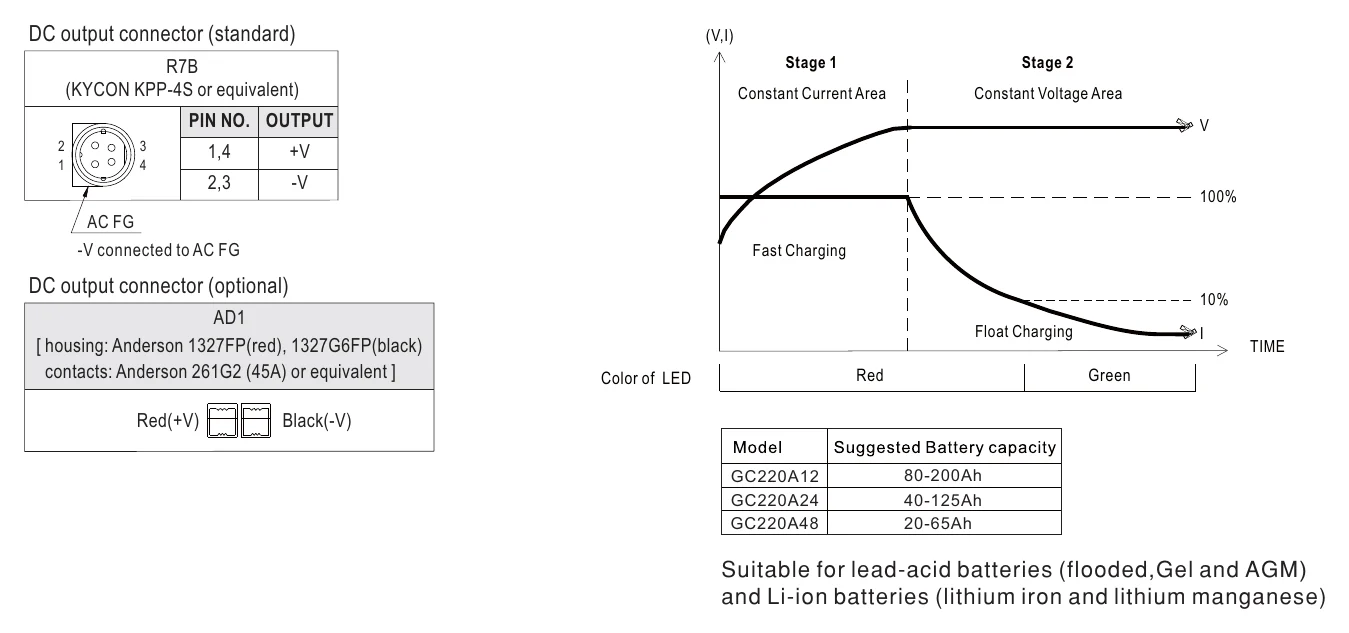

GC220A48-AD1 Plug Assignment
Plug Assignment

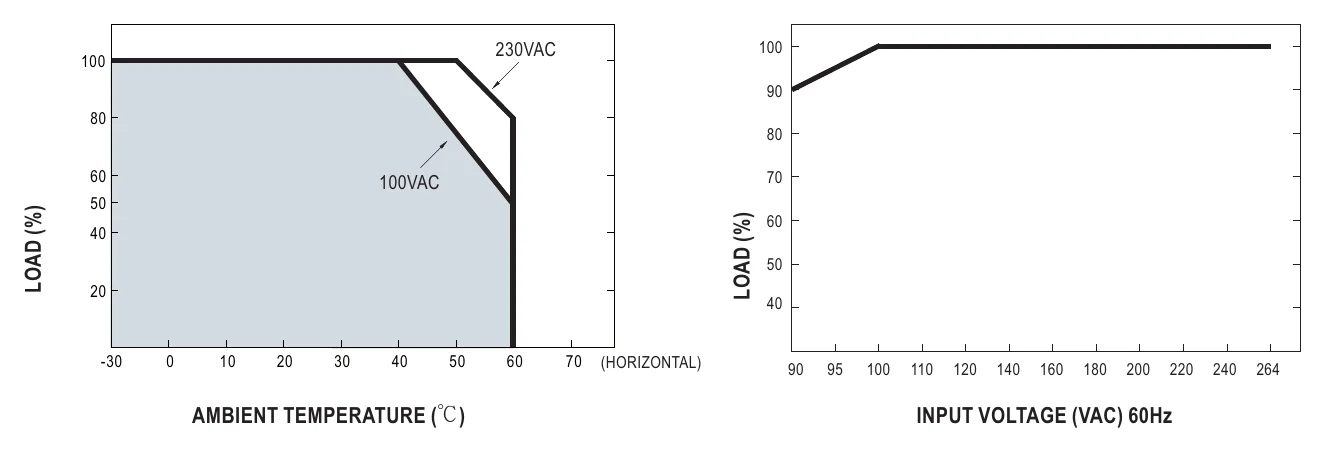

GC220A48-AD1 Derating Curve
Derating Curve

Downloads

FAQ

What is the output rating of the Mean Well GC220A48-AD1?

The GC220A48-AD1 is rated for 217.6W output. It provides 54.4V DC at 4A, which makes it suitable for battery charging applications that match those electrical requirements. This model is part of Mean Well's GC220 battery charger series.

What kind of applications is the GC220A48-AD1 designed for?

This model is intended for charging lead-acid (flooded, Gel and AGM) and Li-ion batteries in commercial and industrial settings, with a recommended capacity of 20 to 65Ah. Its 54.4V, 4A output fits battery-charging applications that require that specific charging profile. Buyers typically consider it when they need a compact enclosed charger from a recognized industrial power brand.

What input range does the Mean Well GC220A48-AD1 support?

The GC220A48-AD1 accepts a universal AC input range of 90 to 264VAC, and it also supports 127 to 370VDC input. That wide range helps simplify purchasing for organizations operating across different mains standards. It also includes built-in active PFC.

Can this charger be used in demanding temperature conditions?

The specified operating temperature range is -30°C to +60°C, subject to the manufacturer's derating curve. That makes it a practical option for buyers evaluating chargers for harsher indoor or light industrial environments. As with any power product, performance expectations should stay within the published operating limits.

What protection and safety features does the GC220A48-AD1 include?

This model includes protection for short circuit, overload, over voltage, and over temperature. The overload protection operates at 90 to 110% of rated output power with constant current limiting and auto-recovery, while over-voltage protection shuts down output and recovers after re-powering. It is also approved to TUV BS EN/EN62368-1 and UL1012 for the GC220Axx-AD1 models.

How efficient is the Mean Well GC220A48-AD1 compared with lower-efficiency chargers?

The GC220A48-AD1 has a typical efficiency of 93%. Higher efficiency generally helps reduce wasted energy and heat compared with less efficient alternatives. It also has no-load power consumption below 1W.
