Mean Well GC160A24-AD1 Portable Chargers 160.2W 27.2V 5.89A - Green Adaptor

class I powerno load power consumption < 1.0W2 stage charging
SKU GC160A24-AD1
$53.99 USD
Shipping calculated at checkout.
In stock
|

Overview

GC160A24-AD1 is the model of this series: rated power 160.2W, typical efficiency 92.5%.

Features

  • Charger for lead-acid batteries (flooded,Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese) (Note.1)
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.94
  • No load power consumption<1W
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: UL / TUV / EAC / CB / FCC / CE / UKCA
  • 2 years warranty

Specifications

GC160A24-AD1Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

SAFETY MODEL NO.
GC160A24
DC VOLTAGE (Typ.)
27.2V
RECOMMENDED BATTERY CAPACITYNote.3
30 ~ 90Ah
CONTINUOS OUTPUT CURRENT (Typ.)
5.89A
RATED POWER
160.2W
LED INDICATOR
Charging(CC) : RED Floating charging(CV) : GREEN

INPUT

VOLTAGE RANGENote.4
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.)
92.5%
AC CURRENT
1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.)
120A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOADNote.5
90 ~ 110% rated output power Protection type : Constant current limiting recovers automatically after fault condition is removed
SHORT CIRCUIT
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
90℃±10℃ (RTH2) detect on inside ambient temperature Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6
UL1012 (for GC160Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2197.9K hrs min. Telcordia SR-332 (Bellcore) ; 274.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
175*72*35mm (L*W*H)
PACKING
0.7Kg; 20pcs/15Kg/0.95CUFT(GC160Axx-R7B) 0.77Kg; 20pcs/16.4Kg/1.15CUFT(GC160Axx-AD1)

CONNECTOR

PLUG
See page 2 ; Other type available by customer requested
CABLE
See page 2 ; Other type available by customer requested
Test conditions and notes7
  1. 1. Modification for charger specification may be required for different battery specification. Please contact battery vendor and MEAN WELL for details.
  2. 2. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  3. 3. This is MeanWell's suggested range, please consult your battery manufacturer for their suggestions about maximum charging current limitation.
  4. 4. Derating may be needed under low input voltage. Please check the derating curve for more details.
  5. 5. Constant current operation region is within 50~100% rated output voltage.
  6. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

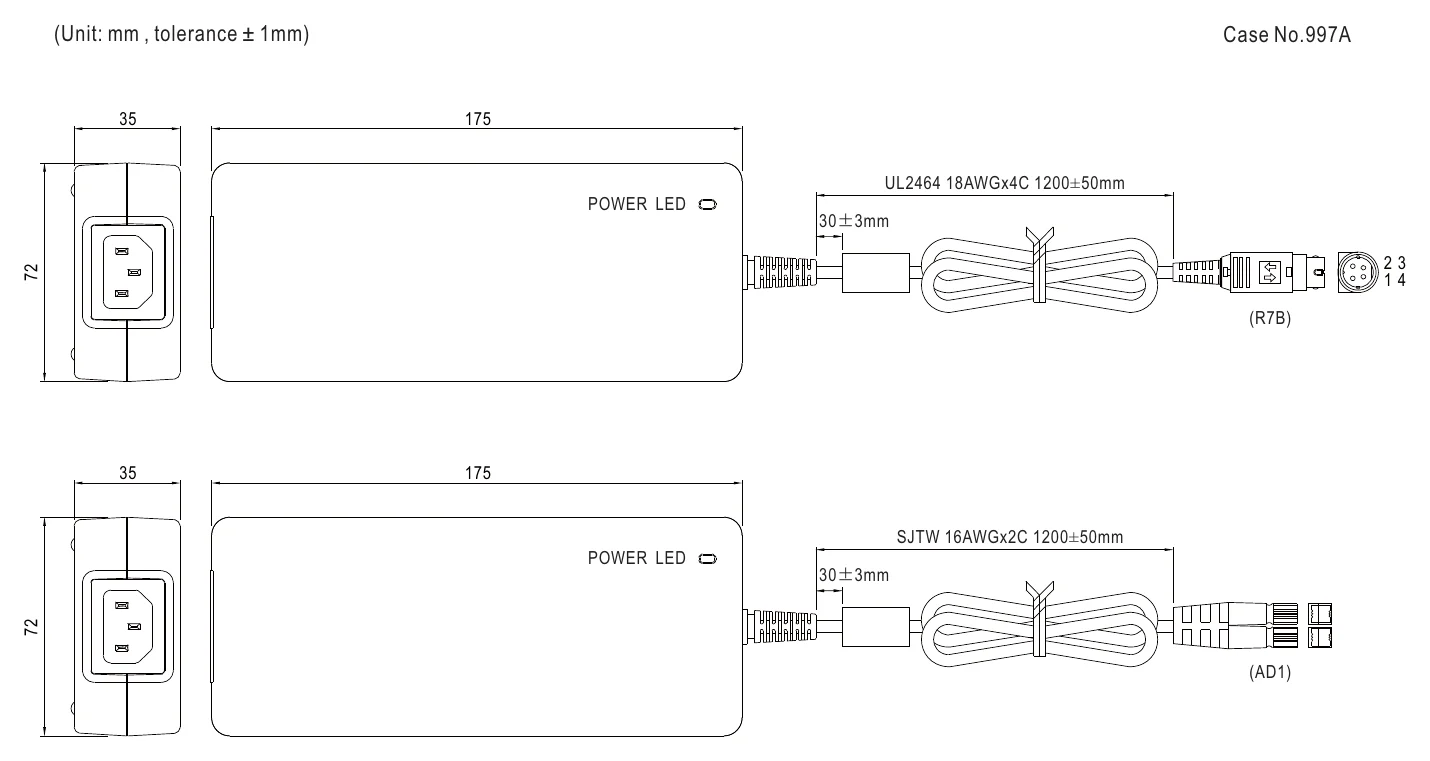

GC160A24-AD1 Mechanical Specification
Mechanical Specification

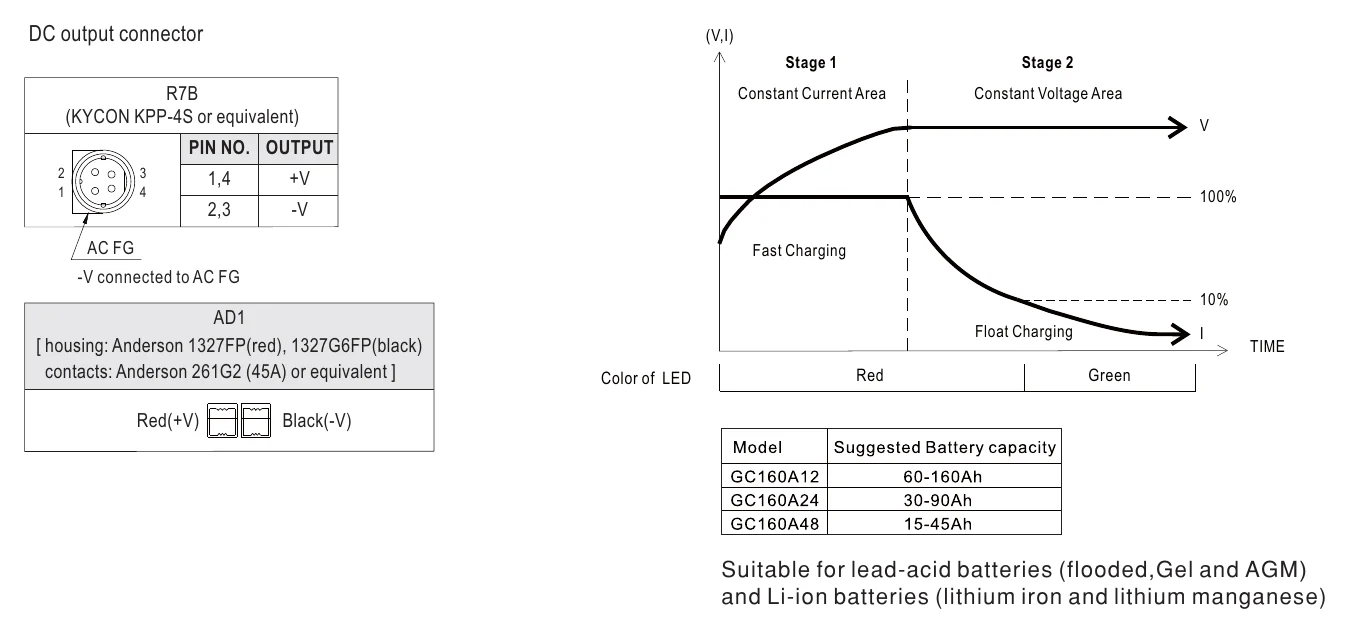

GC160A24-AD1 Plug Assignment
Plug Assignment

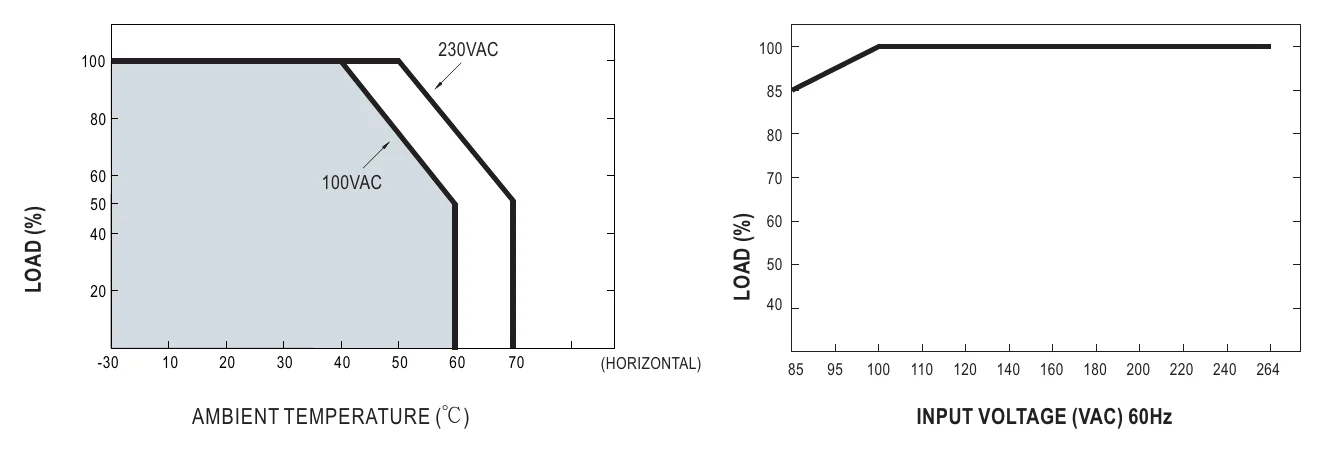

GC160A24-AD1 Derating Curve
Derating Curve

Downloads

FAQ

What is the Mean Well GC160A24-AD1 designed for?

The GC160A24-AD1 is a 160.2W AC/DC battery charger for lead-acid (flooded, Gel and AGM) and Li-ion batteries. It provides a 27.2V output at 5.89A, with a recommended battery capacity of 30 to 90Ah, making it suitable for commercial and industrial battery charging applications.

What are the key output specifications of this model?

This model is rated for 160.2W total output power. Its nominal output is 27.2V DC with a rated current of 5.89A, which distinguishes it within Mean Well's GC160 charger series.

What input range does the GC160A24-AD1 support?

The unit accepts a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide range helps buyers standardize on one charger for use across different regions and power environments.

Is this charger suitable for demanding industrial environments?

Yes, this model is specified for operation from -30°C to +70°C, subject to the derating curve. It also includes protections for short circuit, overload, over voltage, and over temperature, which supports use in tougher operating conditions.

How efficient is the Mean Well GC160A24-AD1?

The GC160A24-AD1 has a typical efficiency of 92.5%, which helps reduce wasted energy and heat generation. It also has no-load power consumption below 1W, which is useful for applications where standby power matters.

What features make this model different from a basic desktop power adaptor?

Unlike a basic adaptor, this model includes built-in active PFC, a 2-stage charging characteristic, and charging-status indication with a 2-color LED. It is also built as a fully enclosed Class I unit with an IEC320-C14 AC inlet and free-air convection cooling.

What compliance and warranty details are available for this model?

The AD1 version carries UL1012 and TUV BS EN/EN62368-1 safety approval plus EAC, with EMC compliance including EN55032 Class B and FCC Part 15 Class B. Mean Well specifies a 2-year warranty for this model.
