Mean Well XLG-75-L-DA2 Power Supply 74.9W 700mA - DALI2 Dimmable
Overview
XLG-75-L-DA2 is the model of this series: rated power 74.9W, typical efficiency 90%.
XLG-75-DA2 series is a 75W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-75-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-75-DA2 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( ClassⅠ)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Class 2 power unit(except for L type)
- Surge protection with 6KV/4KV

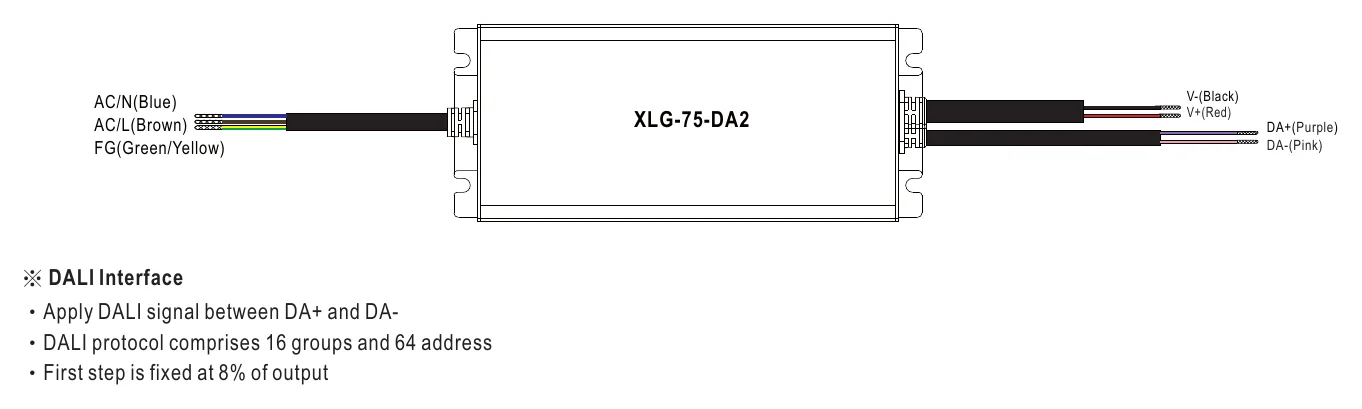

- DALI-2 Dimming with minimum level 8%
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: SCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- RATED CURRENT(Default)
- 700mA
- RATED POWER
- 74.9W
- CONSTANT CURRENT REGION
- 53 ~ 107V
- FULL POWER CURRENT RANGE
- 700~1050mA
- OPEN CIRCUIT VOLTAGE (max.)
- 115V
- CURRENT ADJ. RANGE
- (Via the built-in potentiometer) 350~1050mA
- CURRENT RIPPLE
- 5.0%(@ full load)
- CURRENT TOLERANCE
- ±5%
- SET UP TIME
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.4

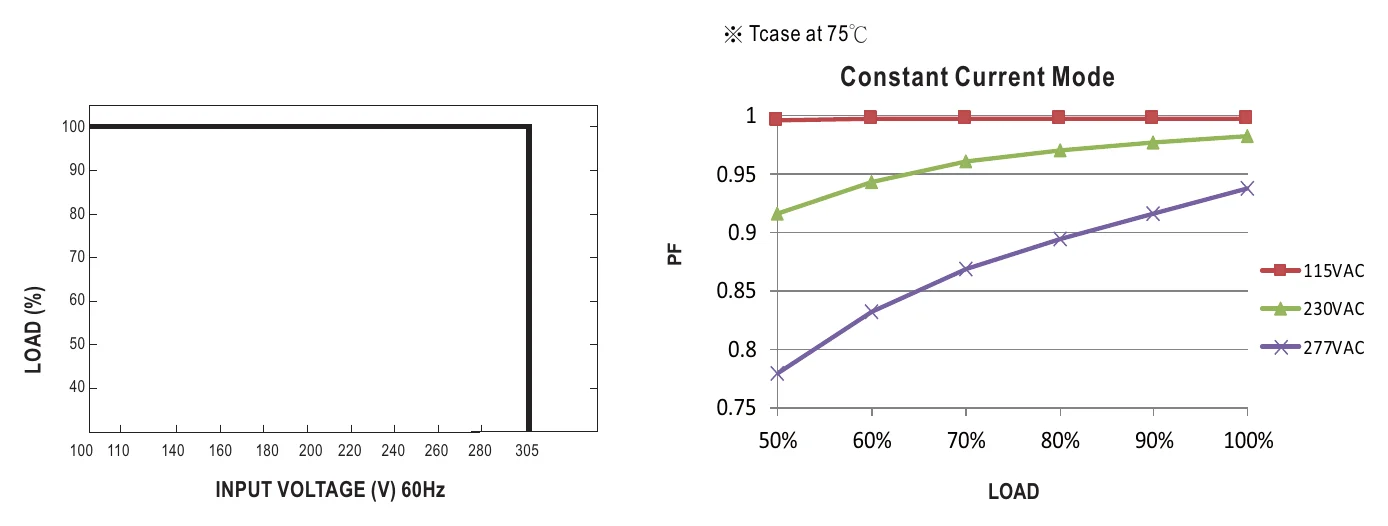

- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" and " DRIVING METHODS OF LED MODULE"section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION

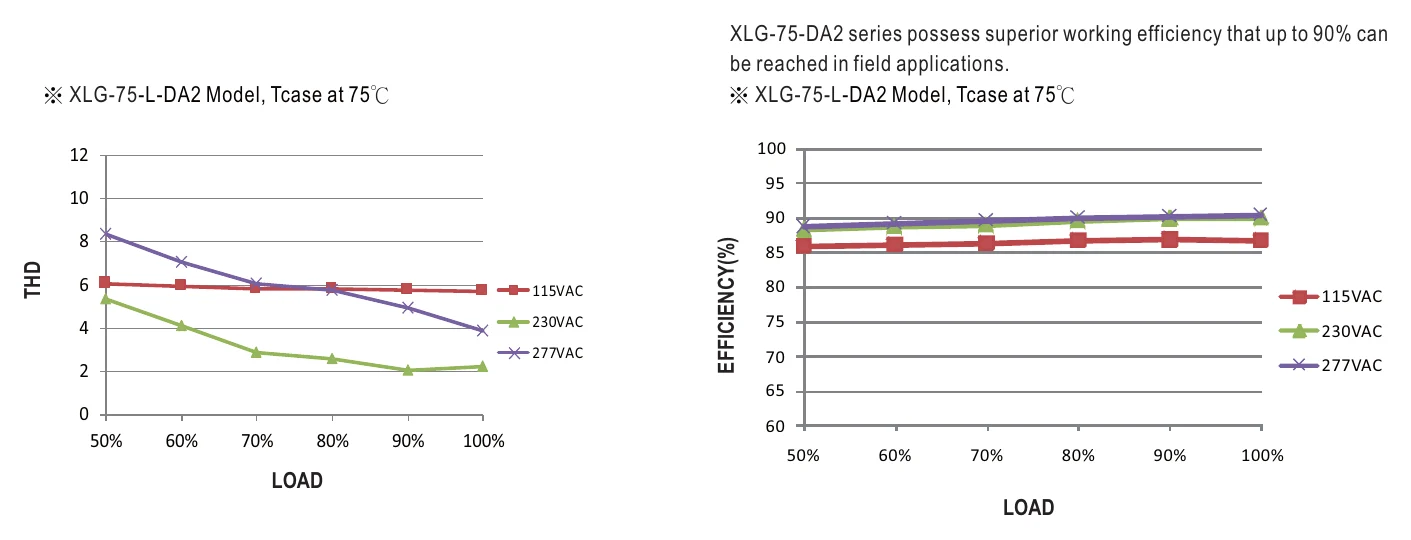

- THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)
- 90%
- AC CURRENT (Typ.)
- 1A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=360μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 8 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W (Dimming off)(For standard version)
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- INPUT OVER VOLTAGENote.7
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
- OVER TEMPERATURE
- Stage 1: Derating to 75% loading; Stage 2: Derating to 50% loading. recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.

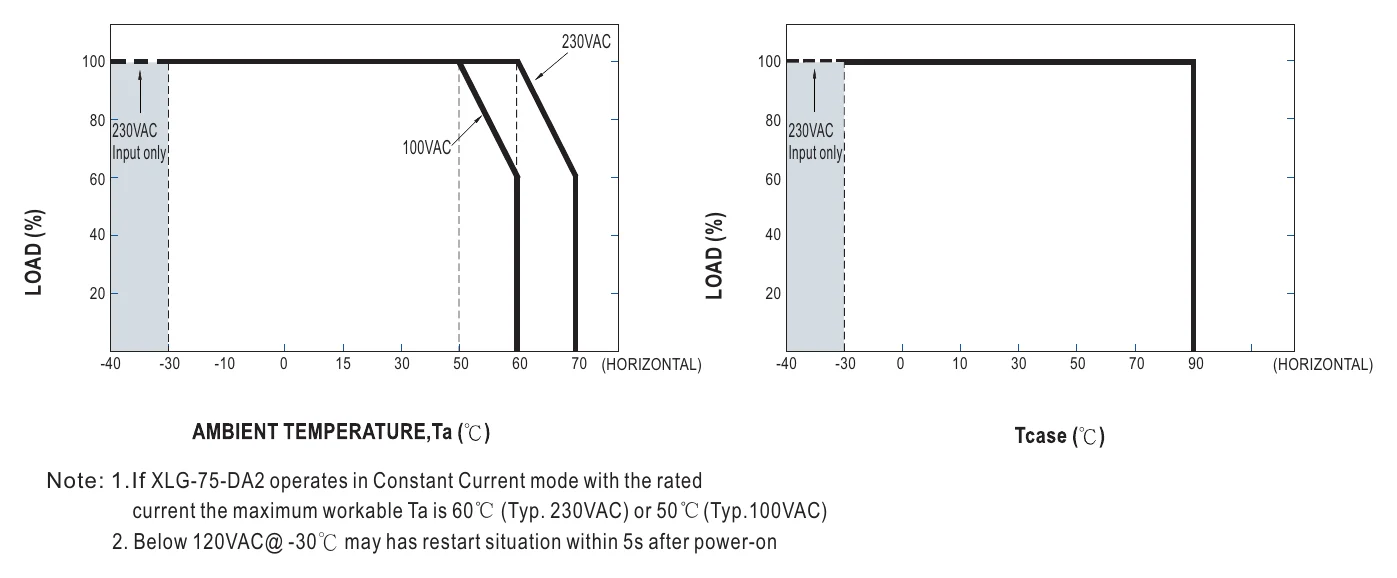

- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, BS EN/EN62384; IS 15885(Part2/Sec13)(for XLG-75I-DA2 only); GB/T19510.1,GB/T19510.213; EAC TP TC 004; IP67 approved
- DALI STANDARDS
- Comply with IEC62386-101, 102, 207, 251, Device type 6(DT6)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 3 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 3 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2489.3Khrs min. Telcordia SR-332 (Bellcore) ; 245.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 140*63*32mm (L*W*H)
- PACKING
- 0.58Kg;24pcs/15Kg/0.85CUFT
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.

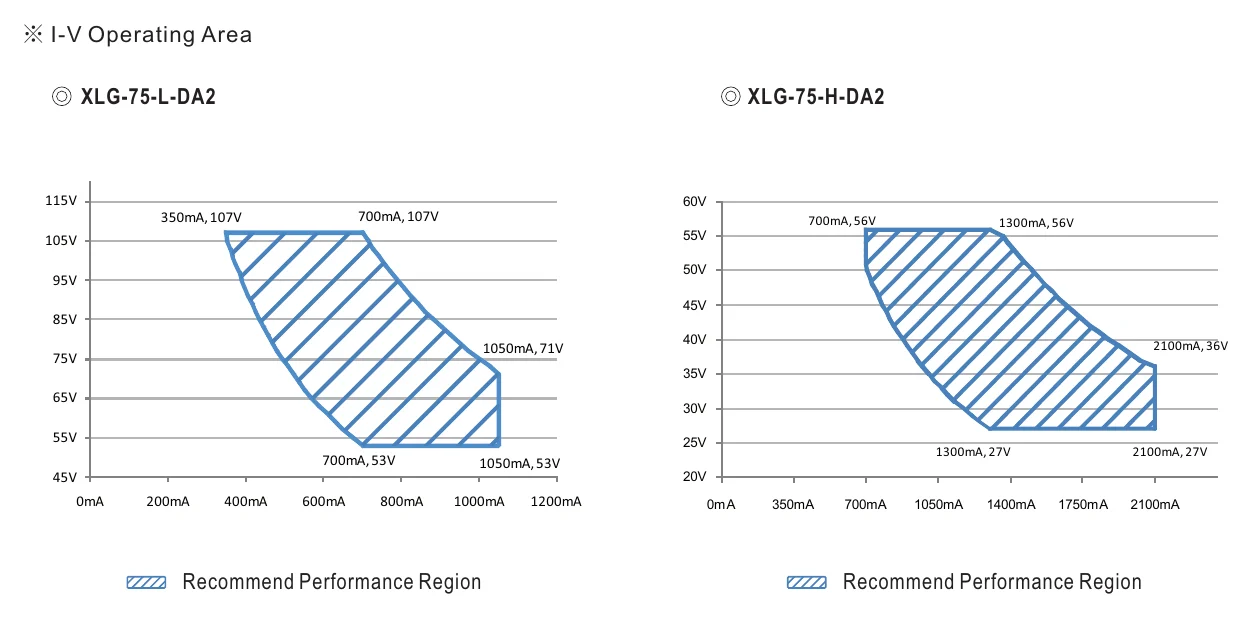

- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 6. Based on IEC 62386-101/102 DALI power on timing and interruption regulations,the set up time needs to test with a DALI controller which can support for DALI power on function,otherwise the set up time will be longer than 500ms.
- 7. Input over voltage only for XLG-75 I series,and I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

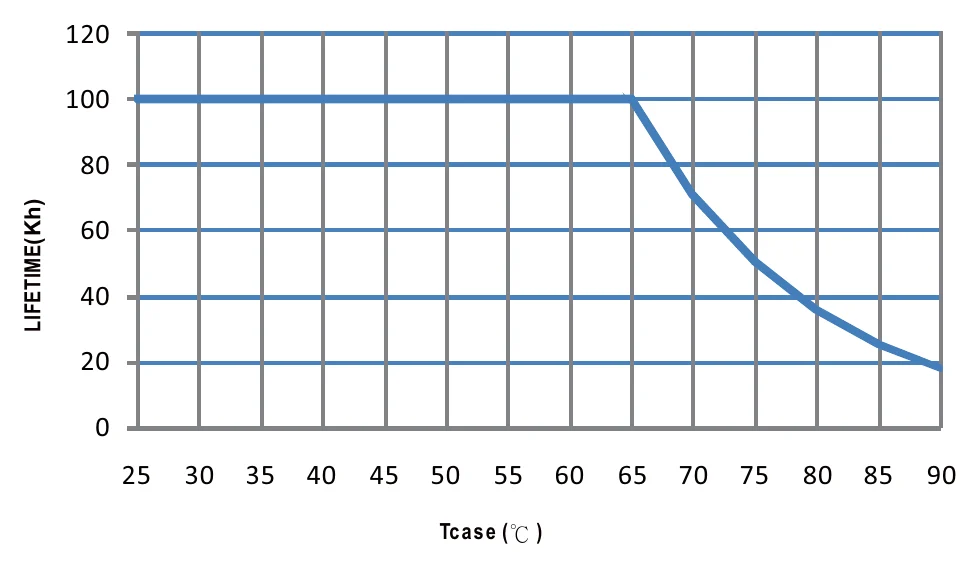

- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations;
- 15. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 16. This series need to consider build in using to comply with Type HL application.

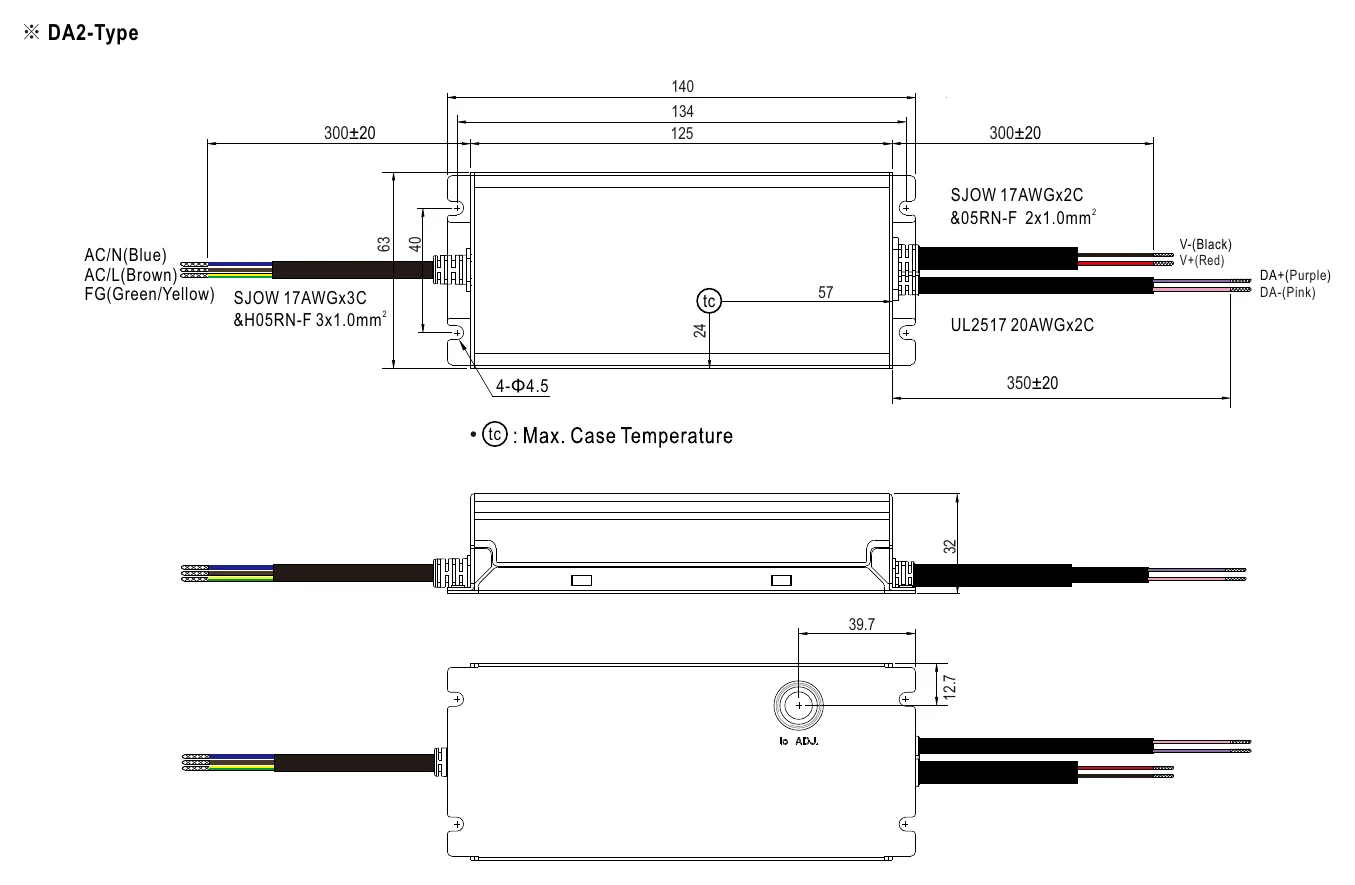

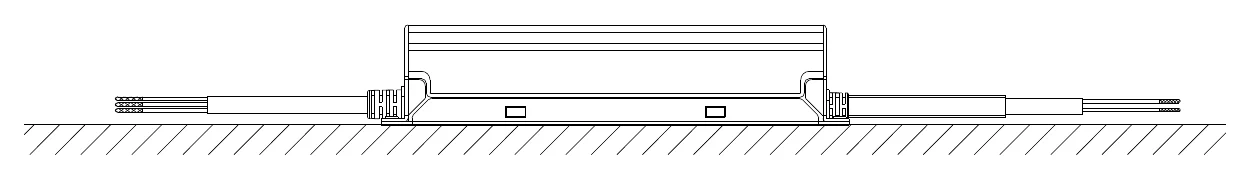

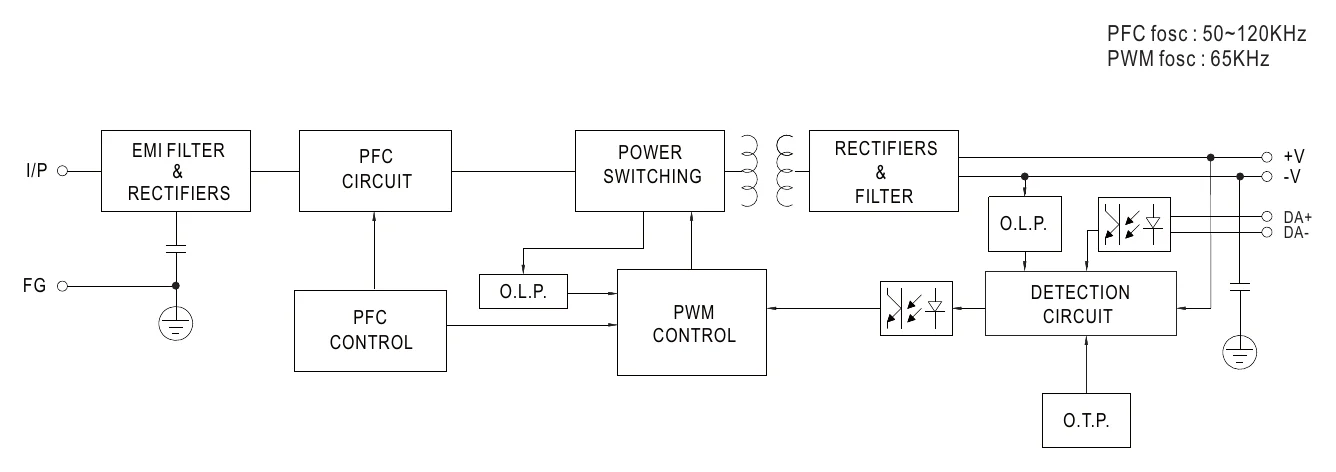

Technical drawings
Typical applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- Type HL for use in classⅠ, Division 2
Downloads
Datasheet1
FAQ
Can the XLG-75-L-DA2 power a series string of LED downlights operating at mid-range voltage?
Yes. The XLG-75-L-DA2 provides 74.9W at 700mA constant current with a CC voltage region of 53–107V, which suits series strings of LED downlight modules whose combined forward voltages fall within that range. DALI2 compatibility allows smooth integration with standard dimming systems.
Is the XLG-75-L-DA2 appropriate for LED signage modules arranged in a longer series string?
Yes. The 53–107V constant current region supports a longer series LED arrangement than lower-voltage drivers, making it practical for channel-letter signage or linear LED sign modules. The actual module count depends on each module's individual forward voltage.
Can I install the XLG-75-L-DA2 in an outdoor or weatherproof enclosure?
Yes. The driver carries an IP67 waterproof rating and operates across -40°C to +90°C, so it is suitable for mounting in sealed outdoor enclosures or luminaires exposed to rain, moisture, and extreme temperatures.
Can the XLG-75-L-DA2 be used in a DALI2-controlled dimming circuit?
Yes. The driver is DALI2 dimmable with a minimum dimming level of 8% and supports current adjustment from 350–1050mA via the built-in potentiometer, allowing flexible integration with DALI2 controllers for zonal or individual fixture dimming.
How many LEDs can the XLG-75-L-DA2 support in series?
The constant current region spans 53–107V, so the number of LEDs depends on the forward voltage of each LED used. Select LEDs whose combined series forward voltages sum to between 53V and 107V at your target operating current of up to 700mA.
How does the XLG-75-L-DA2 compare to the XLG-75-H-DA2?
Both occupy the 75W DALI2 class with identical 140 × 63 × 32 mm housings and IP67 ratings. The XLG-75-L-DA2 targets longer mid-voltage strings with a CC region of 53–107V and adjustable current of 350–1050mA, while the XLG-75-H-DA2 targets shorter lower-voltage strings with a CC region of 27–56V and adjustable current of 700–2100mA.
