Mean Well XLC-40-H-MA LED Driver 40W 1050mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming

Name: Mean Well XLC-40-H-MA LED Driver 40W 1050mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming
Brand: Mean Well
SKU: XLC-40-H-MA
Price: 144.21 USD
Availability: InStock

$144.21 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XLC-40-H-MA is the model of this series: rated power 40W, typical efficiency 88%.

XLC-40-MA series is a 40W with constant power output LED driver . It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by DIP switch . Thanks to high efficiency up to 88%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-40-MA series is designed based on latest safety regulations with Matter wireless dimming.It provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by DIP switch
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Minimum dimming level 0.5%
Matter over thread, Matter 1.3 specification
5 years warranty

Specifications

XLC-40-H-MASpecifications from the official datasheet (2025-02-24 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE^Note.2: 60V
DEFAULT CURRENT: 1050mA
CURRENT ADJ.RANGE (BY DIP SWITCH): 0.6~1.4A
CONSTANT CURRENT REGION^Note.3: 9~54V
RATED POWER^Note.4: 40W
CURRENT RIPPLE: <4%(@full load)
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP, RISE TIME^Note.5: 2500ms, 100ms/230VAC, 2500ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.6: 88%
AC CURRENT: 0.5A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 51 units (circuit breaker of type B) / 51 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^Note.7: Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations( DC input 176-280V DC); BS EN/EN62384, GB/T 19510.1, GB/T 19510.213, EAC TP TC 004 ; CSA C22.2 No. 250.13-12 approved ; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13;
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: >100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

MATTER STANDARD: Matter 1.3 Specification
FLICKER^Note.8: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3935.2 K hrs min. Telcordia SR-332 (Bellcore); 342.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 147*40*32mm,107*40*32mm (L*W*H)
PACKING: 193g; 60pcs/12.58Kg/0.58CUFT(for blank type); 210g; 50pcs/11.5Kg/0.57CUFT(for S-type)

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Output hiccups under no-load condition.
3. Please refer to “DRIVER METHODS OF LED MODULE”.
4. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. Efficiency is measured at 800mA/50V output set by dip-switch.
7. Standby power consumption is measured at 230VAC.
8. Flicker is measured at full load with LED modules.
9. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
10. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
12. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
13. For more information, please contact with MEAN WELL sales.

Technical drawings

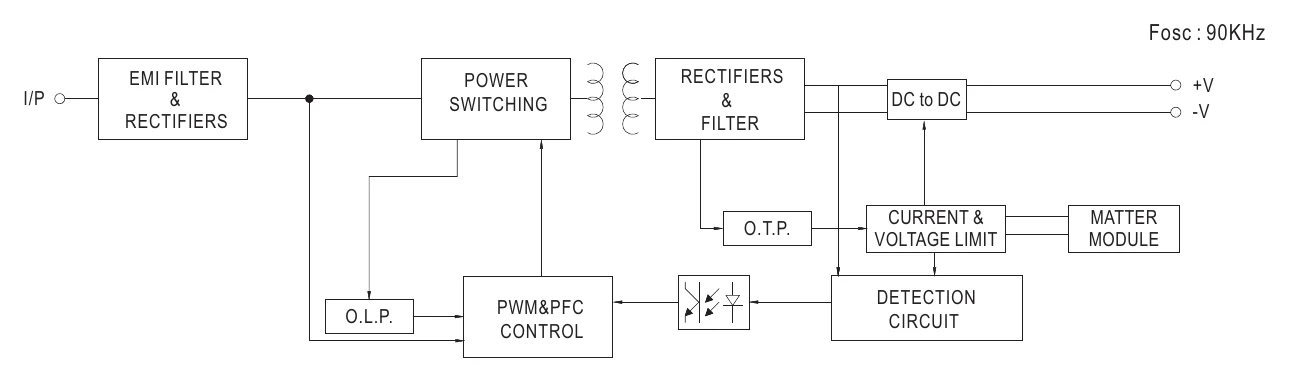

XLC-40-H-MA BLOCK DIAGRAM — BLOCK DIAGRAM

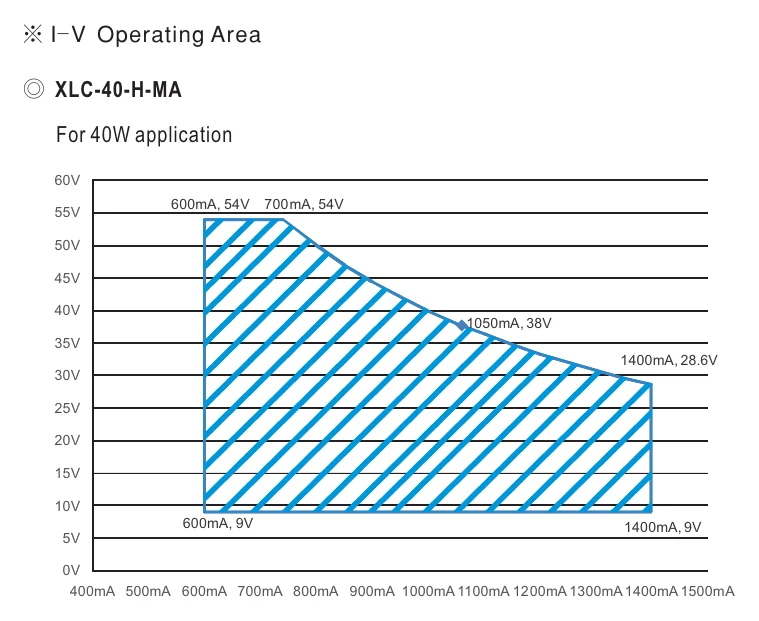

XLC-40-H-MA DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

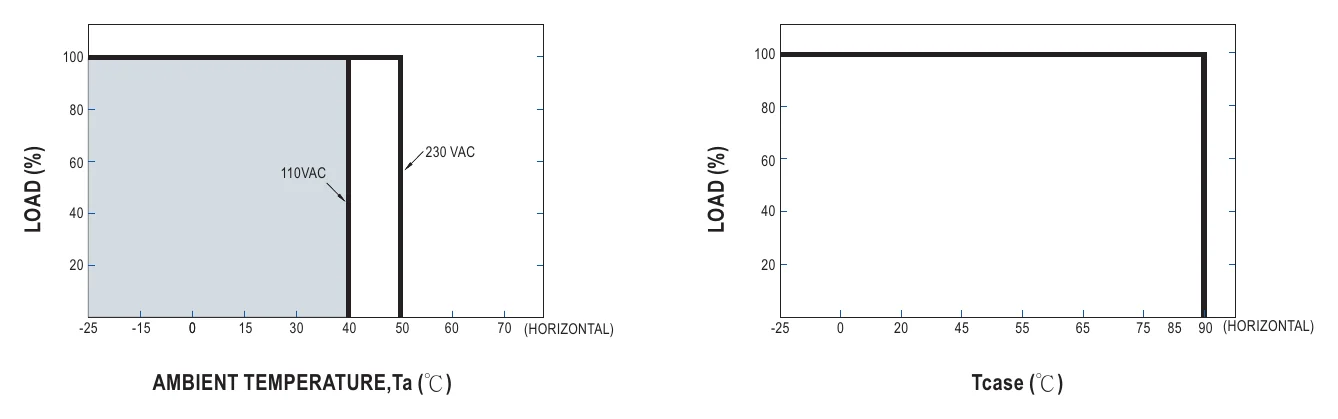

XLC-40-H-MA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

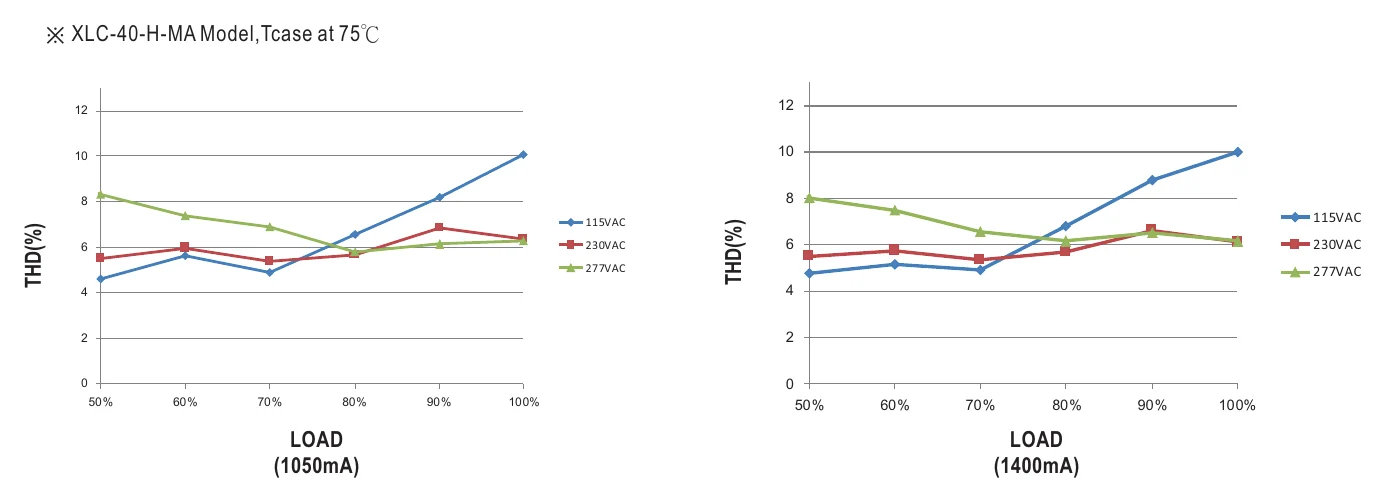

XLC-40-H-MA TOTAL HARMONIC DISTORTION (THD) — TOTAL HARMONIC DISTORTION (THD)

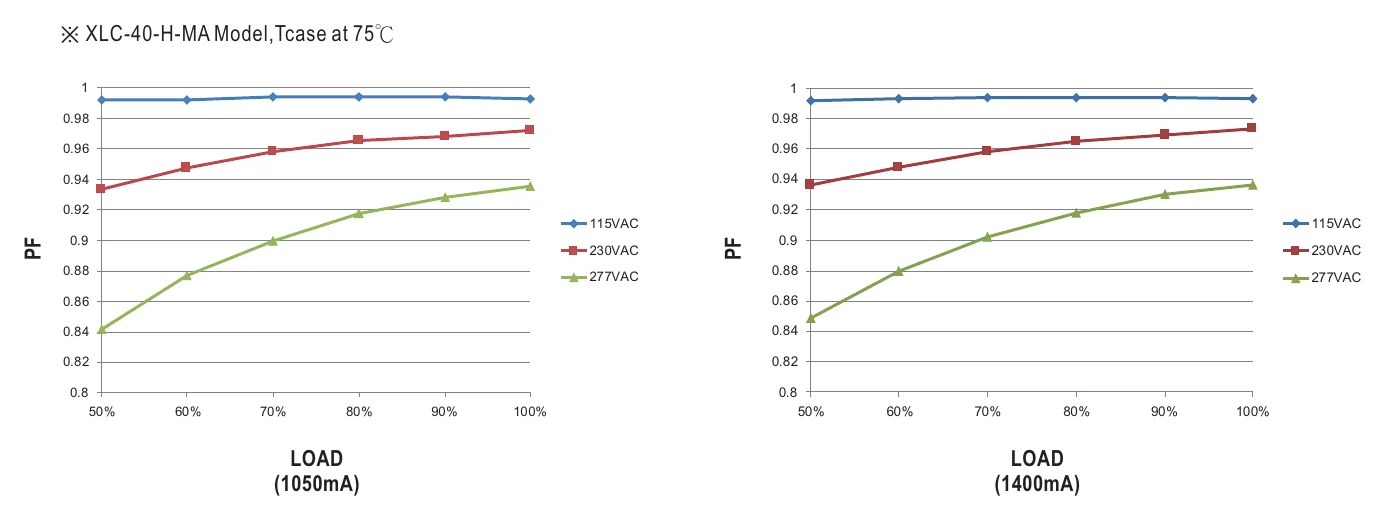

XLC-40-H-MA POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

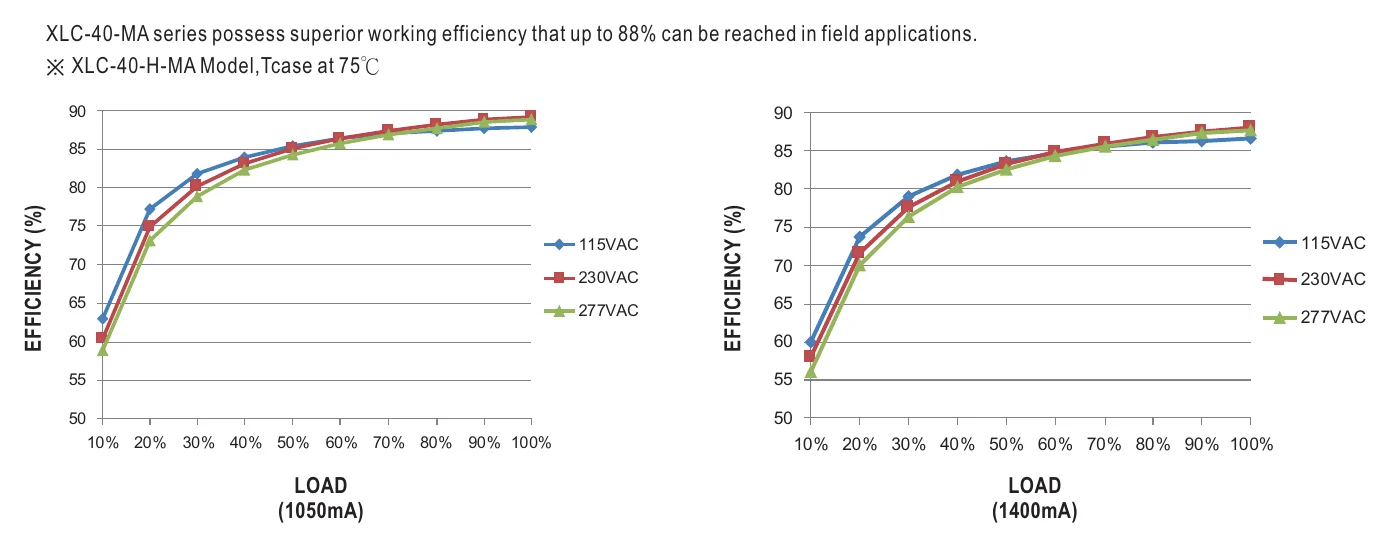

XLC-40-H-MA EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

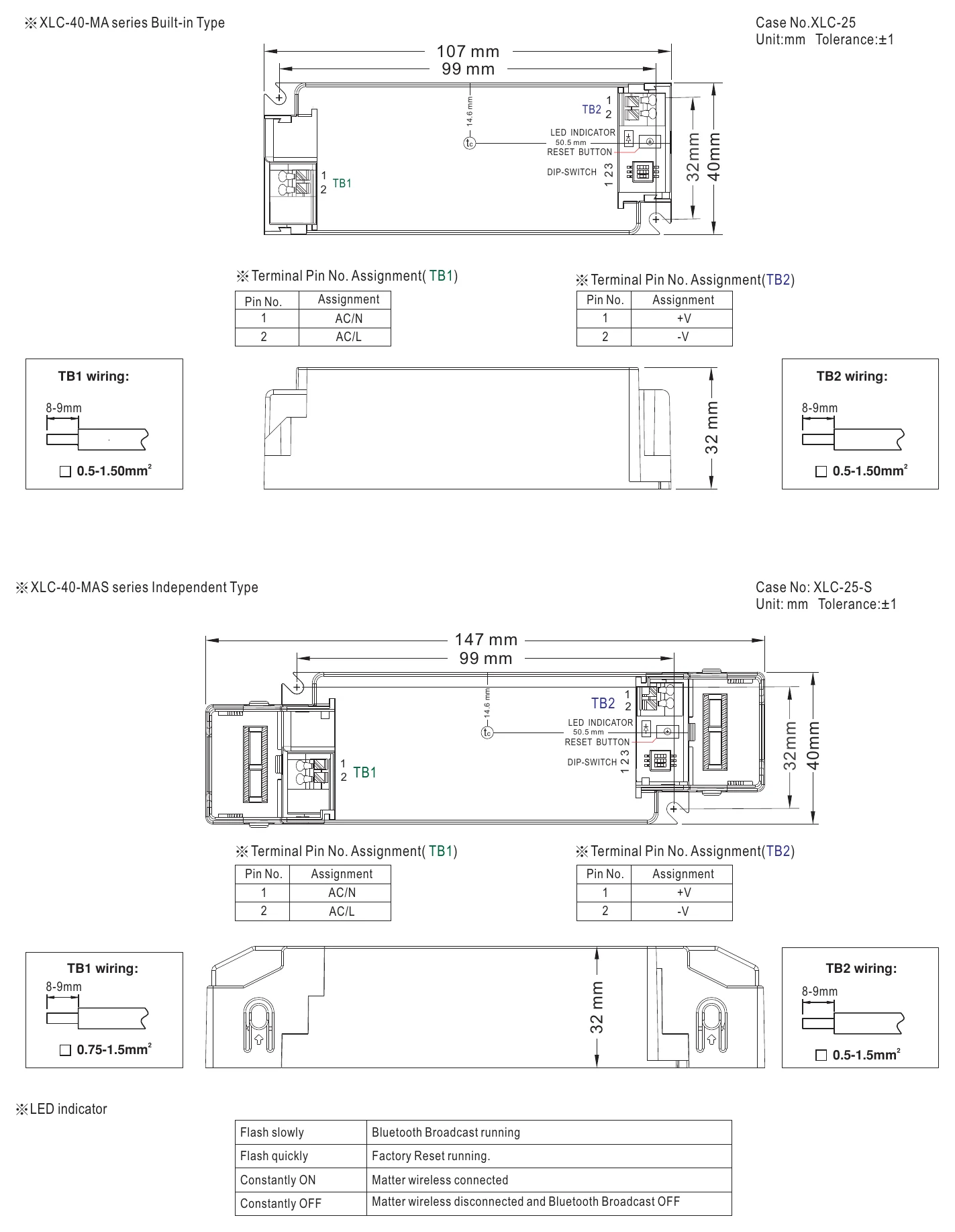

XLC-40-H-MA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

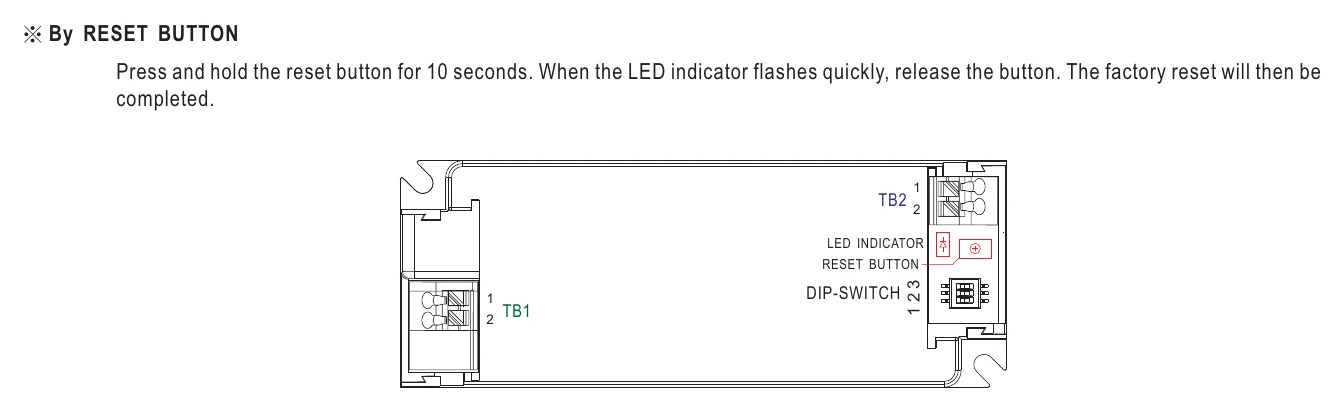

XLC-40-H-MA ※ By RESET BUTTON — ※ By RESET BUTTON

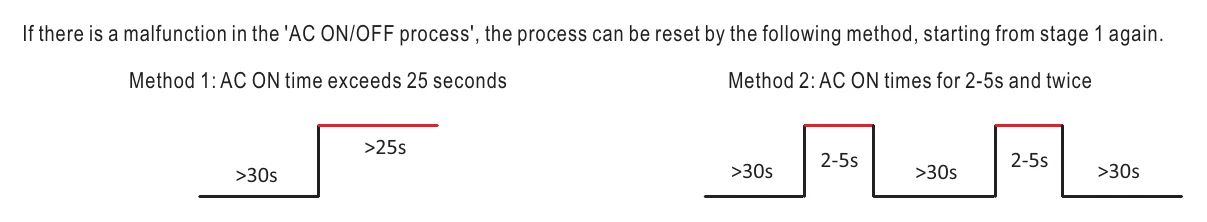

XLC-40-H-MA FACTORY RESET — FACTORY RESET

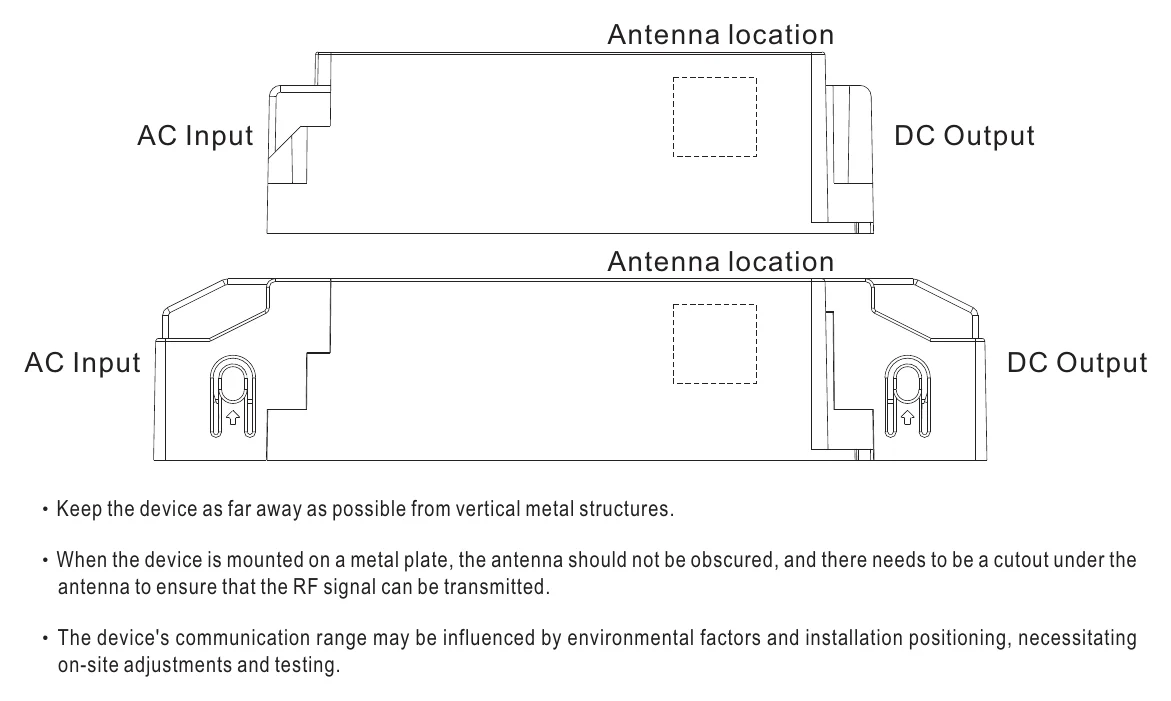

XLC-40-H-MA Antenna location — Antenna location

Typical applications

Downloads

Datasheet1

XLC-40-H-MA datasheetXLC_40_MA_MAS_spec_sheet.pdf · 2025-02-24 edition PDF Download

FAQ

Can I control the XLC-40-H-MA wirelessly from a smartphone or smart home hub?

Yes, the XLC-40-H-MA supports Matter 1.3 wireless dimming, enabling control from any Matter-compatible app, voice assistant, or smart home hub such as Apple Home, Amazon Alexa, or Google Home. It dims down to a minimum level of 0.5%, and the current adjustment range spans 0.6–1.4A via dip switch for load matching.

Is the XLC-40-H-MA suitable for powering LED downlights in a Matter-based smart lighting installation?

The XLC-40-H-MA is a practical choice for smart downlight installations built on the Matter 1.3 protocol. It delivers 40W at 1050mA constant current with a CC voltage range of 9–54V, covering most common LED downlight modules. The flicker-free output (PstLM ≤ 1, SVM ≤ 0.4) is appropriate for living or office environments where light quality is important.

Can the XLC-40-H-MA power LED modules in a residential cove or accent lighting application with wireless dimming?

Yes, the XLC-40-H-MA suits cove and architectural LED accent lighting where scene-based wireless dimming is needed. Its 40W constant current output at 1050mA can drive LED arrays with forward voltages within the 9–54V CC range, and Matter 1.3 enables integration with automated scenes or occupancy controls without running a separate dimmer circuit.

Does the XLC-40-H-MA work at 100VAC input such as in Japan or on 100V circuits?

Yes, the XLC-40-H-MA accepts input from 100 to 305VAC, making it compatible with 100VAC supplies in Japan and other 100V markets, as well as standard 120VAC, 220VAC, and 230VAC mains. This broad input range makes it suitable for international projects without a separate step-up transformer.

What LED array voltage range is the XLC-40-H-MA designed to drive?

The XLC-40-H-MA operates with a CC output voltage range of 9–54V, accommodating a wide range of LED arrays and modules. The number of LEDs supportable in each string depends on the forward voltage of the individual LEDs — there is no fixed LED count. Always sum the forward voltages of your specific LEDs to verify they fall within the 9–54V window.

Can the XLC-40-H-MA be installed inside a recessed luminaire or ceiling fitting?

The XLC-40-H-MA is a built-in type Class II driver for installation inside a luminaire or enclosure. Its compact 107 × 40 × 32 mm body makes it easier to fit inside tighter recessed housings. It operates from -25°C to +90°C case temperature, covering elevated temperatures typical inside enclosed downlight fixtures.
